I still would like to see some string laid out onto the hood in front of the scoop. This will dictate the air flow going into the scoop. Instead of hanging them on top of the scoop. Placement should be a third and 2/3 in front of the scoop we could see what the strings are doing as the air goes into the scoop. The problem I have an issue with the scoop is that it is too low in height.

Patience grasshopper. The knowledge will come.

Cheers
Greg

Hey cycleguy. Do you know the dimensions of the hood scoop opening (height and width) in the video?

Most scoop openings seem to range from 1.5 to 2 inches in height and 14 to 15 inches in width

Cheers
Greg

Hello Greg.

My scoop has the curved leading edge. It's taller, and wider than the standard scoop, but because it's wider, it sits on a lower portion of the hood, so the height of the scoop at the center of the hood is not that much different than that of the standard scoop.

Yes, those intakes are part of my collection of parts that at one time I fantasized about utilizing ! I believe there were only about 10-20 pairs of original weber 58mm downdrafts ever made, I think initially for Indy cars. Hilborn fabricated mechanical fuel injeciton throttle bodies to the 58mm weber intake.

So I've learned from Ned Scudder at SAAC that the original 289 race car hood scoops were aluminum.

But there were only 6 initial factory race cars growing to 32 cars in total over the Cobra's 3 year race history.

So aluminum may have made sense initially as the numbers were small.
And that might explain the wide variety of hood scoop configurations shown in period photos as they might have been hand-made aluminum , being replaced as necessary due to damages.

But as more Cobra race cars were added and later in the race history perhaps they switched to fiberglass and finalized on one configuration.

A configuration that was eventually handed down to the 427 Cobra in 1965.
Now the first production line 427 Cobra, CSX 3003, to come off the AC production line in Nov ’65 carried a hood bubble rather than a hood scoop:
http://www.clubcobra.com/photopost/d.../n_CSX3003.jpg

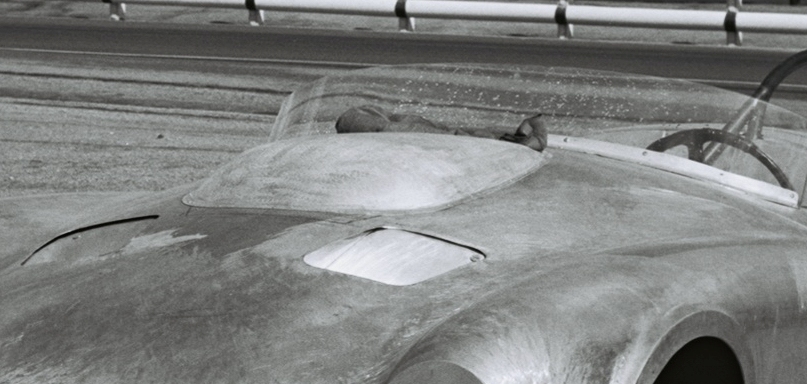

Sure looks like that hood bubble was a carry-over from The Turd:
http://www.clubcobra.com/photopost/d...The_Turd_9.jpg

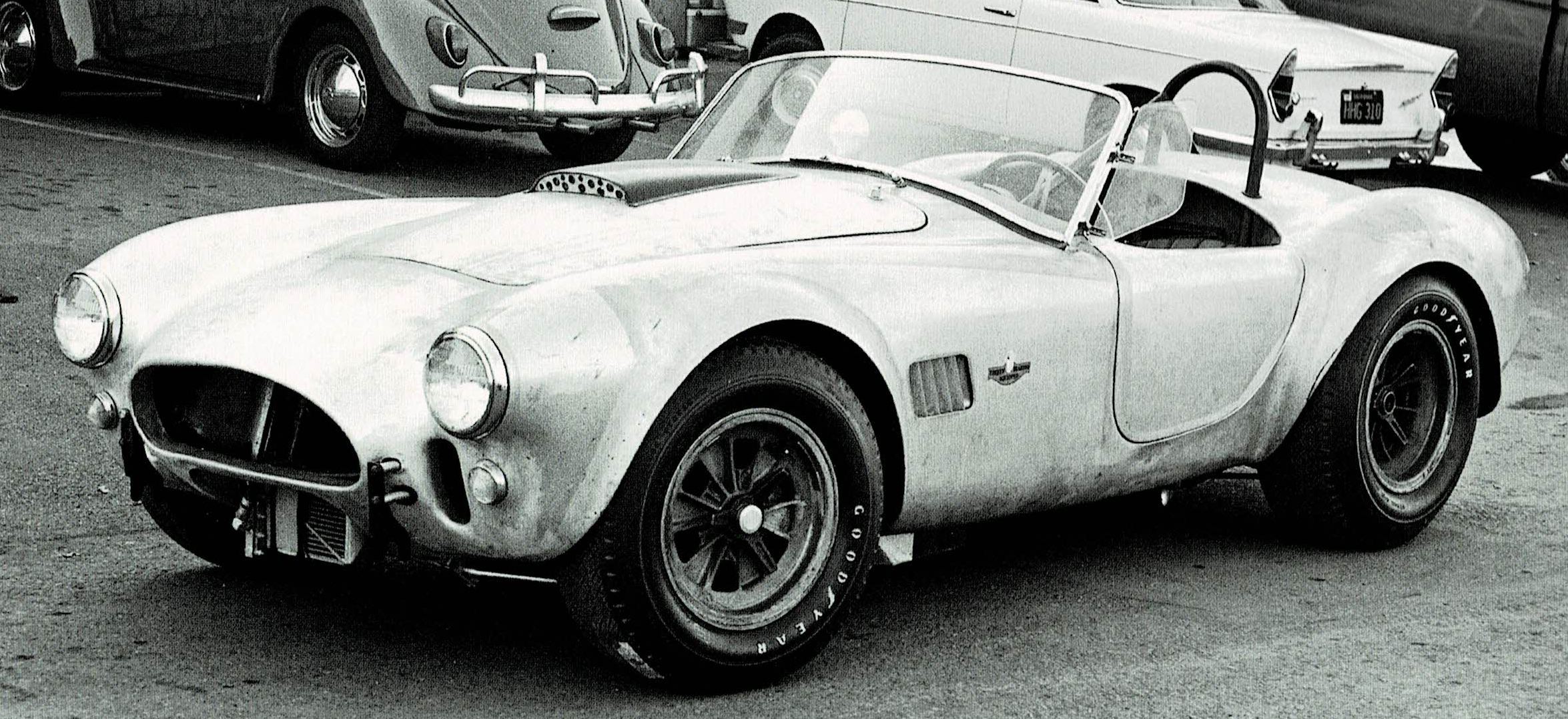

But by the time CSX3003 was finally completed at the Shelby Venice facility in May ’65 it carried a hood scoop similar to the later 289 race car hood scoops and looked to be fiberglass:
http://www.clubcobra.com/photopost/d..._in_Venice.jpg

So where did that bubble hood go?

Could that hood be hanging on a wall somewhere?

Or was the bubble cut out of CSX 3003s original hood and then a fiberglass hood scoop added?

“You are traveling through another dimension, a dimension not only of sight and sound but of mind. A journey into a wondrous land whose boundaries are that of imagination.
Your next stop, the Twilight Zone.”

Cheers
Greg

Hey Greg, I believe the bottom photo is CSX3002. Could be wrong but I think it is.
Larry

It is CSX3002.

Hi guys. You are right. It is CSX3002.

Fat fingered typing. I don't think I've seen an early pic of CSX3003.

Another pic of CSX3002:


Cheers
Greg

Love this curvaceous talk

Need to apologise to Ned Scudder at SAAC for spelling his name wrong in a previous post. (now corrected)

Sorry Ned.

Cheers
Greg

Here's a pic of the Flip Top that I grabbed from Jac Mac's posting on the Shelby related pics thread.

CSX 2196 after a mid '90s restoration:
http://www.clubcobra.com/photopost/d...he_turd_11.jpg

Good shot of the hood scoop.

Cheers
Greg

Just to add to the pics of different Cobra hood scoops, here is a pic of CSX 3208 after a restoration in 1991.

Cammer engine and tall air horns on the Lucas/Kinser fuel injection on a Hilborn manifold.

Cheers
Greg

Here's a couple of photo's Tom Kirkham took for me when we were discussing the Aero package we were putting on KMP259...
I thought you like to see...

http://www.clubcobra.com/photopost/d...ium/Aero_3.jpg

Look closely at the scoop and the side Vents.


http://www.clubcobra.com/photopost/d...ium/Aero_1.JPG

Now you can see what the yarn was doing at the Scoop....

http://www.clubcobra.com/photopost/d.../Aero_2_1_.JPG

Now you can see why I said many times there is no air coming out of the side vents.... the Boundary Layer is moved by the width of the front tires and fender and that causes turbulence where the Vent should be letting air out of the engine compartment. When the Boundary layer separates from the body.... all kind of Turbulence happens around the car.

Sorry for the long post.

So Morris, it seems your middle close-up pic of the front of the hood scoop shows the yarn flowing INTO the hood scoop opening.

Too bad there hadn't been a few more tufts in front of the hood scoop opening.

And I would suggest about the side vents:

1) yarn placement as shown in the pic doesn't necessarily say no air is coming from the vents

2) the movement of the boundary layer along the side of the car at speed would be sufficient to draw (venturi effect) air out of the vent and given the air is hot and less dense would simply blend easily with the boundary layer and would not look like some kind of jet blast coming out of the vents.

3) a better test of the air coming out of the vents would be a smoke generator inside the fender or at least yarn place inside the vents to confirm the air flow.

4) keep in mind the bulk of the air exiting the engine compartment is down and under the car.

Just thinking.

Cheers
Greg

I should have also said the angle of the vanes in the vent also contributes to the venturi effect and how easily the air blends into the boundary layer.

Without the vanes, just a big hole would not be effective in sucking air out.

But great pics Morris.

All help in getting to the answer.

I'm going to do a similar test when I get my scoop mounted.

I'm also planning a static tuft test using 3 large box fans in front of the car while at rest.

Then of course a moving tuft test,

Cheers
Greg

Thank you Morris

There is no boundary layer along the side of the car, because of the width of the front tires and fender.....that’s why the yarn is turbulent where the vent is....

The vent on the side of the body is to inboard of the front wheels & fender causing the boundary layer to not be attached to the body at that point....which was why I put the vents up on the hood so the boundary layer could draw the air out of the engine compartment.....thru the vents on the hood.

It looks like they have the ducted radiator exits in the top of the hood to get downforce. I'd like to do that with my VSE.

Hi Morris. You are right. Well, we're both right.

The air flow is disturbed by the wheel arch and the spinning wheel/tire, and separates from the body.

That puts the boundary layer into a series of vortexes over the vent area. Without actual smoke testing we might only be guessing what is happening to the air movement in the vent.

I'll tuft test it his weekend if it doesn't rain.

A vent in the hood a an excellent alternative.

Cheers
Greg

Tuft testing: let the fun begin!
So let’s use a casual engineering approach to this test in a form others easily can duplicate if they so choose so we can get comparative data.

Step 1: The static test
I’m going to start my car (motor idling so it heats up a little and so I don’t wear the battery down while running the fans) in the garage or in the driveway.

Again, a static test with the car at rest, not in motion.

I’m going to test two areas (I don’t have a hood scoop yet – coming this summer).
A) Side vents
I will attach tufts inside the wheel well ( driver side and passenger side) onto the vent vanes to see how they move when:
1) Front pusher fans only are ON
2) Rear puller fan only is ON

B) Radiator shroud/rear puller fan cage
I will attach tufts to the radiator shroud, rear puller fan cage, and a few places on the front of the engine to see how they move when:
1) Front pusher fans only are ON
2) Rear puller fan only is ON

All of this will give me a preliminary indication of where the air is moving while the car is static.

I am using this approach, because, when I’m driving the car and come to a stop sign, and my puller fan is ON, I can reach my left hand outside the car and forward to the vent, and I feel a large amount of air coming out of the vent.

I want to confirm this with tufts.

That’s my first step this weekend.

Next- Step 2: The moving test.

Stay tuned.

Cheers
Greg
