lal Naja 03-27-2013 04:48 PM
Greg, I have some photos here on the forum in my profile/album and a bunch more on my face book page. The link is below.

https://www.facebook.com/media/set/?...1&l=4a4838b30a

Arthur

my427cobra 03-27-2013 05:01 PM

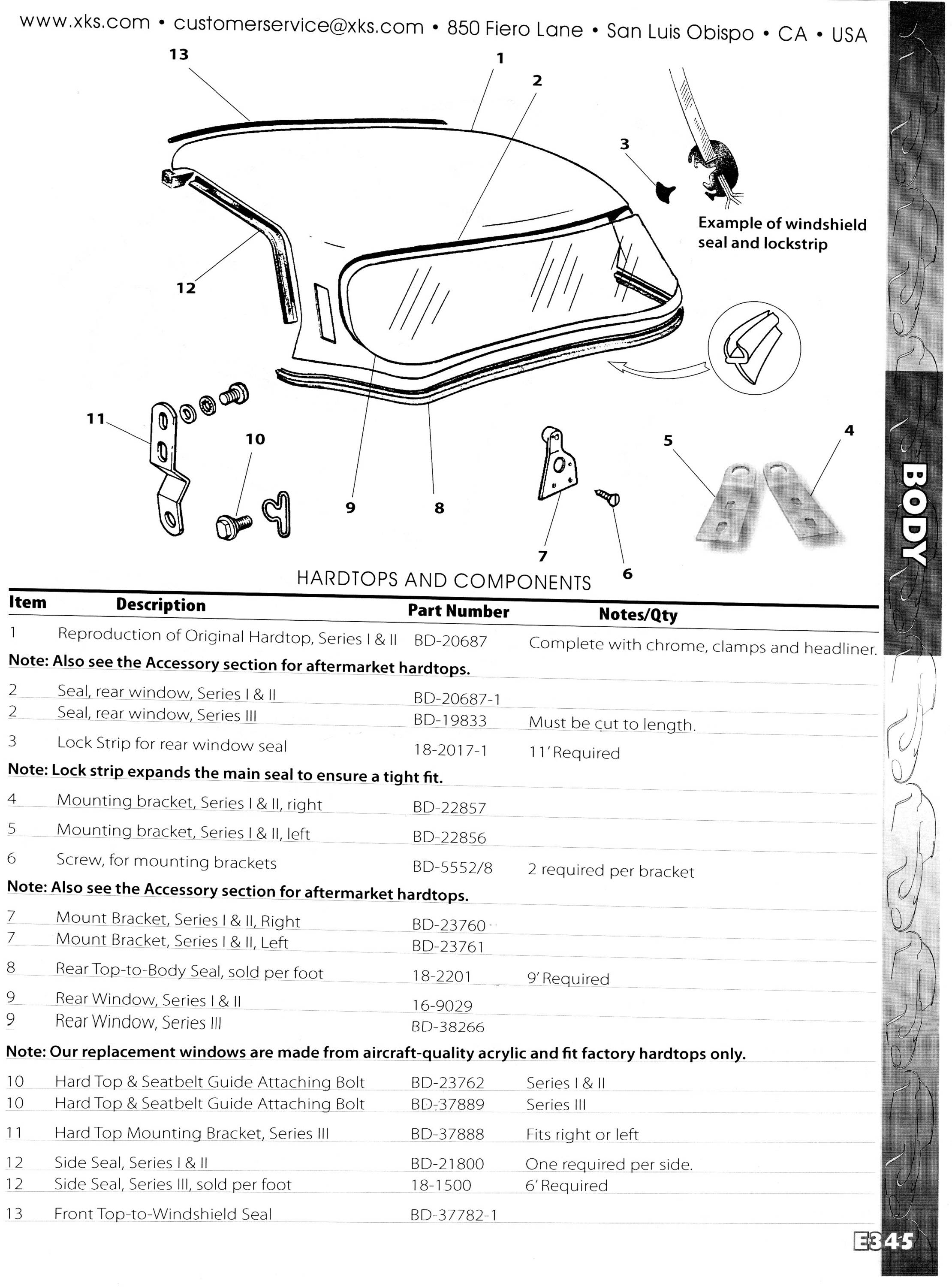

Here's a page from XK's Unlimited catalogue showing the XKE hardtop seals.

http://www.clubcobra.com/photopost/d...mbs/img085.jpg

I'll check them out tommorrow.

Cheers
Greg

lal Naja 03-27-2013 08:20 PM
Quote:
Originally Posted by my427cobra (Post 1237465)
Here's a page from XK's Unlimited catalogue showing the XKE hardtop seals.

http://www.clubcobra.com/photopost/d...mbs/img085.jpg

I'll check them out tommorrow.

Cheers
Greg
The rubber extrusion shown here is very similar to what Butler supplied with my glass and hard-top.

For the seam between the hard-top and body I'm planning on using two strips of 'D' profile hollow rubber bulb seals. 1/4" x 1/8" section. The strips will be spaced about 1/2" apart and held in place with pressure sensitive adhesive.

The bottom lip seal shown in the image above will not function too well on my top.

Cheers back, Arthur
