Default Stelling & Hellings air cleaner effectiveness Part Deux

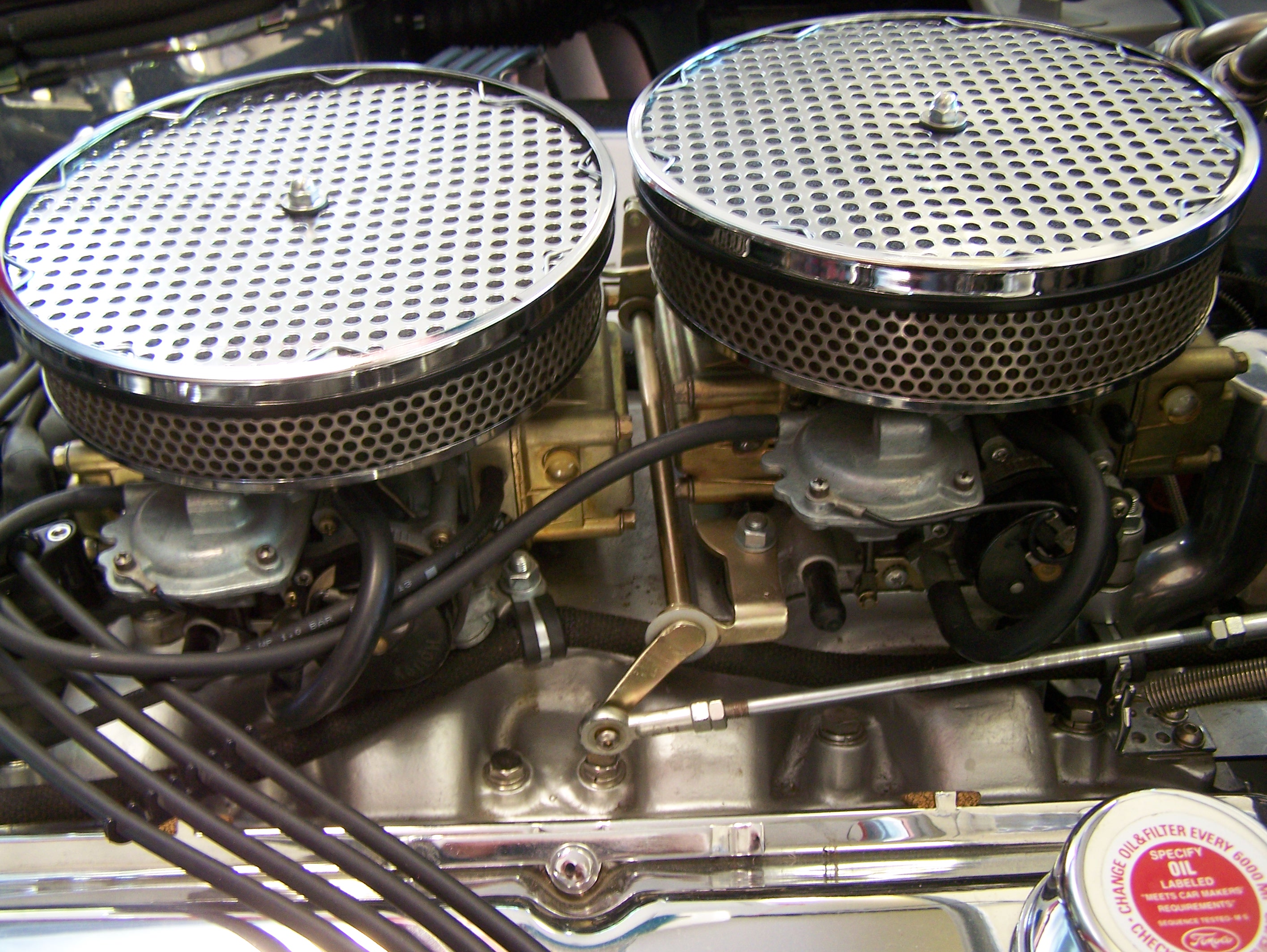

So I modified my S&H air cleaner by adding a perforated metal top and higher flow foam air cleaner material:



But the combination of the S&H perforated sides and the perforated metal top was still only at 36 to 39% open area.

And I wasn't sure I liked the look of it.

So I got some SS wire welded mesh cloth with 1/4" holes from McMaster Carr which has a 76% open area and fabbed some new sides and tops for the S&H replacement air cleaner:



And I think I like the look a lot better.

Now to see tomorrow if it runs better. LOL

Cheers
Greg
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 06-14-2019, 03:44 PM
DanEC's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Apr 2009
Location: Central, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,005
Not Ranked
Default

Both are an interesting look. Not sure which one I like better. What did you use for the top surround? What secures the foam filter material in the top from being pulled down into the carb?
Reply With Quote
  #3 (permalink)
Old 06-14-2019, 03:48 PM
eschaider's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2006
Location: Gilroy, CA
Cobra Make, Engine: SPF 2291, Whipple Blown & Injected 4.6
Posts: 1,081
Not Ranked
Default

Greg,

Same question, did you use wire screen on the inside to keep from drawing the mesh filter media away from the outer wire screen?


Ed
__________________
Help 'em do what they would have done if they knew what they could do.
Reply With Quote
  #4 (permalink)
Old 06-14-2019, 04:44 PM
CC Member
Visit my Photo Gallery


Join Date: Mar 2007
Location: Toledo, OH
Cobra Make, Engine:
Posts: 245
Not Ranked
Default

Well, you're keeping busy, and hopefully having fun, BUT, as far as I'm concerned, the both look like crap.

There is nothing as beautiful, as CHROME, the chrome top/lid is correct ans just looks RIGHT
Reply With Quote
  #5 (permalink)
Old 06-14-2019, 06:41 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,018
Not Ranked
Default

Greg, not to back up here but did you happen to try using the stock S&H air cleaner without the foam element for a test? (just the screens)
I'm curious how it performed with no foam. You could then add different foams and see how it was effected.
Larry
__________________
Alba gu brąth
Reply With Quote
  #6 (permalink)
Old 06-15-2019, 12:44 PM
cycleguy55's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2014
Location: White City, SK
Cobra Make, Engine: West Coast, 460 CID
Posts: 2,063
Not Ranked
Default

Has anybody ever put these on a flow bench to evaluate how restrictive they really are - or aren't?

Edit: I just found this, posted to https://www.ffcars.com/forums/17-fac...r-cleaner.html by 'mrmustang'. Hmmm....

Back to the original question, and dating back over 18 years
427 center oiler, 10:2:1 compression, 650 holley DB (already dyno tuned) fairly mild street cam as a base for the test on a "chassis" (not engine) dyno. This was done as we were baselining a new chassis dyno at a friends shop and thought it would be interesting to be able to show his customers the difference of what something as simple as an air cleaner could make.

My notes are as follows:

no air cleaner: 322hp
then 14X2 "K&N" air cleaner: 314hp
then 14X4 "green" air cleaner with drop base:324hp
then Stelling and Heller air cleaner (stock filters as we did not have K&N or Green filters in stock at the time):302hp

All of the above were done one after the other. No tweaks or changes where done to the carb or engine timing. Strictly a demonstration for about 20 customers who were at the shop that Saturday. All HP above was measured at the rear wheels.

The car was ERA321, dark blue metallic, running a toploader 4spd and 3:31 rear gear ratio.



Second Strike Air Cleaner Calculator: https://www.secondstrike.com/Technic...leanerCalc.asp
__________________
Brian

Last edited by cycleguy55; 06-15-2019 at 12:54 PM..
Reply With Quote
  #7 (permalink)
Old 06-15-2019, 07:07 PM
mrmustang's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Feb 2000
Location: Greenville, SC
Cobra Make, Engine: 69 GT500 fastback, mystery Ford powered, 2dr convertible
Posts: 11,375
Not Ranked
Cool

Quote:
Originally Posted by cycleguy55 View Post
Has anybody ever put these on a flow bench to evaluate how restrictive they really are - or aren't?

Edit: I just found this, posted to https://www.ffcars.com/forums/17-fac...r-cleaner.html by 'mrmustang'. Hmmm....

Back to the original question, and dating back over 18 years
427 center oiler, 10:2:1 compression, 650 holley DB (already dyno tuned) fairly mild street cam as a base for the test on a "chassis" (not engine) dyno. This was done as we were baselining a new chassis dyno at a friends shop and thought it would be interesting to be able to show his customers the difference of what something as simple as an air cleaner could make.

My notes are as follows:

no air cleaner: 322hp
then 14X2 "K&N" air cleaner: 314hp
then 14X4 "green" air cleaner with drop base:324hp
then Stelling and Heller air cleaner (stock filters as we did not have K&N or Green filters in stock at the time):302hp

All of the above were done one after the other. No tweaks or changes where done to the carb or engine timing. Strictly a demonstration for about 20 customers who were at the shop that Saturday. All HP above was measured at the rear wheels.

The car was ERA321, dark blue metallic, running a toploader 4spd and 3:31 rear gear ratio.



Second Strike Air Cleaner Calculator: https://www.secondstrike.com/Technic...leanerCalc.asp
I can confirm those where actual results, less then a few minutes apart on a brand new Dynojet chassis dyno. Real world, real wheel HP data. Somewhere in my old files I may have the torque numbers to go along with this.
As a side note, the numbers above where done before we had a K&N or Green Filter-14" filter top. The filter top would had a huge amount of airflow vs the chrome lid that was used at the time of the chassis dyno runs.

Bill S.
Jdata likes this.
__________________
For whom the bell tolls, it tolls for thee.
Reply With Quote
  #8 (permalink)
Old 06-16-2019, 04:25 AM
CC Member
Visit my Photo Gallery


Join Date: Jan 2018
Cobra Make, Engine:
Posts: 96
Not Ranked
Default

I prefer a big diameter and deep air filter.
Reply With Quote
  #9 (permalink)
Old 06-16-2019, 07:32 AM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,477
Not Ranked
Default

OK folks, I'll try to answer your questions in the order you posted:

DanEC: the chrome ring supporting the SS mesh was made from a Speedway air cleaner/funnel assembly that I covered in detail in my previous S&H thread.

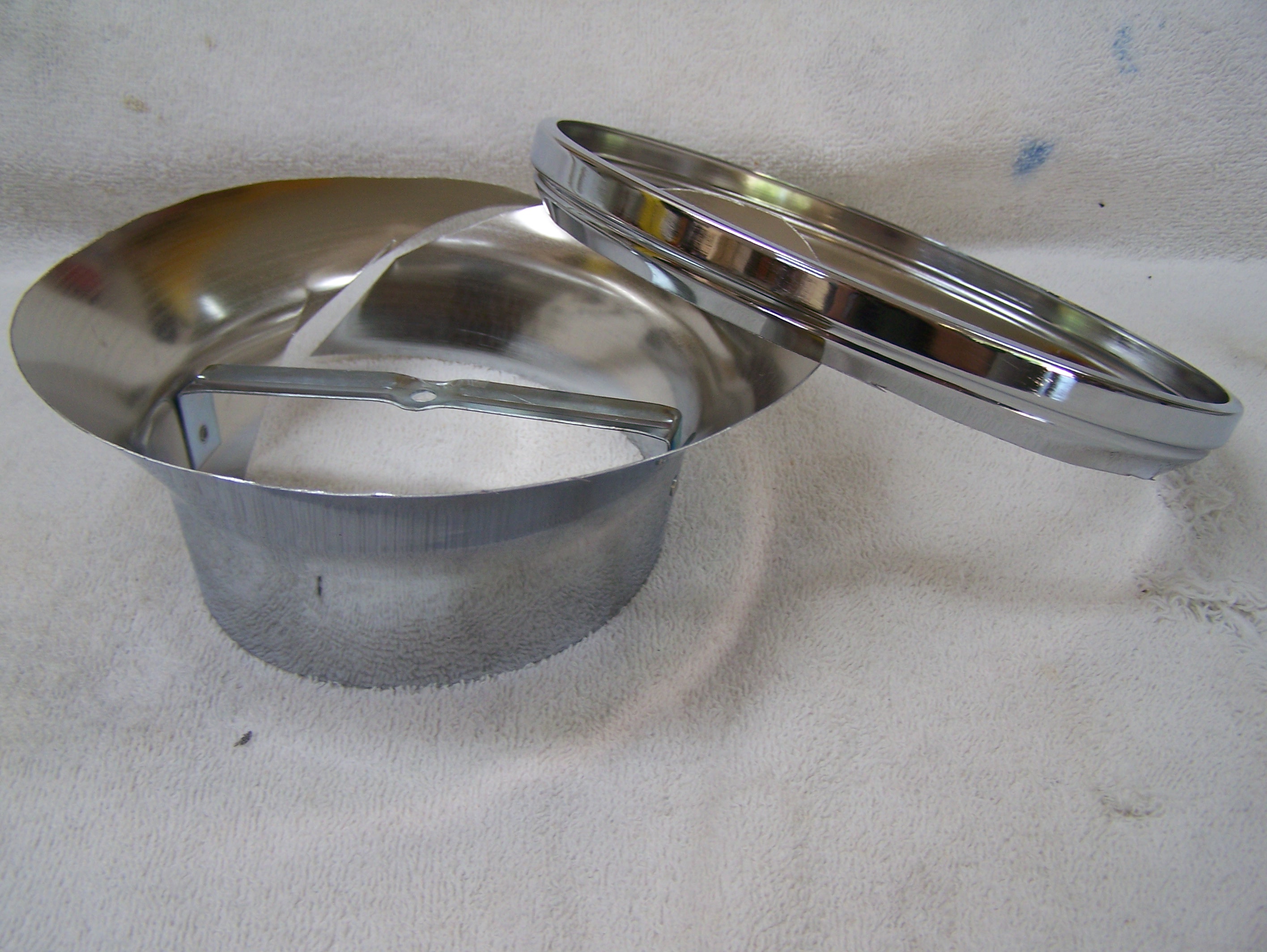

Here are a couple of pics:




eschaider: yes, there is a SS mesh screen below the top foam to support the foam. The top and bottom SS mesh screen are "trapped" in the chrome ring by lips which are formed on the ring See above pic.

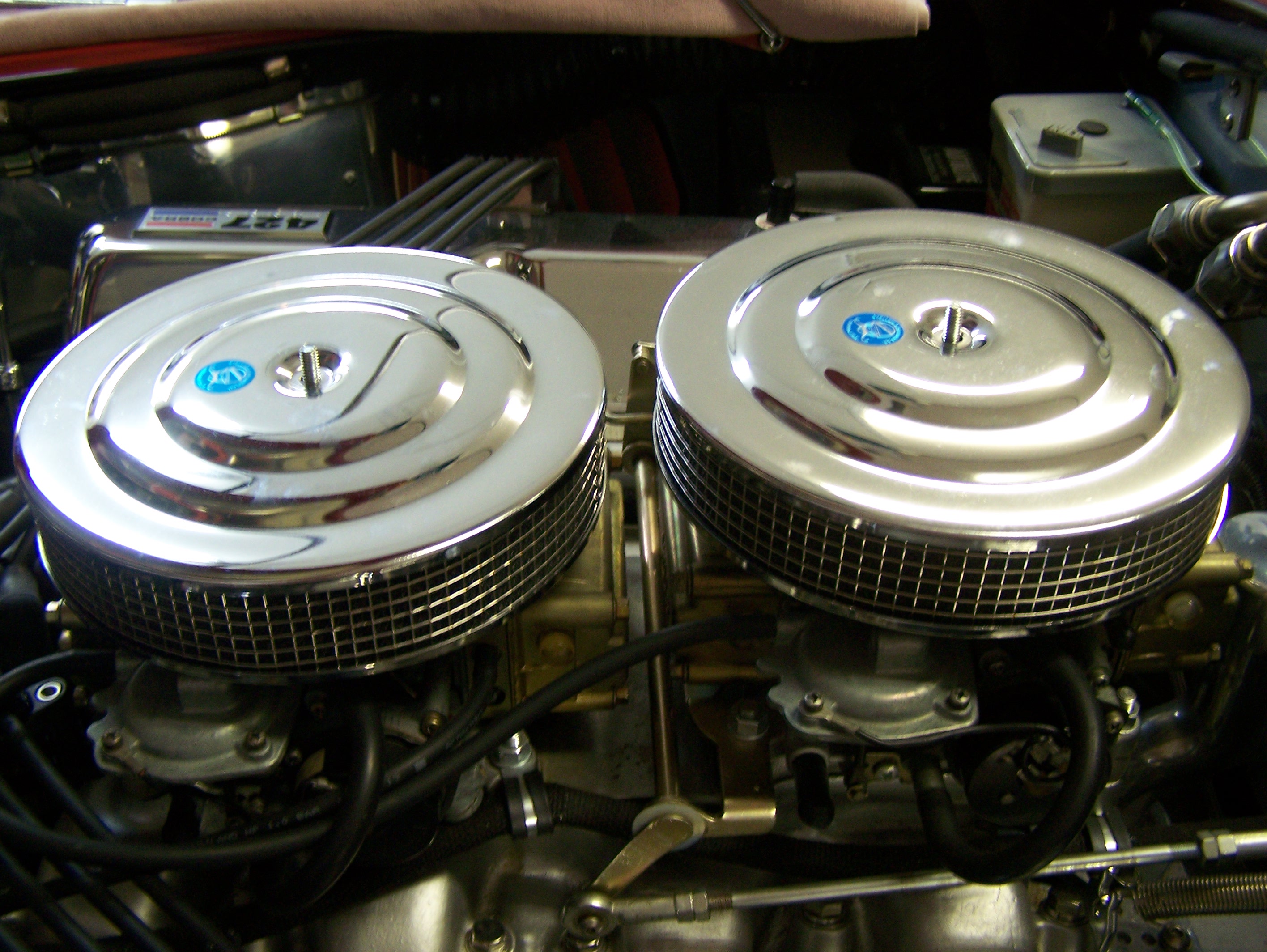

CSX3183: back to bling for you with the chrome tops back on:



cycleguy55: I'm surprised that it was only a 20 hp (6%) difference. Two equal cars with one having a 20 hp difference would be well outside the driver's skill differential on a typical track.

LMH: yes, a higher flow foam in the S&H air cleaners with the perforated sides might make a difference. But the perforated metal side have only a 36% open area. A lot of restriction. The SS mesh sides have a 79% open area, and that combined with higher flow foam (30ppi) and a screened top is a BIG improvement. Effectively a 368% improvement ( and probably more due to the higher flow foam).

So how did my car perform? Well I didn't dyno it. But on my drive yesterday there was a noticeable improvement in the crispness of the throttle response and the smoothness of the acceleration.

I believe my car was running too rich with the restrictive S&H perforated sides and chrome top, so I'm going into a tune-up shop the check out the carb settings and see what I can learn.

Cheers
Greg
Reply With Quote
  #10 (permalink)
Old 06-16-2019, 07:47 AM
DanEC's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Apr 2009
Location: Central, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,005
Not Ranked
Default

Quote:
Originally Posted by cycleguy55 View Post
Has anybody ever put these on a flow bench to evaluate how restrictive they really are - or aren't?

Edit: I just found this, posted to https://www.ffcars.com/forums/17-fac...r-cleaner.html by 'mrmustang'. Hmmm....

Back to the original question, and dating back over 18 years
427 center oiler, 10:2:1 compression, 650 holley DB (already dyno tuned) fairly mild street cam as a base for the test on a "chassis" (not engine) dyno. This was done as we were baselining a new chassis dyno at a friends shop and thought it would be interesting to be able to show his customers the difference of what something as simple as an air cleaner could make.

My notes are as follows:

no air cleaner: 322hp
then 14X2 "K&N" air cleaner: 314hp
then 14X4 "green" air cleaner with drop base:324hp
then Stelling and Heller air cleaner (stock filters as we did not have K&N or Green filters in stock at the time):302hp

All of the above were done one after the other. No tweaks or changes where done to the carb or engine timing. Strictly a demonstration for about 20 customers who were at the shop that Saturday. All HP above was measured at the rear wheels.

The car was ERA321, dark blue metallic, running a toploader 4spd and 3:31 rear gear ratio.



Second Strike Air Cleaner Calculator: https://www.secondstrike.com/Technic...leanerCalc.asp

It would be interesting to see a similar comparison on a car with dual 600 quads. One of these S&H filters does seem horribly inadequate (it's basically a Yugo size air cleaner) but my own rational is two of them with a pleated air filters and no restrictive screens on a 500 HP motor would not suffer as much loss. The twin 600 cfm carbs would certainly seem under taxed feeding a 428- 460 FE with a peak rpm in the mid - to high 5,000 rpm range.
Reply With Quote
  #11 (permalink)
Old 06-16-2019, 09:16 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,018
Not Ranked
Default

Quote:
Originally Posted by my427cobra View Post
LMH: yes, a higher flow foam in the S&H air cleaners with the perforated sides might make a difference. But the perforated metal side have only a 36% open area. A lot of restriction. The SS mesh sides have a 79% open area, and that combined with higher flow foam (30ppi) and a screened top is a BIG improvement. Effectively a 368% improvement ( and probably more due to the higher flow foam).

Cheers
Greg
I don't have an S&H air cleaner as used on the big block to compare but I have a set for a small block with dual quads. (actually two sets) Assuming the screen is the same, the perforated steel is 3/16" holes on 1/4" staggered centers. The open area is 51%. That's on original Stelling and Hellings air cleaners, not a replication. Is that the same as used on the larger S&H air cleaner?

Larry
__________________
Alba gu brąth
Reply With Quote
  #12 (permalink)
Old 06-16-2019, 10:12 AM
CC Member
Visit my Photo Gallery


Join Date: Nov 2015
Cobra Make, Engine: Hi-Tech. 496 FE
Posts: 83
Not Ranked
Default

Quote:
Originally Posted by DanEC View Post
It would be interesting to see a similar comparison on a car with dual 600 quads. One of these S&H filters does seem horribly inadequate (it's basically a Yugo size air cleaner) but my own rational is two of them with a pleated air filters and no restrictive screens on a 500 HP motor would not suffer as much loss. The twin 600 cfm carbs would certainly seem under taxed feeding a 428- 460 FE with a peak rpm in the mid - to high 5,000 rpm range.
When my Cobra was first ready to drive, it had a single 4-bbl. on a Sidewinder manifold with 1 S&H air filter.

Several years later I put a 2x4's Tunnel Wedge intake on it, and installed a 2nd S&H air filter. Couldn't believe it was the same engine. Very noticeable seat of the pants feel.
Reply With Quote
  #13 (permalink)
Old 06-16-2019, 11:21 AM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,477
Not Ranked
Default

Larry. I think it is the same size so let's use the 51% number. Still a big improvement going to a 79% SS mesh.

And of course the SS mesh top ads a lot.

Cheers
Greg
Reply With Quote
  #14 (permalink)
Old 06-16-2019, 12:12 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,018
Not Ranked
Default

Quote:
Originally Posted by my427cobra View Post
Larry. I think it is the same size so let's use the 51% number. Still a big improvement going to a 79% SS mesh.

And of course the SS mesh top ads a lot.

Cheers
Greg
Definitely! I was more curious if the air cleaner had ever been tested with just the screen in place and no foam, then adding different foams to see what flowed the best. Like you say though, its not going to equal the top flowing air as well, I was just thinking of originality.
Larry
__________________
Alba gu brąth
Reply With Quote
  #15 (permalink)
Old 06-17-2019, 09:01 AM
CC Member
Visit my Photo Gallery


Join Date: Aug 2014
Location: Mill Valley, CA
Cobra Make, Engine: ERA FIA #2064 BOSS 302 CSX2047 sold
Posts: 127
Not Ranked
Default

What do you think the benefit would be if the Stelling & Hellings air cleaner
unit was used with the K&N 2570 filter but with the restrictive drilled steel screen
removed...no screen at all...just the filter holding up the chrome lid. This
has to increase the air flow somewhat and the stock look would be largely
preserved. Too bad dyno time is so expensive or we could get some more
definitive answers!
Reply With Quote
  #16 (permalink)
Old 06-18-2019, 12:33 PM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,477
Not Ranked
Default

Hi Kit Coyle. In the previous posting I started on the S&H air filters I showed this comparison:



And a cheap K-mart paper air filter fowed almost as well as a K&N in a dyno test.

It's all about ppi (pores per inch).

The K&N filter you suggest is too high for my application and, well truth be told, I don't like the purple color.

So I'm zeroing in on my SS mesh sides and top and high flow foam filters.

Next stop: I'll get to work on my hood scoop mold and make my hood scoop.



Cheers
Greg
Reply With Quote
  #17 (permalink)
Old 06-18-2019, 04:03 PM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 2,147
Not Ranked
Default

What everybody needs is the largest restrictive air filter (pores per inch) that you can fit, versus the tiny open pore filters that "flow better" simply because they are a sieve, a strainer to let the grit through.

I hope those that run foam or cotton, do oil their filter correctly.

Gary
Reply With Quote
  #18 (permalink)
Old 06-19-2019, 07:20 AM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,477
Not Ranked
Default

Gary is right. Oiling the filter and periodic cleaning is important.

Cheers
Greg
Gaz64 likes this.
Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 10:42 PM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2019, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
Links monetized by VigLink
