Gauges layout
My first question, why does the genuine speedo go backwards. And I would like some pictures of either the genuine, or your layout. Also what was the original dash made of. I'm thinking of using either sanded aliminium, with a clear layer, or some rosewood.
JD |
Jaydee ,
Mate there are countless threads and pictures available on here with the most basic search!!!!! Oz |
Check out the original thread from Alfie "search Dash layout"
Heaps of pictures and comment!! |
2 Attachment(s)
Attachment 20755
Quote:
|
Quote:
What instrumentation layout are you thinking of? A 427 body can have had originally: 1. a dropped centre street dash, with Smiths instruments incl. clock (not a common layout but nevertheless correct) in roadster layout 2. a straight bottom dash with roadster instrument layout 3. a straight bottom dash with SC layout, Smiths instruments incl. reverse winding speedo Bottom line though, mate, is ....it's your car, build it to suit your requirements and tastes. Cheers, Glen |
Thanks guys.
It'll have a drop centre dash. I think there is a fine line, between how we want the car, and how we want other people to percieve how it should be. The general public will always go wow. Enthusiasts will pick it to bits anyway, And there are a few shockers out there. It's definitely fun to go cobra bits shopping. JD |
Drop-centre dash pics
Jaydee - here's a few pics.
http://i1120.photobucket.com/albums/...B6008_dash.jpg http://i1120.photobucket.com/albums/...048_dash_2.jpg http://i1120.photobucket.com/albums/.../SmithsRHD.jpg http://i1120.photobucket.com/albums/...iths_instr.jpg http://i1120.photobucket.com/albums/...X2557_dash.jpg http://i1120.photobucket.com/albums/...SX2558dash.jpg Cheers, Glen |
Thanks.
I guess the original panel will make it hard to read the speedo and revs. During racing that wouldn't be as important as much as temps etc. None of those speedos went backwards. When did that become a trend? JD |

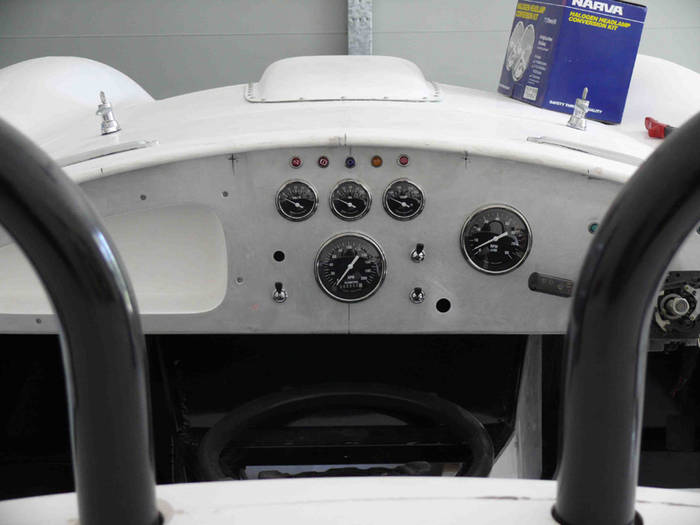

Jaydee each to his own. I liked the simple original look of the SC layouts with the flat dash and used ally with a rolled lower edge. All dials are easily visible. Stereo head unit is in the glove box and controlled by a wireless remote.
http://www.clubcobra.com/photopost/d...um/My_Dash.jpg http://www.clubcobra.com/photopost/d...0/IMG_0301.JPG |
That looks good. Is that leather? Great idea with the stereo. I was thinking the same thing. With the ali, switches are easier to mount, than through thick wood. And if I have the dropped dash, there will be a lot of nothing to look at. Thanks again for helping out. I might use the flat dash, and have a deep tray on the tunnel, like a large glovebox.
JD |
Here's a tip for working out a gauge layout you like.
http://www.clubcobra.com/forums/shop...sh-layout.html http://www.clubcobra.com/photopost/data/2/11409dash.jpg http://www.clubcobra.com/photopost/d...Red_Dash_1.JPG Cheers |
yep +1 for using the print-outs;
http://bencobra.files.wordpress.com/...4/dsc01545.jpg http://bencobra.files.wordpress.com/...4/dsc01546.jpg |
Yes the printouts were essential in managing the location and size of the gauges. I used a hard wearing textured marine vinyl on the dash with no padding as I wanted to avoid a 'puffy' look.
|
http://www.clubcobra.com/forums/pict...44311396&thumbMy dash brackets are not as deep. With the dash mounted, where it meets the door, it sticks out.
JD |
JD if you look closer at Mike's and mine (both CR's) you can see the edges of the dash panel curve around, they are not straight. This may be difficult to do in wood.....especially wood that thick!
|
Ok. I missed that . The wood you see is only a template. So where the curve is, is the edge still rolled in ali?
JD |
On mine yes. The dash CR sells is fibreglass with provision for the switchgear unit moulded in to the dash panel (see Mike's pic) - I didn't want that because I'm using a different switchgear. I was lucky enough to get a "one-off" ali unit that CR had lying around the shop.
|
At the moment I have the original key and lock behind the dash, and I'll power feed that to a ignition switch on the dash. Regency need the steering lock. Sort of double protection as well.
I'm now searching for gauges. The Smiths cobra gauges are cheaper than VDO. All exiting stuff. I'm like a kid in a sweet shop. JD |
Smiths are excellent for an original look. I used Classic Instruments who also have an office in. Sydney. There are many choices: Classic Instruments Gauges from egauges.com
|
Quote:
Cheers, Glen |
