Default Cold air box ideas

G;day Crew;

Just wondering if anyone cares to share any designs or ideas/pictures of the way they are ducting cold air into their engine.
Of particular interest to me is a 'pan' type set up and using the bonnet scoop to suck air into the engine. I have a new engine coming with a 4 barrel throttle body sitting on top and wish to seal the area when the bonnet is down, drawing cooler air from the scoop. I like the look of the summit oval air filters that also draw air from the top as well as the sides, but would also like to make a sheet of Aluminium as a shield to try and keep hot air from coming up from the engine and also use it as a base for some foam to go around the air filter and seal against the bonnet when its down.
Opinions and ideas appreciated as to the effectiveness of such a set up.

Cheers
Chris L
Reply With Quote
  #2 (permalink)
Old 09-09-2014, 03:48 AM
PeterAllen's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 2011
Location: Sydney, NSW
Cobra Make, Engine: Puckett 250 GTO - LS1
Posts: 567
Not Ranked
Default

Big P p p p p pete Geoghegan's Mustang had a beautiful John Shepperd crafted aluminium shroud attached to the bonnet which kept the incoming cold air separated from the warm engine bay air.

I've seen some better photos but this is all I can find at the moment. I think it's enough to give you the idea.

Legendary 1967 GTA mustang racer-News & Reviews-Unique Cars

Jim Richards runs something similar on either the Falcon or the Javelin.

http://blog.hemmings.com/index.php/tag/shannons/

Last edited by PeterAllen; 09-09-2014 at 04:27 AM..
Reply With Quote
  #3 (permalink)
Old 09-09-2014, 04:47 AM
stephen low's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2001
Location: Melbourne, Australia, Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
Not Ranked
Default

Or from the bottom once aluminium pans are folded to direct air flow into Marty's bottom feeder custom air box filter.

Air filter box




And overall location



Intake is at the bottom and the plan is to duct air in from under the radiator.

Just an alternate thought.

Cheers

Slo
__________________
slowy
Reply With Quote
  #4 (permalink)
Old 09-09-2014, 06:18 AM
damage's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: redcliffe, qld
Cobra Make, Engine: Kirkham 427SC 482 Cammer
Posts: 700
Not Ranked
Default

Look at finish line accessories at their Turkey pans and then maybe a K&n filter as they breath through the top also.
Reply With Quote
  #5 (permalink)
Old 09-09-2014, 05:24 PM
Aussie Mike's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2001
Location: Sunbury, VIC
Cobra Make, Engine: Rat Rod Racer, LS1 & T56
Posts: 5,391
Not Ranked
Default

Hi Chris,

I think the biggest issue with the hood scoop is the pressure differential in thee engine bay. With the big radiator opening we are ramming lots of air into the engine bay. It's only escape path is the side vents and under the body. Given the shape of the front of the car there can be quite a bit of pressure under the car too with no splitter to divert the air to the sides. With all that in mind I reckon more air probably comes out of the scoop than goes into it.

The only way to make the hood scoop work it to seal it to the underside of the bonnet. A turkey pan with a foam rubber lip seal to seal it to the inside of the bonnet would probably work.

An alternative would be to run an air cleaner with a couple of snorkels on it and run flexible hoses from the snorkels and pick up cold air from the high pressure zone in front of the radiator.

This is the kind of air cleaner I'm referring to



Cheers
__________________
Mike Murphy
Melbourne Australia

Reply With Quote
  #6 (permalink)
Old 09-09-2014, 10:50 PM
Gav's Avatar
Gav Gav is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2006
Location: Mildura, vic
Cobra Make, Engine: FFR Coupe, 416ci of LS goodness
Posts: 2,349
Not Ranked
Default

Hi Chris,
I used to have loads of under bonnet pressure before I fitted alloy flashings around the radiator.
At speed the bonnet would lift half way up the windscreen if the catches weren't properly locked, now it doesn't lift at all with the latches undone.
So...
One could assume that without the flashings in place the air would be going out the scoop.
So I'd get that done first and your radiator will work better too.

Gav
__________________
Powered by Cu
Reply With Quote
  #7 (permalink)
Old 09-09-2014, 11:44 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2002
Location: Melbourne ,Victoria- Australia, VIC
Cobra Make, Engine: Python
Posts: 271
Not Ranked
Default

Thanks Gentleman thus far for the input. Although it could well be the best option, I really don't want to lift the bonnet and have ducting plumbed from top to bottom picking up the fresh air.
If I can't seal against the bonnet when its closed and locked properly then I will probably will duct and pick up air from underneath as has been suggested.
Mike and Gav.......you both answered questions I was suspicious about so thanks for that and thanks to the fellas that posted the pics..............nothing like a visual to get the message and ideas across.
Regards
Chris L
Reply With Quote
  #8 (permalink)
Old 09-26-2014, 08:29 AM
Mike Read's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2011
Location: Adelaide, SA
Cobra Make, Engine: Dax 427, LS7, 571bhp, Tremec 6 Speed TR6060 Magnum
Posts: 35
Send a message via Skype™ to Mike Read
Not Ranked
Default

Hi Chris,

Gardner Douglas (gdcars.com) in the UK make an airbox that is contoured to fit in the nose in front of the radiator, so that cold air is sucked in through the foam filter covering the whole of the underside of the airbox. I bought one from GD and modified it a little to fit in the nose my Dax 427.

Couple of pictures attached. The first is of the airbox as fitted on a GD, and the second is of the one that I bought for my car. Works well.

Regards, Mike.
Attached Images

guye likes this.

Last edited by Mike Read; 09-26-2014 at 08:33 AM..
Reply With Quote
  #9 (permalink)
Old 09-27-2014, 01:01 AM
Wazza's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2006
Location: Gold Coast Queensland, QLD
Cobra Make, Engine: Harrison#97 LS7 / T56
Posts: 1,681
Not Ranked
Default

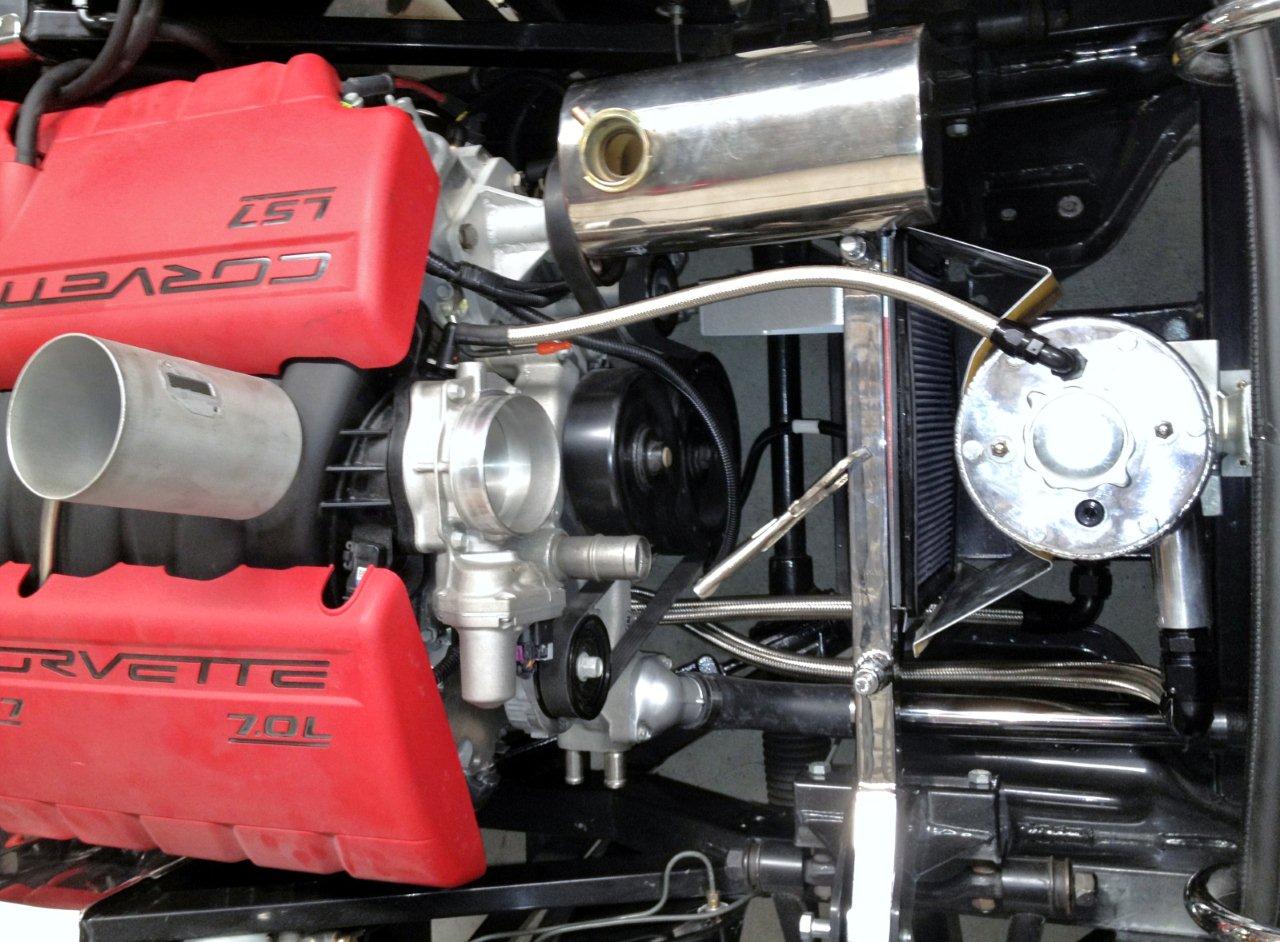

Mine has the air from the two front brake ducts,then ducted/directed into a custom made air box,with a large vertical filter,and then on to the engine.

A bit of mucking about,but it certainly works nicely

Cheers
Warren







guye and dc7531 like this.

Last edited by Wazza; 09-27-2014 at 01:07 AM..
Reply With Quote
  #10 (permalink)
Old 09-27-2014, 01:41 AM
CC Member
Visit my Photo Gallery


Join Date: Feb 2006
Location: The Hills, NSW
Cobra Make, Engine: Absolute Pace
Posts: 1,354
Not Ranked
Default

Just grab some cardboard and pvc pipe then make a mock up intake. Easy for a fabricator to reproduce in alloy if you keep it simple.

Might take a few goes to get right, but worth the effort.

Cheers,

Ben


guye likes this.
Reply With Quote
  #11 (permalink)
Old 09-27-2014, 02:55 AM
CC Member
Visit my Photo Gallery


Join Date: Jun 2001
Location: munno para west, sa
Cobra Make, Engine: absolute pace chassis #50 L98 & 6 speed auto
Posts: 1,141
Not Ranked
Default

that looks very neat
