Default Aluminium AC Cobra Chassis

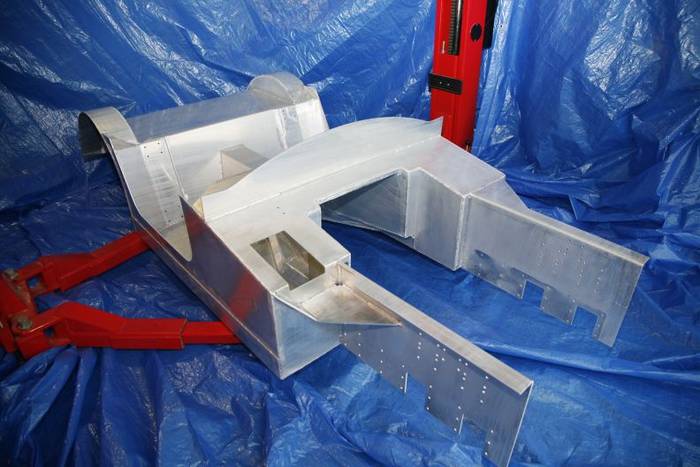

Came across these photos which looks like an aluminium chassis for an AC Cobra



Warren

Last edited by WKB; 06-04-2009 at 05:23 AM.. Reason: can't spell
Reply With Quote
  #2 (permalink)
Old 06-04-2009, 05:01 PM
stephen low's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2001
Location: Melbourne, Australia, Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
Not Ranked
Default

Hmmm.....that would be nice............and light!!!
__________________
slowy
Reply With Quote
  #3 (permalink)
Old 06-04-2009, 06:07 PM
sambo's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2007
Location: Melbourne, VIC
Cobra Make, Engine: Harrison, 6.0L Chev
Posts: 2,513
Not Ranked
Default

And brittle with age?
Reply With Quote
  #4 (permalink)
Old 06-04-2009, 06:23 PM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Wow that looks good.....
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #5 (permalink)
Old 06-04-2009, 06:29 PM
Aussie Mike's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2001
Location: Sunbury, VIC
Cobra Make, Engine: Rat Rod Racer, LS1 & T56
Posts: 5,391
Not Ranked
Default

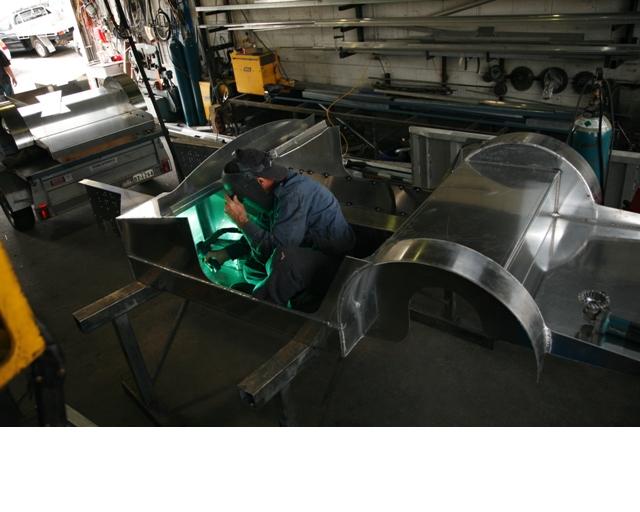

Looks like he's welding it with a MIG. I reckon there must be a lot more to it to stiffen up the front end. It'll be interesting to see how it develops.

Looks like it's right hand drive. Is it someone in Aus? There's a Falcon ute in the street.

Cheers
__________________
Mike Murphy
Melbourne Australia

Reply With Quote
  #6 (permalink)
Old 06-04-2009, 07:20 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2004
Location: toronto, ont
Cobra Make, Engine: 408w 500 h.p. 550 ft.lbs
Posts: 562
Not Ranked
Default

Looks like they are real serious about it, there is another sitting on the trailer in front of the one being welded.
Just like Kirkham---you can't build just one.

Craig
Reply With Quote
  #7 (permalink)
Old 06-05-2009, 05:48 AM
400TT's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2004
Location: Gold Coast, AUS
Cobra Make, Engine: Wish I had my own PACE 427
Posts: 2,145
Not Ranked
Default

Quote:
Originally Posted by sambo View Post
And brittle with age?
Your kidding right? If they know what they are doing, they won't have any problems. It's all about using the right design, right materials and right manufacturing/production techniques.

Not a Cobra chassis, but I'm happy to share the aluminium love.

__________________
www.absolutepace.com

Last edited by 400TT; 06-05-2009 at 07:00 AM..
Reply With Quote
  #8 (permalink)
Old 06-05-2009, 05:45 PM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

I guess if / when one of these alloy chassis cars gets registered and does a few years on our rough roads we will all know if they will do the job.
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #9 (permalink)
Old 06-05-2009, 07:52 PM
sambo's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2007
Location: Melbourne, VIC
Cobra Make, Engine: Harrison, 6.0L Chev
Posts: 2,513
Not Ranked
Default

Quote:
Originally Posted by 400TT View Post
Your kidding right?
Craig, we're not all coach builders!
Reply With Quote
  #10 (permalink)
Old 06-06-2009, 12:22 AM
400TT's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2004
Location: Gold Coast, AUS
Cobra Make, Engine: Wish I had my own PACE 427
Posts: 2,145
Not Ranked
Default

Fatigue testing is a good idea.

Then for good measure produce an incredibly stiff chassis. The chassis I posted above(without roll cage) is many multiples stiffer than registration requirements, even here in QLD.
__________________
www.absolutepace.com
Reply With Quote
  #11 (permalink)
Old 06-06-2009, 04:50 AM
Jac Mac's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2006
Location: Gore. New Zealand., SI
Cobra Make, Engine: DIY Coupe, F/T ,MkIV.
Posts: 808
Not Ranked
Default

Quote:
Originally Posted by 400TT View Post
Fatigue testing is a good idea.

Then for good measure produce an incredibly stiff chassis. The chassis I posted above(without roll cage) is many multiples stiffer than registration requirements, even here in QLD.
Not that any kit car is probably a good thing to have a major prang in, but I often look at chassis like this and try to visualise which way the panels would deflect in a serious head-on type road prang, the Cobra chassis in the first post has inner guards that could fold back like a guillotine if hit in the right spot, although it appears that the front X-member is going to be bolted in at multiple points. The GT40 chassis I would hope might deflect up & back into the dash area to act as an energy absorbing area rather than retaining its shape & giving the occupants a serious jolt. Might have some sore toes afterwards though.
__________________
Jac Mac
Reply With Quote
  #12 (permalink)
Old 06-06-2009, 11:18 PM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Craig what is the torsional stiffness? we all know DRB and RF....
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #13 (permalink)
Old 06-07-2009, 01:29 AM
400TT's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2004
Location: Gold Coast, AUS
Cobra Make, Engine: Wish I had my own PACE 427
Posts: 2,145
Not Ranked
Default

Jac Mac, safety is really important to me. We do have those bolt-on aluminium chassis extensions on the front of that chassis as well that should absorb some of the impact energy before it gets to the 1/4" aluminium plate used in that front tub section. You've also got to consider the strength on the welds as well. I certainly feel that the RCR designs are as safe as they can be given the restrictons. We've had a few RCR's involved in significant accidents now and all held up very well, kept the occupants safe and were easily repaired.

We all love our Cobra's, but you've also got to consider what is going to happen to that engine and transmission in a major frontal impact.

Albanycobra, I'm guessing you are chasing the RCR GT40 figures. The torsional stiffness is academic in an RCR GT40 as it is multiples more than what is required for registration or for performance reasons. They are stiff as a result of being built for longevity and strength. "Built like a tank" is a common phrase I hear from Fran Hall of RCR USA.

Due to other manufacturers using the NM/deg/M instead of NM/deg etc to significantly pump up their figures, we have decided to simply not publish them. I personally don't believe any figures I'm told unless I can view the chassis report. Past experience tells me the figures seem to get distorted by word of mouth.

I have copies of many, many chassis test reports at the factory. It makes for some very interesting reading as the higher 6000Nm/deg requirement in QLD really catches some manufacturers out. And that's 6000Nm/deg not 6000Nm/deg/M.

Hope that helps.

Does FFR Coupe make 6000Nm? The integrated full roll cage would really help it.
__________________
www.absolutepace.com

Last edited by 400TT; 06-07-2009 at 01:38 AM..
Reply With Quote
  #14 (permalink)
Old 06-07-2009, 04:49 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

If the RCR is so stiff why not publish test results....it could only sell you more cars? I'm not having a go or trying to start sht just wondering why the secret if it blows the competition away.

I have tested many chassis over the years and have a bit of an interest in Torsion testing, I am also interested in the CAV chassis. I built a test rig years ago that is still being used today to confirm torsional figures for Locosts / Cobra's and one off jobs. These days it uses a load cell instead of weights.

[/IMG]

The only way to measure Torsion is through the wheels.

FFR will not publish Torsion test figures, beats me......

DRB seems to be the only Manufacture that lays it all on the table for everyone to read and I applaud Peter Ransom for it......
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #15 (permalink)
Old 06-08-2009, 02:11 AM
stephen low's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2001
Location: Melbourne, Australia, Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
Not Ranked
Default

Dave

A curiosity question from one that know's little on the science but isn't the suspension operation a variable you can't factor for, hence why a chassis's twist is measured?

Can understand the leverage starting at the wheels but you have a moveable linkage to the chassis to allow for, so can you really measure at the hubs with fixed suspension and replicate actual twist reality?

I'm keen for a little enlightenment.

Cheers
__________________
slowy
Reply With Quote
  #16 (permalink)
Old 06-08-2009, 02:21 AM
Aussie Mike's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2001
Location: Sunbury, VIC
Cobra Make, Engine: Rat Rod Racer, LS1 & T56
Posts: 5,391
Not Ranked
Default

I think it makes sense to do it that way. All the twisting loads the car will experience on the road are transmitted through the suspension.

Nice jig setup Dave. Well designed and though out.

Cheers
__________________
Mike Murphy
Melbourne Australia

Reply With Quote
  #17 (permalink)
Old 06-09-2009, 08:06 AM
LoBelly's Avatar
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Feb 2006
Location: Melbourne, VIC
Cobra Make, Engine: RMC, carb 347 TopLoader and Jag running gear ~ so old school I time it with an hour-glass :D
Posts: 1,293
Not Ranked
Default

I think that plate aluminium is an excellent choice for a chassis.

I helped my brother put together an ally boat - very light and strong - and a great material to work with (pity I can't weld really )



Having used (or helped with) this material I am not surprised to find it being used for Cobra Kits - the chassis will look a little different but I anticipate they'll turn out very rigid and light.

LoBelly
Reply With Quote
  #18 (permalink)
Old 06-09-2009, 08:24 AM
CC Member
Visit my Photo Gallery


Join Date: Feb 2008
Cobra Make, Engine:
Posts: 91
Not Ranked
Default

Albanycobra,

That's a pretty cool test rig. Here is mine, I invested $4 into it for the lag bolts to fasten it to the floor. Everything else was kicking around the shop. It's not on the lift, it is sitting on angle iron placed under the shock mounts. Bouncing the weights was a great tool to see where the chassis was flexing.
Reply With Quote
  #19 (permalink)
Old 06-09-2009, 01:06 PM
Jac Mac's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2006
Location: Gore. New Zealand., SI
Cobra Make, Engine: DIY Coupe, F/T ,MkIV.
Posts: 808
Not Ranked
Smile

Quote:
Originally Posted by albanycobra View Post
If the RCR is so stiff why not publish test results....it could only sell you more cars? I'm not having a go or trying to start sht just wondering why the secret if it blows the competition away.

I have tested many chassis over the years and have a bit of an interest in Torsion testing, I am also interested in the CAV chassis. I built a test rig years ago that is still being used today to confirm torsional figures for Locosts / Cobra's and one off jobs. These days it uses a load cell instead of weights.

[/IMG]

The only way to measure Torsion is through the wheels.

FFR will not publish Torsion test figures, beats me......

DRB seems to be the only Manufacture that lays it all on the table for everyone to read and I applaud Peter Ransom for it......
Dave,
CAV claim 32000 NM/deg and have put out a report on that. I would point out that the test rig was bolted virtually flat plate style to front & rear of tub/mono & did not link thru suspension pickups as yours does so results are particular to their test rig, Just as yours are to your rig.

I would question your test rig in that the pivot point is below the chassis at front and therefore as you apply load that you are not going to get a true torsion only result. If you were to break down the chassis to simple form the lower plane of the chassis is simply being twisted as its at close to the pivot height, but the upper plane of the chassis is being subjected to a parallelogram type load. If you were to raise the front pivot point you might find you get even higher test results than your current readings as many chassis simply have heavier material in the lower frame rails which would now be subjected to the parallelogrm effect as well..

This is why most of these discussions go nowhere as data to be relevant needs to be collected from the same type test rig.
__________________
Jac Mac
Reply With Quote
  #20 (permalink)
Old 06-09-2009, 03:38 PM
stephen low's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2001
Location: Melbourne, Australia, Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
Not Ranked
Default

So the real question is that with all these specified torsional test parameters is there a standard rig specified?

I work in an industry with NATA test result requirements, ie standard specified testing parameters, which means that within fine limits, tests should be reproducable by any lab, is there the same standard of expectation for torsional twist testing?

Sounds like there is not or am I wrong?
__________________
slowy
Reply With Quote
