Bolt Pitch
1 Attachment(s)
I'm ready to reinstall my rear differential after I sheared the front differential bolt. I replaced the front and rear differential bushings, resealed the differential cover, polished (sort of) the scratched up output spacers, ordered new bolts and washers for anything I had to remove. The sheared bolt was 14mm. I assumed backdraft replaced the bolt?? Regardless, when I ordered the new front bushing it came with a 10.9 14mm 150 pitch bolt (Condor). The new bolt was about 1/2' longer than the sheared bolt and threads were different. The new bolt would not screw in the differential. I took the sheared bolt to Fastenal. They measured the bolt pitch and it was 200 not 150. I ordered two 12.9 14mm x 80mm 200 pitch allen head bolts. These bolts fit the differential. Everything I've read said I needed a 150 pitch bolt. Does anyone else use 200 pitch bolt. Is this going to be an issue? I was told not re-tap the differential from a 200 to 150 pitch (need to go up a size). Thanks for the help.
Mike https://www.condorspeedshop.com/prod...30980504289326 |
When you say 200 pitch of 150 pitch, you are referring to 2.0mm and 1.5mm, I assume?
Do not re-tap the thread in the diff. under any circumstances. edit: reason for not re-tapping with a different pitch thread - you would be completely destroying some of the threads in the tapped hole in your diff. housing Cheers, Glen |
Not all BDR Diffs are upgraded to the 14mm.
Video how to here... https://www.youtube.com/watch?v=NHhsjZcfnbk 14x1.50 tap + 12.5mm drill bit combo: https://www.amazon.com/Drill-America...0&sr=1-16&th=1 You'll also need a tap socket due to clearance with the Diff. https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1 IRWIN Tap Socket Set, Adjustable, 2-Piece (3095001) |
M14 x 1.5 mm or M14 x 2.0 mm. There is no 150 or 200 pitch.
The pitch (distance from one root, or tip) between treads is 1.5 mm or 2.0 mm. The diameter of the bolt is 14 mm. Note: The 1.5 mm pitch has a root diameter of 12.5 mm. If you ever like to tap a M14 x 1.5 into a hole, drill 12.5 mm. And, who guessed it: The 2.0 mm pitch has a 12 mm root diameter. You cannot tap the one into the other. That's like tapping a 3/8 UNF into a 3/8 x 13 UNC bore. Interesting trivia: A M12 x 1.25 mm bolt fits into a 1/2" x 20 UNF (or 1/2" x 20 UNF nut onto a M12 x 1.25 mm stud). BUT will NOT give a tight fit - obviously. Happens with wheel or cylinder head fasteners. Last one: 3/8" x 24 UNF brake line fitting screws down M10 x 1 mm metric equivalent. Will never seal! |
Sorry guys I’m not expert. In fact I had no idea what bolt pitch meant until a couple of weeks go. Yes, i meant 1.5 vs 2.0. I’m worried about retap differential. I could that going bad for a number of reasons. After reading a little more about bolt pitch I feel like the 1.5 would be preferable but the the 12.9 14mm 2.00 bolt would work fine. I think I’m talking myself into going with the 12.9. 14mm 2.00 bolt. I haven’t driven the car in over a month. Is this a mistake ands it’s going to bite me done the road? I appreciate the feed back. Thanks, Mike
|
169mph, look at where you original fastener broke. It broke at the root of a thread. Thread roots are high stress locations on fasteners. Threads are not meant to be placed in shear (side) load, they are meant to apply a tensile loading to tighten the fastener. If you side load a torqued fastener at the root of a thread it will break — maybe not today and maybe not tomorrow but it will break.
The load bearing area / surface of a fastener is the unthreaded shank of the fastener. This is where the load should be applied. The fastener you have sourced is a replica of the fastener that broke. Both require a longer shank to protect the threaded portion of the fastener from a shear load (side load). If you replace the original with a duplicate you will duplicate the failure you have already experienced. Buy the proper fastener to prevent a repeat performance. |
Does the different appearance between broken bolt and the replacement allan head bolt indicate a difference in strength between these two bolts? Specifically referring to the color difference between the bolts.
|
Quote:
You should probably stick with the M14 x 2.0 but, as eschaider wrote, find a bolt with a longer shank. I had to do that last year with a smaller bolt, and ended up buying a longer bolt to get the proper shank length, then cutting off the excess threads to get the length I needed. Not the easy route, but the proper way to do it. |
Sorry I missed the fact you had already been upsized to a 14x2.00 bolt.
You can stick with the 14x1.5 in the Condor kit by installing a Helicoil. 14x1.50 kit here:https://www.rivetsonline.com/thread-...14-15/rc-37148 I'd stick with the Recoil brand as the Helicoil kit same size is $263.00 VS $102.00 Instructions on page 6: https://www.recoil.in/download/recoilTech.pdf |
Quote:
I will note the M14x1.5 bolt supplied in the kit is almost fully-threaded, however, so perhaps not the best fastener for the application. |
Good point Brian. Regardless the weak point on a all-thread and partial thread still will be the threads as they are exposed at the diff bolt hole entry point.
Another alternative is: Since the bolt hole on the Diff is a through and through a nut and washer can be placed on the back side. Chase the hole to allow a 14mm bolt to be a slip fit. Sold here in 14x1.5 and 14X2.0 (the 220mm is 8.6" long for example, plenty long enough) https://belmetric.com/m14x1-5-fine-d...H14X1.5X220YLW Have to measure what you need once the diff is remounted. |
The black nitride is a thermal process that does increase bolt strength and resistance to fatigue.
The cadmium is just an electroplating. The bolt that failed was maybe not up to specs. Run the bolts that fit and check them after use, along with your other suspension bolts. |
Aircraft Spruce is an excellent source for extremely high quality and specific requirement bolts, etc. such as specific bolt shank “grip” lengths.
Blas |
Quote:
Nitriding does give a hard durable finish (a few thousandths of and inch) to the item for wear properties. Typically used on Cylinder walls of Hyd actuators and engines, crank journals, axles, bolt and slide areas of weapons. |
Good point on no strength increase, hot plating just more durable finish.
Your broken plated bolt looks inferior judging by the knurling. Cadmium plating doesn’t do good in a fatigue cycle situation. See if you just have a bad bolt first, upgrade while replacing them. I try to use stainless when I can and zinc, which does better in high stress, for hardened nuts and bolts. |
I appreciate all replies. I have another issue that’s making me hit the reset button. I was trying set my differential on a transmission lift and long story short I dropped the differential. It landed on the differential cover bushing hole. Not sure what you call it but it cracked. The differential moves freely with no obvious signs of damage. At a minimum I need a new differential cover. I would love a good excuse to replace the E36 with something that I dont have to worry about a $10 bolt shearing every time I go for a cruise or it limits how hard I drive my car. Just a little frustrated. Thanks again for the responses.
|
1 Attachment(s)
Use one of the Ford 8.8" aluminum IRS center sections out of an Explorer or a T-Bird, an 03/04 SVT Cobra or a MK VIII. Have your local fab shop build the bracketry to mount it. The one on the left is the Explorer and the one on the right is the T-Bird / SVT Cobra / MK VII unit. The Explorer is beefier in the front mount area.

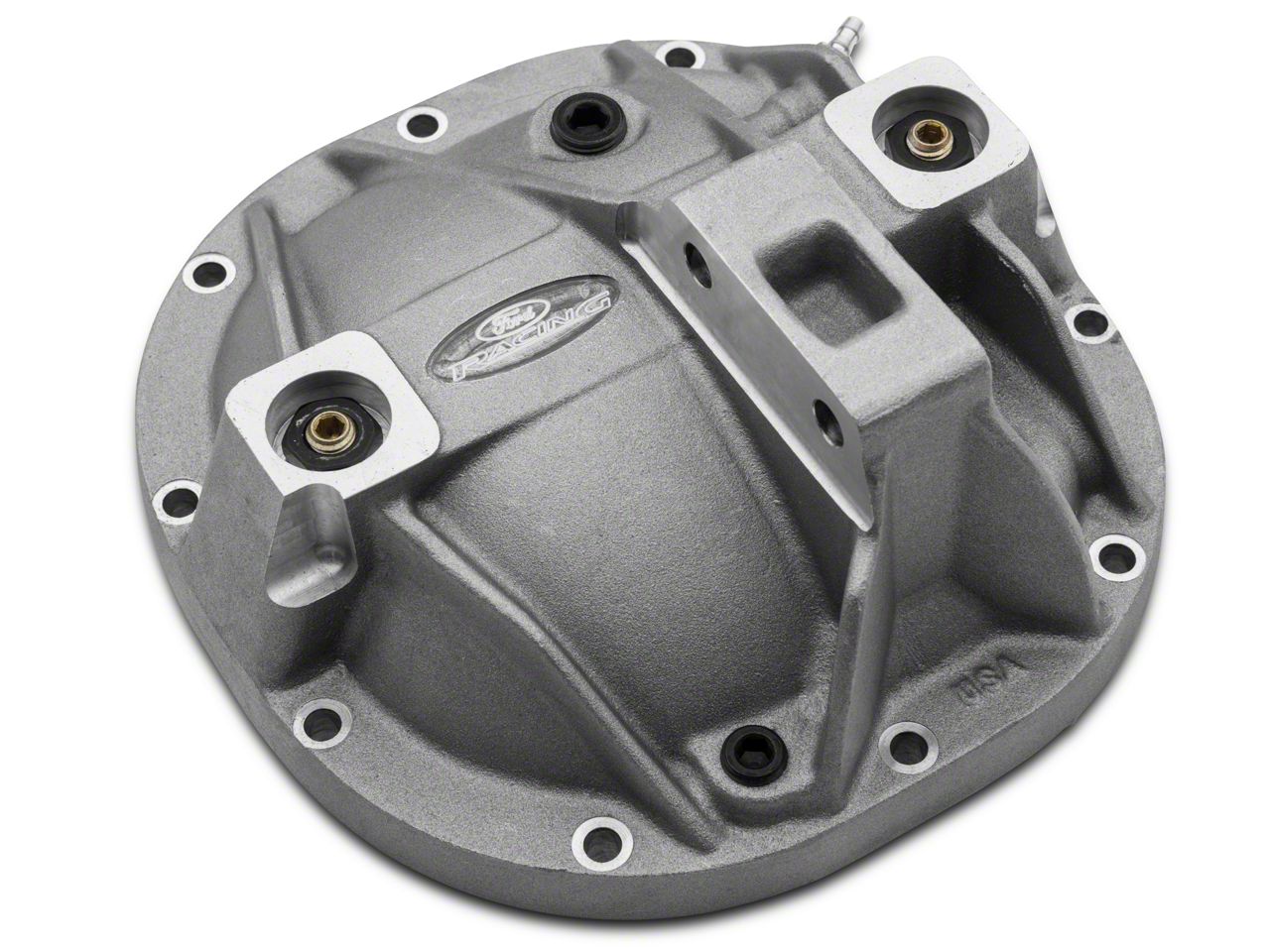

http://www.clubcobra.com/photopost/data/500/Expl_2.jpg Ford no longer makes the nice FRPP HD cover for their 8.8" IRS that looks like this; http://s7d4.scene7.com/is/image/Turn...prodpg640x480$ Although they can be found used, you can also have a nice billet piece like this made; http://www.clubcobra.com/photopost/data/500/Expl_3.jpg The 8.8 IRS is extremely strong, light, small and fits in our chassis nicely. They have gear sets from 2.73 up to 5.71 available in both the aftermarket and OEM channels. The rear end has been used by various replica manufacturers over the years and provides very good service life. Parts are readily available and reasonably priced in large part because of the widespread adoption. Almost forgot, here is a pic of the OEM Explorer rear cover. It is also quite robust. |
Quote:
|
I ordered a new cover for now but I’m still exploring other options. What do y’all think I can get for my e36 rear differential? I know this is a very difficult question to answer but What should I expect to pay to have a shop do the fabrication and install one the options Eschadier was cool enough to post? I saw the new RT4 rear differential on Iconics website. Does that differential mount to the carrier / subframe the same way as the E36…single bolt to carrier?
Thanks |
new poster here but I have been a mechanic all my life and I am over 70 years old. The most common reason for a bolt to fail like yours is it was over tightened. This is especially true on suspensions parts many give it a little extra. Before you redesign and sped lots of money just put it together carefully making sure the torque is right and it does not bottom in the threads. It is my understanding that these were modified by drilling and retapping which would be another reason it might have been over torqued. respectfully
|
