Glen,
Great looking layout, your research pays off once again to come up with custom dash for AP2289 that has key elements of period CSX cars, but is unique to your cobra. What will be used for the base structure of the dash, sheet metal or fiberglass? Have you specified or sourced the dash cover material?
__________________
289 FIA --- ERA 2136
Build Log:
http://www.clubcobra.com/forums/era-...build-log.html
Reply With Quote
Sponsored Links
Sponsored Links
  #82 (permalink)
Old 09-20-2015, 11:09 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by tkb289 View Post
Glen,
Great looking layout, your research pays off once again to come up with custom dash for AP2289 that has key elements of period CSX cars, but is unique to your cobra. What will be used for the base structure of the dash, sheet metal or fiberglass? Have you specified or sourced the dash cover material?
Well thanks Tim....I had some good quality research assistance
Dash structure and covering decided? I'm happy to go with whatever AP suggest here, but given their 'fetish' for cold, hard aluminium alloy, I'm thinking that material would a good bet.
Dash covering....black leather would be nice, but I'll talk it over with Craig.

Cheers,
Glen
Reply With Quote
  #83 (permalink)
Old 09-24-2015, 08:02 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default More body mod pictures:

If you recall the story so far, the front half was roadster configured ex-Bruce. Splashes have been taken on the areas that would change (roadster guard/fender shape and the 'no-oil-cooler-scoop' area) so that those roadster features can be easily replicated for future roadster builds.
Now AP have moved on to modding those areas.
The oil cooler scoop is well under way, but what you see here isn't the final shape. As we see it at the moment, AP are just checking to see how the size of it will blend into the front of the body and then they will do the final shaping on the scoop itself.
The front guards have been changed to the FIA shape, with plenty of trimming allowance added, allowing for adjusting back and providing a strong trimmed edge.

Cheers,
Glen

Last edited by xb-60; 07-17-2017 at 08:09 PM.. Reason: Photobucket
Reply With Quote
  #84 (permalink)
Old 09-27-2015, 03:26 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default Engine trial fit

Still from last week....

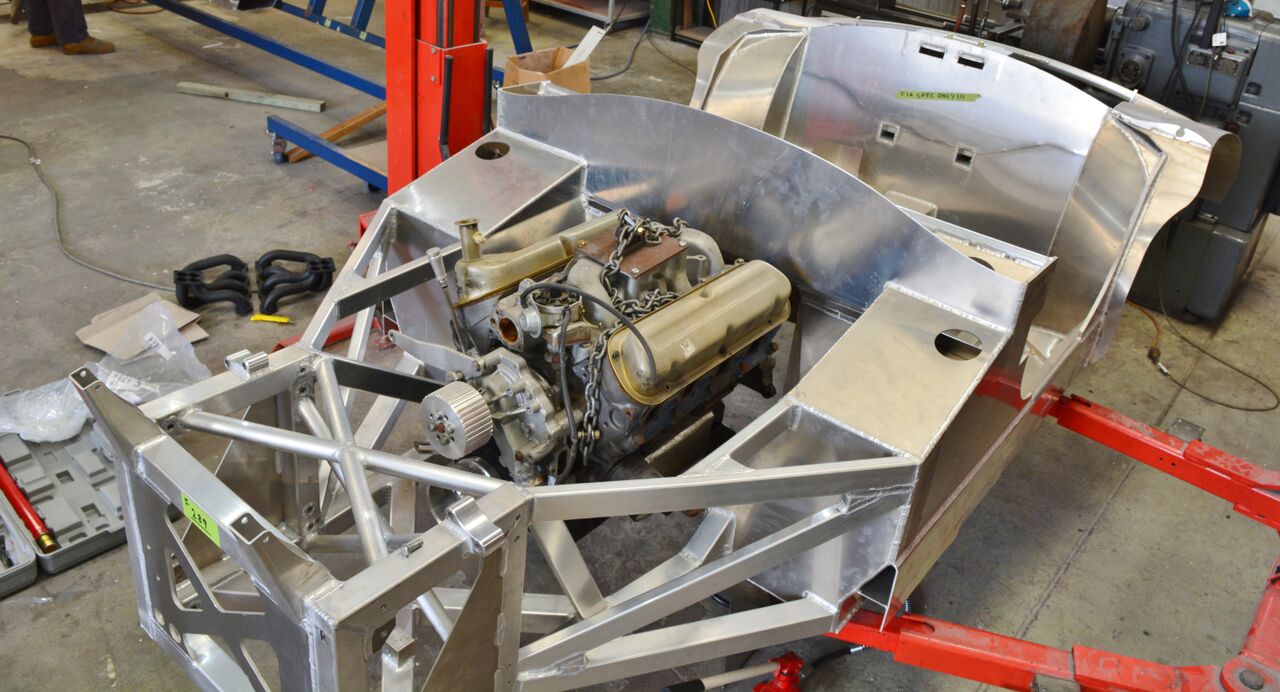

Trial fit of an SBF (not mine) just to make sure we have sufficient bonnet/hood clearance.
Even though the 427 and 289 shapes are very similar in a lot of areas, and a 427 bonnet will fit onto my body, it pays to double check clearances



(No shot available of the body on though)


Cheers,
Glen

Last edited by xb-60; 07-17-2017 at 08:12 PM.. Reason: Photobucket
Reply With Quote
  #85 (permalink)
Old 10-13-2015, 02:16 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Here are the latest shots in the development of AP2289's FIA body.

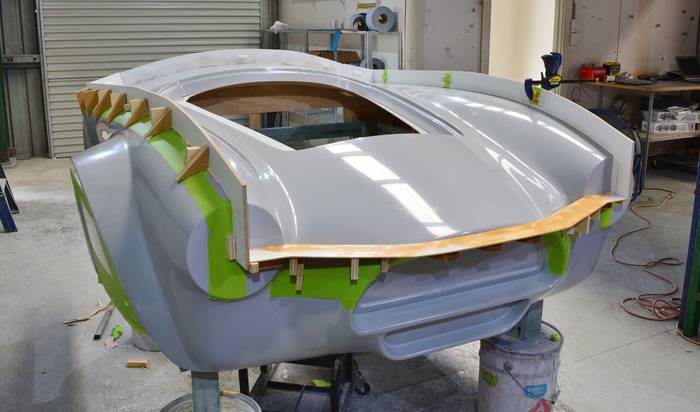

The body is back from being painted after significant mods to the front section to create the FIA-style front guards/fenders and to add an oil cooler scoop.

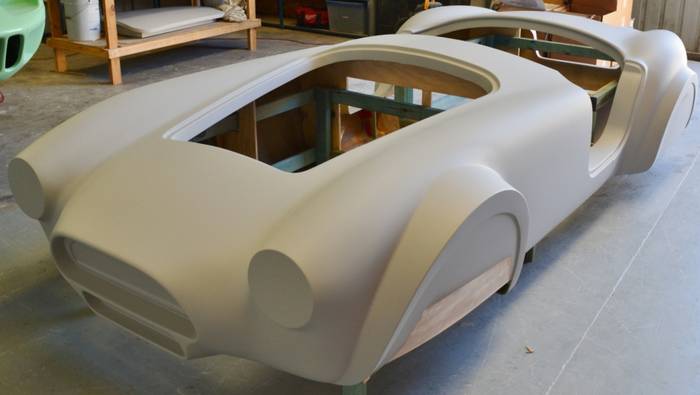

This body will in effect form the 'positive' for the creation of the mould, hence the extended guards front and rear that will allow trimming back for a strong trimmed edge.



The fronts will lose approximately half of that extension width, and the rears will lose almost all of the extension width. (Craig and Warren, please feel free to correct me if I have any of this wrong )

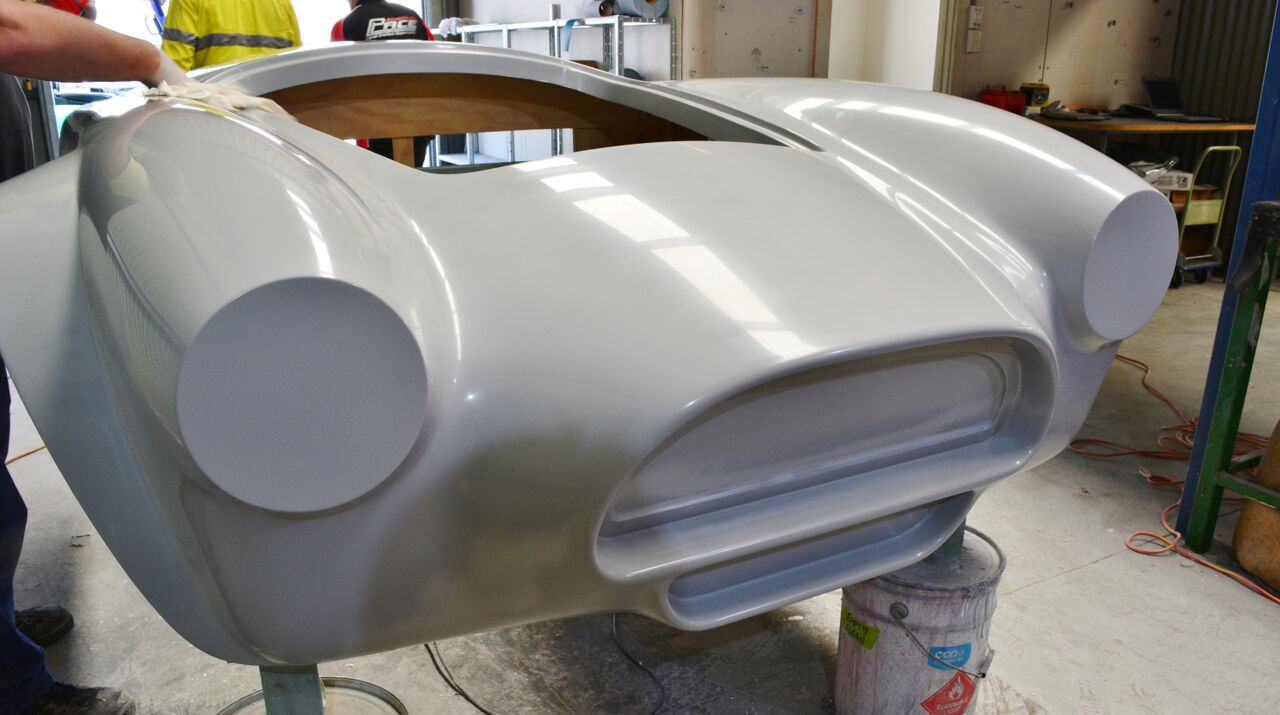

Nose shot:
The oil cooler scoop has been added. What shows here is not the final shape. How it blends into the body is representative, but the final shaping on the scoop is still to be done.
What we will end up with is a scoop style like the later original FIA – CSX 2431, 2345 etc.



More as it happens!

Cheers,
Glen
albanycobra and leroy17 like this.

Last edited by xb-60; 07-25-2017 at 07:42 PM.. Reason: Photobucket
Reply With Quote
  #86 (permalink)
Old 10-24-2015, 02:38 AM
CC Member
Visit my Photo Gallery


Join Date: Jun 2001
Location: munno para west, sa
Cobra Make, Engine: absolute pace chassis #50 L98 & 6 speed auto
Posts: 1,140
Not Ranked
Default

awesome glen i meant to ask the other night how the body was progressing then remembered i had saved this thread . there a talented lot up there thats for sure i cant wait to see it in the flesh ..
__________________
a cobra is a passion anything else is just a car
i dont care what the question is .. The answer is more power!!!
Reply With Quote
  #87 (permalink)
Old 10-24-2015, 08:01 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Thanks Dean. Agreed, they are a talented lot up there. Craig started with a generally acknowledged 'good' body from Bruce C., and he's done a lot of work on it since.
I'm very much looking forward to the body going onto the chassis and the chassis suspension and wheels being added so they can 'tune' it to get that 'AP' stance. After that....the chassis is painted!

Cheers,
Glen
Reply With Quote
  #88 (permalink)
Old 10-24-2015, 10:40 PM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Cant wait to see the painted chassis....
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #89 (permalink)
Old 10-25-2015, 02:59 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by albanycobra View Post
Cant wait to see the painted chassis....
....the body comes off for that, of course
Reply With Quote
  #90 (permalink)
Old 10-26-2015, 01:15 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #91 (permalink)
Old 11-03-2015, 01:53 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

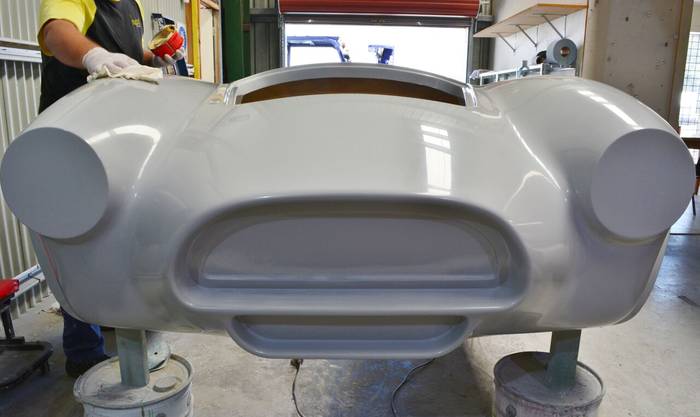

AP2289 now has its correct oil cooler scoop....



Its guards/fenders are correct for creating the mould. They will be then be trimmed back to 'FIA spec'.

Here's a close-up of the scoop...



Nice job, Craig and the boys and girls at AP!

Cheers,
Glen

Last edited by xb-60; 11-03-2015 at 01:49 PM..
Reply With Quote
  #92 (permalink)
Old 11-09-2015, 04:58 AM
LoBelly's Avatar
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Feb 2006
Location: Melbourne, VIC
Cobra Make, Engine: RMC, carb 347 TopLoader and Jag running gear ~ so old school I time it with an hour-glass :D
Posts: 1,293
Not Ranked
Default

body in white ...?
Reply With Quote
  #93 (permalink)
Old 11-09-2015, 09:17 AM
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Jan 2005
Location: VALLEY FORGE, PA
Cobra Make, Engine: SUPERFORMANCE w DOUG MEYER ENGINE
Posts: 1,958
Not Ranked
Default

Wowzers! Fantastic work!!!
Reply With Quote
  #94 (permalink)
Old 11-09-2015, 10:39 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

I'll let you guess where we're going with this one....



Cheers,
Glen
albanycobra likes this.
Reply With Quote
  #95 (permalink)
Old 11-15-2015, 01:03 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

....and with this one



Cheers,
Glen
Reply With Quote
  #96 (permalink)
Old 11-15-2015, 02:34 AM
CC Member
Visit my Photo Gallery


Join Date: Jun 2012
Location: Naracoorte, SA
Cobra Make, Engine: CR Cobra 3169
Posts: 818
Not Ranked
Default

I'm guessing making a mold to make more?
JD
Reply With Quote
  #97 (permalink)
Old 11-15-2015, 03:01 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by Jaydee View Post
I'm guessing making a mold to make more?
JD
You got it.
Reply With Quote
  #98 (permalink)
Old 12-05-2015, 08:19 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

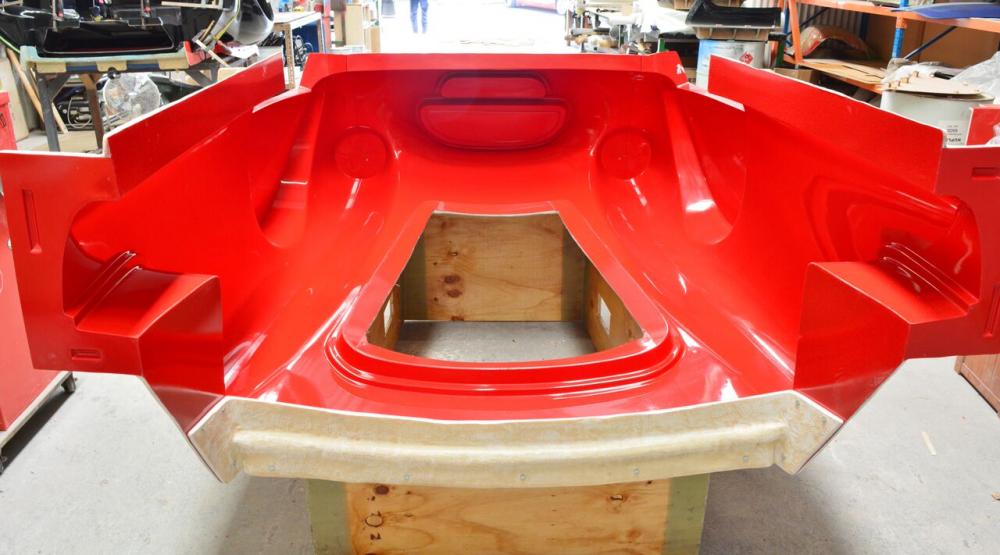

Not pretty from this angle, but there's a thing of beauty inside that mould

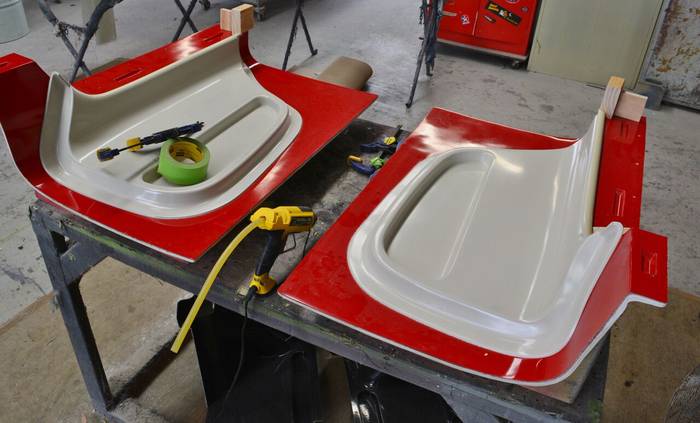

Door inners...




Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 07:53 PM.. Reason: Photobucket
Reply With Quote
  #99 (permalink)
Old 12-06-2015, 04:34 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Classic Pace perfection
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #100 (permalink)
Old 12-13-2015, 10:32 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by xb-60 View Post
Not pretty from this angle, but there's a thing of beauty inside that mould
...and here's what it looks like on the other side:



Craig - I'm impressed

Cheers mate.
Aussie Mike likes this.
