patrickt 03-01-2018 12:04 PM

Quote:

Originally Posted by csx4017 (Post 1439597)
I talked to John at ERA and this is the photo of their three hard lines. They are available for sale. The two upper lines appear to have a configuration I can work with. I am having difficulty understanding how the lower line configuration would route. Looks extremely long with many bends?

That has to be the clutch line that feeds from the reservoirs on the fender well down and over to the master cylinder that is mounted on the frame rail on the inside of the tunnel. But that is a very challenging geometric problem to visualize it from that pic. If it were me, I'd just buy it on faith.;)

DanEC 03-01-2018 04:35 PM

Yeah, it looks a little wonky but the brake masters reside on the outside of the frame rail and the clutch master is on the inside of the frame rail so it has to jog over and further back than the brake lines. I have some undercar photos that might help you with orientation but I'm afraid they may be equaling confusing. I'm like Patrick - go on faith. If a line needs a bit a tweaking an inexpensive tubing bender can do it.

http://i125.photobucket.com/albums/p...psb9b49ed2.jpg

http://i125.photobucket.com/albums/p...psa9e6eac1.jpg

http://i125.photobucket.com/albums/p...ps7e2e70d4.jpg

http://i125.photobucket.com/albums/p...ps75e04465.jpg

http://i125.photobucket.com/albums/p...ps0a7e7a0d.jpg

http://i125.photobucket.com/albums/p...ps9f414678.jpg

Kevins2 has a better shot of the engine bay routing than I do.

ACHiPo 03-02-2018 07:16 AM

Dan,
Do you spit-polish the bottom of your car? Looks clean enough to eat off!

csx4017 03-02-2018 09:07 AM

Thanks Dan, Those photos are very helpful. John at ERA has all three for a very fair price. If the tubes need some tweaking that is fine. I am running a hydraulic throw-out-bearing and the clutch master is not a Tilton brand. The hard line terminates into the body without an AN fitting. A bit funky. May have to replace with new Tilton. Just replaced both brake masters with Tiltons.
What reservoir did you use?

DanEC 03-02-2018 09:08 AM

Well I did have to give it a thorough wipe down after I finally got done with all the body work and painting.

DanEC 03-02-2018 09:10 AM

Quote:

Originally Posted by csx4017 (Post 1439682)
What reservoir did you use?

I'm using the same 3 Girling cans that Kevins2 and Patrickt are using - mounted on the left fender panel.

csx4017 03-02-2018 09:21 AM

Thanks again to all.

http://www.clubcobra.com/forums/pict...=17342&thumb=1 http://www.clubcobra.com/forums/pict...=17343&thumb=1

kevins2 03-02-2018 10:25 AM

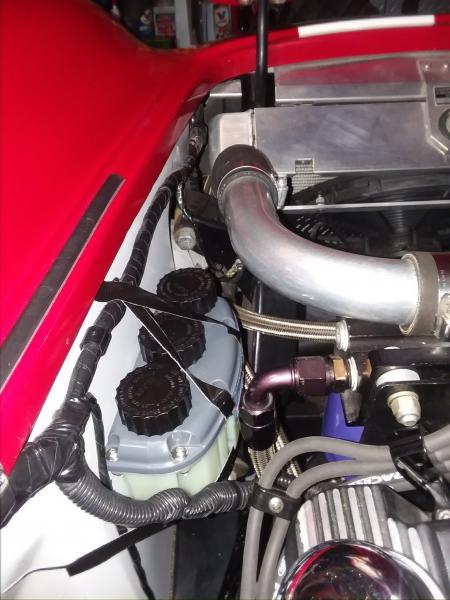

Actually, I'm using the BMW reservoir. Peter at ERA talked me out of the Girling cans (very strongly told me I'd be sorry). Although it does bother me a bit that it is the only component in my engine bay that doesn't look period correct, it has been trouble free.

http://www.clubcobra.com/forums/pict...ictureid=11374

Kevin

patrickt 03-02-2018 10:36 AM

Kevin, you gotta fix that. Buy three of the Moss Motor Girling cans and you will be much happier. I know that BMW reservoir has to bug you each time you open the hood. :cool:

DanEC 03-02-2018 11:18 AM

Quote:

Originally Posted by kevins2 (Post 1439690)
Actually, I'm using the BMW reservoir. Peter at ERA talked me out of the Girling cans (very strongly told me I'd be sorry). Although it does bother me a bit that it is the only component in my engine bay that doesn't look period correct, it has been trouble free.

http://www.clubcobra.com/forums/pict...ictureid=11374

Kevin

OK - my mistake. Do all 3 lines hook up to the one reservoir? I was assuming from the 3 lines that you had the individual reservoirs.

Actually, I should not have the Girling cans in my car since they were apparently not used (as original) in street cars. I failed to understand that at the time. But they aren't causing any problems so I'm going to leave them.

csx4017 03-02-2018 02:04 PM

I just got off the phone with ERA and ordered the hard lines. Peter says they have never shipped this unusual package before. This will be a test case for delivery to SoCal. They could arrive with some unique UPS configurations !!
Nice folks at ERA.

kevins2 03-02-2018 03:00 PM

Quote:

Originally Posted by patrickt (Post 1439691)
Kevin, you gotta fix that. Buy three of the Moss Motor Girling cans and you will be much happier. I know that BMW reservoir has to bug you each time you open the hood. :cool:

Yeah, maybe when I retire and have nothing to do...

kevins2 03-02-2018 03:18 PM

Quote:

Originally Posted by DanEC (Post 1439693)
OK - my mistake. Do all 3 lines hook up to the one reservoir?

Hi Dan,

Yes, the clutch line comes into the side about half way down - the two brake lines come into the bottom, one on each side of the divider in the reservoir. So, if you had a leak in the brake system that drained the fluid, you would still have either the front or rear brakes since the lines are separate and there are actually two reservoirs in the reservoir housing. If you had a leak in the clutch system that drained the fluid, you'd lose the clutch but still have front and rear brakes since the clutch line is half way down the reservoir.

I've read Patrick's thread on how to make the cans stop spitting and maybe I'll tackle that someday. Although the BMW reservoir is very functional, it does look out of place. Maybe I could fabricate a can-like cover for it that would at least look like something from the 60's %/

Kevin

patrickt 03-02-2018 03:40 PM

Quote:

Originally Posted by kevins2 (Post 1439701)

I've read Patrick's thread on how to make the cans stop spitting and maybe I'll tackle that someday. Although the BMW reservoir is very functional, it does look out of place. Maybe I could fabricate a can-like cover for it that would at least look like something from the 60's %/

Kevin

I'll send you a swath of Sham-Wow, gratis.;) But all you would need to do is Google "metal cone top cans," like this one, then cut the bottom out of it, paint it black, glue a Girling decal on the front, then just slip it over the BMW reservoir. That would fool 99% of the Cobra world and would look great.:cool:

https://www.labelmaster.com/product/...ktop8dkt_0.jpg

davids2toys 03-03-2018 08:03 AM

4 Attachment(s)
Concerning Kevin's pic. I seem to have the same reservoir only located at the front of the foot box with the lines going thru the foot box vs. his configuration. Must have been a change as the cars got newer. I have received all the new lines from Tilton, I have not replaced my weeping lines yet. I will attach a few pics of my setup

csx4017 03-08-2018 08:39 AM

New hard lines have shipped from ERA. New Tilton clutch master coming from Summit to replace the BMW unit. Thanks for your inputs.
