32 millimeter die

[johnc427]

Anyone know where I can get a 32 millimeter die for a spindle? need to clean up the threads I messed up. Thanks. Need asap. 916 380 2518. John

[Gaz64]

Here's some examples, but we need to know the thread pitch as well:

32mm X 1 5 Metric Right Hand DIE M32 X 1 5mm Pitch | eBay

NEW 32mm 32 X 2 Metric Right Hand DIE M32 X 2 0 Pitch | eBay

Or how about a thread file:

Jawco 155 NU Thred Thread Restoring File SET SAE Metric Made IN USA Rethread | eBay

Have you crossthreaded the nut, or have the threads picked up from partial seizure?

[Calbullet]

I would look for something like this Nes Technologies - External Thread Repair Tools

[Karl Bebout]

Try Northern Tool or maybe Grainger's. Maybe even Summit because they have lots of tools not shown on their web site. They can sometimes find surprising things.

[BMEP]

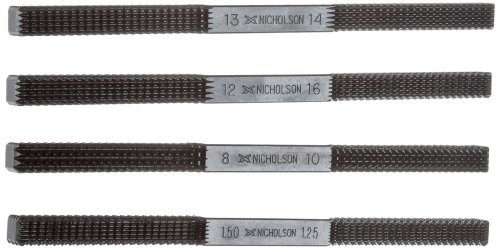

Another option is to use a thread file like this:

[Blue66]

McMaster Carr

[iva bigan]

Threads can be cleaned up quite easily with a simple triangle shape common file,the angles of 2 sides of the file matches the thread angle of 60 degrees, sometimes you start the repair with a half round file because of its tighter angle and finish with a triangle file.

Depending on the damage of course .

Iva Bigan

[johnc427]

Thanks to all for the info, I cleaned up the threads with a triangle file and slowly worked the nut back and forth with some anti seize compound on the threads. It took a little while but everything worked out ok.
