Default 289 Horn Placement / Orientation

I have a few photos of the left side horn placement, but I don’t have anything (other than the bracket location) with regards to the right side Windtone horn installation. Being under the alternator, I understand that pics are difficult to get, but if anyone has anything showing the horn attached to the bracket, I would love to see a picture or two.
Reply With Quote
  #2 (permalink)
Old 04-24-2021, 09:19 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,389
Not Ranked
Default

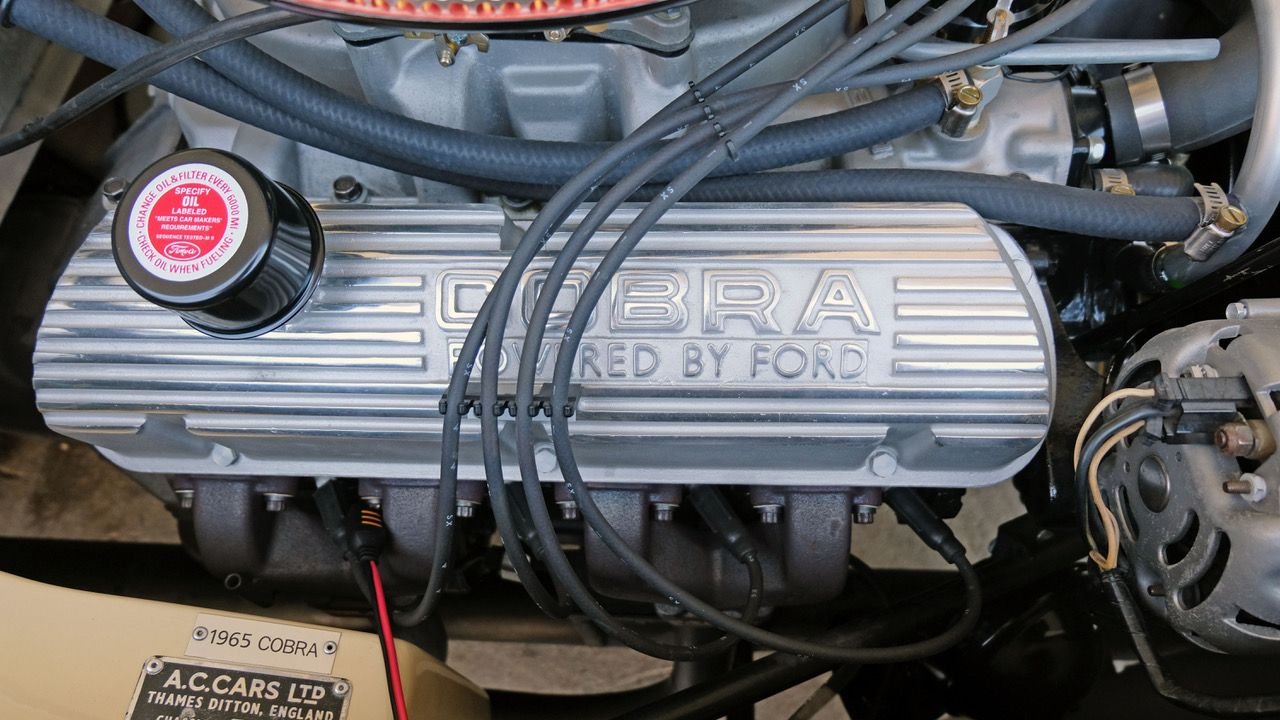

Just below the alternator on the cowl brace tube is a bracket. The horn is mounted to that bracket.

Larry

__________________
Alba gu bràth
Reply With Quote
  #3 (permalink)
Old 04-25-2021, 02:48 AM
xb-60's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA 'English' spec.
Posts: 13,139
Not Ranked
Default

Nice engine, Larry!
Reply With Quote
  #4 (permalink)
Old 04-25-2021, 04:28 AM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default

Stacy,

That is where mine was mounted as well. I will look through my pictures to see if I have one of the bracket. The car is at Time Machines right now as we were measuring and fitting new headers. I may still have the horns if I did not sell them, if you need them. I will have to look through my stuff. I will be with the car on Tuesday if you want more pictures.

Jim
__________________
Reply With Quote
  #5 (permalink)
Old 04-25-2021, 04:36 AM
Ivygreen65's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2011
Cobra Make, Engine:
Posts: 159
Not Ranked
Default

Quote:
Originally Posted by LMH View Post
Just below the alternator on the cowl brace tube is a bracket. The horn is mounted to that bracket.
Larry,

Does the horn mount dome up or dome down? Does the horn point into the engine bay or towards the right front wheel? I know basically where to attach the bracket, but determining how to orient the bracket radially on the cowl brace tube is what I’m unsure about.
Reply With Quote
  #6 (permalink)
Old 04-25-2021, 08:12 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,389
Not Ranked
Default

I edited this photo a little to (maybe?) make it a little more clear. The "dome" points towards the right front tire, if that makes sense. The horn assembly mounts pointing down.




I'll also add these photos of the bracket itself. This is a recreation from the original Hi Tech company. They're pretty exact! Gives you an idea of how far they went to accurately replicate the Cobra!





Larry
__________________
Alba gu bràth
Reply With Quote
  #7 (permalink)
Old 04-25-2021, 08:37 AM
Ivygreen65's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2011
Cobra Make, Engine:
Posts: 159
Not Ranked
Default

Exactly what I was looking for. Thanks, Larry.
LMH likes this.
Reply With Quote
  #8 (permalink)
Old 04-25-2021, 11:55 AM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 1,027
Not Ranked
Default

Just as a F.Y.I., early cars had horns installed in front of the radiator. Horns moved to beside the engine at CSX2201.
jolsen42, 1985 CCX, LMH and 1 others like this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.
Reply With Quote
  #9 (permalink)
Old 05-11-2021, 04:45 PM
CC Member
Visit my Photo Gallery


Join Date: Mar 2019
Location: Fairhope, AL
Cobra Make, Engine: Superformance MK2 Street 289
Posts: 5
Not Ranked
Default 289 horns

Can you post pictures or the left side placement? Thanks
Reply With Quote
  #10 (permalink)
Old 05-11-2021, 07:45 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,389
Not Ranked
Default

Quote:
Originally Posted by tigerjimv8 View Post
Can you post pictures or the left side placement? Thanks
Well, I have photos showing it but my computer took a dump on me over the weekend. I can’t get to the photos at the moment and I’m using my phone for internet! Maybe someone else has pics.

Larry
__________________
Alba gu bràth
Reply With Quote
  #11 (permalink)
Old 05-11-2021, 11:49 PM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 534
Not Ranked
Default

Unfortunately I've no information about the car this picture is coming from.
But it seems to me an original car and I did use it as a reference for my car.



Could be interesting for you: Horn mounts
1985 CCX likes this.
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
