  #1 (permalink)
Old 12-13-2018, 02:56 PM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 2,736
Not Ranked
Default

No subject context, and from an unregistered user? (Wigly)
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 12-15-2018, 06:10 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

I am a registred user but don't know why my main thread is gone..
Reply With Quote
  #3 (permalink)
Old 12-16-2018, 09:31 AM
Ozgur_Tan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 1999
Location: istanbul, TR
Cobra Make, Engine: scratch built 289 eclectic mix of fia/ussrc/early comp
Posts: 787
Not Ranked
Default

Hi Wigly,

You need much more of information than only "cobra restorer blueprints"
Because of missing or wrong dimensions !

https://www.ozgurtan.com/2018/10/ori...hassis-3d.html

Quote:
Originally Posted by Wigly View Post
I am a registred user but don't know why my main thread is gone..

Last edited by Ozgur_Tan; 12-16-2018 at 09:35 AM..
Reply With Quote
  #4 (permalink)
Old 12-17-2018, 03:57 AM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 2,736
Not Ranked
Default

Hi Wigly,

Is this your previous thread, and you can't access it:

Thickness main tubes of org. 427 Frame

Have you lost your log-in, or having difficulty logging in?

You haven't posted for a while, so maybe your login is lost in a site database update?

Gary
Reply With Quote
  #5 (permalink)
Old 12-17-2018, 10:16 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

Hi everybody,

i put every information in here, but after the linking to my galary my main artikel disappears. I've saw a message that an admin has to check my post...

I am working on the last details of my CAD CR-Chassis model and need some help.

Can somebody tell me the correct angle of the shock tower and backcut angle of front lower A-Arm bracket?
Reply With Quote
  #6 (permalink)
Old 12-17-2018, 10:21 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Neutral
Default

@Gary
I can login and everything, the only problem seems to be in the image linking.

The Thickness main tube thread is an old one.
Reply With Quote
  #7 (permalink)
Old 12-17-2018, 10:51 AM
Ozgur_Tan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 1999
Location: istanbul, TR
Cobra Make, Engine: scratch built 289 eclectic mix of fia/ussrc/early comp
Posts: 787
Not Ranked
Default

required angle of the shock tower: 109deg
required bracket dimensions: 35.10mm and 72.48deg

Quote:
Originally Posted by Wigly View Post
Hi everybody,

i put every information in here, but after the linking to my galary my main artikel disappears. I've saw a message that an admin has to check my post...

I am working on the last details of my CAD CR-Chassis model and need some help.

Can somebody tell me the correct angle of the shock tower and backcut angle of front lower A-Arm bracket?
Reply With Quote
  #8 (permalink)
Old 12-17-2018, 02:17 PM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 2,736
Not Ranked
Default

Quote:
Originally Posted by Wigly View Post
Hi everybody,

i put every information in here, but after the linking to my galary my main artikel disappears. I've saw a message that an admin has to check my post...

I am working on the last details of my CAD CR-Chassis model and need some help.

Can somebody tell me the correct angle of the shock tower and backcut angle of front lower A-Arm bracket?
Quote:
Originally Posted by Wigly View Post
@Gary
I can login and everything, the only problem seems to be in the image linking.

The Thickness main tube thread is an old one.
The reasons are since you are a fairly new low post user, the admins have to authorise file attachments etc.
Once you are past a low of figure of 10, it becomes a lot easier.
The reason they do that is they have to learn to trust new members to limit spammers.

Gary

Last edited by Gaz64; 12-17-2018 at 02:20 PM..
Reply With Quote
  #9 (permalink)
Old 12-17-2018, 02:20 PM
cycleguy55's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2014
Location: White City, SK
Cobra Make, Engine: West Coast, 460 CID
Posts: 2,715
Not Ranked
Default

Quote:
Originally Posted by Gaz64 View Post
The reasons are since you are a fairly new low post user, the admins have to authorise file attachments etc.

Gary

An alternative may be to have the images hosted elsewhere and provide links to them in your post / comments.
Gaz64 likes this.
__________________
Brian

Last edited by cycleguy55; 12-17-2018 at 03:10 PM..
Reply With Quote
  #10 (permalink)
Old 12-18-2018, 10:30 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

@Gary
thx for that information.

@Brian
I did that but it just didn't work

But nevertheless.. you can see the images in my galary right?

@Ozgur_Tan
the bracket dimensions sounds a little bit odd to me. Converting the 35.1 mm in inches isn't the size i would expecting

How long is the main tube without the end cap? -> in the blueprint (first page) it looks like the total length includes the end caps..

Last edited by Wigly; 12-18-2018 at 10:49 AM..
Reply With Quote
  #11 (permalink)
Old 12-18-2018, 11:15 AM
Ozgur_Tan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 1999
Location: istanbul, TR
Cobra Make, Engine: scratch built 289 eclectic mix of fia/ussrc/early comp
Posts: 787
Not Ranked
Default

g'day

it was long time ago, they are OK but i'll post more when i return to home.
i also have to work with imperial then convert to metric dimension values.
as you may see attached my WIP screen shots
suspension pickup points at chassis side etc. are correct
i'm still working on some details
peace

ozgur
ozgurtan.com




Last edited by Ozgur_Tan; 12-18-2018 at 11:55 AM..
Reply With Quote
  #12 (permalink)
Old 01-19-2019, 09:11 AM
Registered User
Visit my Photo Gallery


Join Date: Jan 2019
Posts: 1
Not Ranked
Default

Hello everybody, it's me Wigly. I have had to create a new account because the old one wasn't working anymore -> even Brent Mills reseted my pw... i couldn't login.

@Ozgur_Tan
Thank you for the information.

How long is the main tube without the end cap? -> in the blueprint (first page) it looks like the total length includes the end caps..
if i check the position information of the upper support tube the end caps are 0.125 thick and not 0.120. Is that right?
Reply With Quote
  #13 (permalink)
Old 01-20-2019, 10:49 AM
db replicas's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2007
Location: Stoke on Trent (Potteries), UK
Cobra Make, Engine: DB427SC. 289FIA. COUPE. Round tube, Aluminium body, 427FE
Posts: 93
Not Ranked
Default

It all depends which drawings you are looking at.
I have some with and without the caps both saying 96.75"
__________________
Dave Brookes.
UK Cobra manufacturer/builderhttp://www.db427.com
Reply With Quote
  #14 (permalink)
Old 02-17-2019, 09:31 PM
CC Member
Visit my Photo Gallery


Join Date: Feb 2003
Location: Plymouth, MA
Cobra Make, Engine: MidStates, 351C, 4spd, 9"
Posts: 380
Send a message via AIM to krausewich
Not Ranked
Default

Hi Wigly! Welcome back to the build section... For the Endcaps and other 1/8" steel bracketry, you should use .120 for your measure as 11ga steel sheet will not be .125 Go with the 96.75 Overall and start your build from the rear forward ; )

Good luck,
Mike
__________________
"It's not about getting from point A to point B. It is the point"
-J. James

M. Krause
1.508.944.3368
Reply With Quote
  #15 (permalink)
Old 04-27-2020, 11:05 PM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

Hi everybody,
after a very long time i can login again. YEAH

Thank you so far for the information.

I am currently working on the front upper and lower control arms, guess will need some help later on.
Reply With Quote
  #16 (permalink)
Old 10-31-2021, 12:58 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

Hi Again,

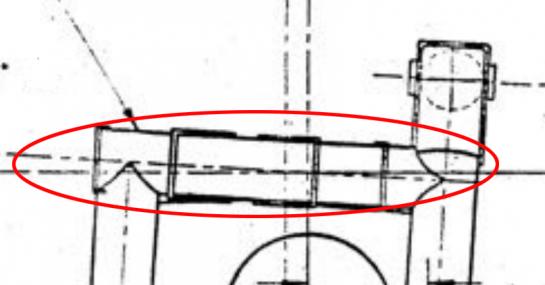

can somebody tell me the correct length of the rear tower top side tube?

thx

Reply With Quote
  #17 (permalink)
Old 10-31-2021, 10:52 PM
Ozgur_Tan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 1999
Location: istanbul, TR
Cobra Make, Engine: scratch built 289 eclectic mix of fia/ussrc/early comp
Posts: 787
Not Ranked
Default

225 mm
center to center, aligned
ozgurtan.com



Quote:
Originally Posted by Wigly View Post
Hi Again,

can somebody tell me the correct length of the rear tower top side tube?

thx


Last edited by Ozgur_Tan; 10-31-2021 at 10:59 PM..
Reply With Quote
  #18 (permalink)
Old 11-01-2021, 12:49 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

Quote:
Originally Posted by Ozgur_Tan View Post
225 mm
center to center, aligned
ozgurtan.com

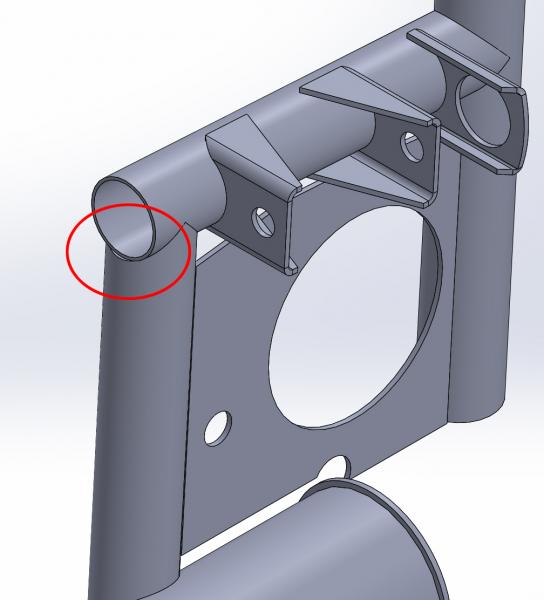

the center to center length is fine for me but i am still not sure about the total length of the tube. Based on the CR prints or my guessing it is to short

Reply With Quote
  #19 (permalink)
Old 11-01-2021, 01:14 AM
Ozgur_Tan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 1999
Location: istanbul, TR
Cobra Make, Engine: scratch built 289 eclectic mix of fia/ussrc/early comp
Posts: 787
Not Ranked
Default

extension from center is 22mm

Quote:
Originally Posted by Wigly View Post
the center to center length is fine for me but i am still not sure about the total length of the tube. Based on the CR prints or my guessing it is to short

Reply With Quote
  #20 (permalink)
Old 11-01-2021, 02:21 AM
CC Member
Visit my Photo Gallery


Join Date: Apr 2018
Posts: 26
Not Ranked
Default

so the total length is 9.75", or should be if the tube dia is 1.75"

Quote:
Originally Posted by Ozgur_Tan View Post
extension from center is 22mm
Reply With Quote
