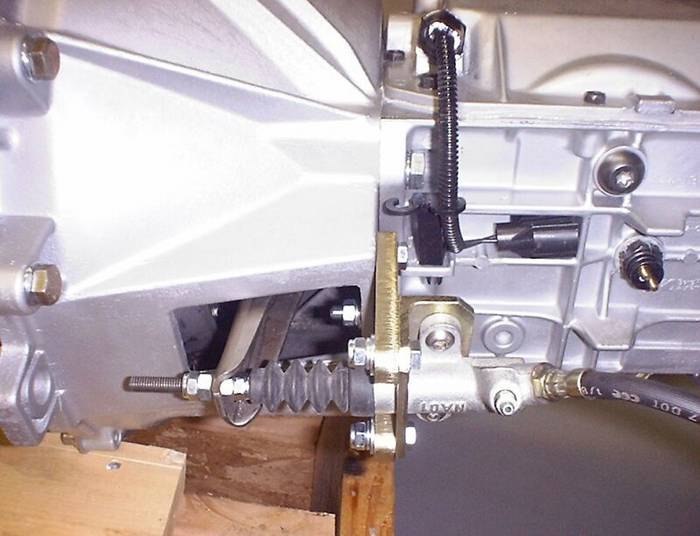

Clutch Slave Unit Installed on Bell Housing on 10/18/2004. Note: During drivetrain installation I discovered that the clyinder has to be rotated 180 degrees with the hose pointing downward.
· Date: Wed October 20, 2004 · Views: 870 · Filesize:44.8kb, 70.3kb · Dimensions: 800 x 613 ·
Registered: May 2001 Location: California Posts: 6,592
Tue February 15, 2005 4:39pm
Explain???
------------------------------ Rick
As you slide down the Banister of Life, may the splinters never be pointing the wrong way
Secret Squirrel Senior Club Cobra Member
Registered: May 2004 Location: Imperial Posts: 238
Wed February 16, 2005 8:42am
I had to remove the two nuts and bolts in foreground and spin the slave cylinder with L-bracket 180 degrees, so the hydralic hose and bleeder valve are facing downward and toward the transmission. The clearance in the tunnel is very close. It would not fit otherwise. This is a before shot. I have added an after shot of the corrected mounting.
------------------------------ Wayne W.
Backdraft Racing BDR144
Pewter with Steel Gray Stripes
