waterpump flow question

[stephen low]

Looking at past threads my question is very similar to one Mando posted related to water pump flows.

However as I need to instal a down stream part in the right flow direction and don't 100% know the answer on the pump I'll ask away.

Refering to the picture below

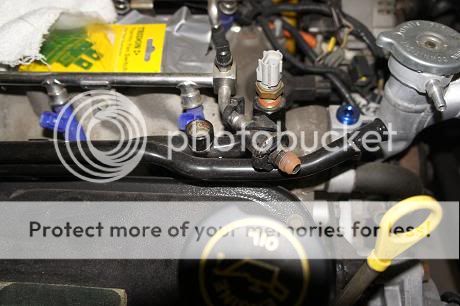

The two nearest black tubes represent water flow pipes running to the rear of the engine to allow heater connection. The tube pointing at the base of the modified thermostat / radiator cap holder is attached to the outlet from the water pump seen partly hidden by the yellow oil dipstick handle.

Does water flow out of the pump via this outlet into the tube through the heating system and then return forward by the second tube and back into the manifold just below the grey sensor?

I have presumed this as the water pump should be pushing water but don't know if this is correct.

Can someone confirm or correct my understanding of the water flow here please.




Cheers

Steve

[Merv and Sharon]

That was my understanding Stephen - an early pic of mine before re-building (my water pump is a standard rotation):

[stephen low]

Thanks Merv

Just wanting to instal the new electric heater tap and it is flow direction sensitive, presumably for best sealing and operation.

Cheers

Steve

[Mando]

Hi Stephen, can't help with your question, but could you post a couple of pics of the electric heater tap you intend using?

Regards.
