Default Soft Top

All

Well, it has taken longer than building my car in the first place, but I am finally ready to get the Soft Top made. Here are some progress photos of the frame and a mock up with a sheet to check the overall shape. The canvas will be quite a lot heavier than the sheet so hopefully won't have such sharp corners - something I am trying to avoid.

I am not 100% sure about the height - I will do another mock up later today and might lower the rear and centre bows a little.

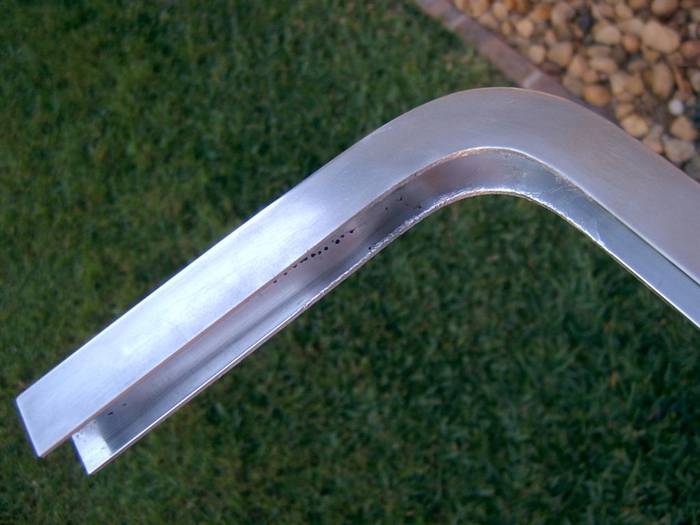

Bend in Al channel for header bow


Frame


Mock ups




Cheers

Geof
__________________
Original? Must be. It's the only one I've ever built.

Last edited by 07cob; 04-23-2011 at 03:57 PM..
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 04-23-2011, 04:25 PM
Zedn's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2009
Location: Sydney, NSW
Cobra Make, Engine: RCM, Jag front and rear, LS3
Posts: 1,640
Not Ranked
Default

Looks great,

How did you bend the channel?
Reply With Quote
  #3 (permalink)
Old 04-23-2011, 04:47 PM
sambo's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2007
Location: Melbourne, VIC
Cobra Make, Engine: Harrison, 6.0L Chev
Posts: 2,513
Not Ranked
Default

Looks good Geof. What are the bows made from and how do you get the nice bends/radii?
Reply With Quote
  #4 (permalink)
Old 04-23-2011, 05:49 PM
07cob's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Palm Beach, QLD
Cobra Make, Engine: Harrisons # 62 302 T5
Posts: 474
Not Ranked
Default Soft Top

Quote:
Originally Posted by Zedn View Post
How did you bend the channel?
Liam

I made up a bending jig as shown in the photo below. It is a bit agricultural but it does the trick. The Al was annealed then it is as simple as rolling it around the corner (with a degree of brute force and ignorance). There is some distortion but no cracking. I just filed down the excess material to give a reasonable finish.



Quote:
Originally Posted by sambo View Post
What are the bows made from and how do you get the nice bends/radii?
Paul

Bows are just 10mm mild steel. I started this as a *prototype* with the intention of going to stainless once complete. Given that it took so long to get this far, I reckon I will be happy with this for a while now. All the radii are bent by hand and eye. Once I cut the bows in half, I adjusted them to ensure some degree of symmetry.

Cheers

Geof
__________________
Original? Must be. It's the only one I've ever built.
Reply With Quote
  #5 (permalink)
Old 04-23-2011, 06:04 PM
renovationinnov's Avatar
CC Member
Visit my Photo Gallery


Join Date: Sep 2010
Location: redcliffe, qld
Cobra Make, Engine: venom motorsports /ls1 auto
Posts: 500
Not Ranked
Default

just got to love a ""rag top "" all puns intended
top job , nice jig for radial bends keep us posted
__________________
not all your babies are your children
Reply With Quote
  #6 (permalink)
Old 04-23-2011, 06:56 PM
Merv and Sharon's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2007
Location: Sunshine Coast Qld, QLD
Cobra Make, Engine: Harrison # 80; Ford 5.0L HO Trickflow heads, cam and rockers and MassFlow EFI
Posts: 3,482
Send a message via Skype™ to Merv and Sharon
Not Ranked
Default

Neat jig Geof! I am sure that you went through this earlier thread Hoods and Tonneau covers

The shape of the top is a tricky thing. I did not want a pronounced bend up in the middle



To do so I had to reduce the height of my roll bar (it was far too high anyway) and play around with the height of the bows a bit. I also wanted a bit of a slope at the back. The old sheet trick is a good way to test the options out!
__________________
Merv

Ford Cobra
Harrison #80.
Peregian Beach
Sunshine Coast Qld.
Reply With Quote
  #7 (permalink)
Old 04-23-2011, 11:37 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2009
Location: Redland Bay, QLD
Cobra Make, Engine: Harrison #100 under construction
Posts: 1,109
Not Ranked
Default

Err so Geof, when are you taking orders for these ?

Rog
__________________
Rog 246

Harrison #100
Reply With Quote
  #8 (permalink)
Old 04-24-2011, 12:52 AM
07cob's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Palm Beach, QLD
Cobra Make, Engine: Harrisons # 62 302 T5
Posts: 474
Not Ranked
Default

Merv

Quote:
Originally Posted by Merv and Sharon View Post
I did not want a pronounced bend up in the middle
This is actually one of the things I was trying to achieve. I want the top to resemble the shape of a hardtop with the curve up off the screen then curve all the way back to the deck. I still reckon I could come down a bit - I will have to test this out later - didn't get a chance today.

Quote:
Originally Posted by Merv and Sharon View Post
I also wanted a bit of a slope at the back.
I agree! So much so in fact, I considered taking the top back over the boot to create a Le Mans style soft top with zippers beside the boot for access. Not quite brave enough to give that a go though.

Cheers

Geof
__________________
Original? Must be. It's the only one I've ever built.
Reply With Quote
  #9 (permalink)
Old 04-24-2011, 12:55 AM
07cob's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Palm Beach, QLD
Cobra Make, Engine: Harrisons # 62 302 T5
Posts: 474
Not Ranked
Default

Quote:
Originally Posted by Rog246 View Post
Err so Geof, when are you taking orders for these ?
Rog
Rog

It took me almost two years to get this far, .......

Geof
__________________
Original? Must be. It's the only one I've ever built.
Reply With Quote
  #10 (permalink)
Old 04-24-2011, 06:03 AM
Merv and Sharon's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2007
Location: Sunshine Coast Qld, QLD
Cobra Make, Engine: Harrison # 80; Ford 5.0L HO Trickflow heads, cam and rockers and MassFlow EFI
Posts: 3,482
Send a message via Skype™ to Merv and Sharon
Not Ranked
Default

I am ALMOST ready to do the hard top with Steve, for the Harrison. The mould is now ready I believe. It is fairly flat too. I think we had some photos earlier on it.

I found that with the soft top I used it more in summer for heat (in QLD), whereas the rain, well it just came in the sides. Wind flap was not a problem with the shape I have. Fitting windows to the soft top is hard and resembles the old MGA/clubman design. The hardtop can take a fixed window.
__________________
Merv

Ford Cobra
Harrison #80.
Peregian Beach
Sunshine Coast Qld.
Reply With Quote
  #11 (permalink)
Old 04-24-2011, 06:59 AM
jcraigau's Avatar
CC Member
Visit my Photo Gallery


Join Date: Oct 2008
Location: Perth, WA
Cobra Make, Engine: G-Force Mk1, LS1, T56, Jag S3 suspension
Posts: 587
Not Ranked
Default

I was thinking of getting a second set of doors done with glass in them for winter time.

This came about after the wife won't ride around in her MX5 without the windows up (something about the hair?). Roof off is no problem.

Not sure about having them workable with winders or just set in place with a slider assembly.
Reply With Quote
  #12 (permalink)
Old 04-24-2011, 03:52 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2009
Location: Redland Bay, QLD
Cobra Make, Engine: Harrison #100 under construction
Posts: 1,109
Not Ranked
Default

Quote:
Originally Posted by 07cob View Post
Rog

It took me almost two years to get this far, .......

Geof
So ...............ypu're taking order well in advance then !?!
Rog
__________________
Rog 246

Harrison #100
Reply With Quote
  #13 (permalink)
Old 04-24-2011, 04:24 PM
Outwest34au's Avatar
CC Member
Visit my Photo Gallery


Join Date: Oct 2007
Location: Near Emerald, Qld
Cobra Make, Engine: Evans kit, 6 litre, 6 speed, Jag F/R,
Posts: 357
Not Ranked
Default

Good stuff, the shape does look good.

For those that missed it here is a good article on bending channel with view to making window frames. Home-made Side Curtains for Lemans Top – “How To”.
__________________
Missed my Cobra budget by thaaaat much.
Ya get that on big jobs.
Reply With Quote
  #14 (permalink)
Old 04-24-2011, 08:56 PM
Merv and Sharon's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2007
Location: Sunshine Coast Qld, QLD
Cobra Make, Engine: Harrison # 80; Ford 5.0L HO Trickflow heads, cam and rockers and MassFlow EFI
Posts: 3,482
Send a message via Skype™ to Merv and Sharon
Not Ranked
Default

Very good article. Have filed that one away!
__________________
Merv

Ford Cobra
Harrison #80.
Peregian Beach
Sunshine Coast Qld.
Reply With Quote
  #15 (permalink)
Old 04-25-2011, 02:54 PM
07cob's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Palm Beach, QLD
Cobra Make, Engine: Harrisons # 62 302 T5
Posts: 474
Not Ranked
Default Softening Aluminium

Quote:
Originally Posted by Outwest34au View Post
For those that missed it here is a good article on bending channel with view to making window frames. Home-made Side Curtains for Lemans Top – “How To”.
Great tips in this write up. The Lotus site quoted (LocostUSA.com • View topic - Trouble Bending Aluminum for Windshield. Help) is where I got the idea for the jig.

The tip about using a Sharpie as a temperature indicator for annealing is also a good one.

I used soap for this. Rub the soap on the top three faces of the channel the heat from below. I used a LPG torch. The soap will turn brown then black. Afther that the aluminium will start to melt - not good!! Same as the sharpie method - stop heating as the soap goes black. This is the discoloration on the channel that can be seen in the photo above.

Colour chaning crayons can also be used if a more exact temperature is required.

The only downside to this is that unlike other metals, there is apparently no way to re harden the aluminium. It will work harden as aluminium does, but otherwise it will remain *soft*. Whether this is a problem will depend on the application. Probably not much good for an alternator bracket but fine for a cover panel.

Cheers

Geof
__________________
Original? Must be. It's the only one I've ever built.
Reply With Quote
  #16 (permalink)
Old 05-13-2011, 01:44 AM
07cob's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Palm Beach, QLD
Cobra Make, Engine: Harrisons # 62 302 T5
Posts: 474
Not Ranked
Default All Done

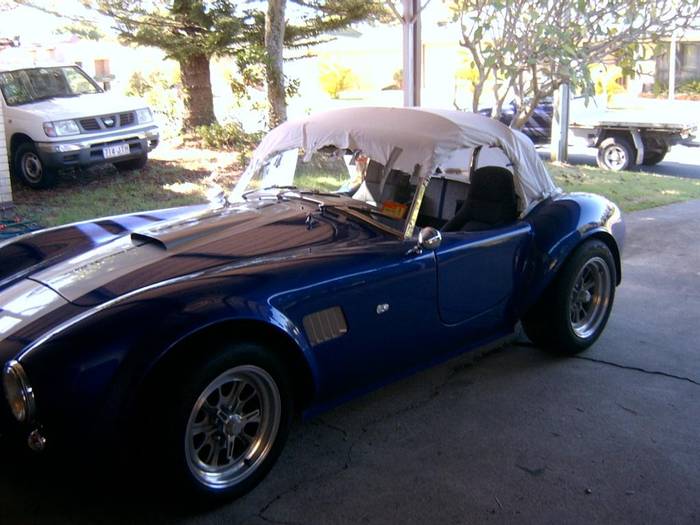

Done and Stoked

Thinking the top (as per photo above) might be a little too high, I adjusted the bows and ended up with the following for a mock up:



So then off to the trimmers and after picking up the car ... I am very happy with the result:






It is amazingly different to drive. I can talk to the passenger without shouting and there is just no breeze. More like a car than a Cobra! Will just have to wait and see how it handles nasty weather.

Geof
__________________
Original? Must be. It's the only one I've ever built.
Reply With Quote
  #17 (permalink)
Old 05-13-2011, 05:25 AM
Merv and Sharon's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2007
Location: Sunshine Coast Qld, QLD
Cobra Make, Engine: Harrison # 80; Ford 5.0L HO Trickflow heads, cam and rockers and MassFlow EFI
Posts: 3,482
Send a message via Skype™ to Merv and Sharon
Not Ranked
Default

Very good Geof! Nice profile and that just might help the rain keep away. Now for the engine?
__________________
Merv

Ford Cobra
Harrison #80.
Peregian Beach
Sunshine Coast Qld.
Reply With Quote
  #18 (permalink)
Old 05-13-2011, 06:51 AM
Krait's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2008
Location: Gold Coast, QLD
Cobra Make, Engine: Harrison #69, HSV LS2, T56, Custom rear suspension
Posts: 604
Not Ranked
Default

Well done Geof. Looks fantastic.

Cheers
__________________
Geoff
Cobra Car Club of Qld - UAE Chapter
Reply With Quote
  #19 (permalink)
Old 05-16-2011, 04:22 AM
guye's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2002
Location: Melbourne, Australia, VIC
Cobra Make, Engine: AP Pace427 (AP4033) GM L77 6.0L TR6060
Posts: 838
Not Ranked
Default

Nice job, Geof.
__________________
Guy
Cobra Progress guye-cobra.blogspot.com
Reply With Quote
Reply


Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 11:09 AM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2021, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
