Engine bay firewall heat shields
Hi Guys,
I'm currently lining my engine bay in aluminium and wanted to know what others have done to stop heat soak coming into the footwells and cabin.
I've found the following;
for inside the cabin Kool Mat thermal heat shield, aircraft insulation, fireproof material, race car insulation, firewall
for inside the engine bay Zero Clearance is a premium quality peel and stick heat shield material, under body engine bay heat
Other options I've considered;
- Spray-On Insulation - Automotive Insulation Coatings | LizardSkin
- Carbon Fiber Heat Shield | Heatshield Products
- Dynamat.com | Dynaliner for Automotive Use
I've heard everything from plate the engine bay then apply the heat protection.
Place the protection against the fibreglass firewall and then plate it with aluminium
Just put the protection straight onto the fibreglass and forget the plating
Just go with aluminium and forget the protection.
Some conflicting information, so keen to hear what others have done, what they learnt, and what would they do if they had to do it again.
Thanks,
JC
|
-
Advertising
03-23-2015, 11:29 PM
|
|
CC Member
|
|
|
Join Date: Nov 2009
Location: Cheltenham,
Vic
Cobra Make, Engine: Classic Revival CR3516, LS3, Aussie Mike'd T-56, 3.70 LSD, AP brakes, Penske shocks
Posts: 1,616
|
|
Not Ranked
I have put aluminium sheets on the foot boxes with a 5-7mm air gap. Many learned people have done the same thing with mirror finish stainless and have not had any heat issues with this setup. I used 1.2mm aluminium, a lot of the stainless setups are 0.9mm stainless.
I used aluminium because according to my understanding it will reflect heat better than stainless. The mirror finish on the stainless does nothing to aid reflective properties, it is purely for aesthetics if that is your bling thing.
My setup is of course as yet untested as I haven't even fired my engine yet.
__________________
BUILD-BLOG: http://cobrablog.holnet.net
Ben in AU
|
03-24-2015, 12:03 AM
|
|
CC Member
|
|
|
Join Date: Apr 2008
Location: Melbourne,
VIC
Cobra Make, Engine: Classic Revival CR 3505, LS1, T56 6 Speed, VE 3.45 LSD Rear, 6 Spot AP Fronts, 4 Spot Wilwood Rears
Posts: 1,121
|
|
Not Ranked
Hi Jamie, I used the stick on stuff straight onto the footboxes from the engine bay side.
My theory is to insulate on the side of the heat source - e.g. stop it on the outside not the inside of the footboxes.
Got it from Rev race gear - not cheap but worked a treat. Its an aluminium outside with some heat insulation material of about 3 or mm.
Before that it was pretty unbearable.
One trick I did was to heat shield some of my chassis rails and underfloor as the underbody exhaust was heating up the rails and radiating through to the sides of the foot boxes. It depends on your setup of course.
Now I reckon my footwells get about a hot as my Suby Liberty. which is not much.
Hope your choice (of which there are many) works out for you. Cheers Gregg
|
03-24-2015, 12:17 AM
|
CC Member
|
|
|
Join Date: Jun 2001
Location: munno para west,
sa
Cobra Make, Engine: absolute pace chassis #50 L98 & 6 speed auto
Posts: 1,141
|
|
Not Ranked
My old cobra i used the stick on insulation and then used 2 mm alloy that was mounted with a 5 mm air gap . I used the same stick on on the inside of the cab my foot box and trans tunnel never got uncomfortable at all . I had a friend who used nothing his car always felt like it had the heaters on and was not pleasent on warm day at all .
cheers dean
__________________
a cobra is a passion anything else is just a car
i dont care what the question is .. The answer is more power!!!
|
03-24-2015, 12:28 AM
|
|
CC Member
|
|
|
Join Date: Sep 2004
Location: Canberra,
ACT
Cobra Make, Engine: G-Force Cobra '68 302, T-5, Jag 3.77 LSD.
Posts: 993
|
|
Not Ranked
I sandwiched air-conditioning ductwork insulation between the fibreglass and the aluminium panel. It was like the pic below but about 12mm thick and no foil, just the black backing. Its cheap as chips and worked a treat.
__________________
SLIPRY
|
03-24-2015, 01:04 AM
|
Registered User
|
|
|
Join Date: Mar 2010
Cobra Make, Engine:
Posts: 51
|
|
Not Ranked
I used LizardSkin on my Cobra. I sprayed on about 15 thin coats until it reached the thickness of a credit card. Fantastic product that dries hard but flexible that can be sanded and painted if needed. I sprayed the hole interior including the tunnel firewall and footboxes.
Regards.
|
03-24-2015, 01:31 AM
|
CC Member
|
|
|
Join Date: Jun 2001
Location: munno para west,
sa
Cobra Make, Engine: absolute pace chassis #50 L98 & 6 speed auto
Posts: 1,141
|
|
Not Ranked
My old cobra i used the stick on insulation and then used 2 mm alloy that was mounted with a 5 mm air gap . I used the same stick on on the inside of the cab my foot box and trans tunnel never got uncomfortable at all . I had a friend who used nothing his car always felt like it had the heaters on and was not pleasent on warm day at all .
cheers dean
__________________
a cobra is a passion anything else is just a car
i dont care what the question is .. The answer is more power!!!
|
03-24-2015, 05:06 AM
|
CC Member
|
|
|
Join Date: Jul 2012
Location: Melbourne,
Vic
Cobra Make, Engine: Pace 427SC. LSA Supercharged with 6sp TR-6060 trans.
Posts: 463
|
|
Not Ranked
My Pace 427SC uses a stainless panels in the engine bay, with a 2mm air gap on top of aluminised-face, fibreglass heatshield material. I don't know the name of the product as it was supplied in an unpackaged/unbranded roll. This material is affixed using RTV401 high temperature silicone sealant.
The inside of the cockpit has covered in a layer of Dynamat-type self adhesive bitumen-impregnated insulation.
__________________
www.paintwerks.com.au
|
03-24-2015, 05:32 AM
|
|
CC Member
|
|
|
Join Date: Feb 2002
Location: Dadeville,
AL
Cobra Make, Engine: Sold my EM.
Posts: 2,439
|
|
Not Ranked
I'm going to try to be helpful without being too technical. The three major means of heat transfer in your car will be conduction, radiation and convection. Conduction occurs when something hot comes into contact with something cooler and transfers its heat to the cooler object. Your solution is to make sure nothing hot comes into direct contact with your cockpit. Radiation is mostly associated with very hot objects like exhaust pipes producing a heat you can feel from a distance. They are actually glowing light in a part of the spectrum we feel rather than see. You can block that light the same way you'd block any other light, with an opaque shield (e.g., aluminum plate).
Convection is when air is heated by contact with the heat source and then circulates to come into contact with a cooler object to which it will transfer its heat. This is what we feel when warm air from our car heater blows out of the dash. Circulating air is pretty good at transferring heat. Stationary air is not very good at transferring heat. That is why a lot of home insulation is little more than material trapping pockets of air that cannot circulate around inside the insulation.
With the science lesson complete, the bottom line is that for optimum insulation of your car you'll want to guard against all three ways heat can seep in. First, don't let hot stuff contact anything that will contact the inside of your cockpit. Second, have a radiation barrier between the cockpit and the hottest parts of your engine. A simple sheet of foil will work if it can withstand the other demands of your car. Finally, put a layer of insulating material between the radiation barrier and the cockpit. As someone said above, it could be as simple as a layer of dead air between the aluminum barrier and the firewall. A layer of foil faced bubble wrap would also work.
I hope this helped.
__________________
Tommy
Cheetah tribute completed 2021 (TommysCars.Weebly.com)
Previously owned EM Cobra
"Never attribute to malice that which is adequately explained by stupidity." - Hanlon's Razor
Last edited by Tommy; 03-24-2015 at 05:36 AM..
|
03-24-2015, 06:47 AM
|
|
Member of the north
|
|
|
Join Date: May 2003
Cobra Make, Engine: A Cobra
Posts: 11,207
|
|
Not Ranked
If I might add, I had to place a heat shield for my master cylinders. Amazing difference - the headers are basically under them used to heat them to the point I could feel a diffence in pedal. I formed an aluminum shield with a shock absorbing end. Before test I could not grab the MCs after a strong run is 80+ F temps. Now they are air temp cool.
If you are putting in the shields, might want to think about doing this while all the stuff is out of the way.
Hope this helps.
Tru
__________________
I'm a writer, feed the artist and buy a book.
|
03-24-2015, 07:22 PM
|
|
CC Member
|
|
|
Join Date: Oct 2008
Location: Perth,
WA
Cobra Make, Engine: G-Force Mk1, LS1, T56, Jag S3 suspension
Posts: 587
|
|
Not Ranked
Thanks to everyone that has responded. Plenty of food for thought. I'm glad I reached out before starting down a wrong path.
One other place I have seen shielding used is under the inner guards above the exhaust exits to stop paint from fading with the excessive heat from that area.
|
03-25-2015, 03:53 AM
|
|
CC Member
|
|
|
Join Date: Nov 2004
Location: Sydney,
NSW
Cobra Make, Engine: Classic Revival #3199. 366ci L76, T56 6 speed, Blue circle custom paint, Australias most original cobra 2009-2010
Posts: 2,396
|
|
Not Ranked
I've mentioned this many times before. I have 5mm cork (tiles) sandwhiched between the fibreglass and aluminium panels. Inexpensive and cool as a cucumber.
__________________
Proudly registered since 2013.
|
03-25-2015, 07:31 AM
|
|
CC Member
|
|
|
Join Date: Dec 2011
Location: West Chester,
PA
Cobra Make, Engine: ERA #795 427 S/C completed Jan. '14 - '68 FE 427 side oiler
Posts: 1,033
|
|
Not Ranked
In addition to the insulating ideas, you may consider ways to vent more heat. The photo below is from ERA's website and shows screened vents in the wheel wells.
I also have aluminum panels around my headers that force more of the heat toward these vents.
Another idea is to not make your hood weather stripping continuous so a bit more heat can escape. If any of this is interesting to you I can get some photos.
Good luck with your build.
Kevin
__________________
"Anyone who drives faster than you is a maniac and anyone who drives slower than you is an idiot" - George Carlin
|
03-26-2015, 02:05 AM
|
|
CC Member
|
|
|
Join Date: Sep 2014
Location: Murrumbateman,
NSW
Cobra Make, Engine: Pace 427 (#53) , LS3, TR6060
Posts: 101
|
|
Not Ranked
Quote:
Originally Posted by Tenrocca
I've mentioned this many times before. I have 5mm cork (tiles) sandwhiched between the fibreglass and aluminium panels. Inexpensive and cool as a cucumber.
|
How does it standup to the weather over time?
|
03-26-2015, 02:45 AM
|
|
CC Member
|
|
|
Join Date: Nov 2004
Location: Sydney,
NSW
Cobra Make, Engine: Classic Revival #3199. 366ci L76, T56 6 speed, Blue circle custom paint, Australias most original cobra 2009-2010
Posts: 2,396
|
|
Not Ranked
They aren't exposed at all. Covered in the aluminium and sealed at the bottom edges with silicone.
__________________
Proudly registered since 2013.
|
03-26-2015, 12:15 PM
|
CC Member
|
|
|
Join Date: Dec 2003
Location: Gurnee,
IL
Cobra Make, Engine: Kirkham #259
Posts: 1,394
|
|
Not Ranked

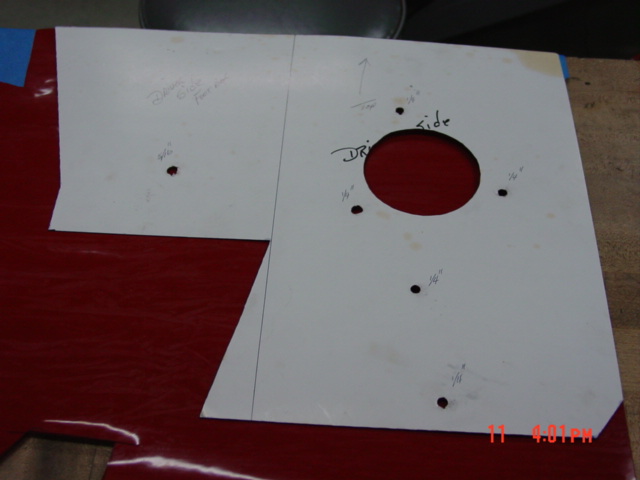

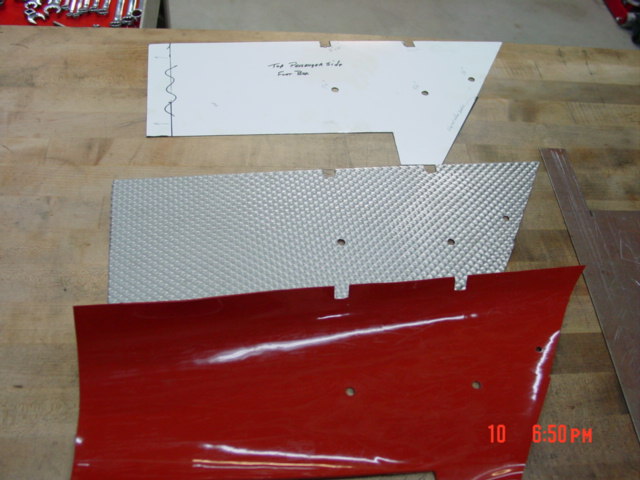

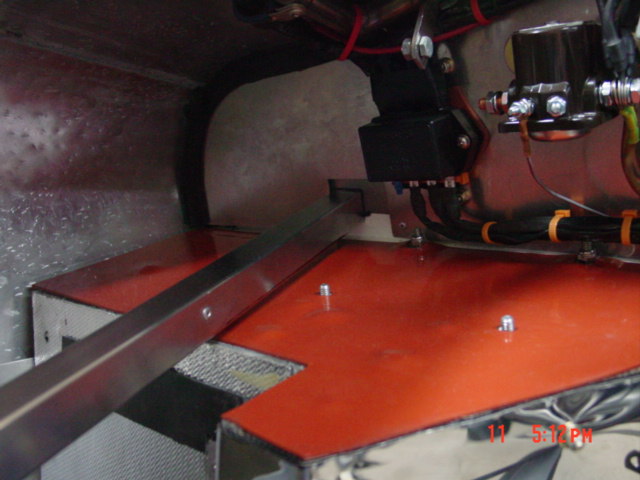

Here's what we found the best for rejection of heat in the drivers compartment. It works great and it's very important to keep the driver cool. Heat can cause many driver errors. To the point I've seen one driver drive into a stopped car along side of the track.
Rubber Silicone base and then SS as the outer surface on both sides of the foot boxes.
__________________
Morris
|
03-26-2015, 12:18 PM
|
CC Member
|
|
|
Join Date: Dec 2003
Location: Gurnee,
IL
Cobra Make, Engine: Kirkham #259
Posts: 1,394
|
|
Not Ranked
__________________
Morris
|
03-26-2015, 12:22 PM
|
CC Member
|
|
|
Join Date: Dec 2003
Location: Gurnee,
IL
Cobra Make, Engine: Kirkham #259
Posts: 1,394
|
|
Not Ranked
__________________
Morris
|
03-26-2015, 05:52 PM
|
CC Member
|
|
|
Join Date: Dec 2010
Cobra Make, Engine:
Posts: 53
|
|
Not Ranked
contact information
Morris I sent an email several months ago about a project. Have not heard from you. Please send a pm with your telephone contact information. Thank you
|
03-27-2015, 09:17 AM
|
CC Member
|
|
|
Join Date: Dec 2003
Location: Gurnee,
IL
Cobra Make, Engine: Kirkham #259
Posts: 1,394
|
|
Not Ranked
Quote:
Originally Posted by patty442
Morris I sent an email several months ago about a project. Have not heard from you. Please send a pm with your telephone contact information. Thank you
|
I don't expect anyone to send me any messages, so I never see them.
Sent the info and will be glad to help out
__________________
Morris
|
