Default Wiring Diagrams

A few people have been asking me about my wiring diagrams. I had some in my gallery and had posted them in the past but they were lost in one of the site crashes.

I finally found them on my PC and thought I'd post them again.

Here's the Lighting diagram:

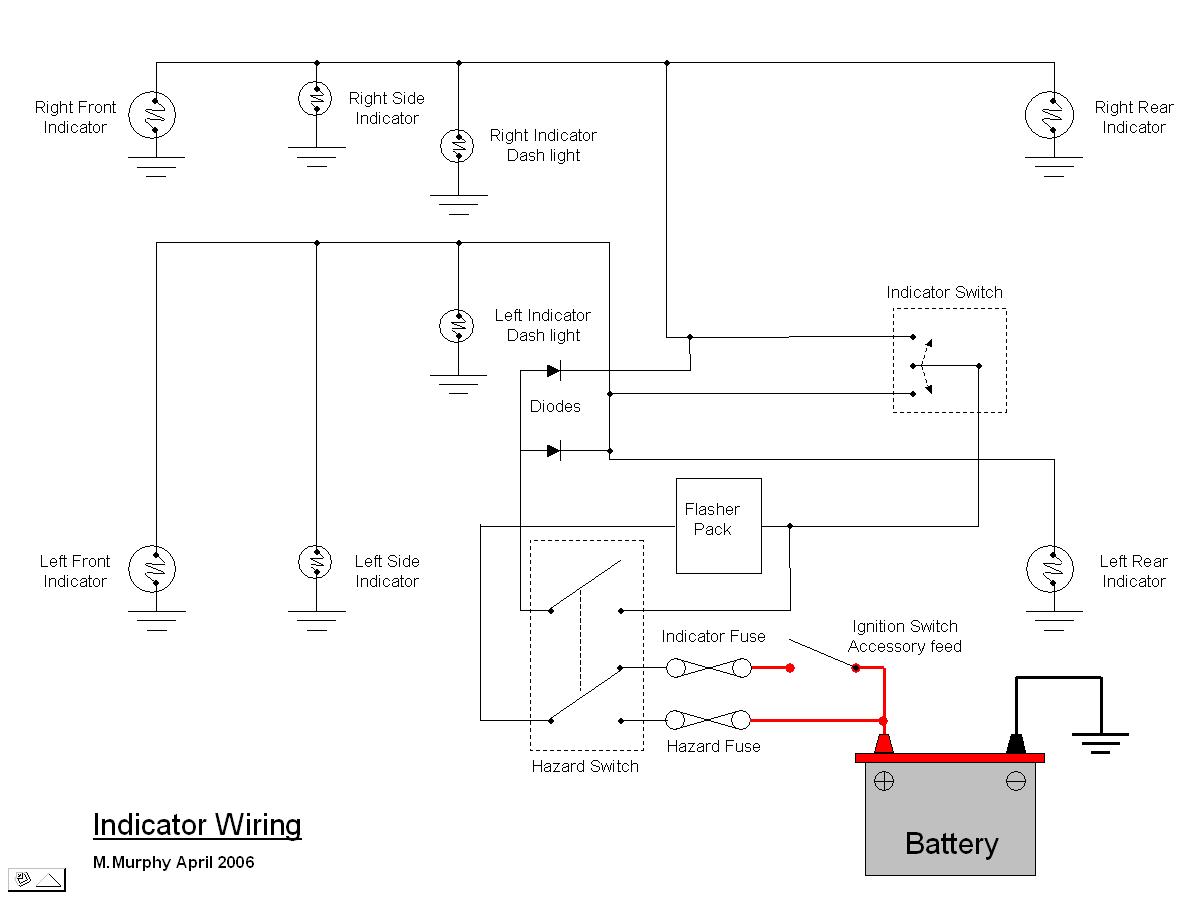

Here's the Indicators and Hazard lights.



I'm still working on these diagrams and have the EFI wiring, Ignition, Instruments etc to go. I'll get them done eventually of only to keep records of what I've done.

Cheers
__________________
Mike Murphy
Melbourne Australia

Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 03-07-2007, 03:11 PM
07cob's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Palm Beach, QLD
Cobra Make, Engine: Harrisons # 62 302 T5
Posts: 474
Not Ranked
Default Wonderful

Great work Mike

What tool did you use to draw the diagrams. I have done mine using an application called DesignWorks Lite. It is available at the following site:

http://www.capilano.com/dwlite.html

I found it particularly powerful as it allows the creation and reuse of devices as required.

GeoF
Reply With Quote
  #3 (permalink)
Old 03-07-2007, 04:58 PM
Aussie Mike's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2001
Location: Sunbury, VIC
Cobra Make, Engine: Rat Rod Racer, LS1 & T56
Posts: 5,407
Not Ranked
Default

I do a lot of training slides and presentations for work using Power Point so I used it for these drawings too. There are plenty of much better packages for this sort of stuff but I know my way around power point so it's quick and easy.

Power point lets you draw something and then group all the elements together. You can then drag and drop it any where or copy and paste it as a single object.

Cheers
__________________
Mike Murphy
Melbourne Australia

Reply With Quote
  #4 (permalink)
Old 03-07-2007, 08:21 PM
PCC's Avatar
PCC PCC is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Brisbane - sort of, QLD
Cobra Make, Engine: DRB 2000 - FORD Powered 302EFI
Posts: 1,431
Not Ranked
Default

Hey Mike,

I wish you had built my car!!!!

Then again I might have had to pay a little more
__________________
PCC (Peter Craig)
Keep the sun shining
Reply With Quote
  #5 (permalink)
Old 03-08-2007, 01:23 AM
stephen low's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2001
Location: Melbourne, Australia, Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, Jag suspension & LSD Diff.
Posts: 2,245
Not Ranked
Default

As one of those asking, many thanks Mike!

Cheers
__________________
slowy
Reply With Quote
  #6 (permalink)
Old 03-08-2007, 07:03 AM
trularin's Avatar
Member of the north
Visit my Photo Gallery


Join Date: May 2003
Cobra Make, Engine: A Cobra
Posts: 11,202
Not Ranked
Default

Mike, these look good.

May I suggest a mechanization of the systems. It is how we design the electrical for cars now and helps to determine what and what not are in the car. It is just a suggestion.

Reply With Quote
