Default Tail Light Turn Signal Issues

I have an older ERA....

Lights OFF: I'm not getting a 'flash' from the right tail light (right turn signal) (left is fine).

Lights ON: both tail lights do come on, but no 'flash' from the right or left tail light.

The front turn signals work fine - light off and on.
_____

Does this sound like strictly a wiring issue or are there parts to be checked, also?

Any input will be appreciated.
Reply With Quote
  #2 (permalink)
Old 09-25-2014, 04:07 PM
DanEC's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2009
Location: Little Rock area, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,480
Not Ranked
Default

You have my condolences. If you feel like reading, these two threads explore just about every tail light turnsignal failure mode imaginable. Patrick gave a lot of hints and trouble-shooting tips throughout in them .

Also, Bob's Electrical Primer troubleshooting guide is very helpful. I think you can access it from their website. I will try to find it and post a link.

AAaagghhh - still no brake lights or turn signals!!

Bob - Turn signal and brake light problems #782

Dan
__________________
ERA 782 Running
https://www.youtube.com/watch?v=Cfge...b1-77fqwFRu7c]
Reply With Quote
  #3 (permalink)
Old 09-25-2014, 04:10 PM
DanEC's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2009
Location: Little Rock area, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,480
Not Ranked
Default

Here is Bob's electrical troubleshooting guide. Since you have an older ERA you may want to give him a call once you have done a little troubleshooting.

http://www.erareplicas.com/427man/wiring/wprimer.pdf
jhv48 likes this.
__________________
ERA 782 Running
https://www.youtube.com/watch?v=Cfge...b1-77fqwFRu7c]
Reply With Quote
  #4 (permalink)
Old 09-26-2014, 04:31 AM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by bliss View Post
I have an older ERA....

Lights OFF: I'm not getting a 'flash' from the right tail light (right turn signal) (left is fine).

Lights ON: both tail lights do come on, but no 'flash' from the right or left tail light.

The front turn signals work fine - light off and on.
_____

Does this sound like strictly a wiring issue or are there parts to be checked, also?

Any input will be appreciated.
The first thing I would do is switch the bulbs, both up front and in the rear. See if any changes occur. If not, then you know it's in the circuitry and you'll just have to work your way back up. There's really not much there in the turn signal circuitry. It's pretty easy to diagnose. But switch the bulbs and report back.
Reply With Quote
  #5 (permalink)
Old 09-26-2014, 02:51 PM
bliss's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Location: Sonora, CA
Cobra Make, Engine:
Posts: 1,770
Not Ranked
Default

Thanks, Dan - especially for the condolences.

Lots of info on those threads.
Reply With Quote
  #6 (permalink)
Old 09-26-2014, 02:55 PM
bliss's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Location: Sonora, CA
Cobra Make, Engine:
Posts: 1,770
Not Ranked
Default

Patrick - bulbs switched. No variance.

Also, The old and new left rear bulb works fine in the right rear socket - so, there is something up with the left rear flash circuitry, plus the circuitry on both sides (rear only) when the lights are on.

BTW, nothing is easy for me.

Thanks.
Reply With Quote
  #7 (permalink)
Old 09-26-2014, 03:05 PM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by bliss View Post
BTW, nothing is easy for me.

Thanks.
That's ok -- it's not that tough. Now, examine the two fast-blow fuses that are under the dash mounted on the steering column area. If one is obviously blown, then that's the problem. If they appear to be good, then pull them both out and switch them, and put them back in. Then try everything and see if there is any change.
Reply With Quote
  #8 (permalink)
Old 09-26-2014, 03:22 PM
CC Member
Visit my Photo Gallery


Join Date: Apr 2007
Cobra Make, Engine:
Posts: 1,009
Not Ranked
Default Tail lights

Quote:
Originally Posted by bliss View Post
I have an older ERA....

Lights OFF: I'm not getting a 'flash' from the right tail light (right turn signal) (left is fine).

Lights ON: both tail lights do come on, but no 'flash' from the right or left tail light.

The front turn signals work fine - light off and on.
_____

Does this sound like strictly a wiring issue or are there parts to be checked, also?

Any input will be appreciated.
Make sure both tail light sockets are properly grounded, in fact you could make up a jumper with alligator clips to ground both sockets temporarily to test the system for operation. I don't know about ERA's but have seen similar problems on old Corvette's.
Reply With Quote
  #9 (permalink)
Old 09-26-2014, 04:13 PM
kevins2's Avatar
CC Member
Visit my Photo Gallery


Join Date: Dec 2011
Location: West Chester, PA
Cobra Make, Engine: ERA #795 427 S/C completed Jan. '14 - '68 FE 427 side oiler
Posts: 1,032
Not Ranked
Default

Agree with checking the ground. When I built my car I disconnected the grounds to install the carpet and forgot to hook them up - similar symptoms to what you're describing and easy enough to check.
__________________
"Anyone who drives faster than you is a maniac and anyone who drives slower than you is an idiot" - George Carlin
Reply With Quote
  #10 (permalink)
Old 09-28-2014, 10:41 AM
bliss's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Location: Sonora, CA
Cobra Make, Engine:
Posts: 1,770
Not Ranked
Default

Quote:
Originally Posted by Cobra #3170 View Post
Make sure both tail light sockets are properly grounded, in fact you could make up a jumper with alligator clips to ground both sockets temporarily to test the system for operation. I don't know about ERA's but have seen similar problems on old Corvette's.
I switched the sockets - left to right - works fine - therefore, both sockets work on the right side, but not on the left side (flash)

Thanks for chiming in.
Reply With Quote
  #11 (permalink)
Old 09-28-2014, 10:45 AM
bliss's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Location: Sonora, CA
Cobra Make, Engine:
Posts: 1,770
Not Ranked
Default

Quote:
Originally Posted by patrickt View Post
That's ok -- it's not that tough. Now, examine the two fast-blow fuses that are under the dash mounted on the steering column area. If one is obviously blown, then that's the problem. If they appear to be good, then pull them both out and switch them, and put them back in. Then try everything and see if there is any change.
Patrick - well, as a read your post I was thinking - WOW, I can check that and perhaps eliminate the problem myself - well, I didn't find anything that looks like a fuse attached to the steering column under the dash.

Are the mentioned fuses separate from the array of fuses attached to the firewall inside the engine area?
Reply With Quote
  #12 (permalink)
Old 09-28-2014, 10:51 AM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by bliss View Post
Patrick - well, as a read your post I was thinking - WOW, I can check that and perhaps eliminate the problem myself - well, I didn't find anything that looks like a fuse attached to the steering column under the dash.

Are the mentioned fuses separate from the array of fuses attached to the firewall inside the engine area?
Yes, these are two fuses that are separate from the fuse blocks in the engine compartment. These two fast-blow fuses are located on the steering column, right above where your knees are when you are driving. First, examine them, then if they look like they're ok (meaning one is not blackened with an obviously blown filament), then pull them both out and switch them, then put them back in. See if that makes any changes. And while you're doing that, with the ignition key on, put your foot on the brakes and tell me if both, or only one of the brake lights is coming on.

What ERA number is your car? Perhaps the really early ones didn't have the fuses. I'll check the schematic for your car number and see.

EDIT -- It looks like they put the fuses in around car 335.

Last edited by patrickt; 09-28-2014 at 10:55 AM..
Reply With Quote
  #13 (permalink)
Old 09-29-2014, 10:53 AM
bliss's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Location: Sonora, CA
Cobra Make, Engine:
Posts: 1,770
Not Ranked
Default

Quote:
Originally Posted by patrickt View Post
Yes, these are two fuses that are separate from the fuse blocks in the engine compartment. These two fast-blow fuses are located on the steering column, right above where your knees are when you are driving. First, examine them, then if they look like they're ok (meaning one is not blackened with an obviously blown filament), then pull them both out and switch them, then put them back in. See if that makes any changes. And while you're doing that, with the ignition key on, put your foot on the brakes and tell me if both, or only one of the brake lights is coming on.

What ERA number is your car? Perhaps the really early ones didn't have the fuses. I'll check the schematic for your car number and see.

EDIT -- It looks like they put the fuses in around car 335.
Thanks - mine ERA is 098 - very early - so, no separate fuses?
Reply With Quote
  #14 (permalink)
Old 09-29-2014, 10:57 AM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by bliss View Post
Thanks - mine ERA is 098 - very early - so, no separate fuses?
No separate fuses. Your next step will involve either using a VOM (cheapy little volt ohm meter) or a 12 volt test light. Sound ok? And what was the result of checking your brake lights to see which bulbs work?
Reply With Quote
  #15 (permalink)
Old 09-29-2014, 12:16 PM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

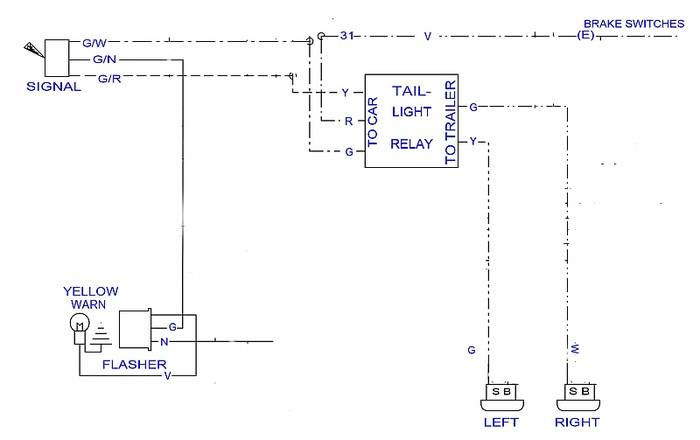

Here, I did a five minute cut and paste on your car's wiring diagram so you can see what you are dealing with. Since your front flashers work, you know that your signal wand switch, and the flasher unit, are both probably working properly. Your brake lights and signal lights use the same filament. So, from that, you can surmise that:

1) If your brake lights are working normally, then you know the connections from the trailer relay to the rear bulbs are good, including the grounds.

2) If your brake lights are also misbehaving, then it could be either the trailer relay, or the connections between the relay and the bulbs, that includes the grounds.

You will need to test the voltage, using a VOM or test light, coming out of the trailer relay, on both the yellow and green wires. If those readings are good, then you will test the wires as they go in to the bulb fixture itself (note that it appears the wire colors change). If we have to, we'll also check the wires going in to the trailer relay and maybe use a 12v jumper wire to test the bulb circuit itself. The way you will check the wires is to carefully scrape a little bit of the insulation off of them, using a razor, so that you can see the copper conductor. This is really not hard at all.

If I had to guess, I think it's going to end up being either a bad trailer relay or a bad connection (that includes a ground).




Last edited by patrickt; 10-18-2016 at 12:37 PM..
Reply With Quote
  #16 (permalink)
Old 09-30-2014, 07:17 AM
DanEC's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2009
Location: Little Rock area, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,480
Not Ranked
Default

Quote:
Originally Posted by patrickt View Post
Your brake lights and signal lights use the same filament. So, from that, you can surmise that:
Patrick - is this right? I'm pretty sure mine have two filiments - at least the fronts do I'm certain - I think the rear are the same. Or is this a different bulb the early car used?
__________________
ERA 782 Running
https://www.youtube.com/watch?v=Cfge...b1-77fqwFRu7c]
Reply With Quote
  #17 (permalink)
Old 09-30-2014, 07:36 AM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by DanEC View Post
Patrick - is this right? I'm pretty sure mine have two filiments - at least the fronts do I'm certain - I think the rear are the same. Or is this a different bulb the early car used?
The tail lights, "parking lights" or "running lights," as some call them, that are on all the time for night driving, use one of the two filaments. The turn signals and brake lights use the second filament. That's the whole purpose behind the trailer relay. If the turn signals and brake lights used different filaments, then you wouldn't need the trailer relay to "marshall" the current when you had both your foot on the brake and were signalling a turn. Look at the schematic and you can see that each bulb only has one output coming from the trailer relay. That one output has to control both turn signalling and brake signalling.

The front lights also have two filaments, but since there are no "front brake lights," it doesn't matter and, thus, needs no relay to sort it all out.
Reply With Quote
  #18 (permalink)
Old 09-30-2014, 09:05 AM
DanEC's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2009
Location: Little Rock area, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,480
Not Ranked
Default

OK - forgot for a minute there the three modes of operation at the tail.
__________________
ERA 782 Running
https://www.youtube.com/watch?v=Cfge...b1-77fqwFRu7c]
Reply With Quote
  #19 (permalink)
Old 09-30-2014, 09:37 AM
bliss's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Location: Sonora, CA
Cobra Make, Engine:
Posts: 1,770
Not Ranked
Default

Quote:
Originally Posted by patrickt View Post
Here, I did a five minute cut and paste on your car's wiring diagram so you can see what you are dealing with. Since your front flashers work, you know that your signal wand switch, and the flasher unit, are both probably working properly. Your brake lights and signal lights use the same filament. So, from that, you can surmise that:

1) If your brake lights are working normally, then you know the connections from the trailer relay to the rear bulbs are good, including the grounds.

Lights OFF - both brake lights work;

Lights ON - both brake lights don't work (along with the flashers on both sides), although the tail lights do work.


2) If your brake lights are also misbehaving, then it could be either the trailer relay, or the connections between the relay and the bulbs, that includes the grounds.

Therefore, based on response to item 1 - it appears to be the 'trailer relay' or the connection between the relay and the bulbs, including grounds!


You will need to test the voltage, using a VOM or test light, coming out of the trailer relay, on both the yellow and green wires. If those readings are good, then you will test the wires as they go in to the bulb fixture itself (note that it appears the wire colors change). If we have to, we'll also check the wires going in to the trailer relay and maybe use a 12v jumper wire to test the bulb circuit itself. The way you will check the wires is to carefully scrape a little bit of the insulation off of them, using a razor, so that you can see the copper conductor. This is really not hard at all.

If I had to guess, I think it's going to end up being either a bad trailer relay or a bad connection (that includes a ground).



I'll need help from my brother to test the lines, etc.

Trailer Relay - These units are apparently available at auto stores - is there are top choice product or will any one do just fine?

BTW - you sure are being very helpful - thank you, thank you very much!
Reply With Quote
  #20 (permalink)
Old 09-30-2014, 10:38 AM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by bliss View Post
Trailer Relay - These units are apparently available at auto stores - is there a top choice product or will any one do just fine?
You know, they're probably all made by the same people in China that make everything else in the world. I think they're technically called "Tail Light Converters" and you want a three in to two jobbie. Like this:



Quote:
Originally Posted by bliss View Post
BTW - you sure are being very helpful - thank you, thank you very much!
RodKnock says I do this once or twice a year to balance off the fact that I provoke and irritate people the rest of the time. His theory is that I provide just enough helpful advice to keep Jamo from booting me out of this place.
Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 03:01 AM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2024, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
Links monetized by VigLink
