Smile 427 side oiler

I know this is a very frquently asked question, but I bought this engine last year installed in my cobra. Can you tell me if this is in fact a side oiler, and if you know what this might have come out of or the year. I assume it's a '66 since it has that number stamped into the block. The block has screw in freeze plugs, and the main is crossed bolted. I can't seem to figure out how to down load the pictures on this site, it says the file is too large. Perhaps I could e-mail them and someone could help me out with the verdict. The numbers I could find are as follows:

In the valley: 427
26

On the rear of block: 66-427

On the front: 40
352

Any help would be much appreciated.
Reply With Quote
  #2 (permalink)
Old 02-27-2007, 11:48 AM
Clois Harlan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Dec 2000
Location: Broken Arrow. OK ( South Tulsa), USA, OK
Cobra Make, Engine: 66 COBRA FE 427 /4SP. (HCS Coupe w/ 408 Stroker and TKO 600 -sold)
Posts: 5,595
Send a message via AIM to Clois Harlan
Not Ranked
Default

Here is the help you need. There is a software download 3/4 the way down that you can download to your desktop. After that you can right click and resize your picture then save it to your gallery and then you can come back to this post and attach it to your next post. Here you go:

Tips on Picture Uploads and Image Sizes

If that doesn't work email it to me at: clharlan@dcpmidstream.com and I will post it for you.


Clois
__________________
Sunshine, Asphalt and no stop signs...Perfect

"Let's roll"

"Be part of Something Good
......Leave Something Good Behind!"
from CD "Long Road Out of Eden"
Reply With Quote
  #3 (permalink)
Old 02-27-2007, 02:08 PM
CC Member
Visit my Photo Gallery


Join Date: May 2005
Location: Severna Park, MD
Cobra Make, Engine: BDR #230 427 Big Block
Posts: 46
Not Ranked
Default pictures

Check your e-mail I sent you the pictures
Reply With Quote
  #4 (permalink)
Old 02-27-2007, 03:14 PM
lineslinger's Avatar
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Jan 2004
Location: St. Louis, Mo.
Cobra Make, Engine: 427 S.O. Dual Quad / Cobra undecided
Posts: 1,380
Not Ranked
Default

Take a look on the block exterior just underneath the oil filter, there should be a casting number there that will help identify it.

Last edited by lineslinger; 02-27-2007 at 04:36 PM..
Reply With Quote
  #5 (permalink)
Old 02-27-2007, 04:17 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2001
Location: Louisville, KY
Cobra Make, Engine: I'm Cobra-less!
Posts: 9,389
Send a message via AIM to blykins
Not Ranked
Default

Easiest way to tell if it's a S/O is to look at the front of the engine. If you're facing it, look to the right of the timing cover. If there's a pipe plug there, then it's a S/O.

Also, it will have pipe plugs on the "humps" on the side of the block.

But the plug in the front is the easiest way....and you don't have to crawl underneath a car to check it.
Reply With Quote
  #6 (permalink)
Old 02-28-2007, 04:58 PM
Clois Harlan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Dec 2000
Location: Broken Arrow. OK ( South Tulsa), USA, OK
Cobra Make, Engine: 66 COBRA FE 427 /4SP. (HCS Coupe w/ 408 Stroker and TKO 600 -sold)
Posts: 5,595
Send a message via AIM to Clois Harlan
Not Ranked
Default

Airvolts,

never received your pictures. try and send them to my office:

clharlan@dcpmidstream.com office email
tulsacobra@valornet.com home email

Clois
__________________
Sunshine, Asphalt and no stop signs...Perfect

"Let's roll"

"Be part of Something Good
......Leave Something Good Behind!"
from CD "Long Road Out of Eden"
Reply With Quote
  #7 (permalink)
Old 03-01-2007, 05:22 AM
Clois Harlan's Avatar
CC Member
Visit my Photo Gallery


Join Date: Dec 2000
Location: Broken Arrow. OK ( South Tulsa), USA, OK
Cobra Make, Engine: 66 COBRA FE 427 /4SP. (HCS Coupe w/ 408 Stroker and TKO 600 -sold)
Posts: 5,595
Send a message via AIM to Clois Harlan
Not Ranked
Default

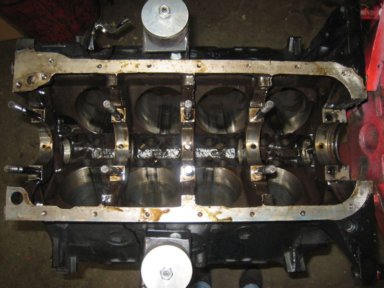

Here are some of your pictures of your 427. However, I believe it is not a side oiler but instead a Center Oiler (aka Top Oiler). I also believe it is possibly a 63 -65 production.
