Quote:
Originally Posted by ALF View Post
Can someone provide the same great information about the dash buttons??
I can not see them on the pictures

Street Cobras
CSX2001-CSX2200 a LucasŪ switch. (I think Nick Acton sells something but I am not sure.)

CSX2201-CSX2589 a 1956 Lincoln Premier push button switch. The original Lincoln switches were/are somewhat fragile and have been known to come part if handled roughly during installation or removal.
(Nick Acton sells modern made replacements I believe.)

ALF likes this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.

Last edited by Dan Case; 01-04-2019 at 09:58 AM.. Reason: add detail
Reply With Quote
Sponsored Links
Sponsored Links
  #22 (permalink)
Old 01-04-2019, 10:06 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,878
Not Ranked
Default

Quote:
Originally Posted by Dan Case View Post
Street Cobras
CSX2001-CSX2200 a LucasŪ switch. (I think Nick Acton sells something but I am not sure.)

CSX2201-CSX2589 a 1956 Lincoln Premier push button switch. The original Lincoln switches were/are somewhat fragile and have been known to come part if handled roughly during installation or removal.
(Nick Acton sells modern made replacements I believe.)


Mid 50’s Lincoln Capri too. Maybe the Premier is a Capri? That I’m not sure.
Larry
__________________
Alba gu brāth
Reply With Quote
  #23 (permalink)
Old 01-04-2019, 10:12 AM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 452
Not Ranked
Default

Quote:
Originally Posted by Dan Case View Post
Street Cobras
CSX2001-CSX2200 a LucasŪ switch. (I think Nick Acton sells something but I am not sure.)

CSX2201-CSX2589 a 1956 Lincoln Premier push button switch. The original Lincoln switches were/are somewhat fragile and have been known to come part if handled roughly during installation or removal.
(Nick Acton sells modern made replacements I believe.)

The Lucas switch is part number SS5, or SPB106 and was used for all sorts of things. Readily available everywhere, new repro switches are sold for Austin Healeys, Jaguars, Massey Fergusons, Case, and pretty much every classic British bike on the planet. Not expensive - for example:

https://www.classicbikeshop.co.uk/lu...tch-31071.html

The repros can be had with either screw connectors or Lucar.

The full range at AES, who are very good to deal with:

https://www.autoelectricsupplies.co.uk/product_list/46

Roger
CompClassics likes this.

Last edited by rsk289; 01-04-2019 at 10:17 AM..
Reply With Quote
  #24 (permalink)
Old 01-04-2019, 10:24 AM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 774
Not Ranked
Default

Quote:
Originally Posted by LMH View Post
Mid 50’s Lincoln Capri too. Maybe the Premier is a Capri? That I’m not sure.
Larry

The basic 1956 Lincoln design was revived in the 1960s for some time period of Ford Broncos with a black button. Based on used switches I have held in my hands some Bronco models had white plastic push buttons under black paint. The Ford service parts for Broncos I could get at my local Ford dealer in the 1980s had push buttons molded in black plastic.
LMH likes this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.
Reply With Quote
  #25 (permalink)
Old 01-05-2019, 09:49 AM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 774
Not Ranked
Default cut back door car washer pump switch

I went photo hunting while our visitors slept in this morning. I came across two interesting pictures.

First one, posted on the Ford site is a nice picture of one of the first cut back door competition roadsters being completed at SA. It is one of the first cars because it had the street car type front wheel arches. In that picture there was a radium tipped toggle switch fixed by two screws in the area a street car would have had a push button switch.

Second one, a modern image of what was shown as CSX2431 with a toggle switch fixed by two screws in the same area as a street car push button switch.

Neither dash panel had a label I could detect by their switch so those switches could have been for something besides a windscreen washer fluid pump.
LMH likes this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.

Last edited by Dan Case; 01-05-2019 at 10:32 AM..
Reply With Quote
  #26 (permalink)
Old 01-08-2019, 11:01 AM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 413
Not Ranked
Default

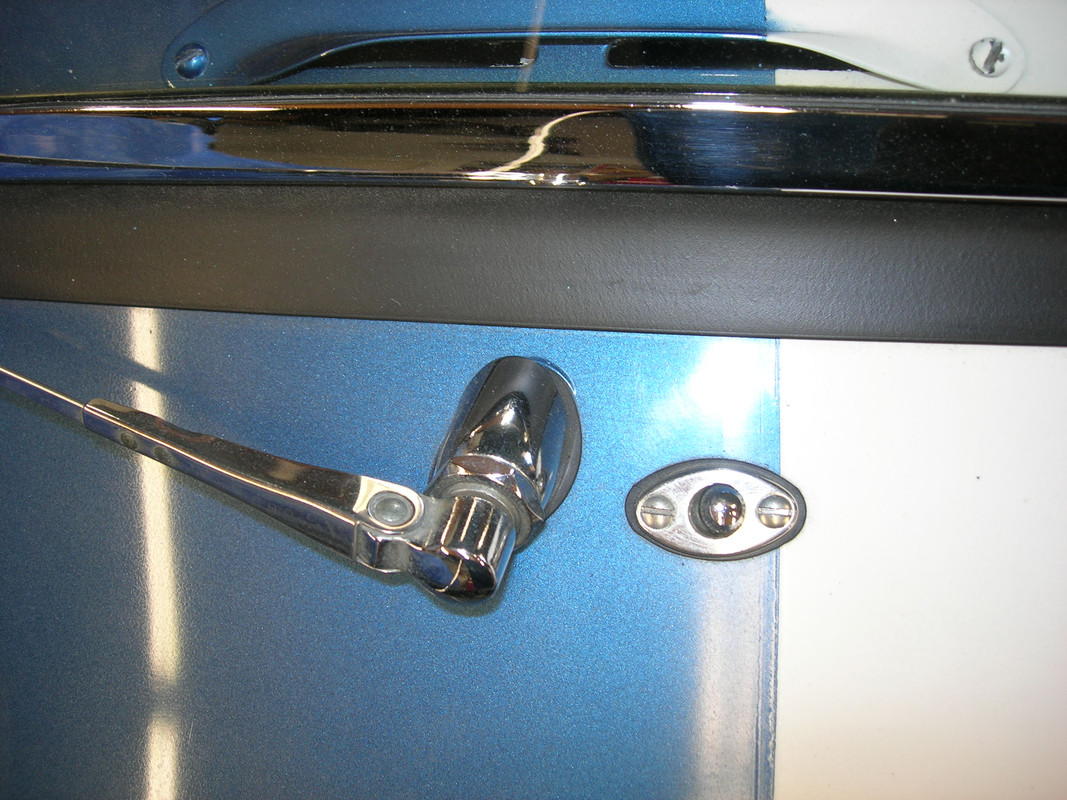

Could someone please provide a measurement drawing indicating the jet position compared to wiper and other points?
I need to drill some holes to mount it on my 289 and I would like to do it right.
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #27 (permalink)
Old 01-08-2019, 11:51 AM
CC Member
Visit my Photo Gallery


Join Date: Nov 2003
Location: New Britain, CT
Cobra Make, Engine: Size 10 Feet
Posts: 2,633
Not Ranked
Default

Each squirter falls about 2" toward the car centerline measured from the wiper hole centerline.
Reply With Quote
  #28 (permalink)
Old 01-08-2019, 04:13 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,878
Not Ranked
Default

A couple photo's I have.

Larry



__________________
Alba gu brāth
Reply With Quote
  #29 (permalink)
Old 01-08-2019, 11:52 PM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 413
Not Ranked
Default

Hi Larry
Many thanks for the great photo's
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #30 (permalink)
Old 01-09-2019, 01:31 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 818
Not Ranked
Default

[quote=Dan Case;1456207]I went photo hunting while our visitors slept in this morning. I came across two interesting pictures.

First one, posted on the Ford site is a nice picture of one of the first cut back door competition roadsters being completed at SA. It is one of the first cars because it had the street car type front wheel arches. In that picture there was a radium tipped toggle switch fixed by two screws in the area a street car would have had a push button switch.

Second one, a modern image of what was shown as CSX2431 with a toggle switch fixed by two screws in the same area as a street car push button switch.

Dan,

One thing to remember is that the FIA dashes were fabricated bare metal dashes that had disticnt panel layouts for the, gauges, switches and other associated items. I would highly suspect that given this that the dash panels were completely new fabrications done by the SAI race shop rather than reworked street dashes.
Reply With Quote
  #31 (permalink)
Old 01-09-2019, 08:16 AM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 413
Not Ranked
Default

I found the following picture on the Shelby Cars in Detail Book.
It is the Dash of CSX2345.


This seems to me a Lucas button as used on the pre CSX2201 cars..?
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #32 (permalink)
Old 01-09-2019, 10:30 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,878
Not Ranked
Default

That could be a starter button or washer button. Could be a horn too if required by class.
Larry
__________________
Alba gu brāth
Reply With Quote
  #33 (permalink)
Old 01-09-2019, 01:40 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 818
Not Ranked
Default

That is the starter button.
Reply With Quote
  #34 (permalink)
Old 01-14-2019, 01:45 AM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 413
Not Ranked
Default

Starter button

CSX2435 has according to the pictures the following switches

Cutler& Hammer
-IGN
-FUEL
-DIFF
-LIGHTS
-One without label

Headlight pull switch
-Next to the light C&H switch is a Falcon Headlight pull switch

Push button Lucas SBP106
-Start button

> Why are there a C&H Light switch and the pull switch for the light
>What is the un-labeled C&H switch fore



Upss.. I linked in the picture from the Shelby American Collection in Boulder.
A little bit large, but this way you can see the details
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #35 (permalink)
Old 01-14-2019, 06:53 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,878
Not Ranked
Default

The Ford switch could be a wiper switch, although it doesn't have the same bezel nut the street car has.
Larry
__________________
Alba gu brāth
Reply With Quote
