Default FIA Washer Jets

I have a Superformance FIA that I’ve been making as original as possible. In a recent visit to the Shelby American Collection I noticed that the FIA cars had windshield washer jets. Those jets are now available, but my question is...

We’re they functional? If so, where would the washer bottle have been mounted and what kind would it have been?

Would it have used the standard 289 Streetcar pump? Where would it have been mounted.

Thanks as always,

Ron
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 12-22-2018, 05:33 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,994
Not Ranked
Default

On standard street leaf spring cars, the washer bag is hanging from a mount on the aluminum panel directly ahead of the brake fluid reservoirs. it uses a Ford electric washer pump to pressure the sprayers when energized.
Did comp cars use the system from the street car... I don't know. A guess would be in the interest of saving weight, it was removed and the jets left in place to cover the holes in the body but I really don't know. If the windscreen needed to be washed, that can be done at a pit stop.
Larry
__________________
Alba gu brąth
Reply With Quote
  #3 (permalink)
Old 12-22-2018, 09:09 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 909
Not Ranked
Default

Since the FIA Cobras were entered in the GT catagory they had to have the same road equipment as their street brothers did, not to mention that the car would have been shipped from AC with them already installed. Wether they washers had to be operational or not is another question in itself. In studying original in period photos some cars had them, some didn’t, others had one but not the other. As LMH stated the washer bag was mounted to the inner fender panel in front of the master cylinders with the Ford washer pump just below it. The washer bag and mounting hanger were Ford production parts also.. when the FIA roadsters were updated for the 1965 racing season the valve cover breather system included (2) separate catch cans, one was mounted to the passengers foot box and the other was mounted where the windshield washer bag had once been mounted.
1985 CCX likes this.
Reply With Quote
  #4 (permalink)
Old 12-23-2018, 04:47 AM
CC Member
Visit my Photo Gallery


Join Date: Oct 2010
Location: Raleigh, NC
Cobra Make, Engine: 289 FIA Superformance 425hp 289
Posts: 119
Not Ranked
Default

Thanks! Does anyone have any pics of the locations out if the bag?
Reply With Quote
  #5 (permalink)
Old 12-23-2018, 04:54 AM
Senile Club Cobra Member
Visit my Photo Gallery


Join Date: Feb 2001
Location: Buffalo, NY USA, NY
Cobra Make, Engine: Time Machines Motorsports LLC- Superformance Dealer
Posts: 4,022
Not Ranked
Default

Ron we can supply the FoMoCo washer pump and bag if you need one. There are some photos of the bag and pump mounting in Colin Comers book as well as on line.
__________________
"I'm high all right, but on the real thing....powerful gasoline and a clean windshield..."

http://www.timemachinesauto.com/
Reply With Quote
  #6 (permalink)
Old 12-23-2018, 07:34 AM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 838
Not Ranked
Default

Quote:
Originally Posted by CompClassics View Post
when the FIA roadsters were updated for the 1965 racing season the valve cover breather system included (2) separate catch cans, one was mounted to the passengers foot box and the other was mounted where the windshield washer bag had once been mounted.

Cannot prove it but I believe the metal catch cans on CSX2345 that are still there were installed by Alan Mann Racing on behalf of Ford and Shelby as they prepared the car for the 1965 European races. They look like they were something like small paint thinner cans or something.
1985 CCX and CompClassics like this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.
Reply With Quote
  #7 (permalink)
Old 12-23-2018, 09:09 AM
CC Member
Visit my Photo Gallery


Join Date: Oct 2010
Location: Raleigh, NC
Cobra Make, Engine: 289 FIA Superformance 425hp 289
Posts: 119
Not Ranked
Default

Seems strange that it would have been a FOMOCO part. Coming from AC, I figured a Lucas part (Triumph, Healey, MG).
Reply With Quote
  #8 (permalink)
Old 12-23-2018, 10:55 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 909
Not Ranked
Default

The washer bags and pumps are available through the many different Ford parts reproduction outlets. The bags are available in different colors according to what year and model the bag was sourced from. The bag hangers are available as well.
Reply With Quote
  #9 (permalink)
Old 12-23-2018, 11:21 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,994
Not Ranked
Default

Quote:
Originally Posted by Ron Scarboro View Post
Seems strange that it would have been a FOMOCO part. Coming from AC, I figured a Lucas part (Triumph, Healey, MG).
Early cars did use British made reservoirs and pumps but later Ford supplied parts.
I have photo's somewhere and I'll see if I can dig them up.
Larry
__________________
Alba gu brąth
Reply With Quote
  #10 (permalink)
Old 12-23-2018, 12:30 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,994
Not Ranked
Default



The blue wide bag is more common but some were black as well. Two different mounts were used depending on which bag was installed. Pump part number is C2AB-17664-A. It mounts below the bag on the side. (not shown in the photo)

The part I don't see, looking at CSX2345 anyway, is the dash mounted switch/button used on the street car. It's the rare and expensive part. We did recreate it and I think Nick Acton may have some for sale. Check with him to find out. Could also use a momentary switch that matches the other toggle switches if your car uses those.
Larry
1985 CCX likes this.
__________________
Alba gu brąth
Reply With Quote
  #11 (permalink)
Old 12-23-2018, 02:41 PM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 467
Not Ranked
Default

UK - market leafspring cars had a Lucas 2SJ glass washer bottle with electric pump in the lid. This was mounted on the left inner wing just above the fuel pump.
Reply With Quote
  #12 (permalink)
Old 12-23-2018, 03:03 PM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 838
Not Ranked
Default

Quote:
Originally Posted by Ron Scarboro View Post
Seems strange that it would have been a FOMOCO part. Coming from AC, I figured a Lucas part (Triumph, Healey, MG).
CSX2001-CSX2200 all British screen jet system parts.
CSX2201 and later American Ford reservoir and pump system with Lucas tube to dash and Lucas screen jets as earlier cars.
(Everything for CSX2201 and later has been reproduced commercially)
COB/COX chassis all British screen jet system parts.

All the 'cut back door' race roadsters were CSX2201 and later 'American market' chassis. The questions are:
1) did AC Cars fit the race chassis with screen jet systems like street cars?
2) if AC Cars installed systems did SA or somebody else later remove them?
Ron Scarboro likes this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.

Last edited by Dan Case; 12-29-2018 at 08:47 AM..
Reply With Quote
  #13 (permalink)
Old 12-23-2018, 03:14 PM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 838
Not Ranked
Default

Quote:
Originally Posted by LMH View Post


The blue wide bag is more common but some were black as well. T
Larry
Larry,
If you know the chassis number of the car you have pictured, send me a note letting me know which one please.

Yes CSX2201 and later cars could have either the large blue or small black bags but the small ones were rare. The two bags required different mounting brackets so even if an unrestored car with its original inner wheel house panel on the driver's side is missing the parts the hole pattern tells the story. I am keeping a list of chassis with small bags to see if a pattern turns up.

Thanks.
1985 CCX likes this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.

Last edited by Dan Case; 12-29-2018 at 08:49 AM..
Reply With Quote
  #14 (permalink)
Old 12-23-2018, 03:44 PM
CC Member
Visit my Photo Gallery


Join Date: Oct 2010
Location: Raleigh, NC
Cobra Make, Engine: 289 FIA Superformance 425hp 289
Posts: 119
Not Ranked
Default

Dan you’re an encyclopedia THANK YOU!

I never thought about it until I went to the Shelby American Collection last month.

Probably stuff you’ve already documented, but...

CSX 2345 has the jets, but I didn’t know where to look for the bag.
CSX 2431 has holes where the jets used to be
CSX 2137 has the jets
CSX 2385 didn’t have any jets
CSX ???? The #61 car had no evidence of any jets

I didn’t notice on other cars.

Interestingly none of those cars had meatball lights.
Reply With Quote
  #15 (permalink)
Old 12-23-2018, 03:57 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,994
Not Ranked
Default

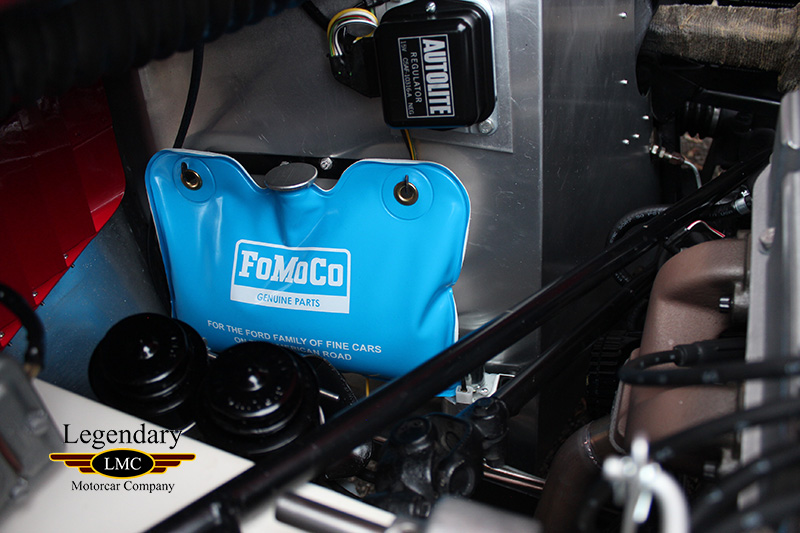

Here's another I ran across from Legendary, this one with the blue bag. You can just see the pump lower right of the bag.
Larry

__________________
Alba gu brąth
Reply With Quote
  #16 (permalink)
Old 12-23-2018, 04:02 PM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 838
Not Ranked
Default

Quote:
Originally Posted by Ron Scarboro View Post
Dan .....THANK YOU!
You are welcome.

Unfortunately looking at any race car now is not like looking at it day one, day two, or at any point in their racing days.

Racers tended to get bashed, rebuilt, and modified in some way for just about every race or every few races.

I have noticed how some famous cars have morphed over the years as each 'restoration' brings in a new interpretation of 'original'.

Ultra detailed owner/restorers usually pick a single race to 'restore' to and not the more common many different builds combined into one that never existed that way. (Example: Features from 1970 rules in a car restored to be as 1964 version. Or parts not around in 1964 used and called 1964 correct.)
1985 CCX and CompClassics like this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.

Last edited by Dan Case; 12-24-2018 at 07:41 AM..
Reply With Quote
  #17 (permalink)
Old 12-25-2018, 12:57 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 909
Not Ranked
Default

You should not find a “Lucas” glass washer bottle mounted on a “cut back door”, CSX2259 and after FIA or USRRC roadster, they used the Ford parts by that time.
Reply With Quote
  #18 (permalink)
Old 12-25-2018, 01:41 AM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 467
Not Ranked
Default

Quote:
Originally Posted by CompClassics View Post
You should not find a “Lucas” glass washer bottle mounted on a “cut back door”, CSX2259 and after FIA or USRRC roadster, they used the Ford parts by that time.
The AC289 (& 427), in Europe, used Trico washer bottles after the Lucas I believe. I've not seen Ford parts on any COB/COX cars.
Reply With Quote
  #19 (permalink)
Old 12-25-2018, 03:10 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 909
Not Ranked
Default

There is s good chance COB & COX might have had something else installed.
Reply With Quote
  #20 (permalink)
Old 01-04-2019, 07:41 AM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 447
Not Ranked
Default

Quote:
Originally Posted by Ron Scarboro View Post

CSX 2345 has the jets, but I didn’t know where to look for the bag.
CSX 2431 has holes where the jets used to be
CSX 2137 has the jets
CSX 2385 didn’t have any jets
CSX ???? The #61 car had no evidence of any jets
.
Can someone provide the same great information about the dash buttons??
I can not see them on the pictures
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 05:09 AM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2019, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
Links monetized by VigLink
