Default Stripe how to for A&C body and others

I am going to start with just the photos for now I have to finsh painting this one, I will add the text tonight so check back.

Allot of people have asked me over and over again how to do and measure the stripes, well I just happened to be doing one right now and sure enough some one asked so here it is. I hope this helps and you enjoy.

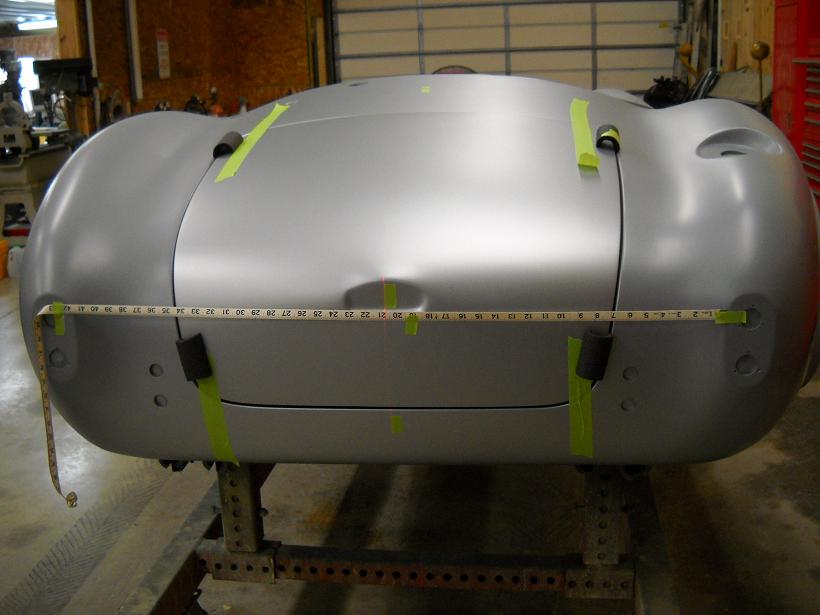

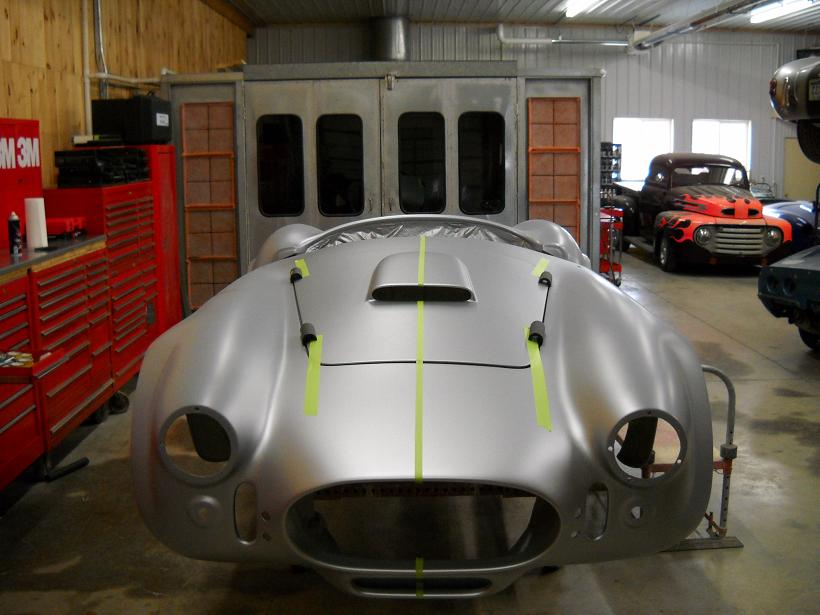

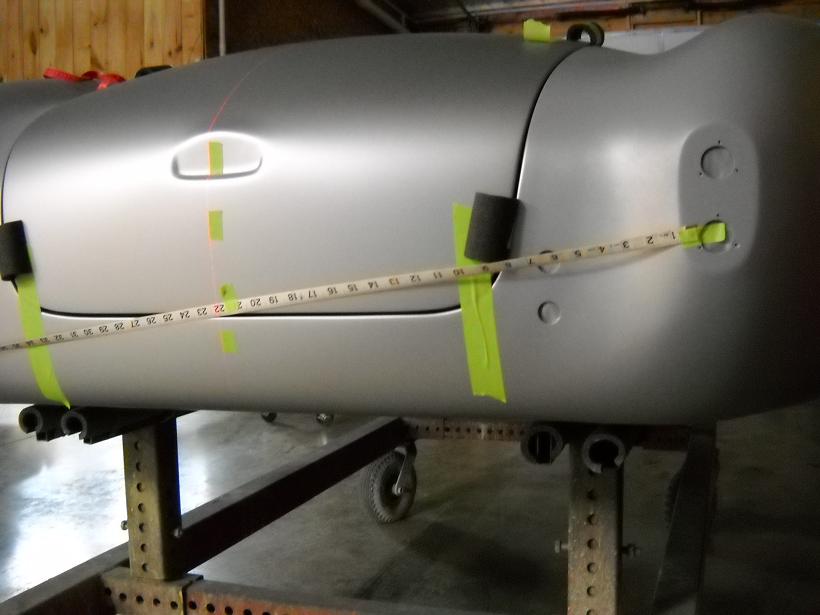

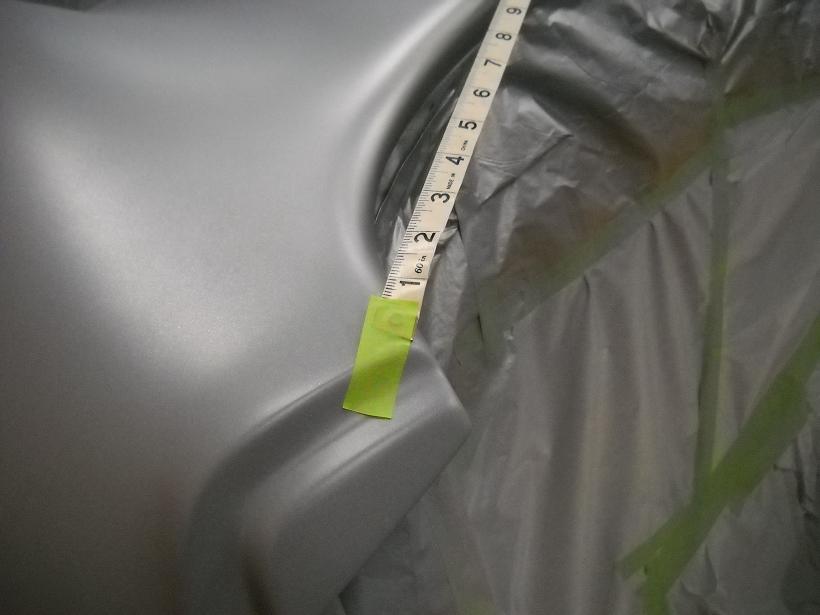

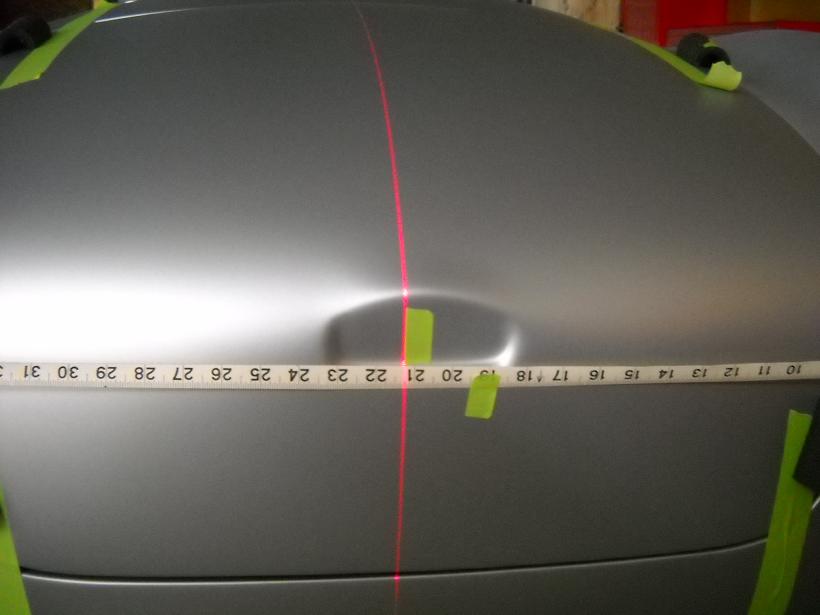

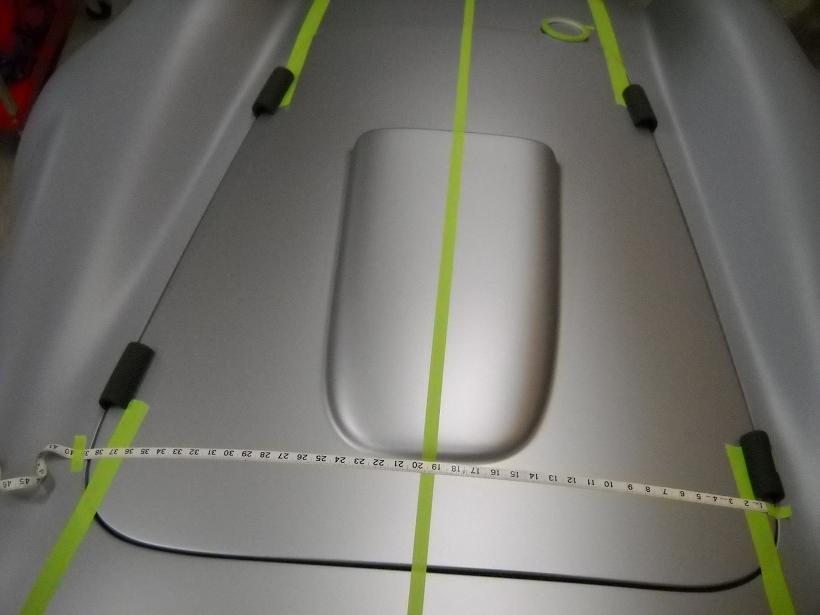

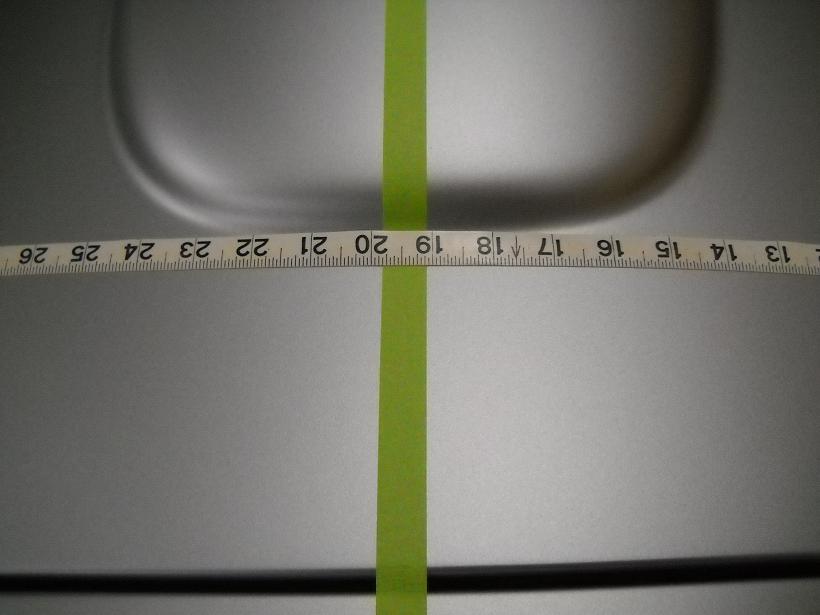

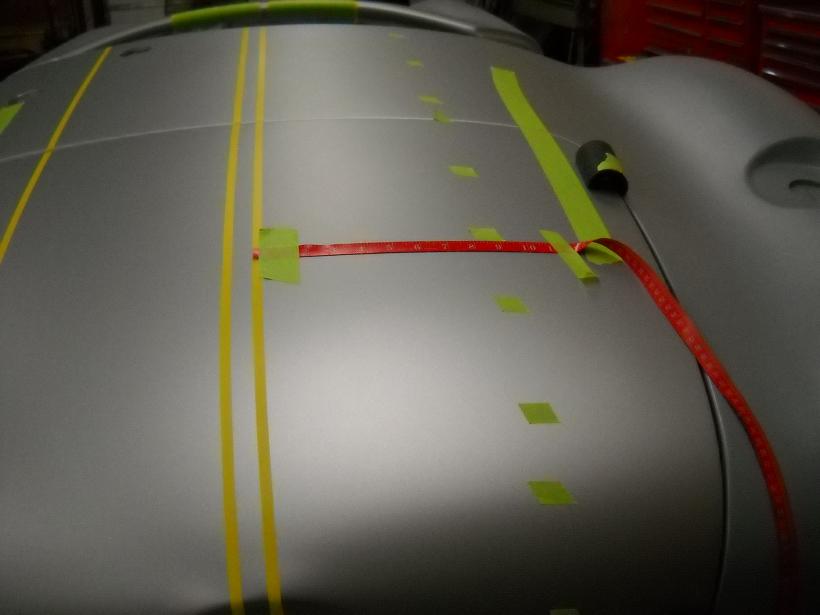

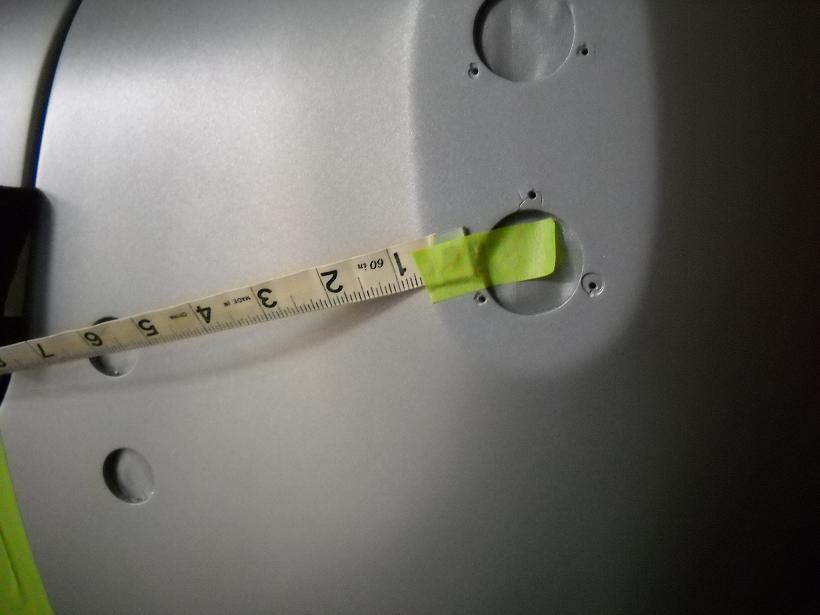

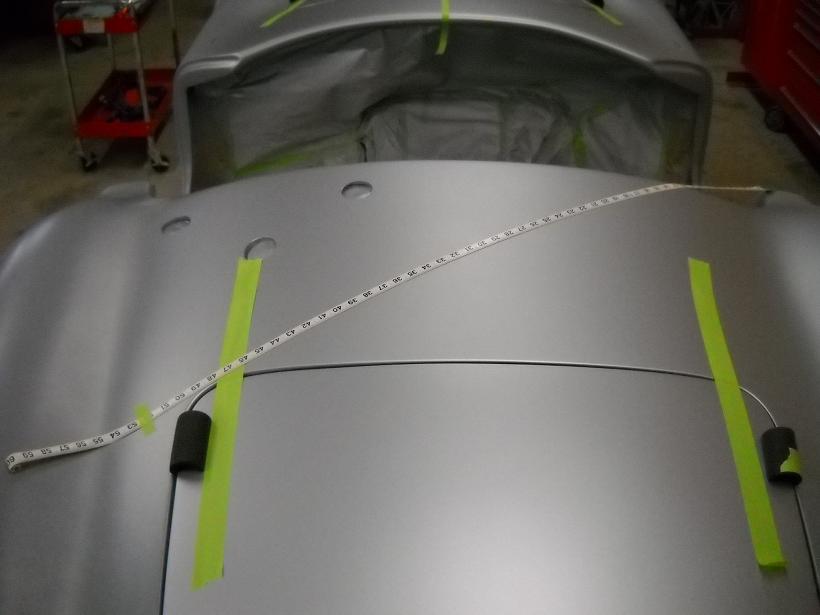

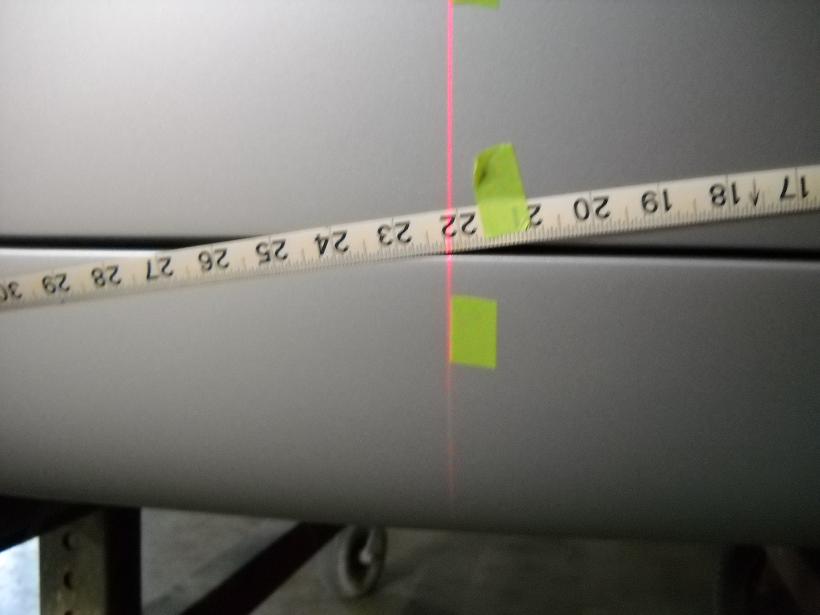

First we have to find center this is how I do it and what the measurements are for the A&C body. All the measurements are from the pass side for the most part.

























Last edited by eddytheb; 01-28-2010 at 12:00 PM..
Reply With Quote
  #2 (permalink)
Old 01-28-2010, 10:38 AM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

















Reply With Quote
  #3 (permalink)
Old 01-28-2010, 10:43 AM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

















Reply With Quote
  #4 (permalink)
Old 01-28-2010, 10:47 AM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

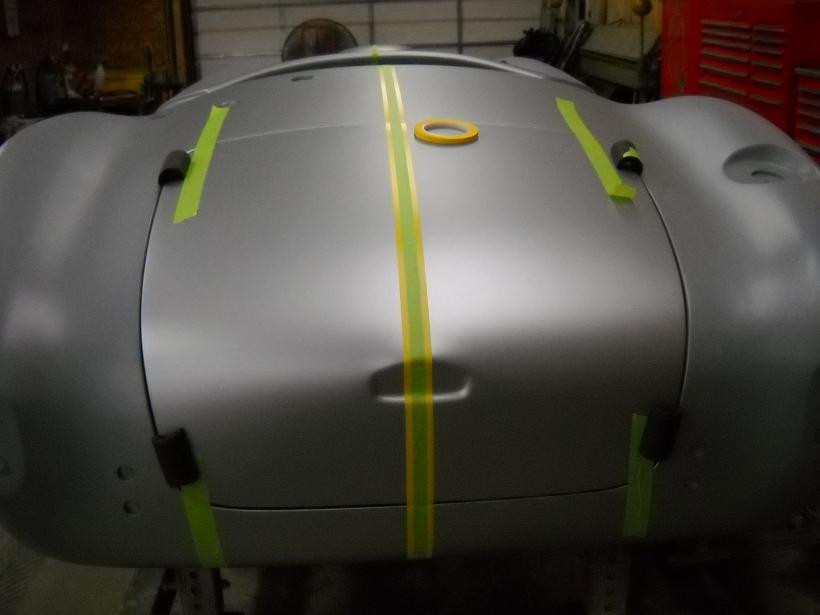

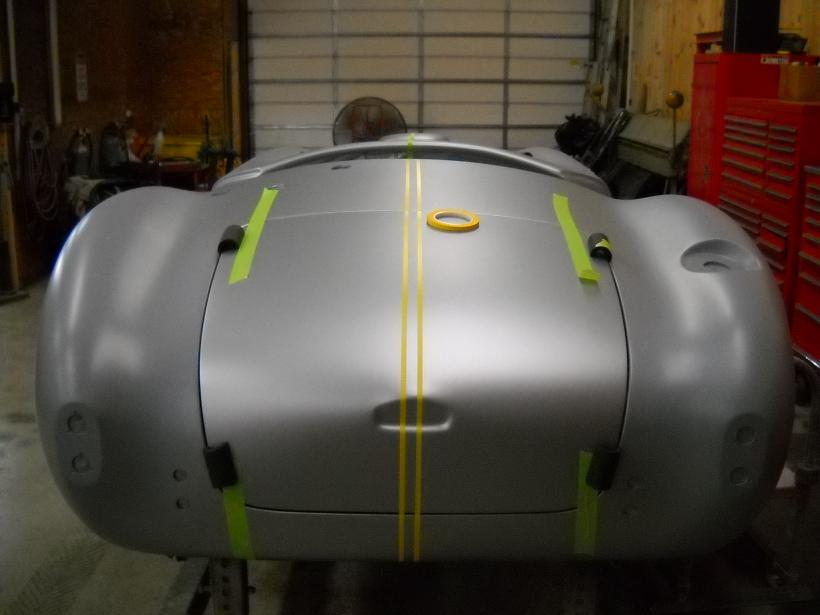

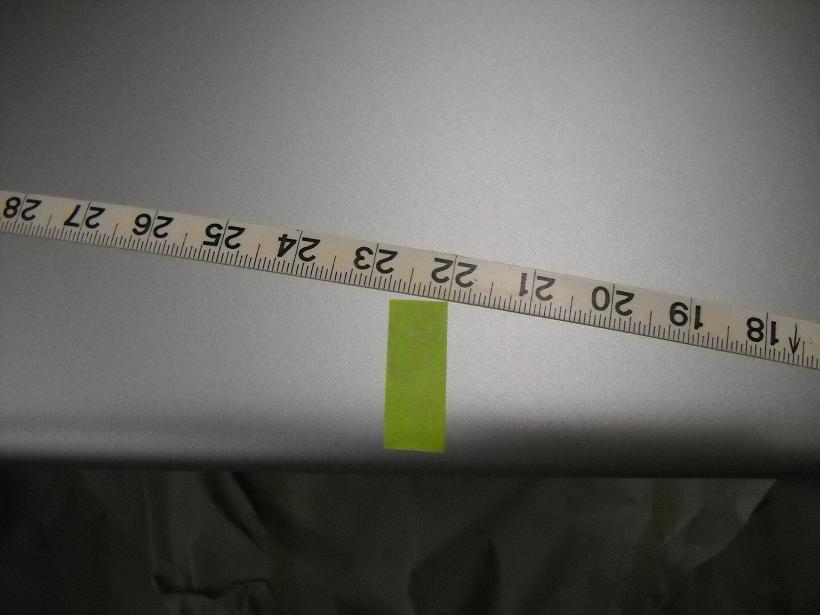

Here is were its messes with the eye so I make it a bit wider


Reply With Quote
  #5 (permalink)
Old 01-28-2010, 10:57 AM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

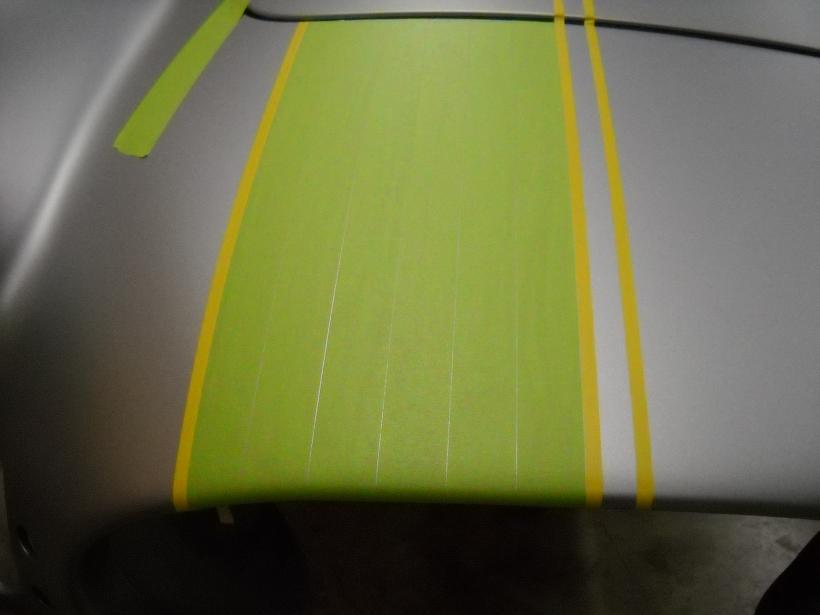

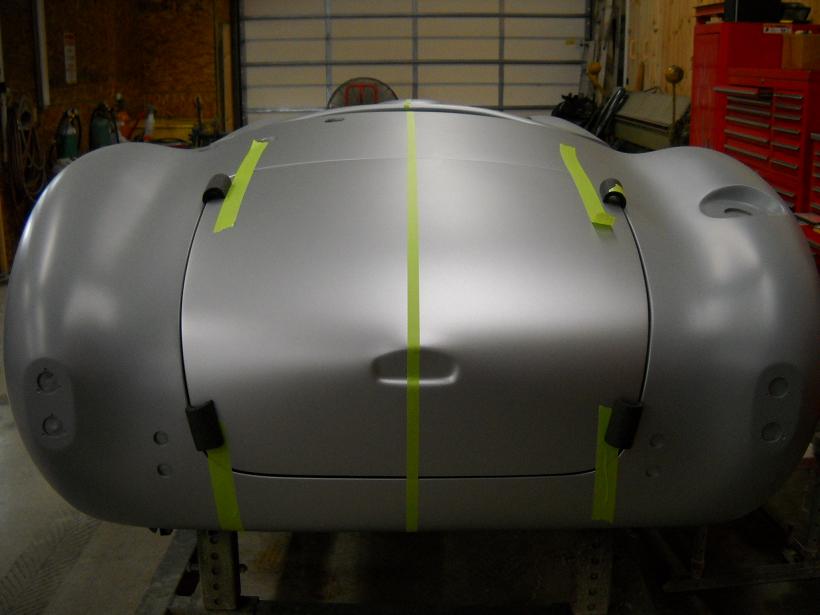

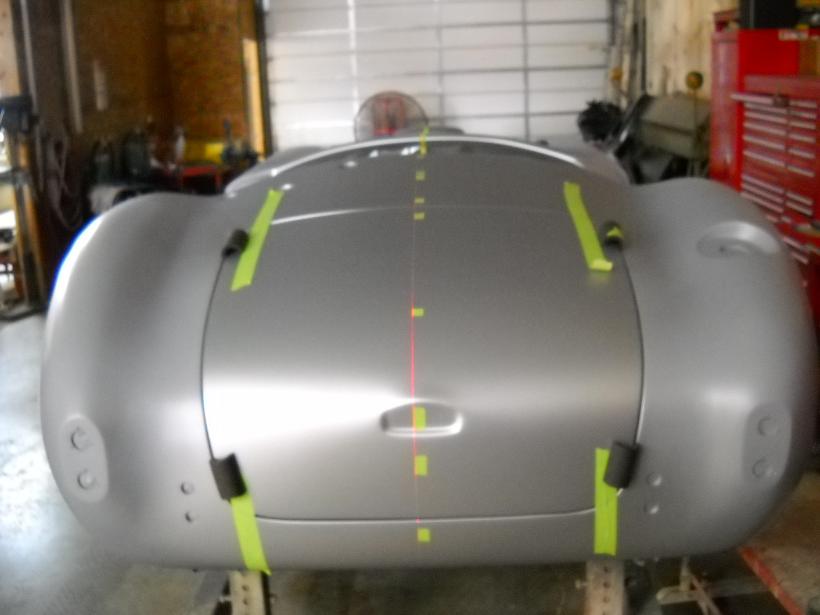

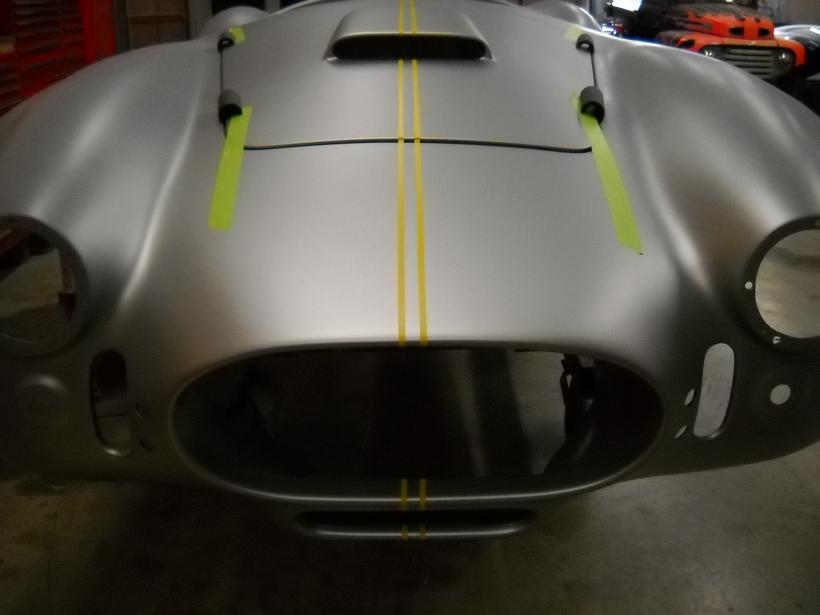

I use points not blocks its easier to make the tape strait when laying it next to the edge of the marks.

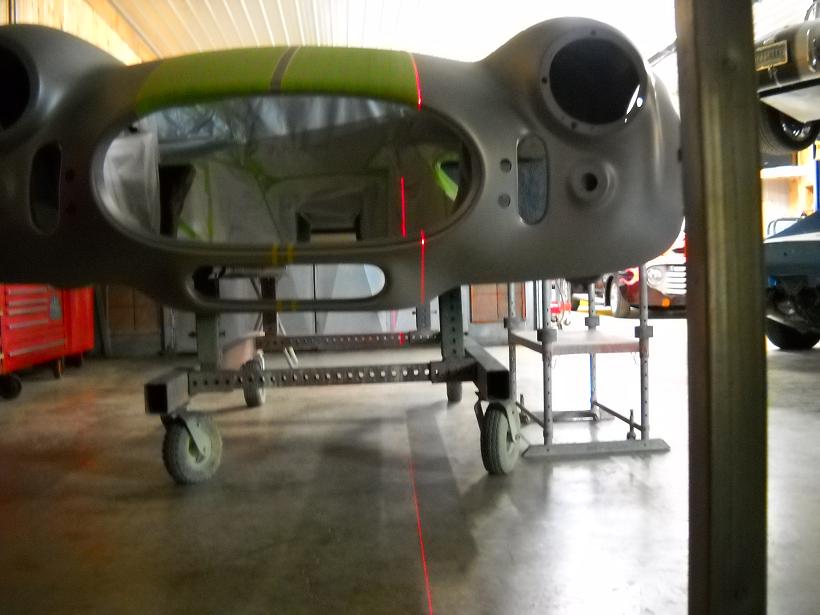

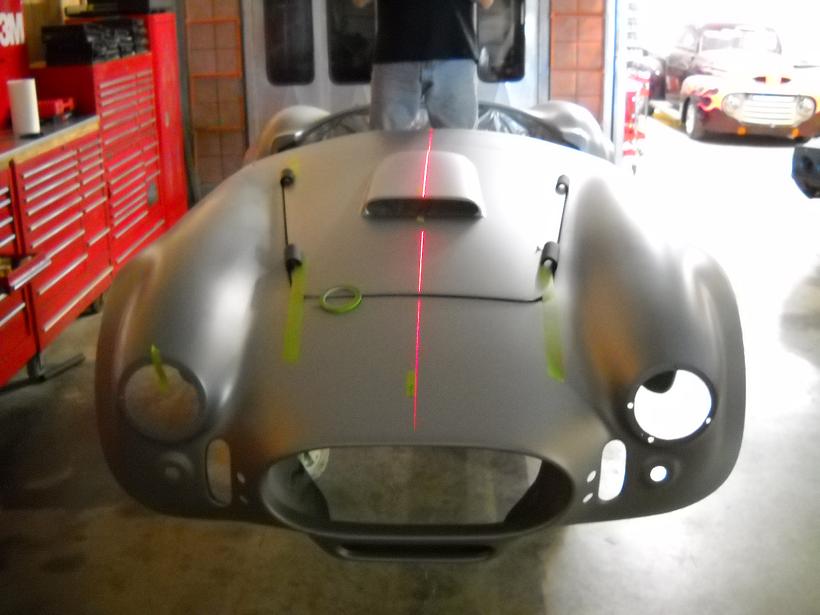

Back to the front with the lazer level to finish up.





Last edited by eddytheb; 01-28-2010 at 01:18 PM..
Reply With Quote
  #6 (permalink)
Old 01-29-2010, 09:22 AM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

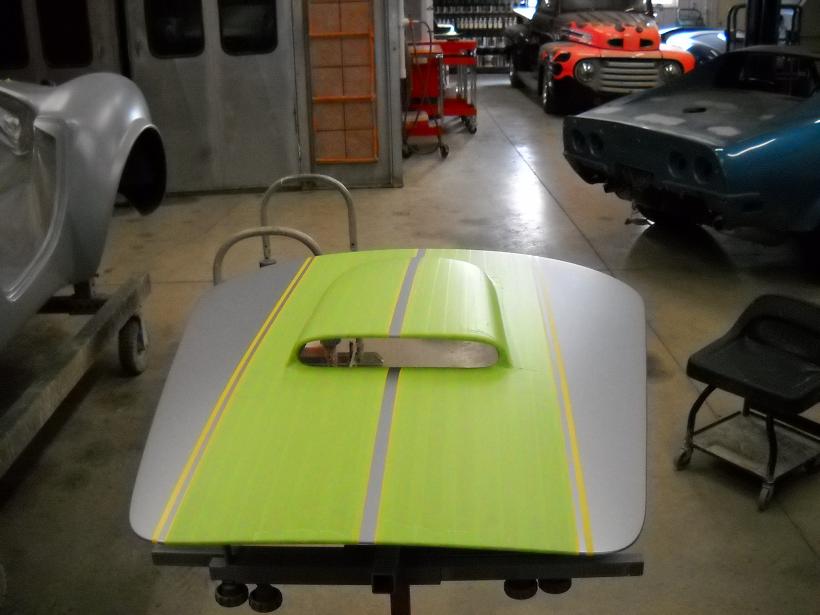

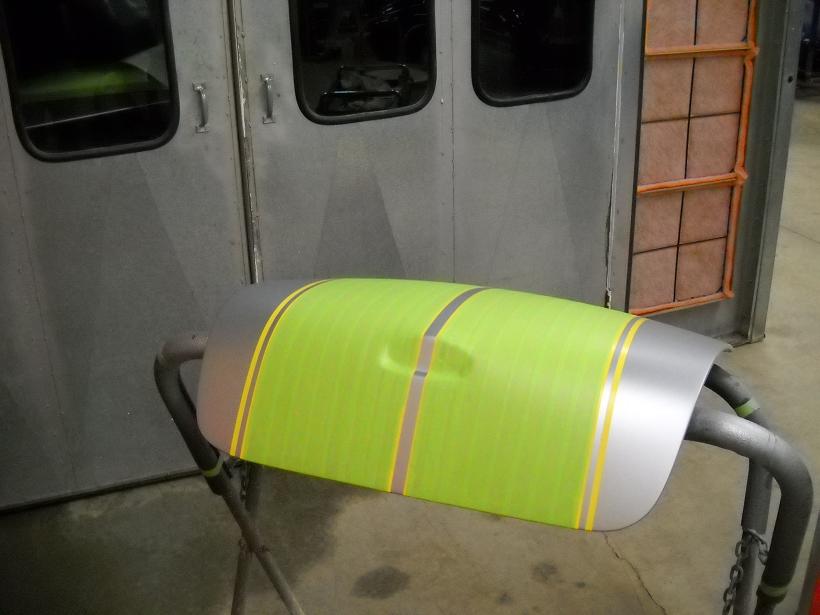

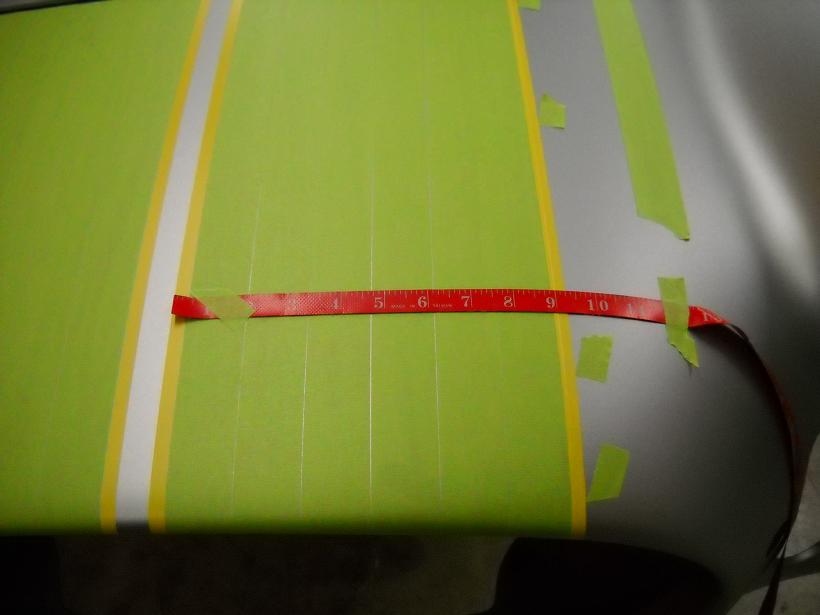

I sprayed the dark blue yesterday and I like to wait over night to unmask so the base is good and dry and don't contaminate the silver. I use tape to lift any lose edges as you can see from the photos. There will be a jagged edge from untapeing and you want to make sure you get all the lose base that didn't stay on the tape when you unmasked it. Any lose base will stain a silver and you will miss it untill it cleareds and then there is nothing you can do about it, so I do the tape trick a few times. Another reason I like to sleep on it before I clear it is so I can look it over with a fresh pair of eyes and do any repairs it may need, I found one little spot on the hood that I was just not sure would hide when cleared so a few minute repair and I was ready to go. I like to put the paint codes under the clear so they stay with the car. I put them under the tail light just incase someone ever has to do any repairs. I hope you enjoyed and I hope I helped in some way its a ton of work to do a job like this and do it right.





Stop by and see what we are working on @ www.eddytheb.com
Reply With Quote
  #7 (permalink)
Old 01-30-2010, 11:14 AM
CC Member
Visit my Photo Gallery


Join Date: Feb 2009
Location: Zachary, LA
Cobra Make, Engine: Hunter - 427
Posts: 232
Not Ranked
Default

Probably the best post I've seen on this site. It's says alot for someone willing to share that much trade secrets. Thanks for sharing. I know I'll make use of it.

Joey
Reply With Quote
  #8 (permalink)
Old 01-30-2010, 11:32 AM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,115
Not Ranked
Default

Where's the taper man? You gotta pull the stripes in at the bottoms to give the car a proper perspective.
__________________
IT'S NOT REAL. IT'S UNREAL.
VINTAGE MOTORSPORTS
888.427.1965 | www.vintagemotorsports.com
Reply With Quote
  #9 (permalink)
Old 01-30-2010, 02:27 PM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default I don't know...

Something's not right...


Last edited by patrickt; 10-26-2016 at 08:39 AM..
Reply With Quote
  #10 (permalink)
Old 01-30-2010, 03:56 PM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,115
Not Ranked
Default

Quote:
Originally Posted by patrickt View Post
Something's not right...

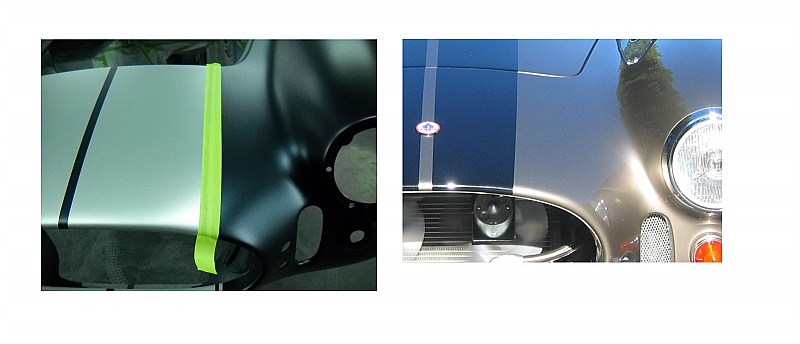

That's the visual he needed. Center gap is too small and the stripes look to taper OUT instead of IN. Thanks for the lesson but make sure you are using the proper handbook.
__________________
IT'S NOT REAL. IT'S UNREAL.
VINTAGE MOTORSPORTS
888.427.1965 | www.vintagemotorsports.com
Reply With Quote
  #11 (permalink)
Old 01-30-2010, 04:01 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

Quote:
Originally Posted by patrickt View Post
Something's not right...


And why do you think yours are right
Reply With Quote
  #12 (permalink)
Old 01-30-2010, 04:20 PM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by eddytheb View Post
And why do you think yours are right
It just doesn't seem to "please the eye," at least to me. But it really doesn't matter; if the customer is happy with it, then it's perfect.
Reply With Quote
  #13 (permalink)
Old 01-30-2010, 04:24 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

There replicas guys, there's almost nothing right or wrong when building a cobra these days, hell most originals never even had stripes. You can make yours any way you want by adjusting what I have shared here, by making them wider narrower or leaving the small side stripe off its a personal choice. I like them wider on dark colored cars a little narrower on a light colored car with dark stripes.





Stop by and see what we are working on @ www.eddytheb.com
Reply With Quote
  #14 (permalink)
Old 01-30-2010, 04:37 PM
patrickt's Avatar
Half-Ass Member
Visit my Photo Gallery


Join Date: Jun 2005
Cobra Make, Engine: ERA #732, 428FE (447 CID), TKO600, Solid Flat Tappet Cam, Tons of Aluminum
Posts: 21,888
Not Ranked
Default

Quote:
Originally Posted by eddytheb View Post
There replicas guys, there's almost nothing right or wrong when building a cobra these days...
Well I tend to agree with that. Did the customer request "wider" stripes?
Reply With Quote
  #15 (permalink)
Old 01-30-2010, 04:38 PM
rcobrakit67's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2009
Location: L.I.N.Y., ny
Cobra Make, Engine: Antique and Collectible Autos 408w
Posts: 113
Not Ranked
Default

Once again great work. Thanks for sharing.
Reply With Quote
  #16 (permalink)
Old 01-30-2010, 04:46 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

They have a choice when I build for them anything they want that's the nice thing about building over a turnkey minus. With allot of the cars out there you get what the company offers and that's it.
Reply With Quote
  #17 (permalink)
Old 01-30-2010, 04:47 PM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,115
Not Ranked
Default

Hey, my preference is no stripes.... but do you have any photos of cars you have tapered the stripes in on? For comparison sake. I think you will find it complements the shape of the Cobra much more.

__________________
IT'S NOT REAL. IT'S UNREAL.
VINTAGE MOTORSPORTS
888.427.1965 | www.vintagemotorsports.com
Reply With Quote
  #18 (permalink)
Old 01-30-2010, 04:49 PM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,115
Not Ranked
Default

Quote:
Originally Posted by eddytheb View Post
They have a choice when I build for them anything they want that's the nice thing about building over a turnkey minus. With allot of the cars out there you get what the company offers and that's it.
That's not true at all, you can order anything you want from BDR, SPF, etc... you've done a lot of these so you must have had customers ask for the stripes like the "originals" right?
__________________
IT'S NOT REAL. IT'S UNREAL.
VINTAGE MOTORSPORTS
888.427.1965 | www.vintagemotorsports.com
Reply With Quote
  #19 (permalink)
Old 01-30-2010, 05:03 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

like the "originals" right?
what are the originals like and is it documented anywere.


If someone asks for original all I can say to them is show me a photo of the original you are trying to replicate
there was so many ways it was done its almost impossible to find photos of two that were the same.


Stop by and see what we are working on @ www.eddytheb.com
Reply With Quote
  #20 (permalink)
Old 01-30-2010, 05:54 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2006
Cobra Make, Engine:
Posts: 289
Not Ranked
Default

This one I did a long time ago it narrows to the front I lost track of this car anyone know were it ended up?
