charcoal canster set up
helpagain
as im setting up the canster it has fuel written on the top & VAC ON THE OTHER but where does the bottom out let go??
does any one have a drawing I can see or use
canster is a new one from a Toyota camry
ROB
__________________
not all your babies are your children
|
-
Advertising
06-29-2013, 03:22 AM
|
|
CC Member
|
|
|
Join Date: Jul 2010
Location: Perth,
WA
Cobra Make, Engine: FFR Mk4 Roadster, LS3, TR6060, 8 3/4"
Posts: 432
|
|
Not Ranked
My cannistor is from a VS Commodore and it has 3 outlets on top.
FUEL - goes to fuel tank
VAC - goes to intake manifold for a vacuum signal/source
PURGE - goes to throttle body inlet tube upstream of TB, but after filter.
This allows the tank to be vented to an outside clean air source when the engine is idling or has vacuum in the manifold. When engine is off, no venting, hence no fumes escaping. Also this is not an air leak into the engine as the fuel tanks are sealed.
I think for some newer system there is only two lines as the vac line is also the purge line but it is controlled by the ECU with a solenoid to only open, to allow venting, when the ECU desires. This to chase that last bit of emission control, especially at startup.
HTH
__________________
Tim
FFR Mk4 Roadster
HSV Clubsport R8
|
06-29-2013, 03:30 AM
|
|
CC Member
|
|
|
Join Date: Nov 2009
Location: Cheltenham,
Vic
Cobra Make, Engine: Classic Revival CR3516, LS3, Aussie Mike'd T-56, 3.70 LSD, AP brakes, Penske shocks
Posts: 1,616
|
|
Not Ranked
Quote:
I think for some newer system there is only two lines as the vac line is also the purge line but it is controlled by the ECU with a solenoid to only open, to allow venting, when the ECU desires. This to chase that last bit of emission control, especially at startup.
|
This is how it is on my LS3, an ECU controlled solenoid so only need two lines. My canister (VZ) has three connections so I guess I will just block one off?
__________________
BUILD-BLOG: http://cobrablog.holnet.net
Ben in AU
|
06-29-2013, 03:52 AM
|
|
CC Member
|
|
|
Join Date: Jun 2009
Location: Sydney,
NSW
Cobra Make, Engine: RCM, Jag front and rear, LS3
Posts: 1,640
|
|
Not Ranked
Mine is the same as VS commodore but off a vectra. The third outlet has a rubber hose that loops out and down kind of like an overflow. Other two are tank and purge valve.
|
06-29-2013, 07:47 AM
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2007
Location: North Gold Coast,
Qld
Cobra Make, Engine:
Posts: 820
|
|
Not Ranked
bottom one normally has a tube which gets poked thru a chassis rail or similar and just vents to air but they vent it into chassis rails or under some panels so its not as noticeable
|
06-29-2013, 06:05 PM
|
|
CC Member
|
|
|
Join Date: Jan 2004
Location: Gold Coast,
AUS
Cobra Make, Engine: Wish I had my own PACE 427
Posts: 2,145
|
|
Not Ranked
Yes, that bottom connection is the atmospheric vent.
Connect a hose to it that has a bit of length to it to stop ingress of water and moisture. Do not loop or run the hose up hill.
It is good practice to make sure the bottom of that hose is protected by/up above the chassis. This reduces the likelihood of the bottom of the tube being damaged or caught/snagged by speed bumps, debris etc. As Sideshow mentioned that is why a lot of factory cars run that hose into the chassis or under body panels.
Craig White
Last edited by 400TT; 06-29-2013 at 06:13 PM..
|
07-03-2013, 07:05 PM
|
|
CC Member
|
|
|
Join Date: Aug 2001
Location: Melbourne, Australia,
Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
|
|
Not Ranked
Rob

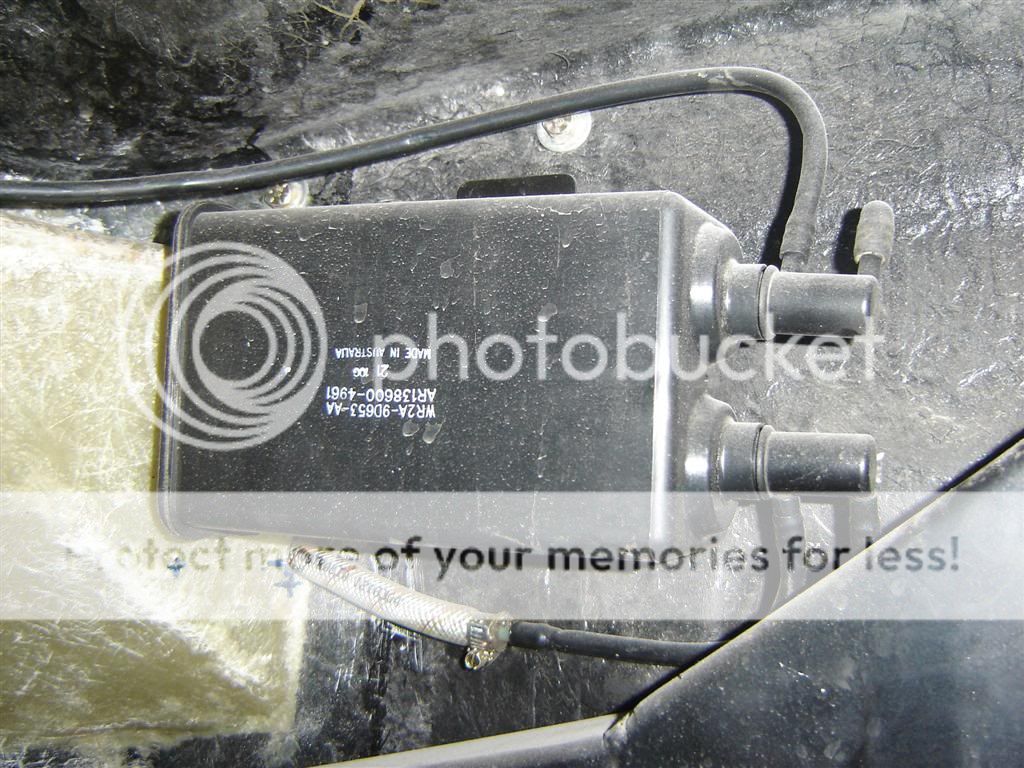

A photo of mine when it was in place during my short driving period. This is all sitting in the driver's side rear wheel arch above the chassis.
The upper line just led around to the rear of the wheel arch and free vented.
The lower inner line leading into the clear hose led to the vent high in the fuel fill line and the lower outer led to the vapour solenoid that plumbs in under the manifold on the AU engine.
Hope this helps.
Cheers
Slo
__________________
slowy
Last edited by stephen low; 07-03-2013 at 07:11 PM..
Reason: helps to provide a location description
|
07-07-2013, 03:50 PM
|
|
CC Member
|
|
|
Join Date: Jul 2004
Cobra Make, Engine: 347 Stroker Morrison Injection. Registered.
Posts: 1,440
|
|
Not Ranked
What car is that canister from Steve? I have only seen ones that look like drink cans!
Regards.
__________________
Mando
|
07-07-2013, 08:42 PM
|
|
CC Member
|
|
|
Join Date: Aug 2001
Location: Melbourne, Australia,
Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
|
|
Not Ranked
Mando
That's just from an AU falcon. Think it is the same in the E series and possibly others too.
It came as part of all the bits I got when I bought the engine, gearbox and accessories in the early days.
Have had to relocate it but I've found a nice hidy hole not too far away from the same location and just need to plumb it all up again.
Steve
