Kirkham 668 build


Though I would start a build thread even though progress is slower than the melting of the ice caps. (parts supply)
Had a few days to stuff around with a few odd and ends.
I invited a mate up for lunch and "while you are here" we bleed the brakes and the clutch, only had one leak! it is nice to have a couple of firm pedals for when I sit in the car pretending to drive through the hills.
I made a mold for the dash crash pad,

end profile of mold
Attachment 23661

I poured it in ISF136 (Integral Skin Foam 136kg per cubic meter) mix and pour, you have to be quick it starts to expand at a very rapid rate after 25 sec of mixing. You can get it the right sure hardness by pouring more mixture in to the mold than is required and sealing the mold, the foam cant expand and becomes more dense, a bit of trial and error.

End product installed
Attachment 23662
I had some trouble de-molding and damaged it, but I think it will be ok in the end and because it has a skin you don't have to cover it with anything. I will do some mods to the mold and pour another one next weekend

I moved my fuel lines in to a cable tray that I put in the tunnel
instead of this
Attachment 23663
fuel lines drooping between P-clips
and this
Attachment 23664
Fuel line squashed between body and moving suspension parts

It now looks like this
Attachment 23665

There was room to run the vacuum hose for the charcoal canister, the hose for the windscreen washer & the main power fed to the starter as well. It cleaned up the underside of the car nicely.

Cheers

Nice Lex. Cool - another build thread!

The fuel line certainly needed 'fixing' didn't it. That surprises me on a Kirkham, with their reputation for quality.

Is there any issue running fuel lines and power etc in the same cavity?

Hi Guye
Not sure if the fuel line left Kirkhams like that.

Don't know about running fuel and power together I must admit I did have the same though..... after I had done it.
The cable tray is made up by two small U channels so they are kinda separated. I put the fuel and water in on and the power in the other.

Forgot to mention David Kirkham has kindly downloaded some photos of 668 on the Kirkham Facebook site for me if anyone is interested.

Cheers

Great to see another build thread!

It looks like the fuel line was loose in the Kirkham photo. It's blurry, but you can see it hanging at that stage of the build:
https://fbcdn-sphotos-f-a.akamaihd.n...45365699_n.jpg



Just a little tip for including photos throughout your build thread; instead of attaching the little images that everyone clicks into, you can just insert an image which will show up as full size. Just click this


http://www.clubcobra.com/photopost/d...nto_thread.JPG


...and paste in the location of the image (ie: the bit that starts with http...and ends with...jpg)

I'm looking forward to seeing your car come together. It looked great sitting in the Kirkham workshop with another RHD car and others at various stages of completion!

https://fbcdn-sphotos-g-a.akamaihd.n...85490572_n.jpg

Way cool...
Hopefully with global warming those ice-caps melt a little quicker for you moving forwards. :LOL:

That is for sharing.

Detective Craig!

Thanks Craig for photo posting advise, I can't get my head around it I wish I had a 9 year old around the house they would figure it out in seconds. I will give it another go soon.

Yeh more Kirkham pics, about time mate.

On the fuel line mine was in a similar position. I put the suspension though it's full travel and saw that it wasn't going to be an issue so left it where it was figuring that Kirkham probably has a few out there like that.

I thought you had all your parts to finish your girl off.:mad::CRY:

Damage
OK ...so that is the correct position for the fuel line. I think the inspection team at the road traffic board would frown on it being squashed in there.

Cheers

I don't necessarily think its correct but that's where they put them.

One thing that you may consider though with where you have now rerouted your fuel line is the heat soak that the fuel line may get from the transmission. Hot fuel = less ponies. with the fuel line in its position from Kirkham at least its away from most heat sources except the road of course.

I'll see how it goes, easy to put back I haven't cut anything, anyhow I will be looking where to fit a parcel shelf for the white bowling hat before I get this thing on the road :CRY:

There's an ex-Bathurst racer in the Qld club who is in his 80s and has a 630ish horsepower Robnell Cobra, so you still have time!

In a previous Cobra, I ran the fuel lines down the trans tunnel without any heatsoak issues. It was EFI with a return line though.

Craig it will be EFI and the return fuel line is in that channel as well so hopefully all is well
I will probably end up with under car exhaust for compliance ( don't really mind I have come to like the street look very much) so all the wiring and fuel lines would have been right next to the hot exhaust anyway.

While I was modifying my mould for the crash pad I got to thinking, what does everyone else use for the dash padding?

I am also curious to hear about the dash pad/edge roll for registration/compliance?

Is it critical for ADRs?

Cheers

Tony

I used a foam profile from a furniture manufacturer as recommended by my Engineer. $5 all up. Still needed to be covered later on.

Definitely required for ADRs etc.

http://www.clubcobra.com/photopost/d...ash_Foam_2.jpg

Lex,

I was just filling in lunch time boredom and looking at your pics and decided you need to put more up.

I'm interested to see how your door locks have ended up, I see you have your intrusion bars in. I'm not 100% happy with mine and still thinking of how I can finish them up a bit better so wondered what track you went.

Have you got any feed back on when the reindeer is turning up with the rest of your bits. I noticed you still don't have a wiring harness fitted have you got that or are making it one strand of wire at a time.

I believe the loom is in the final stages of being debugged.... Hopefully!!
I will give posting photos another go ....

Debugged???

Door lock covers


After an early start with a walk down to the local dawn service, I had a bit of time to work on some stuff.
I wanted to cover the door lock

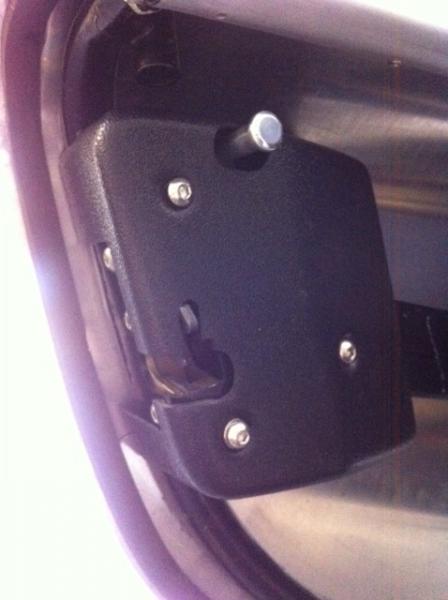

http://www.clubcobra.com/forums/pict...ictureid=11987

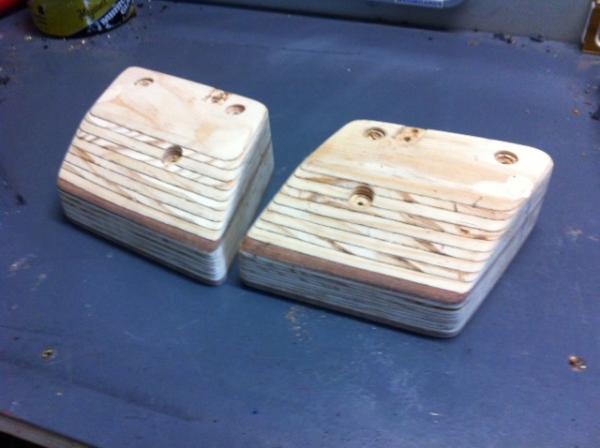

I made these dies at work earlier in the week.
http://www.clubcobra.com/forums/pict...ictureid=11982
The I vac formed these in 2mm thick ABS plastic sheet
http://www.clubcobra.com/forums/pict...ictureid=11983

A bit of drilling, score and snap, filing, cursing.. the die grinder became my best friend
http://www.clubcobra.com/forums/pict...ictureid=11984

Finished!!

http://www.clubcobra.com/forums/pict...ictureid=11985

And fitted

http://www.clubcobra.com/forums/pict...ictureid=11986

Now the other side.....

Cheers

My fabrication skills extend as far as hitting something with a hammer until it fits or it breaks. Seeing parts come together as well as your cover is really impressive.
