Default Classic Revival Steering question

Hi All,

Question for the classic revival people out there.

Does your steering arm cross the lower suspension arm on full lock?

If so how do you limit the movement to ensure that it doesn't happen?

If not why do you think ours is?

FYI we are running a Series 3 front end (upper arms, lower arms and uprights.)

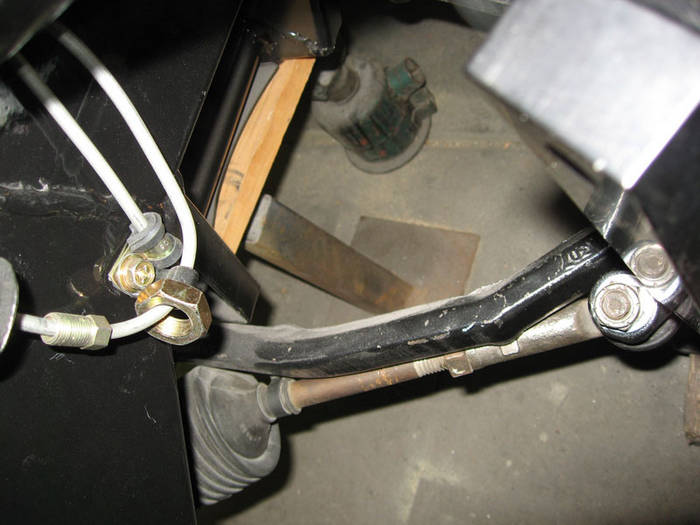

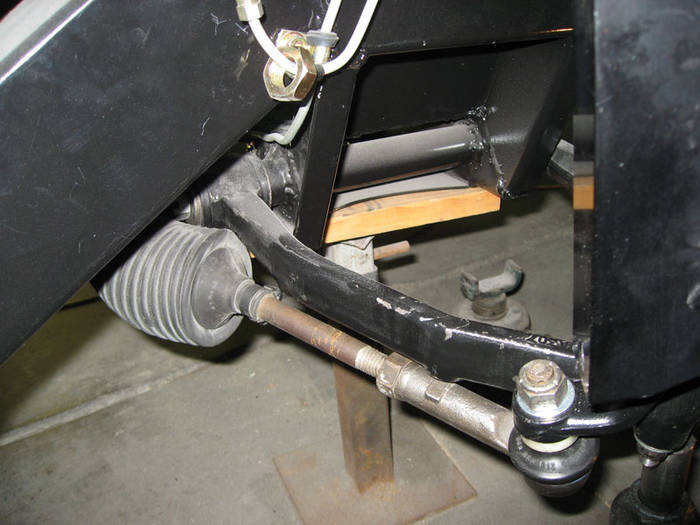

See the pics for the problem...





Any advice welcome.

Jamie and Michael
Reply With Quote
  #2 (permalink)
Old 08-13-2007, 03:17 PM
Gav's Avatar
Gav Gav is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2006
Location: Mildura, vic
Cobra Make, Engine: FFR Coupe, 416ci of LS goodness
Posts: 2,349
Not Ranked
Default

You need series 2 tie rod end links for the front spindles, or maybe complete series 2 spindles.
The series 3 must be way shorter (tie rod end closer to the ball joint)
__________________
Powered by Cu
Reply With Quote
  #3 (permalink)
Old 08-13-2007, 03:21 PM
Tenrocca's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Sydney, NSW
Cobra Make, Engine: Classic Revival #3199. 366ci L76, T56 6 speed, Blue circle custom paint, Australias most original cobra 2009-2010
Posts: 2,396
Not Ranked
Default

I cant be sure but it looks like your steering arm is just the wrong way around (going off Gavs pic and Mikes fancy set up which is attached)



Your looks to be bending back in where the rod end attaches, where as it should come straight down.

Edit - On second look I cant see how it can go on around the wrong way - so those arms must be wrong - I wouldnt have throught they changed from S2 to 3
__________________
Proudly registered since 2013.

Last edited by Tenrocca; 08-13-2007 at 03:33 PM..
Reply With Quote
  #4 (permalink)
Old 08-13-2007, 07:51 PM
stephen low's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2001
Location: Melbourne, Australia, Vic
Cobra Make, Engine: G-Force Mk I, 5L Windsor, TKO 600, enhanced Jag / Koni suspension & LSD Diff.
Posts: 2,298
Not Ranked
Default

I can't be specific but was in a pick a part wreckers on Sunday and looked at the front ends of three Jags. in the yard.

The newest style bodied car had completely different front suspension bits, and I'm guessing it was a S3 so maybe the S3 is different from S2.

Even on the GF the tie rod is held quite a distance behind such that it doesn't bind as you are explaining. I too would suggest wrong part!

Cheers
__________________
slowy
Reply With Quote
  #5 (permalink)
Old 08-13-2007, 08:40 PM
CC Member
Visit my Photo Gallery


Join Date: Jan 2005
Location: Melbourne, Vic
Cobra Make, Engine: Classic Revival
Posts: 29
Not Ranked
Default Thanks

The problem appears quite evident in Gav's pic.

I have marked the aproximate corresponding points on the Series 3 upright and as you can see the Series 2 setup has about an inch of additional arm extension from the hub over the Series 3. FYI the steering arm is quite a different shape in the series 3, much shorter and not as straight.

Thanks again

Jamie and Michael

Reply With Quote
  #6 (permalink)
Old 08-13-2007, 09:02 PM
Aussie Mike's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2001
Location: Sunbury, VIC
Cobra Make, Engine: Rat Rod Racer, LS1 & T56
Posts: 5,391
Not Ranked
Default

I ran into much the same problem as you. My rack ends hit on the lower control arm at full droop before I reached full steering lock. The other thing to be mindful of is at full droop the ball joint on the end of the rack is pushed past its max angle and the steering arm is starting to bend. This may vary depending on the length of the shocks you use but I have the standard AVOs that Ian supplied.

Don't use my setup as an example of a stock setup as I've changed my steering to heim joints and mounted them on top of the steering arms. This was to improve the bump steer and to give more clearance for wider front rims. I can probably squeese a 17x9" rim on the front now. The Arms still They still hit now but not as bad. It also cured the max angle on the ball joint problem.




I looked at a couple of solutions. One was to machine up a couple of spacers for inside the rack to limit the total travel (I may still do this). The other option is to build some tubular lower control arms that dont bow out as much as the Jag ones. I like this idea as I would like to improve the turning circle for parking and general maneuvering.

Cheers
__________________
Mike Murphy
Melbourne Australia


Last edited by Aussie Mike; 08-13-2007 at 09:31 PM..
Reply With Quote
  #7 (permalink)
Old 08-13-2007, 09:36 PM
CHANMADD's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2006
Location: San Marcos california, CA
Cobra Make, Engine: 1989 KCC from South Africa Right Hand Drive
Posts: 1,597
Not Ranked
Default

What are you using to limit the downward travel of the suspension? You should have some kind of stop!
Reply With Quote
  #8 (permalink)
Old 08-13-2007, 09:43 PM
Aussie Mike's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2001
Location: Sunbury, VIC
Cobra Make, Engine: Rat Rod Racer, LS1 & T56
Posts: 5,391
Not Ranked
Default

There's a stop built into the coil over shock.

Cheers
__________________
Mike Murphy
Melbourne Australia

Reply With Quote
  #9 (permalink)
Old 08-13-2007, 09:53 PM
CHANMADD's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2006
Location: San Marcos california, CA
Cobra Make, Engine: 1989 KCC from South Africa Right Hand Drive
Posts: 1,597
Not Ranked
Default

check this out
