Where the f**k have I been and missed these updates.

Great to see and looking forward all aspects of this build. Nice to see something just a little different and what's not to love about the 289's.

Craig is right with regards to the misaligned bodies. There are a number of examples of bodies misaligned to bodies, left, right, up and down.

Another example how the pace team and Craig's attention to detail cover all aspects and a cut no corners attitude.
albanycobra likes this.

Last edited by leroy17; 03-04-2016 at 03:09 PM..
Reply With Quote
Sponsored Links
Sponsored Links
  #122 (permalink)
Old 03-05-2016, 11:44 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Quote:
Originally Posted by leroy17 View Post
....Great to see and looking forward all aspects of this build. Nice to see something just a little different and what's not to love about the 289's.....
Thanks Leroy, and I agree, what's not to love? It's great that the build is gaining some momentum now, and I'm really looking forward to 2289 arriving in my garage.

Cheers,
Glen
Reply With Quote
  #123 (permalink)
Old 03-07-2016, 06:41 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

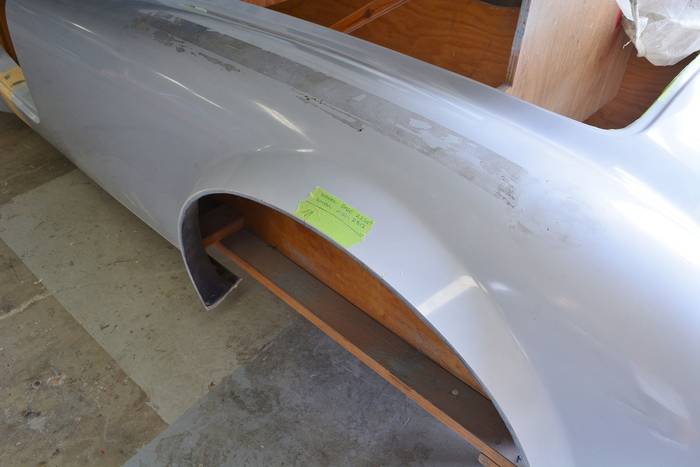

Can't stop myself....here's another shot of the fender trimming, this time at the front:



Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 08:31 PM.. Reason: Photobucket
Reply With Quote
  #124 (permalink)
Old 03-08-2016, 03:20 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Looks great Mate.....keep the pics coming.
BJ's Snake likes this.
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #125 (permalink)
Old 04-05-2016, 11:17 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Update time again with more pictures of the partially trimmed guards/fenders....

The body alignment jig has done its job so now any 'body on' / 'body off' procedures won't upset the correct body/chassis alignment.

Still more trimming to be done on the guards/fenders, but it's starting to look like it should:







....and further 'tuning' of the fender shapes....




Body will come off again, suspension removed, and the chassis will be painted / powdercoated satin black.

Stay tuned


Cheers,
Glen
Aussie Mike, boxhead and leroy17 like this.

Last edited by xb-60; 07-25-2017 at 10:48 PM.. Reason: Photobucket
Reply With Quote
  #126 (permalink)
Old 04-05-2016, 11:46 PM
tkb289's Avatar
Senior Club Cobra Member
Visit my Photo Gallery
Gold Star Contributor

Join Date: Dec 2007
Cobra Make, Engine: ERA FIA 'Street' Build
Posts: 2,012
Not Ranked
Default

Glen,

Looking good, thanks for the updates!

Once the body work is all done and there is no need for it to come off the frame, will it be bonded to the frame, or will it be bolted to the frame for removal at a later date if needed. I would assume that all nominal servicing can be done with the body on the car, correct?

- Tim
__________________
289 FIA --- ERA 2136
Build Log:
http://www.clubcobra.com/forums/era-...build-log.html
Reply With Quote
  #127 (permalink)
Old 04-05-2016, 11:52 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Good question Tim.

Craig or Warren - do you want to chime in on this for the definitive answer?

Cheers,
Glen
Reply With Quote
  #128 (permalink)
Old 04-06-2016, 12:17 AM
Wazza's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2006
Location: Gold Coast Queensland, QLD
Cobra Make, Engine: Harrison#97 LS7 / T56
Posts: 1,679
Not Ranked
Default

No worries.
Body can be removed at a later date ...i.e. after the car is completed...
But I don't see any reason to ever remove it ,once you've finished building it, because everything is accessible Just like a "real car" :..lol

Cheers,

Warren
Reply With Quote
  #129 (permalink)
Old 04-25-2016, 12:36 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

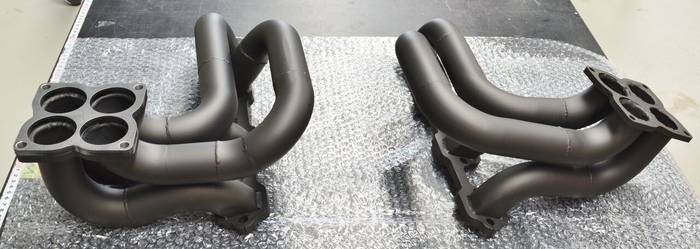

Exhaust primaries were completed recently.
Here's what they look like. The pipes (from memory) are 1-3/4" dia
The exhaust is a full under-car setup that should only be minimally visible from the side of the car. The exhausts will dump downwards just inside the rear skirt and won't be at all obvious from the rear.



Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 07:52 PM.. Reason: Photobucket
Reply With Quote
  #130 (permalink)
Old 05-06-2016, 09:14 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Updates....

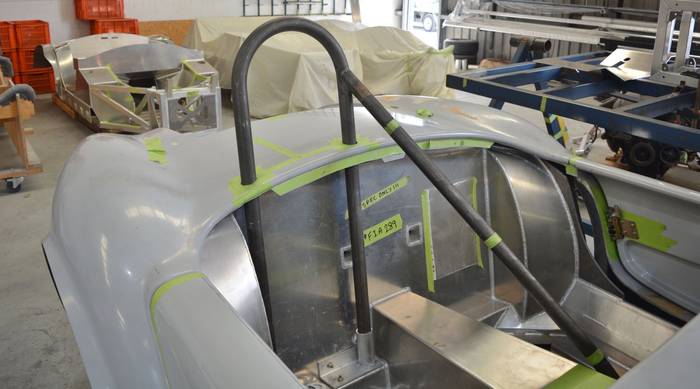

The roll-over bar is well on the go.



Craig tells me that the bonnet/hood scoop is well down the track now. The rivet-on version was finished some time ago, but in my application, it will be integral with the bonnet, and that's nearing completion.

Also, the fuel filler and body mounting is being worked on. On the FIA, it's on the rear deck, ie just ahead of the front edge of the boot/trunk.

More pics to follow!

Once these items are cleared, progressing AP2289 to roller stage will be quite straightforward.

Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 07:56 PM.. Reason: Photobucket
Reply With Quote
  #131 (permalink)
Old 05-06-2016, 11:43 PM
tkb289's Avatar
Senior Club Cobra Member
Visit my Photo Gallery
Gold Star Contributor

Join Date: Dec 2007
Cobra Make, Engine: ERA FIA 'Street' Build
Posts: 2,012
Not Ranked
Default

Great progress Glen,

Nice mock up, it’s interesting to be able to see work in progress. On the rear bulk head, on either side of the ‘#F.I.A. 289’ tape … what are those square holes for? Support tubes for the rear suspension? Will the seats be on an adjustable track or just bolted to the floor?

Keep those pictures coming!

- Tim
__________________
289 FIA --- ERA 2136
Build Log:
http://www.clubcobra.com/forums/era-...build-log.html
Reply With Quote
  #132 (permalink)
Old 05-07-2016, 04:33 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Hi Tim,

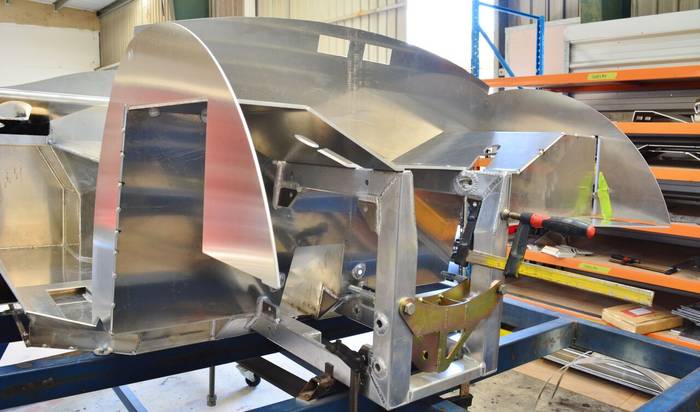

The square holes? Have a look at the following picture of AP2289's chassis fab. The square holes seem to line up with the horizontally/longitudinally placed square tubing (tapered toward the rear) that forms part of the cage for the diff. and also provides mounting locations for the rear suspension. Why are there holes at their junction with the rear panel in the cockpit? Maybe it's just so that it's easier to guarantee full penetration for the crucial welds.

Craig or Warren....feel free to correct me






Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 07:48 PM.. Reason: Photobucket
Reply With Quote
  #133 (permalink)
Old 05-08-2016, 05:48 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

sorry wrong post
__________________
RF12 414 Windsor 8 stack ,6spd, Avons

Last edited by albanycobra; 05-08-2016 at 05:51 AM..
Reply With Quote
  #134 (permalink)
Old 05-25-2016, 05:27 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Just to keep the build thread ticking over, here's the latest on the roll bar.....




....and starting on the fuel filler (with inspiration from COB6008)...




More to come soon. Integration of the bonnet/hood scoop into the bonnet (if you're Australian or British) or hood (translation for our American friends and cousins) is underway, so more pictures to follow.

Other interesting stuff on the way soon too.

Cheers!
Glen
BJ's Snake likes this.

Last edited by xb-60; 07-25-2017 at 10:50 PM.. Reason: Photobucket
Reply With Quote
  #135 (permalink)
Old 06-14-2016, 05:42 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

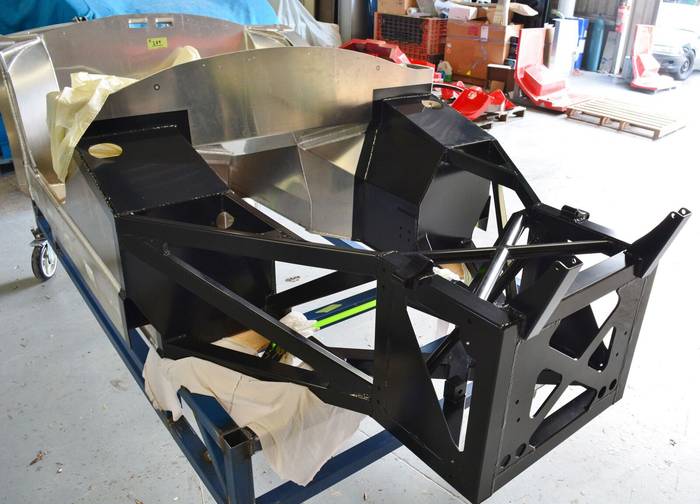

Chassis just back from painter's...






....and the hood scoop is finally nearing completion...




Thanks Craig and Warren I'm blown away now that it's finally coming together.

Cheers,
Glen
boxhead likes this.

Last edited by xb-60; 07-25-2017 at 07:35 PM.. Reason: Photobucket
Reply With Quote
  #136 (permalink)
Old 06-14-2016, 06:30 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

The chassis looks good black the suspension will contrast nicely.
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #137 (permalink)
Old 06-14-2016, 08:53 PM
tkb289's Avatar
Senior Club Cobra Member
Visit my Photo Gallery
Gold Star Contributor

Join Date: Dec 2007
Cobra Make, Engine: ERA FIA 'Street' Build
Posts: 2,012
Not Ranked
Default

The black chassis looks very nice indeed. Will you keep the suspension bits as is or will some of them get the black paint treatment as well? Are there FIA specific modifications yet to be done to the suspension, or are the parts shared in common with PACE 427 offering. Looks like the body is just about complete, and it looks fabulous … when does it go out for paint? The guys at PACE are doing a first rate job!

- Tim
__________________
289 FIA --- ERA 2136
Build Log:
http://www.clubcobra.com/forums/era-...build-log.html
Reply With Quote
  #138 (permalink)
Old 06-16-2016, 04:45 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

Tim, the black chassis under the hood will really suit the car, I think.
I won't be painting any of the suspension components black. The wishbones will be hard to see fron under the hood anyway, but the rockers and pushrods will be somewhat visible.
I don't think there is anything FIA specific when compared to the AP427 setup. The differences - I think - are limited to adjustments to track and ride height to achieve the correct stance. There are minor differences in the wide FIA body compared to the 427SC body, but I don't think there's a lot there.
Craig...Warren...feel free to add more?
The plan is for the body to be painted after the chassis paint, so ....soon.

Cheers,
Glen
Reply With Quote
  #139 (permalink)
Old 06-30-2016, 11:33 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

It's being painted. Now.
BJ's Snake and albanycobra like this.
Reply With Quote
  #140 (permalink)
Old 07-18-2016, 03:42 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,798
Not Ranked
Default

First pictures of AP2289 ‘under paint’ ….





Enjoy….as I am!

Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 06:34 PM..
Reply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 01:09 PM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2018, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
Links monetized by VigLink
