  #101 (permalink)
Old 12-14-2015, 03:57 PM
CC Member
Visit my Photo Gallery


Join Date: Feb 2006
Cobra Make, Engine:
Posts: 2,748
Not Ranked
Default

Glen, 2 questions....

1. Has the body been 3D scanned for symmetry?

2. Are you paying for the R&D on this project because if you are its sooooo your shout at the bar! Well done.

Looks amazing. I'd love a 289 Comp Car.

Matt
Reply With Quote
Sponsored Links
Sponsored Links
  #102 (permalink)
Old 12-14-2015, 07:16 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Hi Matt,

Thanks. I’m very happy with the way the body has shaped up in preparation for creating those splash moulds.

1. Has the body been scanned? I don’t know about being scanned, but if you look at post #26, you’ll see that I reported that ”AP2289's body has been fitted onto a chassis to check the body accuracy to AP's set of drawings. The body has come up so close that any differences that are actually measurable are within millimetres of the drawings. Even though the 427 and 289 shapes look quite different in detail, the basics of both are identical....so AP dropped a 427 bonnet and boot onto the FIA body, and they fitted perfectly”
Also, if you go back to post #19, you can see how good the body on John Olsen’s Bruce-bodied 289 roadster looks.

2. Am I paying…? Let’s just say that we (AP and I) are both benefitting from this project

Cheers,
Glen
boxhead and spookypt like this.
Reply With Quote
  #103 (permalink)
Old 12-14-2015, 09:05 PM
CC Member
Visit my Photo Gallery


Join Date: Feb 2006
Cobra Make, Engine:
Posts: 2,748
Not Ranked
Default

Yes I did read those. I've been following with interest.

I only raised the 1st question as I know with my Daytona they computer scanned and wind tested it at Melbourne Uni and we not only know its relative downforce and airo etc but also % to symmetry accuracy. I thought a good idea with the body being newbie. It'd be a great boast over other ill-fitting bodies that we all have had to deal with in years past.

And regarding question No:2.................. I have no doubt!

Good luck with the project and keep the pics coming.

Matt
Reply With Quote
  #104 (permalink)
Old 01-04-2016, 02:38 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Update from Craig yesterday....

Bodywork - AP should finish the last of the main body moulding (the splash negative) this week. Front half is already complete; rear is nearly there.
They are also working on a plug for the correct FIA bonnet scoop.
APís 289FIA will be one of the most accurate FIA replicas, particularly in the areas of the front guard extensions and the oil cooler scoop.

Chassis assembly will start soon too. Fabrication of the under body exhaust should be on the go shortly; Craig is planning to push the FIA project along as quickly as possible.

I'll post update pictures as soon as I have them

Cheers,
Glen
Gav and d488y2 like this.
Reply With Quote
  #105 (permalink)
Old 02-13-2016, 07:34 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Time for an update of what's happening on AP2289....

Craig's boys have been working at finishing the splash moulds so that my 289FIA body shape can be replicated.

Now that that process is largely complete, attention can return to progressing further AP2289.

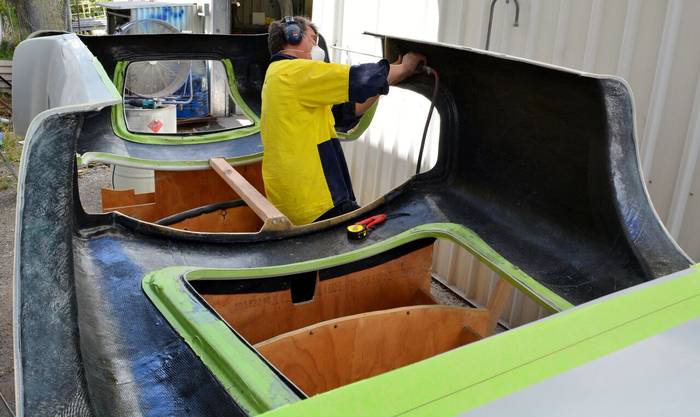

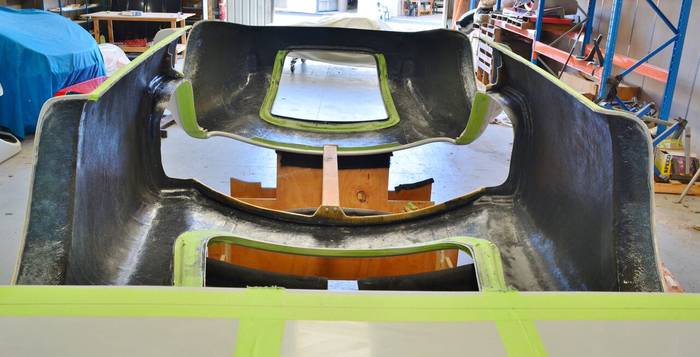

Here's the rear section of the body with carbon/kevlar stiffening ribs (same as what is done on the 427 bodies) and also the complete underside of the body is coated with a carbon/kevlar layer.




...and....

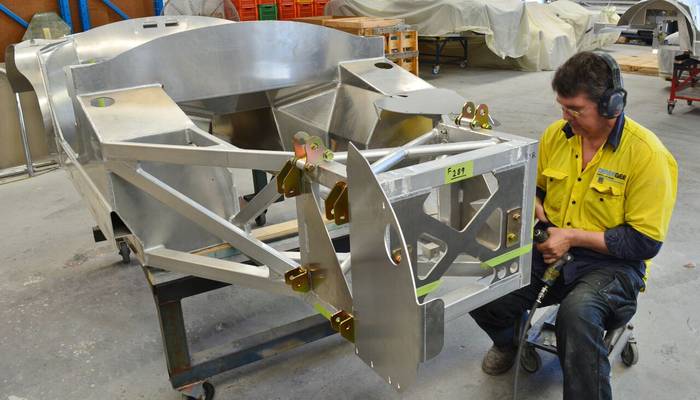

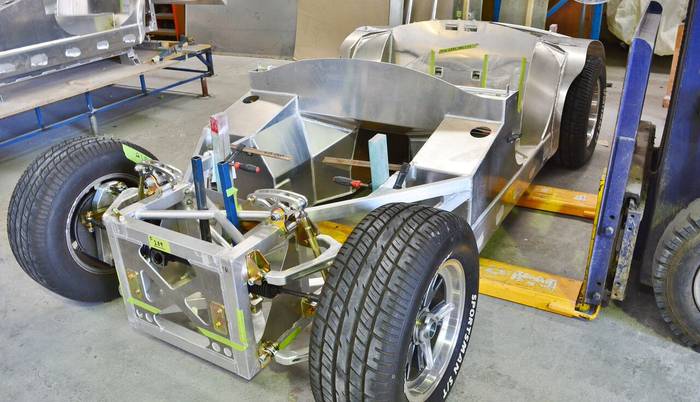

Chassis trial buildup has also started. The front suspension is being trial-fitted to the monocoque.




Fabrication of the exhaust primaries and the under-car exhaust is underway as well.

Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 09:32 PM.. Reason: Photobucket
Reply With Quote
  #106 (permalink)
Old 02-13-2016, 09:05 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Oops, double post
Reply With Quote
  #107 (permalink)
Old 02-15-2016, 10:58 PM
tkb289's Avatar
Senior Club Cobra Member
Visit my Photo Gallery
Gold Star Contributor

Join Date: Dec 2007
Cobra Make, Engine: ERA FIA 'Street' Build
Posts: 2,063
Not Ranked
Default

Glen,

The body looks very stout indeed, no worries of damaging the fiberglass should a rock get kicked up try to punch itís way through to the other side Ö nor any likelihood of stress cracks with all of the reinforcements made to the body.

For the suspension, are there any differences between the 289 setup versus what PACE builds for their 427 cars?

Great progress!

- Tim
__________________
289 FIA --- ERA 2136
Build Log:
http://www.clubcobra.com/forums/era-...build-log.html
Reply With Quote
  #108 (permalink)
Old 02-17-2016, 10:37 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Hi Tim,
Yes with that carbon/kevlar layer on the underside, it should be well protected from stone hits.
As far as I know, the suspension is the same as the AP427. The FIA wheels are the same widths as the 427 Halibrand-type wheels, and the suspension is quite adjustable for track (for purposes of filling the guards/fenders 'correctly'). I'm using slightly different width rear tyres than normal - they are 275/60x15 (same as on Allen's green ERA FIA) so the track adjustability will be handy.

Cheers,
Glen
Reply With Quote
  #109 (permalink)
Old 02-22-2016, 03:53 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Latest pictures of my 289FIA being built by Absolute Pace....

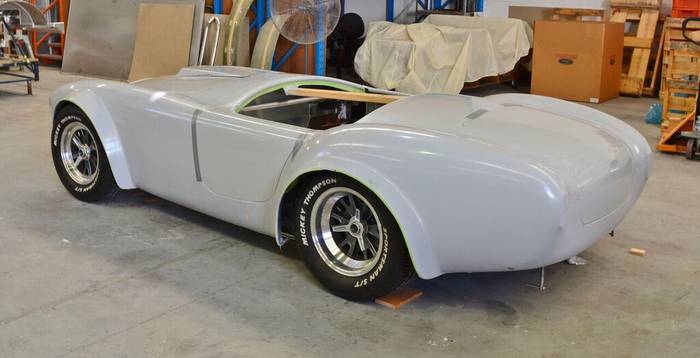

The chassis is having a basic fitout of suspension components:





Reason for this initial fitout is that they can now carry out a trial fit of the FIA body:




This allows the 'Pacemakers' to check and modify the mounting points and pads on the monocoque and also the body underside.
Also, initial trimming of the flares can be done with wheels and tyres as extra reference points.


What's next? Body and front suspension will be removed and the engine bay will be painted black.


Cheers,
Glen

edit: and no, these are not the correct wheels

Last edited by xb-60; 07-25-2017 at 08:10 PM.. Reason: Photobucket
Reply With Quote
  #110 (permalink)
Old 02-23-2016, 03:32 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Cool, good progress. Who do you pay at Pace for all the updates? i can barely get an email answered....lol.
__________________
RF12 414 Windsor 8 stack ,6spd, Avons

Last edited by albanycobra; 02-23-2016 at 03:42 AM..
Reply With Quote
  #111 (permalink)
Old 02-23-2016, 07:23 PM
Dimis's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2008
Location: Melbourne, Vic
Cobra Make, Engine: Some polish thing... With some old engine
Posts: 2,286
Not Ranked
Default

Looking good Glen!
I'm getting more than just a little excited for you.
__________________
Reply With Quote
  #112 (permalink)
Old 02-24-2016, 10:02 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by albanycobra View Post
Cool, good progress. Who do you pay at Pace for all the updates? i can barely get an email answered....lol.
Hey mate....charm and good looks gets you there. In my case, I have neither, so I think Craig took pity on me ....and he wanted to do an FIA replica anyway

Cheers,
Glen
albanycobra likes this.

Last edited by xb-60; 02-25-2016 at 12:41 AM..
Reply With Quote
  #113 (permalink)
Old 02-24-2016, 10:07 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by Dimis View Post
Looking good Glen!
I'm getting more than just a little excited for you.

Settle, Mr. D.

....but thanks, I'm a little excited too. When I think back, it's been almost five years since I plonked down a deposit stateside, then got realistic and looked locally and started talking about a Comp 289 with Craig, and then moved into FIA territory.

Cheers,
Glen
Reply With Quote
  #114 (permalink)
Old 02-25-2016, 03:29 AM
CC Member
Visit my Photo Gallery


Join Date: Jan 2010
Location: Adelaide, S A
Cobra Make, Engine: v10 ford
Posts: 172
Not Ranked
Default

Quote:
Originally Posted by albanycobra View Post
Cool, good progress. Who do you pay at Pace for all the updates? i can barely get an email answered....lol.
Glen forgot to mention that he fly's up in the Lear jet every couple of weeks to keep an eye on things and check on progress.
Reply With Quote
  #115 (permalink)
Old 03-03-2016, 01:59 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

John, Dave just has to ask and I'll divert the Lear from ADL to Albany to pick him up on the weekly trip up to the Costa d'Oro
albanycobra likes this.
Reply With Quote
  #116 (permalink)
Old 03-03-2016, 02:32 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Some more information about how the body is fitted correctly onto the chassis....

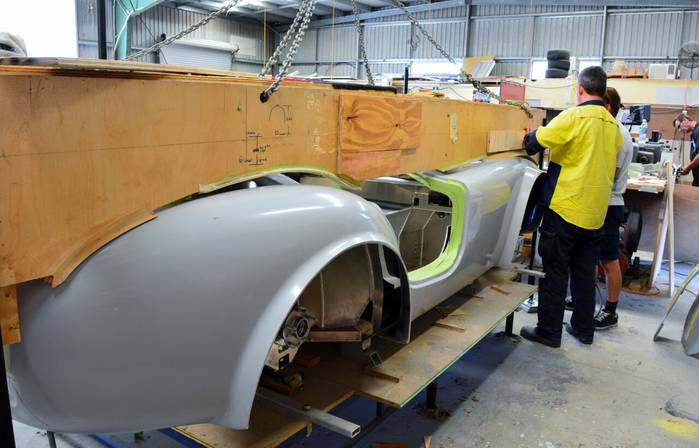

Here's the fitment jig that's used to lower the body on to the chassis when the chassis is mounted to the jig
The chassis is secured in place …and the body (attached to the upper part of the jig) is lowered on to it.
The timber frame is the exact shape of the body. With the FIA, they had to use the current 427 upper frame/jig, but then construct a “silhouette” to match the exact shape of the FIA body. It then holds the body down in the exactly correct position on the chassis.
The jig ensures that the body is fitted to the chassis without any twisting, drooping, etc. It guarantees that the correct body shape and location is maintained.

Craig's words "This is the only way we can guarantee it, when you look closely at a lot of Cobra replicas ......... you can see where the body has been fitted and has been accidentally twisted or the front/rear is drooping more than it should as it was not supported during body fitment. You even see bodies mounted on angles to chassis both laterally and vertically."








Then the locating tabs are bonded to the body. That way, when the body comes off for the chassis build and then needs to go back onto the chassis, it will go back exactly in the correct position, because of all of the locating tabs that were bonded there while the frame was on the fitment jig.

Craig and Warren - thanks for the info and pictures. Please add or correct as necessary

Cheers,
Glen

Last edited by xb-60; 07-25-2017 at 09:34 PM.. Reason: Photobucket
Reply With Quote
  #117 (permalink)
Old 03-03-2016, 02:36 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Yeah I'll be in that......I'll even bring a sixa of Corona.....
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
  #118 (permalink)
Old 03-03-2016, 02:36 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Forgot to mention....note that the guards/fenders are in the process of being trimmed to the correct shape, with CSX2345 as the 'master'
Reply With Quote
  #119 (permalink)
Old 03-03-2016, 02:41 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 11,438
Not Ranked
Default

Quote:
Originally Posted by albanycobra View Post
Yeah I'll be in that......I'll even bring a sixa of Corona.....
Cheers Dave, and I'll bring a bottle of bubbly - maybe we can christen the Alumina as well?
Reply With Quote
  #120 (permalink)
Old 03-04-2016, 12:42 AM
albanycobra's Avatar
CC Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Perth, wa
Cobra Make, Engine: Pace Alumina 427 #69
Posts: 1,615
Not Ranked
Default

Kick open to the plane door as we fly over Dubbo....lol.
__________________
RF12 414 Windsor 8 stack ,6spd, Avons
Reply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 01:54 PM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2021, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
Links monetized by VigLink
