  #301 (permalink)
Old 09-12-2020, 04:45 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Update....as mentioned, brake lines at rear end finished.
Rear supply line is now connected to its master cylinder; pressure switch fitted also.
I had to reshape the line a little at the master cylinder because I had already pushed the three master cylinders as far forward as I could (because of my long legs).

Now working on the front brakes' circuit.

Cheers,
Glen

Last edited by xb-60; 09-12-2020 at 04:51 AM.. Reason: edit
Reply With Quote
Sponsored Links
Sponsored Links
  #302 (permalink)
Old 09-12-2020, 06:39 PM
CC Member
Visit my Photo Gallery


Join Date: Jun 2012
Location: Naracoorte, SA
Cobra Make, Engine: CR Cobra 3169
Posts: 818
Not Ranked
Default

The last thing you need to make is a rotating jig that will rotate the car in all angles and put it in a art gallery for people to admire. You haven't built a car, it's more like art. Well done, I wish I had that much patience. JD
Reply With Quote
  #303 (permalink)
Old 09-13-2020, 04:33 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

JD, thanks
Got to admit, the project's getting more enjoyable the closer I get to the end I get

Cheers!
Glen

Last edited by xb-60; 09-13-2020 at 07:12 AM..
Reply With Quote
  #304 (permalink)
Old 09-16-2020, 05:58 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Installation of front brake lines now completed.

Here are the master cylinders….




Clutch is on the left (obviously); clutch hard line still to go in. Reservoirs of course will be remotely mounted.


….and here are the front brakes hard line routings to the flex line connections…..




Now on to the clutch hard line. Then there's a well insulated cover to go in over the three master cylinders.


Cheers!
Glen

Last edited by xb-60; 09-16-2020 at 06:01 PM.. Reason: edit
Reply With Quote
  #305 (permalink)
Old 09-23-2020, 03:42 AM
cobrakiwi's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2006
Location: Charlottesville, va
Cobra Make, Engine: Coombe, Shelby Block 496
Posts: 1,132
Not Ranked
Default

Looking good Glen,
Very tidy build.
What is the power plant your going with for this one?
Reply With Quote
  #306 (permalink)
Old 09-23-2020, 09:16 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Thanks Craig.

Because of registration compliance requirements here in South Australia, almost everything under the skin on my build differs from a 1960’s Cobra, hence the semi-monocoque “chassis” and the engine specs.

So which "power plant"? The engine is a 302, originally factory-built by Tickford. It is at least from the Windsor family and of course has strong links back to the original 289FIA cars. Because of registration regulations here in South Australia, it must comply with “Australian Design Rule 37/01”. This means that the engine has to wear all of its 2002 vintage emissions equipment which then allows a tick on the form at registration time; no emissions testing is required.

Further information: our local South Australian Cobra Club has been in discussions for some time with our State Government Transport Department regarding the possibility of relaxing these requirements for our Cobras. If successful, I would then be able to modify the engine to look much closer to an original FIA/USRRC car’s engine.

Short question, and long answer

Cheers!
Glen
cobrakiwi and Jaydee like this.
Reply With Quote
  #307 (permalink)
Old 09-25-2020, 02:56 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Heat shield for the master cylinders (left) and the mounting bracket / heat shield for the remotely mounted reservoirs (right), each part now insulated on both sides....
Attached Images

Reply With Quote
  #308 (permalink)
Old 09-30-2020, 09:33 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Brake reservoirs now mounted....
Attached Images

Alfa02 likes this.
Reply With Quote
  #309 (permalink)
Old 11-02-2020, 02:36 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Greetings!

Slow (ie not much!) progress lately. Some other significant distractions to be attended to here.

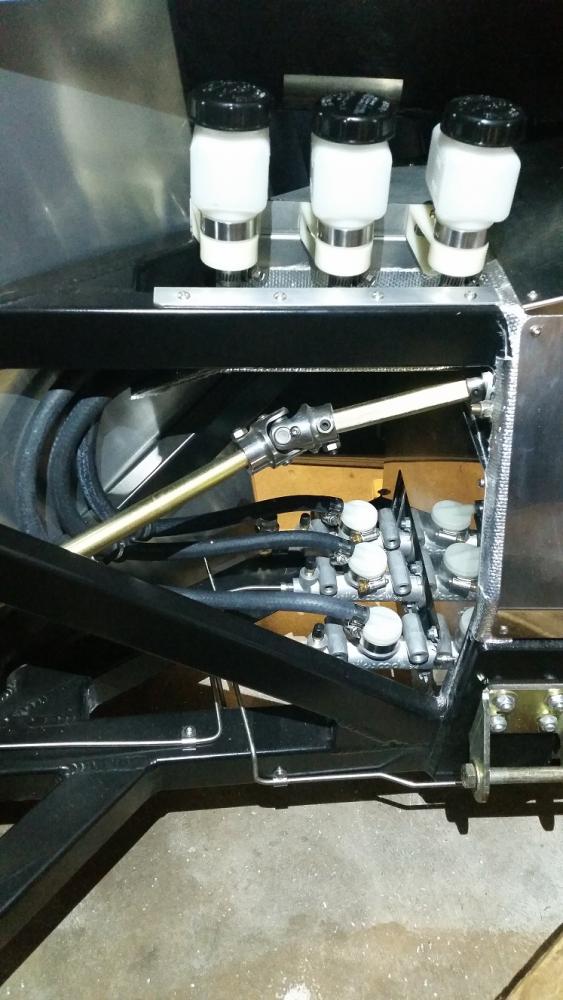

On advice, did some minor rework on the master cylinder setup. Seems that the Wilwood setup needs to be spot-on to avoid leaks....changed the clamping to improve the chances of success....so soon about to start bleeding the brakes.

Here's what it looks like (not original, but my hands are tied to some extend ) ...



Cheers!
Glen
Reply With Quote
  #310 (permalink)
Old 11-02-2020, 02:44 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

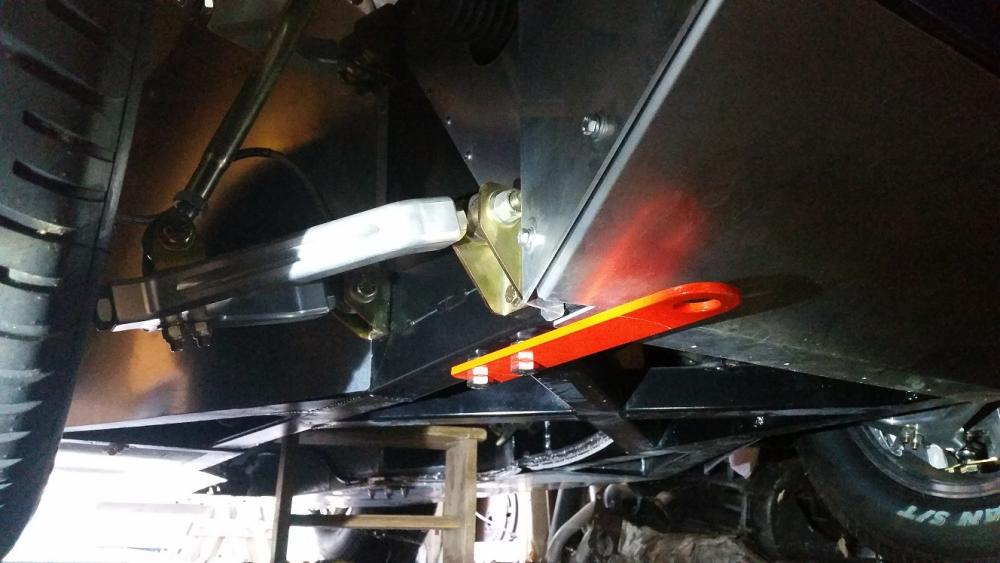

One job that didn't take too long to complete in the last couple of days is a tow lug for the front end.

It's 50mm x 6mm section mild steel, ø25mm hole, attached to the chassis with a couple of M12 bolts, so should be sufficient, yes?




Cheers,
Glen
LoBelly likes this.
Reply With Quote
  #311 (permalink)
Old 11-09-2020, 03:58 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Finished the clutch plumbing hard line....

Name:  20201109_clutch_hardline.jpg
Views: 215
Size:  88.5 KB

Cheers,
Glen
Reply With Quote
  #312 (permalink)
Old 11-21-2020, 04:01 PM
ssv ute's Avatar
CC Member
Visit my Photo Gallery


Join Date: Oct 2017
Location: Adelaide, SA
Cobra Make, Engine: ICCARS,6.0LT L98 TR6060
Posts: 47
Not Ranked
Default

Looking good Glen, your plumbing is very tidy, it may be an idea to check with your engineer re brake pressure switch, i believe that with 2 separate master cylinders (front and rear systems independent of each other) you need a pressure or float switch on both master cylinders.

Richard
Reply With Quote
  #313 (permalink)
Old 11-21-2020, 04:29 PM
Alfa02's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Sep 2016
Location: Port Orchard, WA
Cobra Make, Engine: Classic Roadster 427S/O / JCF 289 Slabside.
Posts: 1,066
Not Ranked
Default

Glen how soon, before we see a motor, gearbox installed??? I'm waiting with baited breath I brought a piece of land up by Sequim Wa. Look it up. My last homestead. I will be within 5miles of 4-other Cobra owner's (Club Members). Will build my "Small" dream garage, and buy a 40' diesel pusher motorhome, half the time here in the PNW, and winters in AZ. With the boy's down there Ol'Karlos doesn't realize what he got his self into, by asking me to come down Life is good Glen if we can make it though the winter, Stay safe My Friend. Cheers TommyRot.
Reply With Quote
  #314 (permalink)
Old 11-21-2020, 07:36 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Quote:
Originally Posted by ssv ute View Post
Looking good Glen, your plumbing is very tidy, it may be an idea to check with your engineer re brake pressure switch, i believe that with 2 separate master cylinders (front and rear systems independent of each other) you need a pressure or float switch on both master cylinders.

Richard
Hi Richard. Thanks. Yes, I have a pressure switch on both circuits....

Name:  20200917_front_brake_line+mcyl_2.jpg
Views: 164
Size:  66.3 KB

Your build is coming along nicely

Cheers,
Glen
Reply With Quote
  #315 (permalink)
Old 11-21-2020, 07:44 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Quote:
Originally Posted by Alfa02 View Post
Glen how soon, before we see a motor, gearbox installed??? I'm waiting with baited breath I brought a piece of land up by Sequim Wa. Look it up. My last homestead. I will be within 5miles of 4-other Cobra owner's (Club Members). Will build my "Small" dream garage, and buy a 40' diesel pusher motorhome, half the time here in the PNW, and winters in AZ. With the boy's down there Ol'Karlos doesn't realize what he got his self into, by asking me to come down Life is good Glen if we can make it though the winter, Stay safe My Friend. Cheers TommyRot.
Ah, the hard questions from the "Alfa man"

How long is a piece of string? Answer is...it's getting shorter. The gearbox is ready to go in (ie now) when the motor is ready. I have the scatter shield. I don't have the flywheel and the clutch, but that's easy to be able to tick off. I'm painting the block and heads almost as I type, and then it's off to a very trusted local guy for some "checks and balances", and then he will fit the motor and gearbox.

Cheers!
Glen
Alfa02 likes this.

Last edited by xb-60; 11-22-2020 at 03:35 AM.. Reason: tick off, not "pick off"
Reply With Quote
  #316 (permalink)
Old 11-22-2020, 12:42 PM
ssv ute's Avatar
CC Member
Visit my Photo Gallery


Join Date: Oct 2017
Location: Adelaide, SA
Cobra Make, Engine: ICCARS,6.0LT L98 TR6060
Posts: 47
Not Ranked
Default

Sorry Glen, didn't notice 2nd switch in previous pics, keep up the excellent work.

Richard
Reply With Quote
  #317 (permalink)
Old 11-29-2020, 10:04 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

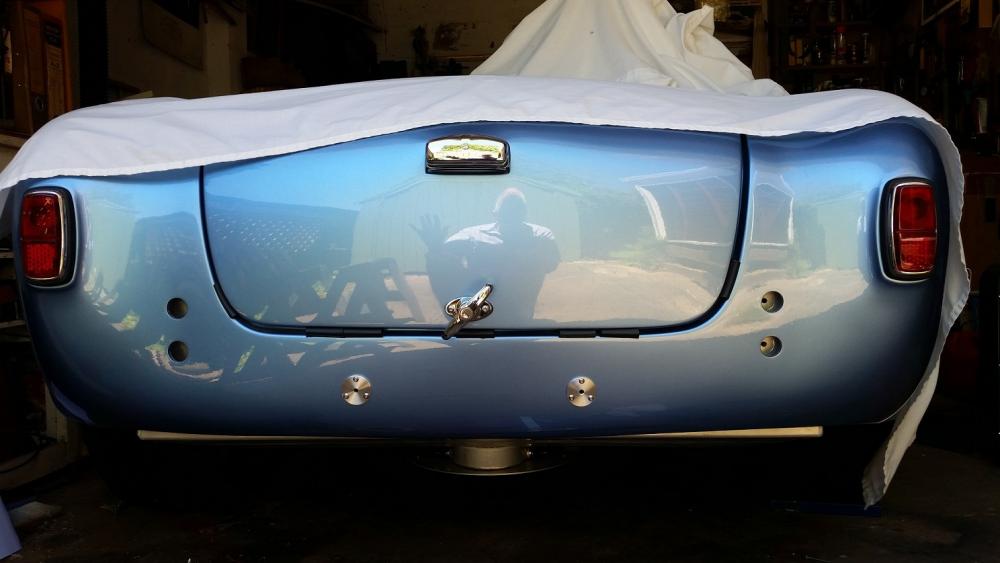

Made up some little discs from some aluminium alloy sheet. These are for attachment of the trunk bungy cord that some FIA's and Comp 289's had.

Adds a nice touch. I don't think I've seen them on any other replicas....(happy to be proven wrong ) ....




Cheers!
Glen

Last edited by xb-60; 11-29-2020 at 10:08 PM..
Reply With Quote
  #318 (permalink)
Old 11-30-2020, 05:18 AM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,011
Not Ranked
Default

Glen,

Looks nice! I have seen them on some replicas, and thought about putting some on mine. However, it would be one more thing that could fly off at the track and it would give the technical inspectors pause, as would then have to verify that the boot would stay closed on it's own. Also, it would cause Dennis Olthoff to yell and swear at me as he was trying to fill my fuel cell during the enduro and had to take it off. It would go something like this, "Why the @@## is this ##@@@## bungy cord on the boot latch!" at which point it would be thrown over the pit wall never to be seen again.

She's coming along nicely.

Cheer,
Jim
xb-60 likes this.
__________________

Last edited by 1795; 11-30-2020 at 07:08 AM..
Reply With Quote
  #319 (permalink)
Old 11-30-2020, 01:37 PM
BJ's Snake's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2004
Location: Queanbeyan, NSW
Cobra Make, Engine: Evans Kit, Wooley chassis, 302 Ford, T5, 3.07 Jag running gear, AP 289 USRRC #98 The Ken Miles Tribute Car
Posts: 1,108
Not Ranked
Default

Works for me!



Cheers
xb-60 likes this.
__________________
Why only have one....
Reply With Quote
  #320 (permalink)
Old 12-01-2020, 03:10 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, Aus
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,677
Not Ranked
Default

Just fitted my 60mm Smiths clock.
A short story goes with it…. I had to make up an adaptor to fit it into the dash panel….reason being that when I made the panel, I assumed that the Smiths clock (original fit on early 289 cars and English COB cars) was ‘unobtainium’, so I made the hole where the clock should go larger in size (around 68mm) to take a 10psi SW 2⅝” fuel pressure gauge, which some of the early 289 Comp cars had instead of a clock.
Then I found a clock. Hence the need for an adaptor that would not be too noticeable.

Here’s the adaptor…

Name:  20201130_Smiths_clock_adaptor_finished.jpg
Views: 86
Size:  78.3 KB


Here’s the clock fitted to the dash, with the adaptor…

Name:  20201130_Smiths_clock.jpg
Views: 93
Size:  87.7 KB

Cheers!
Glen
