  #1 (permalink)
Old 01-27-2013, 10:05 PM
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Ottawa, ON
Cobra Make, Engine: FFR7993, 390FE
Posts: 17
Not Ranked
Default Kirkham pedal box measurement

Hi,

Would someone provide some measurements of the pedal box.

I would like to install this pedal box in my replica (FFR) and am just looking for the measurement of the depth at the front and back of the box. I realize there is an incline from back to front and am unsure of the amount of work required to make it fit or if it is even possible.

I just would like to know to judge the amount of fabrication required to install a pedal box like this.

Thanks in advance.

cheers.
Achi
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 01-28-2013, 09:38 AM
1ntCobra's Avatar
Abnormal CC Member
Visit my Photo Gallery


Join Date: Jan 2005
Location: Pottstown (East Coventry), PA
Cobra Make, Engine: Don't think I'll be getting a Cobra for a long time... Do have '94 RX-7 R2.
Posts: 2,268
Not Ranked
Default

You need to check out this thread... 289 Body on FFR mkIV chassis
Reply With Quote
  #3 (permalink)
Old 01-28-2013, 01:49 PM
CC Member
Visit my Photo Gallery


Join Date: Jan 2005
Location: Hillsboro, OR
Cobra Make, Engine: Scratch built CSX style frame, Carbon fiber body, 393 Stroker, T-bird IRS, T5
Posts: 1,623
Not Ranked
Default

It might be possible to install the original style pedal box in the FFR footbox, but it won't be easy. Considering the pedal box is usually mounted with the bottom pretty close to flush with the bottom of the frame rails and the masters are mounted on the front of the box, you can see it would be a handful of fabrication.
There are a couple options you can consider. You could mount original style footboxes and then you could easily mount the pedal boxes. However, I'm not sure how much work it would be to fit the original style foot boxes in the FFR Chassis.

The other option would be to use the floor mount pedals that bolt directly to the floor of the foot box. I'll try to find a link or picture of one of these. Kirkham uses them on their drop box foot box option and they work really well.

Brake, Clutch and Throttle Pedal-w/ Throttle Link
Pedal Type: Brake, Clutch and Throttle Pedal-w/ Throttle Link Mount Location: Floor Mount Facing: Forward Balance Bar: Yes Material: Aluminum / Steel
Brake, Clutch and Throttle Pedal-w/ Throttle Link

Brake, Clutch and Throttle Pedal-w/ Throttle Link
zoom in Brake, Clutch and Throttle Pedal-w/ Throttle Link Drawing

Brake, Clutch and Throttle Pedal-w/ Throttle Link Drawing
zoom in

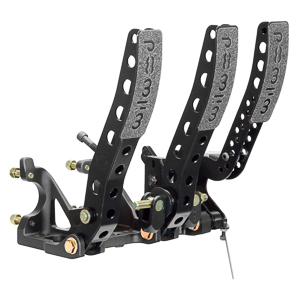

Wilwood’s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.


http://www.wilwood.com/Images/PEDALS...0-12411-sm.jpg

Finish
Black E-coat

Pedal Ratio
Pedal 1 Ratio Pedal 2 Ratio
5.25 to 1 5.25 to 1

Pedal Length
Pedal 1 Length Pedal 2 Length Mount Length


Ordering Information
Price: Part Number:
$415.44
340-12411

Call (805) 388-1188

Bob

Last edited by Three Peaks; 01-28-2013 at 01:56 PM..
Reply With Quote
  #4 (permalink)
Old 01-28-2013, 04:32 PM
1ntCobra's Avatar
Abnormal CC Member
Visit my Photo Gallery


Join Date: Jan 2005
Location: Pottstown (East Coventry), PA
Cobra Make, Engine: Don't think I'll be getting a Cobra for a long time... Do have '94 RX-7 R2.
Posts: 2,268
Not Ranked
Default

Quote:
Originally Posted by 1ntCobra View Post
You need to check out this thread... 289 Body on FFR mkIV chassis
In case you did not check out this thread yet, Mr Bruce is putting the Kirkham pedals, Kirkham steering column and Kirkham dash into this special that is starting with a FFR chassis. So Mr Bruce probably has answers that would help you.
Reply With Quote
  #5 (permalink)
Old 01-28-2013, 08:50 PM
CC Member
Visit my Photo Gallery


Join Date: Jun 2006
Location: Ottawa, ON
Cobra Make, Engine: FFR7993, 390FE
Posts: 17
Not Ranked
Default

Thanks for the replies. Actually Mr Bruce was my second call as he is doing a couple of cars with this type of pedal box (he is extremely busy). Two people contacted and not much info in return.
Just wanted measurements. Emailing currently with someone who has provided information and will continue conversation with him this week.

Thanks everyone.
Achi
Reply With Quote
  #6 (permalink)
Old 09-11-2013, 09:51 PM
CC Member
Visit my Photo Gallery


Join Date: May 2007
Cobra Make, Engine:
Posts: 3
Not Ranked
Default pedal box

Hi I Have an extra original pedal box
Reply With Quote
  #7 (permalink)
Old 09-12-2013, 04:35 AM
mickmate's Avatar
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Sep 2000
Location: Holderness, NH, US of A, NH
Cobra Make, Engine: CSX 4772 old iron FE
Posts: 5,499
Not Ranked
Default

The pedal box is pretty easy to make to a different size and shape I have done that for a couple of different models. If your floor sits on top of the 4" frame rails it can be accommodated by that. Shelby box is 3-1/2" to 5-1/2" high back to front and 6" wide.
The more time consuming parts are all the clevises, rods, pedals and internals.
Pedal Box Assembly, Clutch & Brake CSX Pedal Box Assembly, Clutch & Brake CSX [427 289 CSX CCX KMP ACE HT] - $725.00 : Acton Custom Enterprises, Custom Metal for Cobras
__________________
mickmate
http://www.actoncustom.com/
Reply With Quote
