Default Angle of dashboard?

Hi all,

What angle from the vertical should the dash panel (dropped-centre roadster dash) be?
There could be clearance 'challenges' for my speedo, so need to know how much I can angle-out the dash and still be correct.

Cheers,
Glen
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 03-18-2018, 08:21 AM
RockBit's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2014
Location: Dallas, TX
Cobra Make, Engine: ERA #812 427/482 FE
Posts: 301
Not Ranked
Default

On my 427SC, the dash panel is 17 degrees from vertical. This is not a drop center type, though.
__________________
Chris
Reply With Quote
  #3 (permalink)
Old 03-18-2018, 02:04 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,802
Not Ranked
Default

Not sure about the dash but the firewall tilts forward, towards the engine. Makes for more room behind the dash.
Larry
__________________
Alba gu brąth
Reply With Quote
  #4 (permalink)
Old 03-18-2018, 02:48 PM
Carbon Auto's Avatar
Registered User
Visit my Photo Gallery


Join Date: May 2010
Cobra Make, Engine: Carbon Automotive
Posts: 2
Not Ranked
Default

Hi XB.
Cobra Restorers drawings place the 427 dash at 20*. One may assume they might be the same between models?

Mike.
__________________
CARBON Automotive - Your next best thing
Reply With Quote
  #5 (permalink)
Old 03-18-2018, 04:24 PM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 1,803
Not Ranked
Default

Quote:
Originally Posted by Carbon Auto View Post
Hi XB.
Cobra Restorers drawings place the 427 dash at 20*. One may assume they might be the same between models?

Mike.
Dash at 20 degrees, so gauges at 20 degrees, where does the sun reflection end up when heading east in the afternoon?
Reply With Quote
  #6 (permalink)
Old 03-18-2018, 05:11 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,337
Not Ranked
Wink

Thanks.
If I'm working at somewhere between 17⁰ to 20⁰, that should give me enough room to accommodate the speedo and cable, and also the capilliary temp gauges.

Sun reflection? I'll look forward to it

Cheers,
Glen

Last edited by xb-60; 03-18-2018 at 05:14 PM..
Reply With Quote
  #7 (permalink)
Old 03-18-2018, 05:26 PM
CC Member
Visit my Photo Gallery


Join Date: Feb 2011
Cobra Make, Engine:
Posts: 46
Not Ranked
Default

I had not noticed it before, but this photo makes the firewall angle look substantial.


Also, regarding the dashboard, the top is attached, but what supports the bottom edge of the dash.

Last edited by Ivygreen65; 03-18-2018 at 06:02 PM..
Reply With Quote
  #8 (permalink)
Old 03-18-2018, 06:28 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,337
Not Ranked
Default

Let's tie it down to another reference point (because I do want it to look correct)....

Should the dash panel be approximately perpendicular to the axis of the steering wheel?

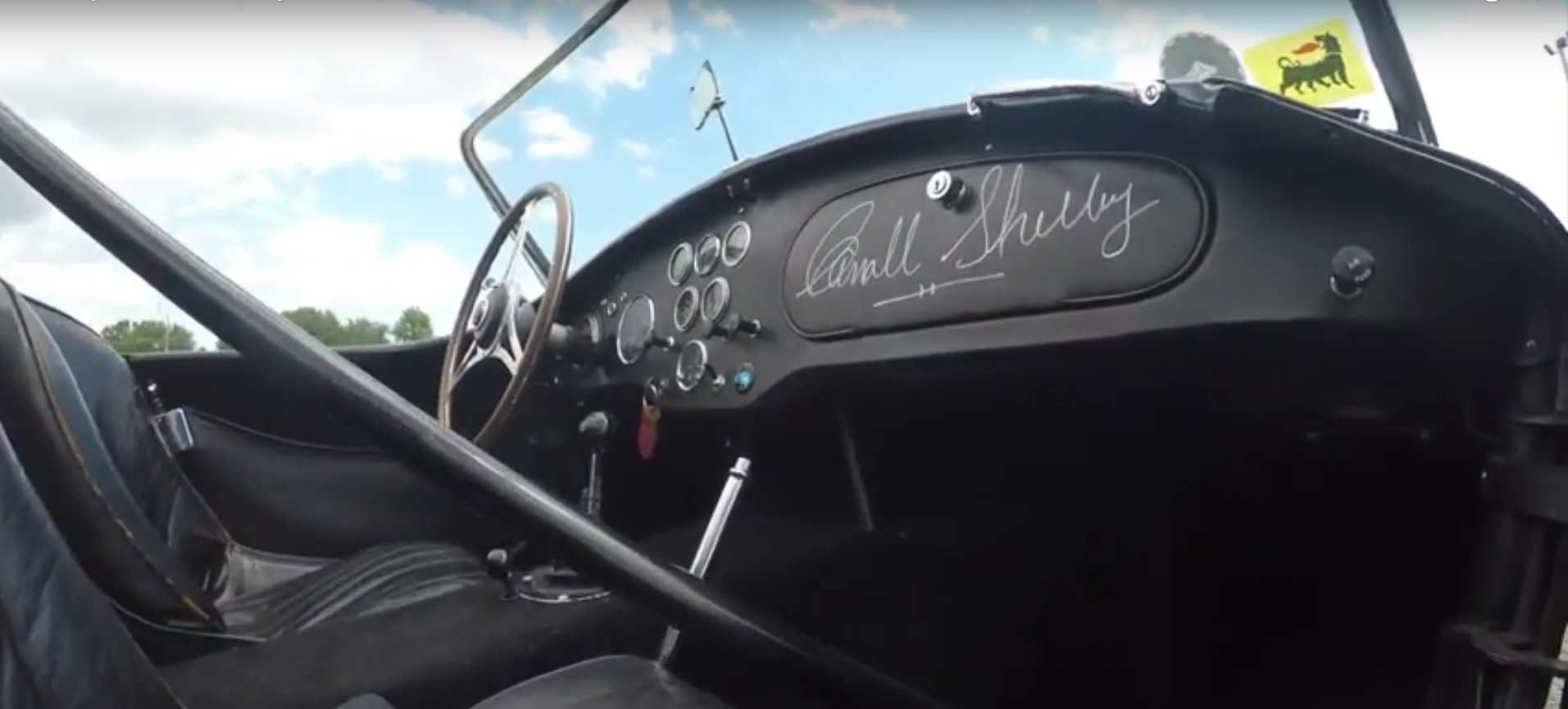

Here's a recent picture of CSX2075 (independent Dragonsnake, recently changed hands)

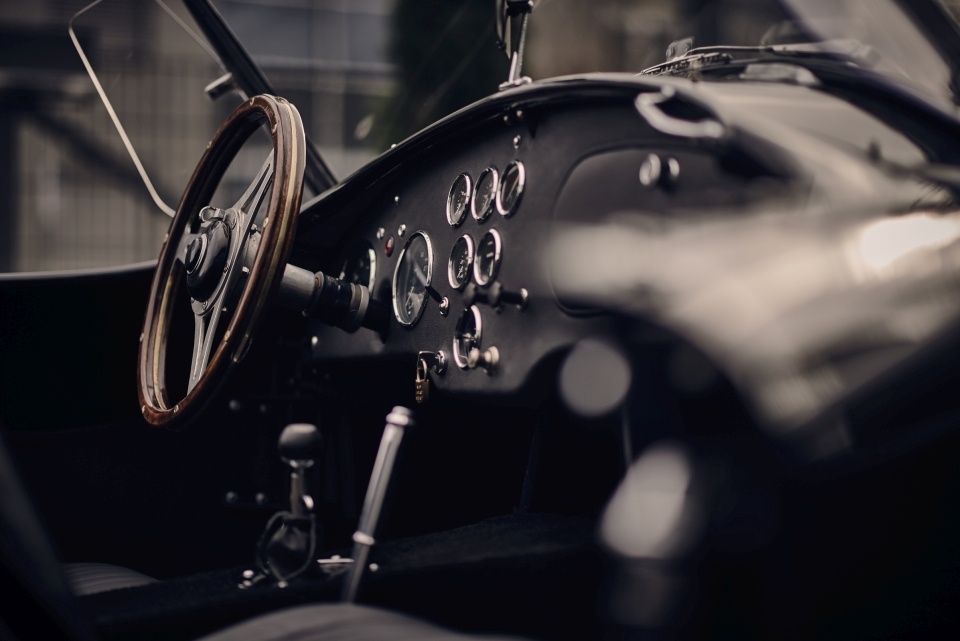

....and here's CSX2083 as well:

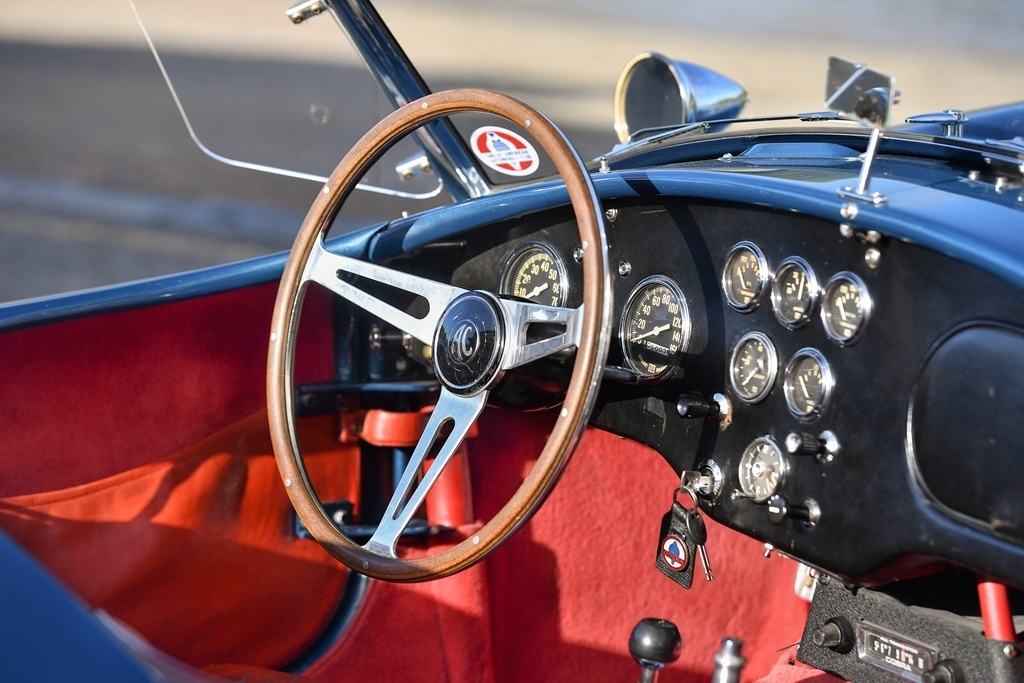

....and CSX2289, refurbished:




Perspective angles can be misleading, so comments from you guys more in the 'know' than I am?


Cheers,
Glen

Last edited by xb-60; 03-18-2018 at 06:48 PM..
Reply With Quote
  #9 (permalink)
Old 03-18-2018, 07:31 PM
RockBit's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2014
Location: Dallas, TX
Cobra Make, Engine: ERA #812 427/482 FE
Posts: 301
Not Ranked
Default

On my ERA 427SC, the steering wheel angle from vertical is 15 degrees, while the dash panel angle from vertical is 17 degrees. So there is 2 degrees difference between the two.
__________________
Chris
Reply With Quote
  #10 (permalink)
Old 03-18-2018, 07:39 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,337
Not Ranked
Default

Thanks Chris. That's the sort of information I need. It should look OK and I should have adequate gauge clearances.

Cheers,
Glen
Reply With Quote
  #11 (permalink)
Old 03-18-2018, 09:02 PM
CC Member
Visit my Photo Gallery


Join Date: Sep 2002
Location: Grand Rapids, MI
Cobra Make, Engine: FFR Challenge Car, RDI aluminum 427w
Posts: 201
Not Ranked
Default

Not sure about original cars but...
Superformance MkIIIs are about 8 degrees
Factory Five MkIVs are about 18 degrees
Even at 8 degrees off vertical the sun can reflect back when behind and low.
I like the IP closer to vertical.
Jim
Gaz64 likes this.
Reply With Quote
  #12 (permalink)
Old 03-18-2018, 09:40 PM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 1,803
Not Ranked
Default

Quote:
Originally Posted by Jim Vander Wal View Post
Not sure about original cars but...
Superformance MkIIIs are about 8 degrees
Factory Five MkIVs are about 18 degrees
Even at 8 degrees off vertical the sun can reflect back when behind and low.
I like the IP closer to vertical.
Jim
Yes, fully agree.

I would rather a little bit of parallax error than a "whiteout" or blinded at the wrong time.
Reply With Quote
  #13 (permalink)
Old 03-19-2018, 07:39 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,337
Not Ranked
Default

I'd rather have the dash angle correct to the originals and have adequate clearances for gauges.
If I end up having a reflection problem....easy, I'll just wait for sunset before heading home from the beach

Cheers,
Glen

Last edited by xb-60; 03-19-2018 at 07:49 PM..
Reply With Quote
  #14 (permalink)
Old 03-19-2018, 08:49 PM
Carbon Auto's Avatar
Registered User
Visit my Photo Gallery


Join Date: May 2010
Cobra Make, Engine: Carbon Automotive
Posts: 2
Not Ranked
Default

Hi Glen,
The ends of the dash are curved inward and are mounted to the cowl/scuttle tube above the door hinge bracket. Also through the glovebox area if used. I would recommend additional bracing to the 3/4 tubes behind the middle as well. Check out 1985 CCX's scratch builds for detailed 289 build pics..
__________________
CARBON Automotive - Your next best thing
Reply With Quote
  #15 (permalink)
Old 03-19-2018, 08:52 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,802
Not Ranked
Default

Quote:
Originally Posted by xb-60 View Post
I'd rather have the dash angle correct to the originals and have adequate clearances for gauges.
If I end up having a reflection problem....easy, I'll just wait for sunset before heading home from the beach

Cheers,
Glen
True replication at any cost! That's what I like to see!
Larry
__________________
Alba gu brąth
Reply With Quote
  #16 (permalink)
Old 03-19-2018, 11:42 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,337
Not Ranked
Default

Well Larry, there's so much under the skin on my car that's so far from the original CSX2xxx cars but I want everything that can be seen easily to be as close as I can make it to the originals.
OK, I'll be deviating in some areas, but it will all be period correct and in the spirit of each comp. and FIA car being set up for the individual driver.
That's my story anyway

Cheers!
Glen
Reply With Quote
  #17 (permalink)
Old 03-20-2018, 06:54 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 4,802
Not Ranked
Default

Oh definitely! I want a five speed transmission, which of course deviates from original. Anyone who has driven an original on the freeway at speed would understand that too!
Larry
__________________
Alba gu brąth
Reply With Quote
