Default Glove Box Hinge Pictures for 427

I'm reproducing a 427 glovebox door I have all the hinge and construction info for size, width, etc but does anyone have a picture of how the hinge was attached to the glovebox lid/dash? Was it simply screwed straight up into the bottom of the door or did they notch the wood and counter sink it a bit?

I have every other possible photo of the glovebox lid and strap except for that one shot.

Thanks!
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 06-25-2018, 11:58 AM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,603
Not Ranked
Default

Hi Apex speed.

I used a piece of fiberglass sheet (1/8" I think) from McMaster Carr and "countersunk it and notched it. Here are a few pics;

Cheers
Greg
Attached Images

Reply With Quote
  #3 (permalink)
Old 06-25-2018, 03:58 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,196
Not Ranked
Default

Got a picture of the finished (leather covered?) glovebox door?

Cheers,
Glen
Reply With Quote
  #4 (permalink)
Old 06-25-2018, 04:36 PM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,603
Not Ranked
Default

Hi Glenn. I do have pics but I'm updating my PC so it will be a couple of days before I can post them.

Cheers
Greg
Reply With Quote
  #5 (permalink)
Old 06-25-2018, 09:25 PM
Apex_speed's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2018
Location: Denver, CO
Cobra Make, Engine: Superformance Mk3 with Roush 427R
Posts: 77
Not Ranked
Default

Thanks. However I believe the original design had 1/16" aluminum on the front, a 3/8" wood core, and 1/16" aluminum on the black for a total of 1/2"

The piano hinge is supposed to be 205MM wide and approximately 1 to 1 1/6" open. Supposedly the catch that holds the door closed is just a simple metal tab that friction fits against the top of the dash when closed.

I'm just not clear how the hinge fits into that "sandwich" per the original setup. Hopefully I can under that last detail as I'm building it tomorrow evening.
Reply With Quote
  #6 (permalink)
Old 06-25-2018, 10:42 PM
Dominik's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2000
Location: Cape Town, South Africa/Mainz, Germany,
Posts: 1,439
Not Ranked
Default

Nice thread, I am watching. It came at the perfect time, because my client wants a glove box - and I try to persuade him not to!

This is for another car with a painted dash and he wants no visible screws or rivets. And I'm not painting the dash again, which is a part of the body (like on a beetle).
__________________
If I don't respond anymore, that's because I can't log in...
Reply With Quote
  #7 (permalink)
Old 06-26-2018, 01:14 AM
lomdel's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2015
Location: Bloemfontein, FS
Cobra Make, Engine: Backdraft RT3
Posts: 163
Not Ranked
Default

A pic of the Backdraft standard glove-box on my car. I am not a fan of the white plastic magnetic catch and have since replaced it with a black one. Excuse the filter boxes...
Attached Images


Last edited by lomdel; 06-26-2018 at 01:26 AM.. Reason: Added a picture
Reply With Quote
  #8 (permalink)
Old 06-26-2018, 03:54 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: 289FIA 'English' spec.
Posts: 8,196
Not Ranked
Default

Several glovebox pictures that might be of some use....

First one....

(thanks Jeff)

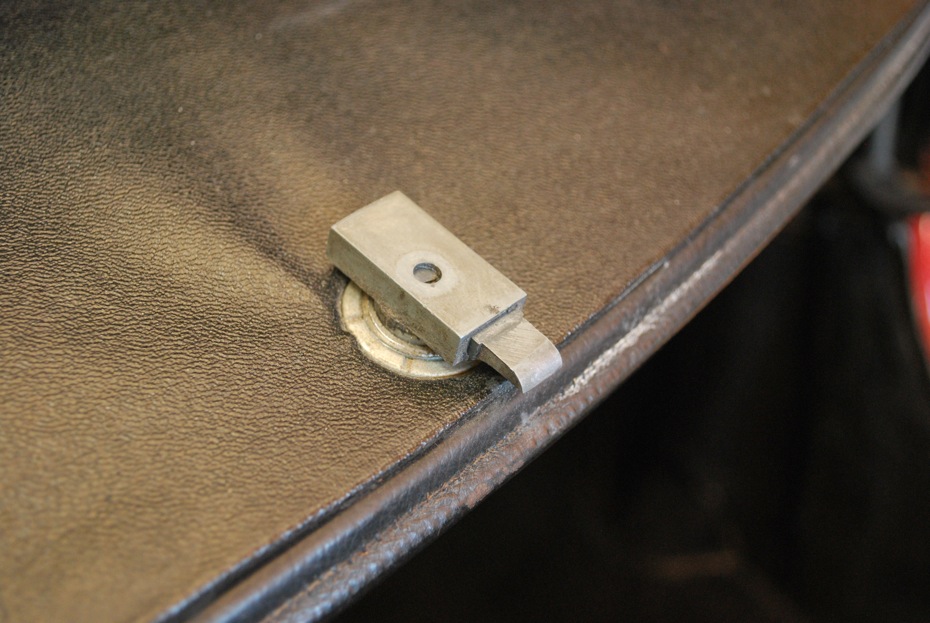

...and the others are from a CSX 289 car, to show some more detail

(thanks tkb)




Cheers,
Glen
bwcobra15, 1985 CCX and LMH like this.

Last edited by xb-60; 06-26-2018 at 04:02 AM..
Reply With Quote
  #9 (permalink)
Old 06-26-2018, 08:51 PM
Dominik's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2000
Location: Cape Town, South Africa/Mainz, Germany,
Posts: 1,439
Not Ranked
Default

Quote:
Originally Posted by lomdel View Post
A pic of the Backdraft standard glove-box on my car. I am not a fan of the white plastic magnetic catch and have since replaced it with a black one. Excuse the filter boxes...
Really from Mack Road? I could have used my own pics! lol
Thanks. BDR hides the hinge quite well. I never took a detailed shot of the glove box.

Thanks also for the other pics. Helps me, too.
__________________
If I don't respond anymore, that's because I can't log in...
Reply With Quote
  #10 (permalink)
Old 06-27-2018, 05:07 AM
Apex_speed's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2018
Location: Denver, CO
Cobra Make, Engine: Superformance Mk3 with Roush 427R
Posts: 77
Not Ranked
Default

Thanks for the input. We fabricated the CSX "correct" glove box door last night. It was quite the project and I think it turned out well. It just needs to be covered and piped. The car is 1/2" oak that is tapered to fit in the opening better with the 205MM long 1 1/6" piano hinge counter sunk into the front face of the door. The door then gets a wafer thin piece of aluminum bonded to the front of it (no real reason to have it but the original cars did). The back also gets a thin piece of aluminum that does serve a purpose..it gets wrapped in material to hide the seams from where the material on the front is wrapped around to the back.

I have the original 427 glovebox handle. But will be changing out the style of hardware for the handle and door strap (keeps it from flopping open) to nickel plated screws in trim washers as the original setup looks pretty crude.

Now off to find a reasonably correct looking latch.
Reply With Quote
  #11 (permalink)
Old 06-27-2018, 08:33 AM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,603
Not Ranked
Default

Hi Glenn. Here are a few pics of my finished glove box:
Attached Images

xb-60 likes this.
Reply With Quote
  #12 (permalink)
Old 06-27-2018, 08:36 AM
Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2002
Location: arroyo grande, ca, ca
Cobra Make, Engine: NAF 427
Posts: 1,603
Not Ranked
Default

One more pic of the inside:
Attached Images

Reply With Quote
  #13 (permalink)
Old 06-27-2018, 03:52 PM
bwcobra15's Avatar
CC Member
Visit my Photo Gallery


Join Date: Oct 2000
Location: Midlothian, TX
Cobra Make, Engine: Hurricane 427 Cobra #HM2008, Craft Performance 427w 600hp/600tq, TKO-600 close ratio, original Smiths gauges, lucas switches
Posts: 943
Send a message via Yahoo to bwcobra15 Send a message via Skype™ to bwcobra15
Not Ranked
Default

Does anyone know where I aquire a keyed latch like this?

or what was the "correct" latch/pull for the 427 street cars?




.
Quote:
Originally Posted by xb-60 View Post
Several glovebox pictures that might be of some use....

First one....

(thanks Jeff)


...and the others are from a CSX 289 car, to show some more detail

(thanks tkb)




Cheers,
Glen
__________________
Bob Worley
Hurricane HM-2008 build is done!! (for now....)
Craft Perfomance 427W / 600hp / 600tq - TKO600

I love it and I need it I bleed it ~ Yeah it's a wild hurricane ~ Alright, hold tight, I'm a highway star!!
Reply With Quote
  #14 (permalink)
Old 06-27-2018, 04:01 PM
DanEC's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Apr 2009
Location: Central, AR
Cobra Make, Engine: ERA Street Roadster #782 with 459 cu in FE KC engine, toploader, 3.31
Posts: 4,181
Not Ranked
Default

Quote:
Originally Posted by bwcobra15 View Post
Does anyone know where I aquire a keyed latch like this?

or what was the "correct" latch/pull for the 427 street cars?




.
On 427 street cars, the pull shown in My427Cobra's photos is correct.
__________________
ERA 782 Running
https://www.youtube.com/watch?v=Cfge...b1-77fqwFRu7c]
Reply With Quote
  #15 (permalink)
Old 07-08-2018, 01:16 PM
bwcobra15's Avatar
CC Member
Visit my Photo Gallery


Join Date: Oct 2000
Location: Midlothian, TX
Cobra Make, Engine: Hurricane 427 Cobra #HM2008, Craft Performance 427w 600hp/600tq, TKO-600 close ratio, original Smiths gauges, lucas switches
Posts: 943
Send a message via Yahoo to bwcobra15 Send a message via Skype™ to bwcobra15
Not Ranked
Default

Quote:
Originally Posted by DanEC View Post
On 427 street cars, the pull shown in My427Cobra's photos is correct.
Would you know where I might aquire said correct 427 street car door pull?
__________________
Bob Worley
Hurricane HM-2008 build is done!! (for now....)
Craft Perfomance 427W / 600hp / 600tq - TKO600

I love it and I need it I bleed it ~ Yeah it's a wild hurricane ~ Alright, hold tight, I'm a highway star!!
Reply With Quote
  #16 (permalink)
Old 07-08-2018, 02:04 PM
Apex_speed's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2018
Location: Denver, CO
Cobra Make, Engine: Superformance Mk3 with Roush 427R
Posts: 77
Not Ranked
Default

Quote:
Originally Posted by bwcobra15 View Post
Would you know where I might aquire said correct 427 street car door pull?
Both Acton Cobra and Cobra Restorers have the right one. They are $90-100. I got mine from Restorers before I noticed that Acton was $10 cheaper.
Reply With Quote
  #17 (permalink)
Old 07-31-2020, 04:29 AM
lomdel's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jun 2015
Location: Bloemfontein, FS
Cobra Make, Engine: Backdraft RT3
Posts: 163
Not Ranked
Default

How I modified my glove box lock :
https://youtu.be/NWfmtvPStyE
Reply With Quote
  #18 (permalink)
Old 07-31-2020, 08:51 AM
1985 CCX's Avatar
CSX2375R Comp289
Visit my Photo Gallery


Join Date: Mar 2005
Location: Manchester, NH
Cobra Make, Engine: AK1085 and CSX2375R: Competition tribute in vintage Hertz Gold
Posts: 16,250
Not Ranked
Default

Here is mine, stock and works well.
Attached Images

Reply With Quote
  #19 (permalink)
Old 08-10-2020, 05:48 AM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 513
Not Ranked
Default

I don't know if 427 glove boxes were of the same construction as 289s, but after studying COB6029 and with help from Dan Case and Luke on the ACOC forum, I think I have mine just about correct.
The glove box door is of plywood, with a chromed brass hinge running along the bottom. One leaf of this is fixed to the outer face of the bottom of the glove box door using countersunk-head rivets, so sits vertically when the glove box lid is closed. This is hidden by the cotton wadding and the leather covering (not sure if 427s had leather or not). The other leaf of the spring is fixed to the aluminium dashboard glove box hole return, so sits horizontally when the glove box is closed. This is attached by 4BA screws, internal tooth washers and nuts, from memory - Dan has the details.
I found a hinge manufacturer in Birmingham who supplied the motor industry many years ago, who made some to order for me. The company is Gold & Wassall, Birmingham, England.
Luke kindly sent me some photos of an original 289 glove box his firm had restored, so credit to him for these:

OK, forum doesn't allow photos (or at least won't accept ones of 46kb!). You should get the idea from the above.
Reply With Quote
  #20 (permalink)
Old 08-10-2020, 07:55 AM
1985 CCX's Avatar
CSX2375R Comp289
Visit my Photo Gallery


Join Date: Mar 2005
Location: Manchester, NH
Cobra Make, Engine: AK1085 and CSX2375R: Competition tribute in vintage Hertz Gold
Posts: 16,250
Not Ranked
Default

Cobra Restorer's, Branda or Finishline would be my starting point!

The 289 key unit is not used on the 427, your lucky as they are not cheap.
Reply With Quote
