Default Lucas 104

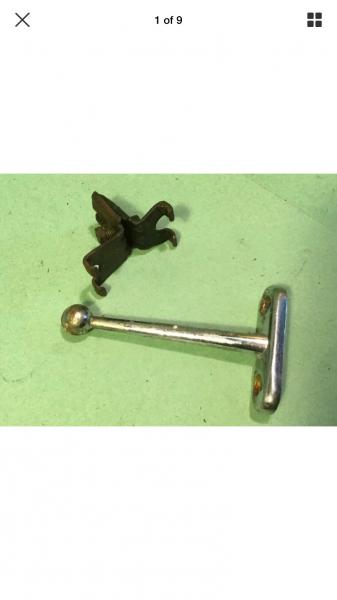

Hi All

I managed to pick this up the other day and would like to know if anyone can tell me if the Lucas 104 mirror would have been used on the Mid range COB61 cars, The AC289 Sports assuming thats it's an Original Lucas 104 mirror

Reply With Quote
  #2 (permalink)
Old 08-03-2019, 07:02 AM
Dan Case's Avatar
CC Member
Visit my Photo Gallery
Original Shelby Owner



Join Date: Apr 2004
Posts: 1,027
Not Ranked
Default Dash Mirror

Based on my single sample of one unrestored chassis COX6126 that I have pictures of the "No. 104" mirror stem was used at least once.

The "No. 104" stem was used in multiple mirror assemblies. There was a version of shorter height "No. 103" that was combined with a much smaller mirror glass than AC Cars used as far as I can tell.

The typical CSX2xxx chassis got fitted with some version of LucasŪ mirror assembly using a No. 104 stem. Mirrors were not typically installed for shipment to the U.S.A. so the shop doing final assembly had to install them. The mirror kits Lucas sold retail did not have attachment fasteners with them or at least none of the new old stock kits I have seen included fasteners. That probably explains why different trim screws and hex nuts were used among shops and over time.

Same chassis range, at least three designs of glass holder were used. The beyond early chassis the design of holder most used could have either of two finishes: plated or camera case wrinkle black paint.

Same chassis range, there were mirror glasses with different colors of back side finish. Lucas sold versions of assemblies with flat and curved glass. I personally have not seen a curved glass mirror in a substantially as built unrestored car.

Early street CSX31xx chassis continued with assemblies using the No. 104 stem, CSX3107 for example. At some point late in production the No. 104 stem was replaced with a different model with a goose neck type shape, CSX3346 for example. The typical glass holder was the most common version used in pictures I have was like most CSX2xxx chassis in black camera case wrinkle type paint.
1985 CCX likes this.
__________________
Dan Case
1964 Cobra owner since 1983, Cobra crazy since I saw my first one in the mid 1960s in Huntsville, AL.

Last edited by Dan Case; 08-03-2019 at 07:04 AM..
Reply With Quote
  #3 (permalink)
Old 08-03-2019, 08:45 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 1,244
Not Ranked
Default

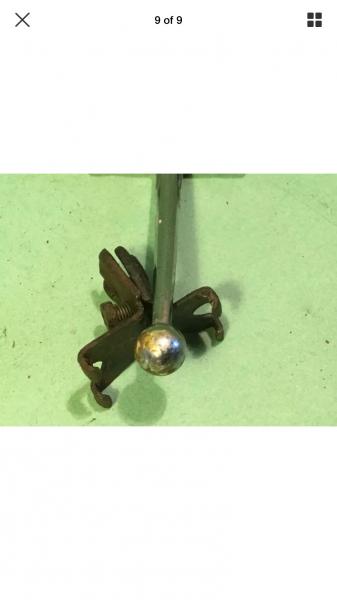

I have a couple of the more elaborate three prong style triangular mirror mounts attached to #104 posts. Something I noted of the two assemblies is that the base of the #104 posts are slightly different. Also the back of the mirror glass are painted flat black and not the crinkle black of the later mirrors.
1985 CCX likes this.
Reply With Quote
  #4 (permalink)
Old 08-04-2019, 11:35 PM
CC Member
Visit my Photo Gallery


Join Date: Jul 2015
Location: west sussex, Wes
Cobra Make, Engine: AC289 sports
Posts: 81
Not Ranked
Default

Cheers guys..

great info as always
Reply With Quote
  #5 (permalink)
Old 08-05-2019, 05:23 AM
1985 CCX's Avatar
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Manchester, NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,750
Not Ranked
Default

Nice find, always on the hunt...…
Reply With Quote
  #6 (permalink)
Old 08-05-2019, 11:26 AM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,389
Not Ranked
Default

We’re reproducing these, so sit tight! I’ll post a couple photos when I can.
Trust me when I say, they aren’t a half-assed knock off!
Larry
__________________
Alba gu brāth
Reply With Quote
  #7 (permalink)
Old 08-06-2019, 02:20 PM
CC Member
Visit my Photo Gallery


Join Date: Jan 2010
Cobra Make, Engine: AC cox 2699 roadster Riverside FIA RSR2001
Posts: 263
Not Ranked
Default

I'll vouch for Larrys remark
Top notch 104 stem repop
Reply With Quote
  #8 (permalink)
Old 08-06-2019, 07:15 PM
1985 CCX's Avatar
Senior Club Cobra Member
Visit my Photo Gallery


Join Date: Mar 2005
Location: Manchester, NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,750
Not Ranked
Default

I am in!
Set s pair aside for me please

Last edited by 1985 CCX; 08-08-2019 at 03:21 PM..
Reply With Quote
  #9 (permalink)
Old 08-06-2019, 08:19 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,389
Not Ranked
Default

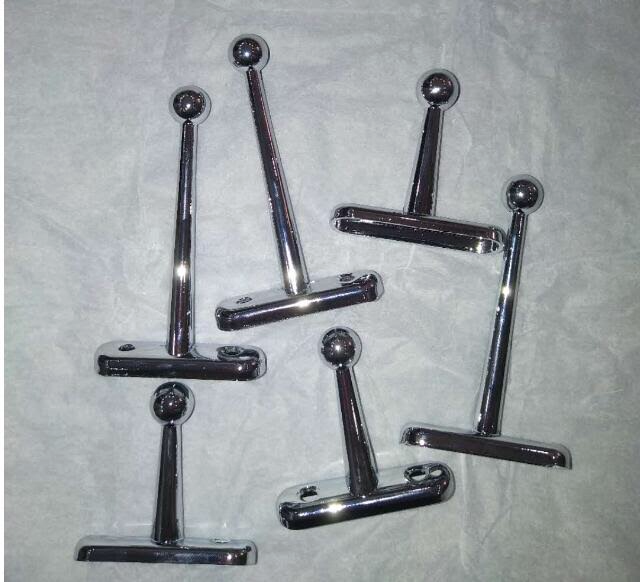

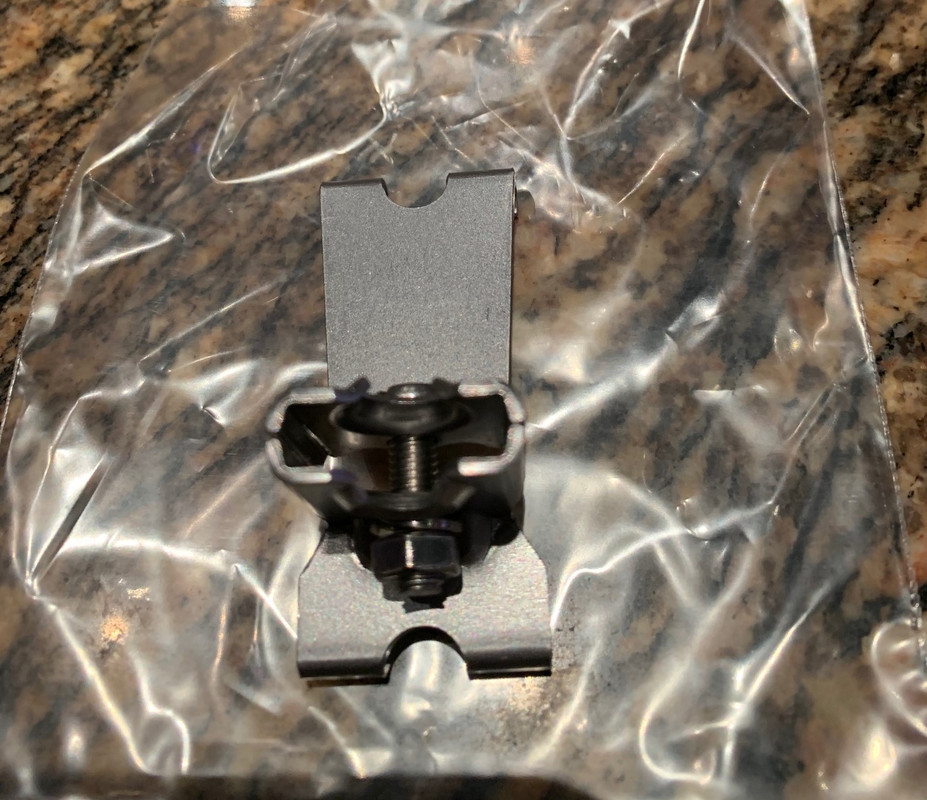

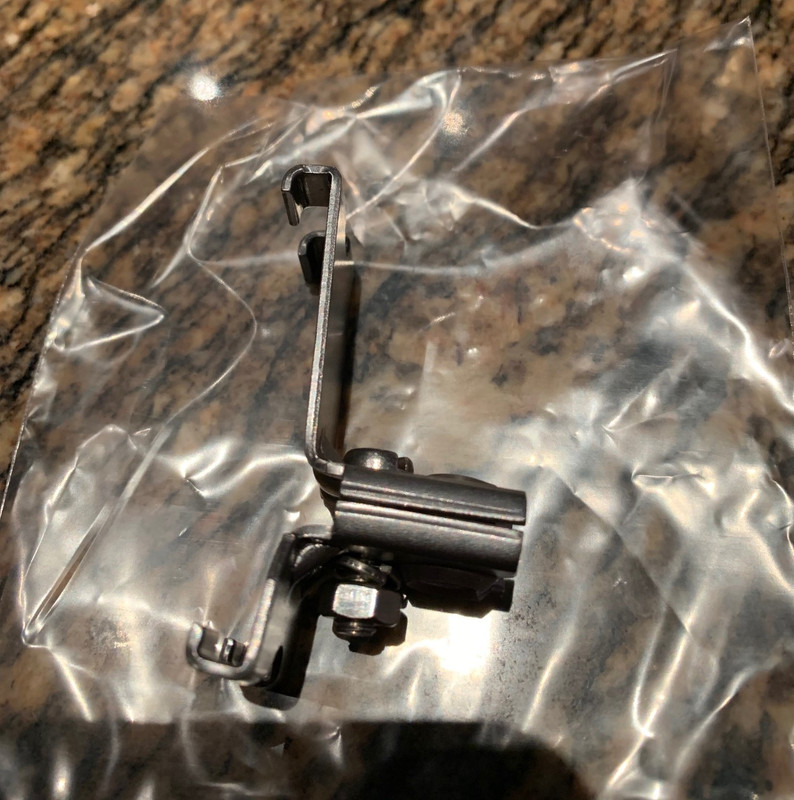

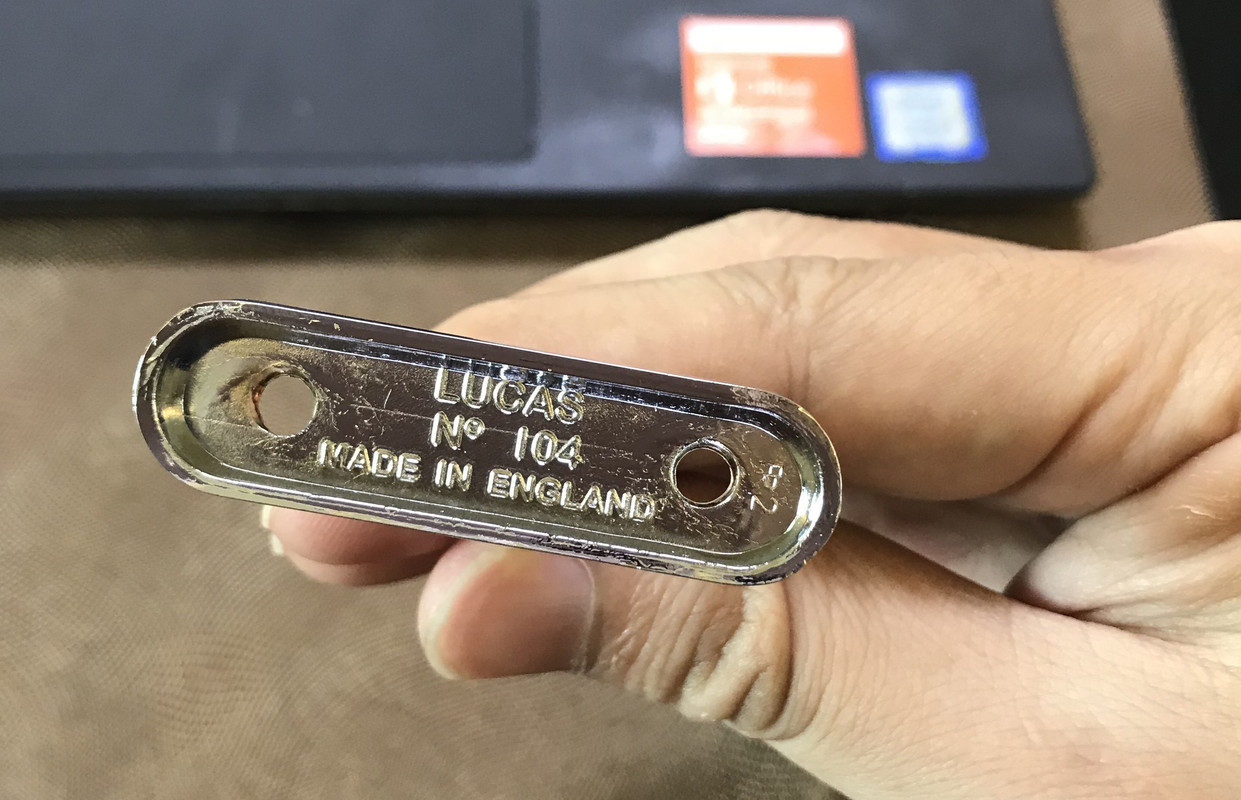

Here's a couple photos as a teaser! Every aspect from original was copied and exact to original. Mirror clamps coming soon too.
I'll do a separate thread once everything is set and ready to go. Sorry for the hijack morgy!

Larry





__________________
Alba gu brāth
Reply With Quote
  #10 (permalink)
Old 08-07-2019, 12:12 AM
CC Member
Visit my Photo Gallery


Join Date: Jul 2015
Location: west sussex, Wes
Cobra Make, Engine: AC289 sports
Posts: 81
Not Ranked
Default

No worries Mate.. Always good to know of good reproduction parts..
LMH likes this.
Reply With Quote
  #11 (permalink)
Old 08-07-2019, 11:01 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 1,244
Not Ranked
Default

They have been reproduced previously as well, with the fixing clamp and glass. The person that did them in SoCal stoped doing them many years ago.
Reply With Quote
  #12 (permalink)
Old 08-08-2019, 03:38 AM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 518
Not Ranked
Default

Larry, for the 104, could you tell us the centre line distance between the mounting holes? And will they take 2BA, or need something smaller?
Thanks,
Roger
Reply With Quote
  #13 (permalink)
Old 08-08-2019, 09:09 AM
CC Member
Visit my Photo Gallery


Join Date: May 2013
Cobra Make, Engine: SPF 289 Street
Posts: 209
Not Ranked
Default

Quote:
Originally Posted by CompClassics View Post
They have been reproduced previously as well, with the fixing clamp and glass. The person that did them in SoCal stoped doing them many years ago.
John, the problem with those, the ball was waay undersized vs OE. It would cause mirror to flop around or, if tightened to correct that, would crack the mirror. These are correct in every way.
CompClassics likes this.
Reply With Quote
  #14 (permalink)
Old 08-08-2019, 11:40 AM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 518
Not Ranked
Default

Quote:
Originally Posted by Armrer View Post
John, the problem with those, the ball was waay undersized vs OE. It would cause mirror to flop around or, if tightened to correct that, would crack the mirror. These are correct in every way.
Jeff, do you know the diameter of the correct ball? And would you happen to know the spacing of the mounting holes?
Reply With Quote
  #15 (permalink)
Old 08-08-2019, 01:18 PM
CC Member
Visit my Photo Gallery


Join Date: May 2004
Location: Ft Myers, FL
Cobra Make, Engine: genuine 289 cobra (cox 6013)
Posts: 83
Not Ranked
Default

Holes spacing : 32 mm, ball diameter :13.12 mm

Regards

Bernie
Reply With Quote
  #16 (permalink)
Old 08-08-2019, 02:42 PM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 518
Not Ranked
Default

Quote:
Originally Posted by BERNIE View Post
Holes spacing : 32 mm, ball diameter :13.12 mm

Regards

Bernie
Thanks Bernie
Reply With Quote
  #17 (permalink)
Old 08-08-2019, 03:17 PM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 518
Not Ranked
Default

Larry, inbox is full!
Reply With Quote
  #18 (permalink)
Old 08-09-2019, 07:44 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 1,244
Not Ranked
Default

I’ll have to measure the originals that I have against the repoped one I’ve had laying around.
1985 CCX likes this.
Reply With Quote
  #19 (permalink)
Old 12-15-2019, 06:55 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, AZ
Cobra Make, Engine:
Posts: 5,389
Not Ranked
Default

Sorry Morgy but I'm going to hijack your thread again! Since I already posted on here earlier about the 104 post reproduction, I figured I'd show you guys the clamp Jeff just finished. This had to go through a number of revisions and die changes to get this exactly correct but the finished product is outstanding!

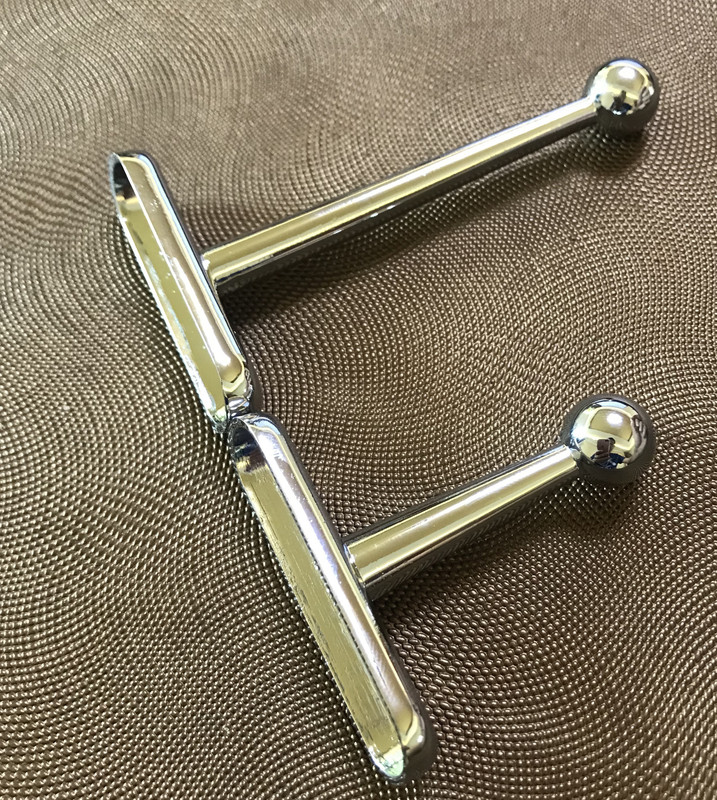

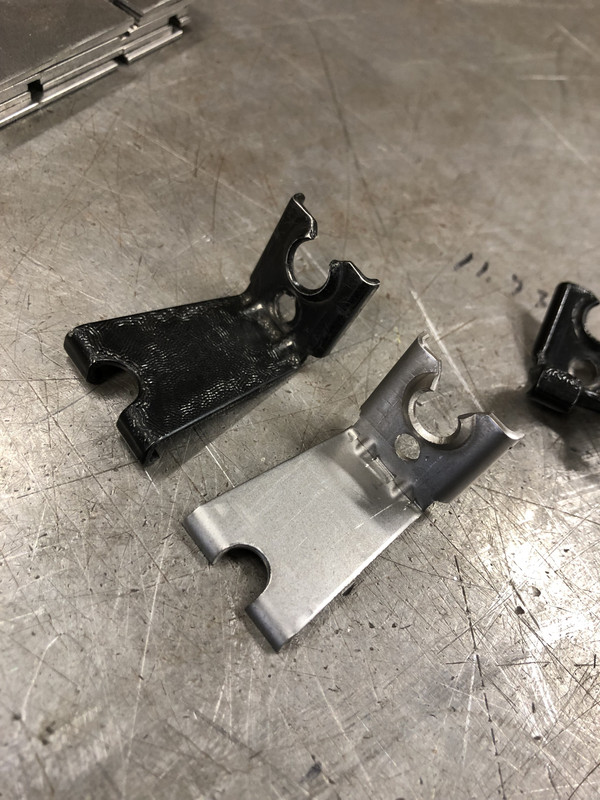

Original on the left, replication on the right.

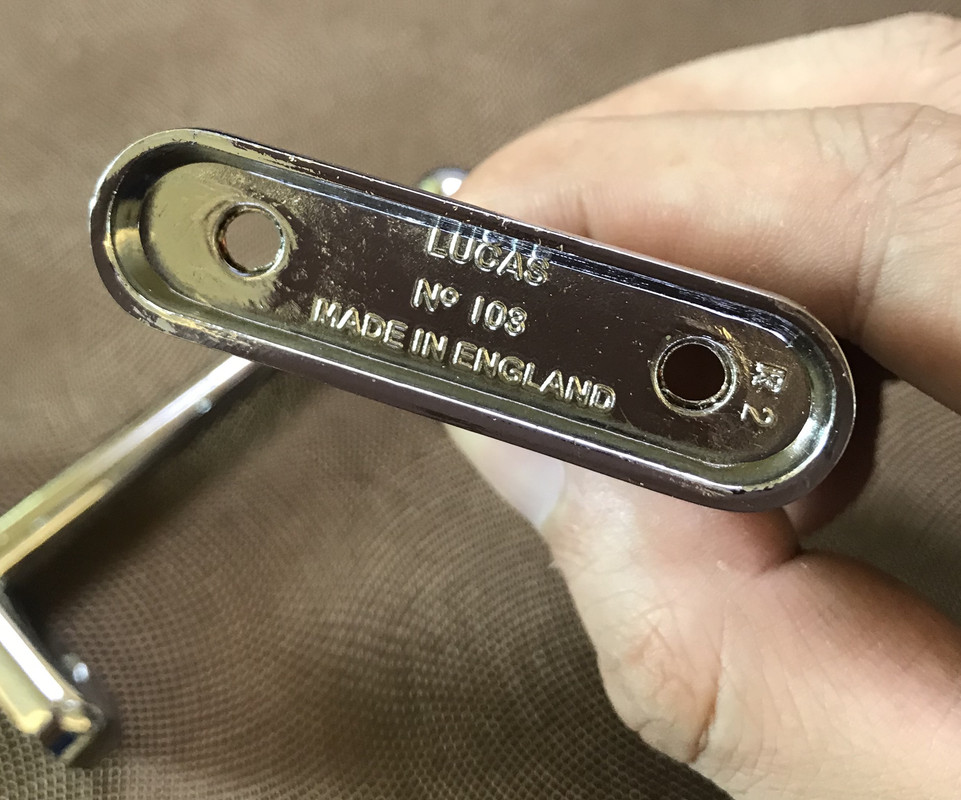

Both the Lucas 104 and 103 posts have been replicated


If anyone is interested in purchasing, send Jeff an email. I don't know anything about price but he can fill you in. The glass mirror itself is up to you. We don't want to get into cutting and shipping glass as it's too easy to have a local shop to you cut one. jeffc@tangodown.com


Larry
1985 CCX and Riverside racer like this.
__________________
Alba gu brāth
Reply With Quote
  #20 (permalink)
Old 12-31-2019, 04:55 PM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 518
Not Ranked
Default

Got mine today, thanks chaps, and I have to tell you these are great. They look terrific and the mirror stays in place very nicely. No more bearing adhesive stuck on the ball for me...

Really nice work, Jeff, you should be proud of these!

Roger
Riverside racer likes this.
Reply With Quote
