Default Clutch and flywheel

Greetings,

Well, my Quarter Master clutch, HTOB and steel flywheel arrived yesterday, along with a new Lifeline fire system. The clutch, flywheel and pressure plate arrived all bolted together and since the engine is going out for a refresh and it was freezing in the garage, I decided to use leave it altogether for now.


They looked nice nd the HTOB has a nice feature in that there is a locking stud that prevents the HTOB from spinning on the shaft during install. My McLeod does not have that capacity and the HOB's do spin a little when you are trying to line up the input shaft with the bushing and bolting the transmission to the bell housing. Always wondered if my depth was correct after the transmission was installed and there was no wy to get a micrometer in there.

I did test fit the assembly on the input shaft to make sure that the correct disc was in the package and it slid on nice and tight (but not too tight).


Jim
Morris and xb-60 like this.
__________________
Reply With Quote
  #568 (permalink)
Old 12-04-2020, 04:48 PM
CC Member
Visit my Photo Gallery


Join Date: Mar 2009
Location: Mendota, IL
Cobra Make, Engine:
Posts: 693
Not Ranked
Default

Jim It looks like the flywheel in O balance. So that makes me wonder what you have for a crank in the engine? So I assume you have a 289 stroke steel forged internally balanced crank in your engine. What brand of crank are you using? Who did your motor?
Reply With Quote
  #569 (permalink)
Old 12-05-2020, 04:18 AM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default

The engine was most recently built by Fitzgerald Brothers in CT, they did the conversion to Webers. The crank is an original that was magna fluxed and machined so that the internals were balanced.

I was going to use Brent for this rebuild, but you scoundrels have so tied up his time that he would not be able to get to it in time for next season's race schedule. I have found a local engine builder who I will be working with, he has built race engines and after having numerous discussions with him I think that it will work.

At the time of the original build I was going to go with a forged steel crank, but at that time they were out of production. The current build just told me that he has found someone that is making forged steel cranks for a 289, not cheap, but given that I am not spending $1,000 to ship the engine that does free up some cash. He was going to take a look at the existing crank to see how it looked before deciding on whether to order one, but I am starting to lean towards getting a new crank irrespective of how good the old one works just because of increased longevity.

Jim
Riverside racer likes this.
__________________
Reply With Quote
  #570 (permalink)
Old 01-05-2021, 03:38 PM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default

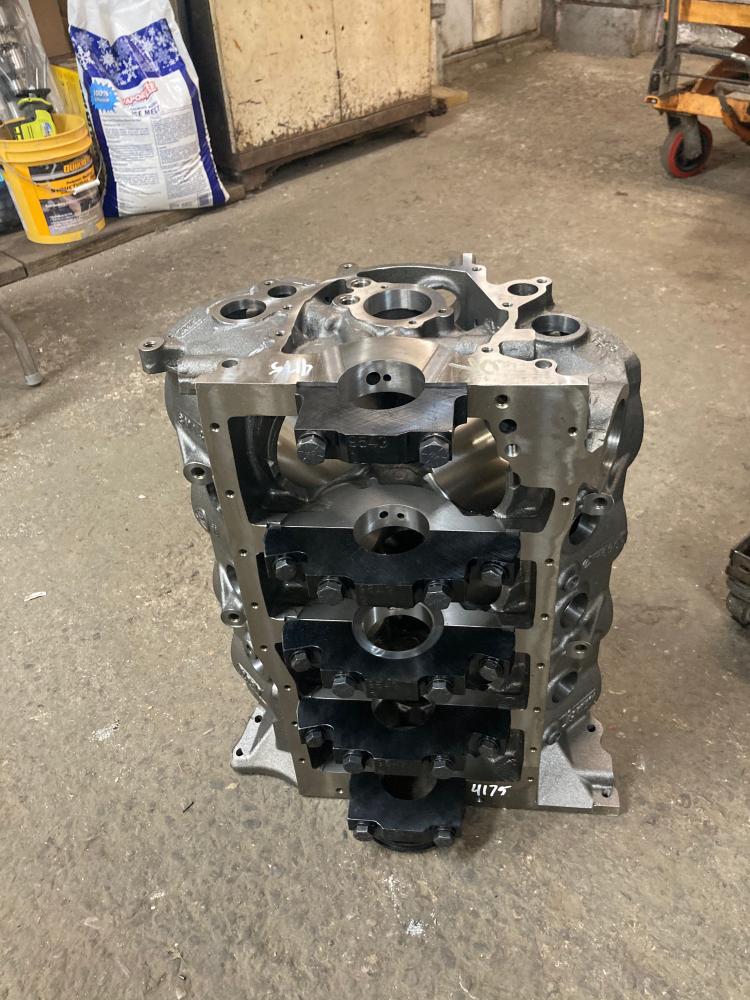

Things are starting to show up. The Dart block arrived yesterday. It is quite beefy. The main caps are substantial. A lot of machining to do on it. I have the heads and am getting ready to ship them out and have them ported and flow tested, the engine builder has a full machine shop, but does not do heads anymore.



Parts are hard to come by with businesses having been shut down for a while, hopefully I will be able to procure everything that I need.

Jim
Riverside racer likes this.
__________________
Reply With Quote
  #571 (permalink)
Old 03-31-2021, 02:20 PM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default Starting to get the engine together

Well, it has been awhile since the last post. The heads were finally ported and after many calls to FedEx, they finally arrived today and I ran them out to the engine builder. Good thing that I was not building an FE with iron heads, as my right arm just came out of the sling yesterday after 6 weeks in in post rotator cuff surgery to basically re-attach my rotator cuff. Had to carry and balance the heads in my left arm.

I did not see the flow test in the container and have sent an email to the guy who ported them asking about it. When we talked he said that based on other heads like these that he has ported he expected that at .700 lift that they would flow 290 cfm, at about .600 lift around 270 cfm. Out of the box these heads are supposed to flow 265 cfm at .700 lift. So, what ever he did will be an improvement.



The crank is installed and one piston test fitted. Using Oliver rods and custom pistons from Diamond. The engine builder contacted several sources and Diamond was the only one who could manufacture them in any semblance of a reasonable time frame. The lightened crank was pretty spot on for balance and all that the engine builder had to do was lightly grind two areas on the counter weights and the crank was internally balanced.




The engine builder is going to measure the volume of the heads, test fit the heads for clearance with the pistons and valves (Erson 2.02 intake and 1.6 exhaust) and make adjustments as needed.

Still waiting on rocker arm studs and head bolts. Still need to measure and order push rods, which will hopefully not be too problematic to obtain, and test fit the custom headers that Georgie is making.

Rick Muck will be helping with the install, as I am not allowed to carry anything heavier than my cell phone for the next 6 weeks, and then I get to start strengthening exercises. Still hoping to be strong enough to race by early July.

The weather is turning nicer, except for a snow storm arriving on April 1 that is going to dump 7" of snow on us, and I am getting the itch to get out and race.

Jim
1985 CCX likes this.
__________________
Reply With Quote
  #572 (permalink)
Old 04-12-2021, 05:40 PM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default Flow numbers

Just received the flow chart from the person that did the porting on the heads. They look pretty good. Stock they were supposed to flow 262 cfm intake and 204 cfm exhaust at .700 lift. Not sure if they actually ever performed at that level. Here is the flow chart:



That should provide some improvement in performance. Given that I do not plan on having a cam with a .700 lift, something in the .600 range will hit the peak flow. Looking forwards to getting this build done before the race season is over.

Jim
1985 CCX likes this.
__________________

Last edited by 1795; 04-12-2021 at 05:42 PM..
Reply With Quote
  #573 (permalink)
Old 04-12-2021, 10:22 PM
xb-60's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA 'English' spec.
Posts: 13,139
Not Ranked
Default

Looks like he very much knows his 'craft'.
Might be a dumb question....will the Webers need any rejetting to suit the better flow?

Cheers!
Glen
Reply With Quote
  #574 (permalink)
Old 04-13-2021, 03:39 AM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default

Quote:
Originally Posted by xb-60 View Post
Looks like he very much knows his 'craft'.
Might be a dumb question....will the Webers need any rejetting to suit the better flow?

Cheers!
Glen
Glen,

Not a dumb question. Yes, I will be rejetting and tuning them in on a chassis dyno. You can't change one thing without it having an effect on other settings.

Jim
1985 CCX likes this.
__________________
Reply With Quote
  #575 (permalink)
Old 04-13-2021, 04:43 AM
Senile Club Cobra Member
Visit my Photo Gallery


Join Date: Feb 2001
Location: Buffalo, NY USA, NY
Cobra Make, Engine: Time Machines Motorsports LLC- Superformance Dealer
Posts: 4,482
Not Ranked
Default

Picking Jim's FIA up on the 14th for transport to Time Machines. Georgie from Gas-N is coming to fabricate improved headers that once completed we will be offering as an upgrade to the factory supplied units. We will have them with a selection of port flanges to allow proper flow on the range of Windsor heads available.
1985 CCX, Riverside racer and 1795 like this.
__________________
"I'm high all right, but on the real thing....powerful gasoline and a clean windshield..."

http://www.timemachinesauto.com/
Reply With Quote
  #576 (permalink)
Old 04-25-2021, 06:28 AM
1795's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2013
Location: Canandaigua, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 2,471
Not Ranked
Default Gas-N headers

Georgie from Gas-N and his crew came Saturday morning to start the mock-up for the new headers for the race car, these headers will also fit other SPF street cars and FIA's as well, and possibly other cars using the original frame design for the 289's.

What an impressive level of skill to observe. They were quick, efficient and highly talented. They would install a flange on one side, started with the driver's side (which was the most difficult one due to the steering shaft and brake/clutch master cylinders) and started piecing together the tubes.



There was a lot of trial and error, but not too much error, in getting them to fit. They would quickly figure out the angles required, cut a section of tube to fit, test it and tack weld it in place. There was a lot of time spent disconnecting the driver's side motor mount, rolling the engine over and then moving it back, as there is no way to drop the header in from the top on that side and you cannot put it up from the bottom either.



By mid afternoon they had one side done and were moving on to the next.



They will be completing it Sunday morning and then taking the mock-ups back with them to make a new set of headers and a set of side pipes for the car. Truly great people, both personally and professionally. Of course, between having Rick Muck there, Georgie and Rick's friend Mike (who was involved with Shelby's GT350 program) the stories were endless.....Wouldn't have missed it for anything.

Also, received great news from my PT during our first session, my ROM after the rotator cuff surgery is ahead of schedule and he expects a complete recovery. So, racing should be on the schedule at some point this year.

Jim
