Default CSX2431 Imperial Fuel Switch

Could anyone please provide me a detail picture of the Imperial Fuel Switch installed on CSX2431?
Iím interested on how it got labeled (it seems to me there is something written beside the switching positions) as this cannot be seen on the pictures available on the internet.


MANY THANKS
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
Sponsored Links
Sponsored Links
  #2 (permalink)
Old 09-08-2017, 07:14 PM
CC Member / Sponsor
Visit my Photo Gallery


Join Date: Jan 2002
Location: Provo, UT
Cobra Make, Engine: Kirkham 427, 289 Targa Florio
Posts: 1,300
Not Ranked
Default



__________________
"There is nothing nice about a Cobra. It is stripped down to the essentials- a big engine, a small car, and four wide tires to keep the whole business on pavement. Its loud, smells like gasoline, and shakes, shudders, and bucks. It makes your arms tired and your feet hot. You nearly crash about once every 10 minutes. Its so damn wonderful that you cant believe it" Automobile Magazine 2004
Reply With Quote
  #3 (permalink)
Old 09-09-2017, 11:16 AM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 369
Not Ranked
Default

Many thanks for this great pictures

I found something at one of the Cobra books
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!

Last edited by ALF; 09-09-2017 at 12:44 PM..
Reply With Quote
  #4 (permalink)
Old 09-09-2017, 12:40 PM
1985 CCX's Avatar
CSX2375R Comp289
Visit my Photo Gallery
Gold Star Contributor

Join Date: Mar 2005
Location: Manchester, NH
Cobra Make, Engine: CSX2317: Prototype Replica Street Car and CSX2375: Competition Replica in Hertz Gold
Posts: 14,589
Not Ranked
Default

Doesn't John Bessey have a few for sale?
CompClassics likes this.
__________________
Jeff Gagnon
2015-16 Club Cobra Supporter
2015-16 NH SAAC Representative

jdgagnon1@juno.com - (603)809-6886
Reply With Quote
  #5 (permalink)
Old 09-09-2017, 12:50 PM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 369
Not Ranked
Default

Hi Jeff
I have one.
The question is only should I paint it or use the decals (as on Tom's post)
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #6 (permalink)
Old 09-09-2017, 05:07 PM
CC Member / Sponsor
Visit my Photo Gallery


Join Date: Jan 2002
Location: Provo, UT
Cobra Make, Engine: Kirkham 427, 289 Targa Florio
Posts: 1,300
Not Ranked
Default

Looks like from the photos:

The position of REV was moved
The painted REV was wiped off, except part of the R
The MAIN decal was placed over painted MAiN
__________________
"There is nothing nice about a Cobra. It is stripped down to the essentials- a big engine, a small car, and four wide tires to keep the whole business on pavement. Its loud, smells like gasoline, and shakes, shudders, and bucks. It makes your arms tired and your feet hot. You nearly crash about once every 10 minutes. Its so damn wonderful that you cant believe it" Automobile Magazine 2004
Reply With Quote
  #7 (permalink)
Old 09-09-2017, 07:36 PM
LMH's Avatar
LMH LMH is offline
CC Member
Visit my Photo Gallery


Join Date: Apr 2005
Location: Tucson, az
Cobra Make, Engine: Hurricane. 351W something. More on that later!
Posts: 4,656
Not Ranked
Default

Hey you better change those bolts to locking nuts too!
Larry
__________________
Alba gu brŗth
Reply With Quote
  #8 (permalink)
Old 09-10-2017, 05:31 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

Alfredo,

The valve you have is close in design but different than the originals that were used, note the silver cap on the original valve photo. The original valves had "IMPERIAL" embossed on the selector handle. The silver part on the original valve was actually a diecast aluminum part. I have provided a photo below.
There were a couple of different methods used to identify the valve handle position, you need to remember that the labeling was done for the benefit of the driver. The labeling of the last iteration of the SAI team competition 289 Cobras had the labeling placed on the dash. I will try to post photos of the labeling from 1963-1964.
Attached Images

LMH and Riverside racer like this.
Reply With Quote
  #9 (permalink)
Old 09-10-2017, 05:39 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

Here is the most common fastening method, either with the bolt head up or the nuts facing up.....
Attached Images

LMH likes this.
Reply With Quote
  #10 (permalink)
Old 09-10-2017, 06:09 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

FIA team 289 Cobra CSX2323 at the Nurburgring in 1964 just before it was wrecked......
The letters on the dash within the green box are for the fuel selector valve, "O" OFF, "M" MAIN and "R" RESERVE. There are other in period photos of other team Cobras that will show the same type of lettering but with the letters in different positions depending on how the mechanic building the race Cobra clocked the valve, there will be variances from car to car. There are also variances in locations, Miles had the selector valve diagram on the transmission tunnel behind the shifter on his Cobra where most of the FIA Cobras had them front and center on the dash.
Attached Images

LMH likes this.

Last edited by CompClassics; 09-13-2017 at 09:02 PM..
Reply With Quote
  #11 (permalink)
Old 09-10-2017, 06:45 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

There were always variations that were dependent on the mechanic that was building the race car and how they installed the valve assembly. You could also find a "T" designating the selector valves handle position between the letters, similar to this example.....
Attached Images

Reply With Quote
  #12 (permalink)
Old 09-10-2017, 11:26 PM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 369
Not Ranked
Default

Hi John
Many thanks for the pictures and the details.
"IMPERIAL" is embossed on the selector handle (to visible on the picture)

For the moment it is OK for me with the wrong cap.
CompClassics likes this.
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #13 (permalink)
Old 09-11-2017, 12:26 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,112
Not Ranked
Default

Ken Miles had the safer location then, with the fuel line outside the cockpit rather than behind the dash.
Reply With Quote
  #14 (permalink)
Old 09-11-2017, 09:52 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

Quote:
Originally Posted by xb-60 View Post
Ken Miles had the safer location then, with the fuel line outside the cockpit rather than behind the dash.

As far as I am aware, Ken Miles Cobra was plumbed no differently than the other comp Cobras equipped with the fuel valve selector. His Cobra still had the switch and the fuel pressure gauge which was mounted in the dash, the only fuel line entering the interior of the car was the fuel pressure gauge plumbing.

Last edited by CompClassics; 09-11-2017 at 02:03 PM..
Reply With Quote
  #15 (permalink)
Old 09-13-2017, 07:23 AM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 369
Not Ranked
Default

Now I understand what they have signed on the dash

It would help some times if I would search for details on the pictures I've on paper and not only on the PC....
CompClassics likes this.
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #16 (permalink)
Old 09-13-2017, 10:11 AM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

It would be much safer for the drivers to have the fuel lever selector positions up on the dash, the less time the drivers took their eyes off the road the better!

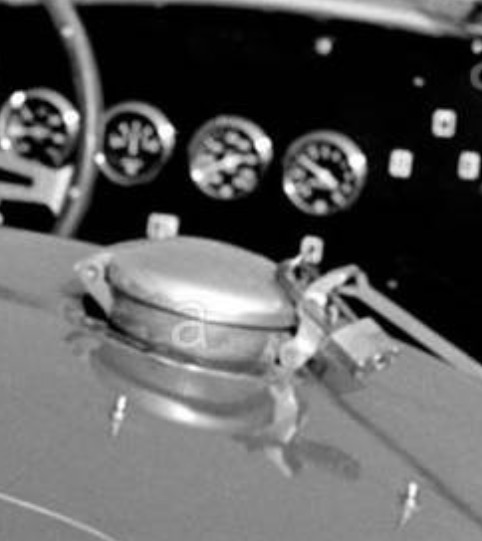

On another note Armado's photo shows the padlocked fuel cap and the Smiths Chronometric tachometer that were also used on the FIA Cobras (green circles).
Attached Images

Reply With Quote
  #17 (permalink)
Old 09-13-2017, 01:26 PM
ALF's Avatar
ALF ALF is offline
CC Member
Visit my Photo Gallery


Join Date: Sep 2003
Location: Switzerland, CH
Cobra Make, Engine:
Posts: 369
Not Ranked
Default

Hi John
You're right.
There is a Padlock on the gas cap using the same part you did provide to me.
After some investigation I diendtified the Padlock as a Slaymaker and I was able to find one


CompClassics likes this.
__________________
Driving with your Cobra is fun,
Racing with your Cobra is amazing,
Driving hill-climbing races with your Cobra is.... HAVEN!!
Reply With Quote
  #18 (permalink)
Old 09-13-2017, 04:10 PM
rsk289's Avatar
CC Member
Visit my Photo Gallery


Join Date: Nov 2004
Location: Cambridge, England, n/a
Cobra Make, Engine: 289 leafspring, r/p
Posts: 405
Not Ranked
Default

Just fyi, the legends in the first photos posted are not decals - they are Dymo labels. 'Dymo' was a hand-held stamping machine that reverse-embossed a strip of coloured sticky plastic tape for home labelling purposes. It was very common for every use in the UK in the sixties, and was very often seen on racing car parts.
I'm just looking at my 40-yr-old Dymo machine now...
...seems like they're still about, but they've smartened up the design a bit:

https://www.ebay.co.uk/p/Dymo-S07179...d=192118138289

Roger

'course, it's more than likely that these are US items anyway...
Reply With Quote
  #19 (permalink)
Old 09-13-2017, 08:58 PM
CompClassics's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2013
Location: Carlsbad, Ca
Cobra Make, Engine: SAI FIA, 289HP (5-bolt), 48IDA Webers
Posts: 677
Not Ranked
Default

SAI tended to use, paint, DYMO labels or industrial decals to label their racing Cobras. Earlier race Cobras tended to use a mix of the first two methods and later FIA Cobras tended to receive the decals. I believe the markings at the selector valves was possibly done for the mechanics servicing the cars.

Alfredo,

Great find! Most all of the SAI team Cobras used a locking system for the fuel cap, even the Daytona Coups.
Attached Images


Last edited by CompClassics; 09-13-2017 at 09:17 PM..
Reply With Quote
