Oiling system revisions.
Need some opinions on my proposed revisions to my oiling system on my new Dart block.
Currently coming out of block and going thru oil filter then thru oil cooler with the Accusump T'eed in between Accusump and return line to Block.
New engine will be adding an oil thermostat and also will be returning oil to block via the front and rear external oil feed ports.
I need some opinions on the corrrect order of layout with the added components.
Thanks,
Cranky ![Smilie](http://www.clubcobra.com/forums/images/smilies/smile.gif)
|
![Old](/forums/images/statusicon/post_old.gif)
01-26-2003, 07:37 AM
|
![Ron61's Avatar](http://www.clubcobra.com/forums/image.php?u=13624&dateline=1236776353) |
Senior Club Cobra Member
|
|
|
Join Date: Dec 2001
Location: Shasta Lake,
CA
Cobra Make, Engine:
Posts: 26,555
|
|
Not Ranked
Cranky,
There was a thread sometime back where they posted pictures of exactly what you are doing. I think it was under remote oil filters or something along that line but the pictures showed the thermostat and the whole layout. That particular one was using double filters but the same would apply with either double or single. I talked to the guys and I will see if I can find that thread as it was really well laid out.
Cranky,
I found the posts and they are about 35 days ago and it is under double oil filter unit and Roscoe has some pictures and an explanation of exactly how he has his connected and I think that is what you are looking for.
Ron ![Smilie](http://www.clubcobra.com/forums/images/smilies/smile.gif)
Last edited by Ron61; 01-26-2003 at 07:54 AM..
|
![Old](/forums/images/statusicon/post_old.gif)
01-27-2003, 12:07 PM
|
![Roscoe's Avatar](http://www.clubcobra.com/forums/image.php?u=10356&dateline=1098450609) |
CC Member
|
|
|
Join Date: Mar 2000
Location: Fairfield, NJ, USA,
NJ
Cobra Make, Engine: A & C, 351W, Tremec 3550. Exiled Member: Club Cranky
Posts: 5,897
|
|
Not Ranked
Cranky,
This is pretty much my layout. I come out of the block to the filter, from the filter to the thermostat to the cooler. From the cooler back through the thermostat and to a check valve. After the check valve is a 'T'. The accusump comes off the t and the other end goes back to the engine. The check valve prevents oil from going back to the cooler/filter and directs it to the engine where needed. Let me know if this makes sense or if you have any other questions. If it doesn't make sense take a couple of T&T's and read it again.
Roscoe
__________________
Roscoe
"Crisis occurs when women and cattle get excited!"....James Thurber
Last edited by Roscoe; 01-27-2003 at 12:10 PM..
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 12:40 PM
|
![hound dog's Avatar](http://www.clubcobra.com/forums/image.php?u=12792&dateline=1011045912) |
CC Member
|
|
|
Join Date: Jul 2001
Location: randleman, NC,
Posts: 407
|
|
Not Ranked
Roscoe,
I'm talking out of pure ignorance here, but why a thermostat on the oil cooler and why go through it twice? Is it set up to bypass the cooler until the oil heats up? That the reason for an in and an out on the thermostat?
h dog
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 12:47 PM
|
![Roscoe's Avatar](http://www.clubcobra.com/forums/image.php?u=10356&dateline=1098450609) |
CC Member
|
|
|
Join Date: Mar 2000
Location: Fairfield, NJ, USA,
NJ
Cobra Make, Engine: A & C, 351W, Tremec 3550. Exiled Member: Club Cranky
Posts: 5,897
|
|
Not Ranked
Hound dog,
You should have a thermostat because you do not want the oil to be too cool. Therm opens at 180. This is a pic of the therm and you can see the hookup
Roscoe
__________________
Roscoe
"Crisis occurs when women and cattle get excited!"....James Thurber
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 12:51 PM
|
![RACER X #99's Avatar](http://www.clubcobra.com/forums/image.php?u=9940&dateline=1024760281) |
CC Member
|
|
|
Join Date: Aug 1999
Cobra Make, Engine:
Posts: 2,888
|
|
Not Ranked
Roscoe,
That looks like it is cast steel, not aluminum , am I correct?
Cranky
Also who is the vendor?
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 12:53 PM
|
![Roscoe's Avatar](http://www.clubcobra.com/forums/image.php?u=10356&dateline=1098450609) |
CC Member
|
|
|
Join Date: Mar 2000
Location: Fairfield, NJ, USA,
NJ
Cobra Make, Engine: A & C, 351W, Tremec 3550. Exiled Member: Club Cranky
Posts: 5,897
|
|
Not Ranked
Cranky,
It's aluminum. I got it from either
http://www.pegasusautoracing.com
or
http://www.racerpartswholesale.com
It's also available from Canton racing.
Roscoe
__________________
Roscoe
"Crisis occurs when women and cattle get excited!"....James Thurber
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 01:01 PM
|
CC Member
|
|
|
Join Date: Jan 2000
Location: scottsdale,az,
Posts: 733
|
|
Not Ranked
Roger, run the external oil pump if you can. An external pump will ensure consistent oil pressure. Scott
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 01:10 PM
|
![hound dog's Avatar](http://www.clubcobra.com/forums/image.php?u=12792&dateline=1011045912) |
CC Member
|
|
|
Join Date: Jul 2001
Location: randleman, NC,
Posts: 407
|
|
Not Ranked
Thanks, Roscoe.
h dog
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 01:15 PM
|
![Chaplin's Avatar](http://www.clubcobra.com/forums/image.php?u=14230&dateline=1032989381) |
Senior Club Cobra Member
|
|
|
Join Date: Mar 2002
Location: God's country,
ME
Cobra Make, Engine: Original ERA 427sc, Powered by Gessford
Posts: 2,678
|
|
Not Ranked
Roscoe-
Keep that plumbing map handy. I think I want to install an oil temp thermostat in mine also. Be forewarned, I am going to be coming to you with questions . . .
Mike
__________________
Replica is not a dirty word.
"If you can't be a good example, then you'll just have to be a horrible warning."
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 01:17 PM
|
![Roscoe's Avatar](http://www.clubcobra.com/forums/image.php?u=10356&dateline=1098450609) |
CC Member
|
|
|
Join Date: Mar 2000
Location: Fairfield, NJ, USA,
NJ
Cobra Make, Engine: A & C, 351W, Tremec 3550. Exiled Member: Club Cranky
Posts: 5,897
|
|
Not Ranked
Anytime Mike..Just ask away. You can stop by and see the installation, just let me know when you'll be in the area.
Roscoe
__________________
Roscoe
"Crisis occurs when women and cattle get excited!"....James Thurber
Last edited by Roscoe; 01-30-2003 at 01:19 PM..
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 01:30 PM
|
![wilf leek's Avatar](http://www.clubcobra.com/forums/image.php?u=10549&dateline=1013637631) |
CC Member
|
|
|
Join Date: May 2000
Location: Leicester,
UK
Cobra Make, Engine: Crendon, windsor 408 stroker, tremec. Also GSX008
Posts: 1,406
|
|
Not Ranked
Gosh Cranky my man, it seems strange for a gashole to be contributing to a Cranky tech thread, but never mind, here goes:
My layout is simlar to Roscoe's, cept that I use an oil take off sandwich plate with the filter on it. The thermostat is incorporated into that plate. All the parts are Mocal.
I had some severe issues with the oil passages within that plate -they were very restricted - my die grinder worked overtime on it, both around the take-off ports, and also in and around the thermostat opening passages.
I spoke at length with Mocal about this - they admitted it was an issue, and were supposedly adressing it.
I also ran all the lines in dash 12 (3/4" id equivalent) aeroquip hose and fittings to ensure as low a pressure drop as possible. Some aeroquip (cheaper) fittings are to be avoided - they restrict flow. The non return valve to ensure the Accusump only feeds to the "in" side of the filter is a proper flap valve job, suitable for the line bores I used, and with negligible "forward" oil pressure drop. It alone ran to $150. SInce it is directly in the oil flow when the thermostat is open, I thought this worthwhile. There are other cheaper alternatives, but they offer far worse restriction to flow.
If you use the thermostat shown above I would recommend you open it up and satisfy yourself that the internal passageways are OK. Especially since you are talking about a road race engine here.
In fact I have issues with a lot of aftermarket oil system equipment - serious engine builders should not view it as "fit and forget", rather as "examine carefully and think about it".
My oiling system works fine on the highways and on the track, so I guess I must have done something right.
HTH
__________________
Wilf
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 04:28 PM
|
![SuperHart's Avatar](http://www.clubcobra.com/forums/image.php?u=11945&dateline=1017859902) |
CC Member
|
|
|
Join Date: Mar 2001
Location: Cinnaminson,
NJ
Cobra Make, Engine: Cobra Fibercraft Bodies 427 S/C, 351W disguised as a 427.
Posts: 391
|
|
Not Ranked
I agree with the English Gentleman. I too use the Mocal Sandwich Style Adapter with the built-in thermostat and it works "bloody soo-pah" once I had a go at it with a die grinder. Also, using that adapter certainly did cut down on the amount of plumbing involved. I will concede, though, that having a maze of stainless braided hoses and colorful fittings snaking around under your hood sure does impress the lookey loos at the car shows. I used -10 hoses and fittings to the oil cooler and the electric pre-luber and everything works great. I had asked an engine builder what size hose to use and he recommended using the -10, saying that there were no oil passages in the engine even that large so he saw no sense in going with hoses any larger than that. ![Big Grin](http://www.clubcobra.com/forums/images/smilies/biggrin.gif)
__________________
Political correctness is a doctrine, fostered by a delusional, illogical minority, and rabidly promoted by an unscrupulous mainstream media, which holds forth the proposition that it is entirely possible to pick up a turd by the clean end."
Last edited by SuperHart; 01-30-2003 at 04:37 PM..
|
![Old](/forums/images/statusicon/post_old.gif)
01-30-2003, 05:45 PM
|
![RACER X #99's Avatar](http://www.clubcobra.com/forums/image.php?u=9940&dateline=1024760281) |
CC Member
|
|
|
Join Date: Aug 1999
Cobra Make, Engine:
Posts: 2,888
|
|
Not Ranked
Ok,
I made my decision, no external pump. Just the thermostat. This is just a fun car not a serious real racer. I do not have unlimited funds like some others. I had a budget planned for this new engine and I am already 2k over the budget. I need money for tires , motels, track fees and fuel for me and the car. I'm done.
Thanks everone for your input and great ideas.
Cranky aka Roger ![3d smile](http://www.clubcobra.com/forums/images/smilies/icon10.gif)
|
![Old](/forums/images/statusicon/post_old.gif)
02-04-2003, 09:07 AM
|
![Roscoe's Avatar](http://www.clubcobra.com/forums/image.php?u=10356&dateline=1098450609) |
CC Member
|
|
|
Join Date: Mar 2000
Location: Fairfield, NJ, USA,
NJ
Cobra Make, Engine: A & C, 351W, Tremec 3550. Exiled Member: Club Cranky
Posts: 5,897
|
|
Not Ranked

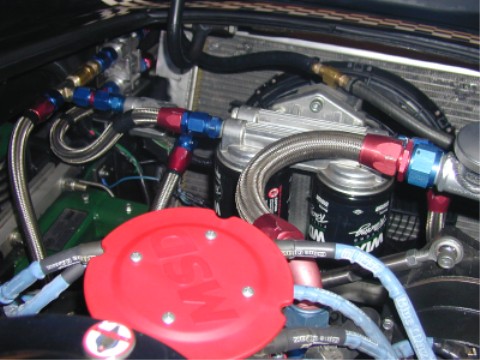

This is a shot of the thermostat and check valve (brass) and the 'T' to the accusump solenoid
Roscoe
__________________
Roscoe
"Crisis occurs when women and cattle get excited!"....James Thurber
|
![Old](/forums/images/statusicon/post_old.gif)
02-04-2003, 02:14 PM
|
![hcollado's Avatar](http://www.clubcobra.com/forums/image.php?u=14885&dateline=1064976295) |
CC Member
|
|
|
Join Date: Jul 2002
Location: Lawrenceville,,
GA
Cobra Make, Engine: Everett/Morrison- Boss 302 Stroked W/351W heads and a whole bunch of ponies
Posts: 207
|
|
Not Ranked
Roscoe,
I am adding an Acussump to my system but I was told by the folks at Canton to avoid the check valve if at all possible. They are concerned about the check valve getting stuck on the closed position and the engine cooking. I don't have a low oil preassure warning light or alarm.
Instead of a "T", I'll be using a "Y" fitting to bring in the oil from the Acussump as close as possible to the block.
Your opinion?
Hector
__________________
Hector Collado
Everyday is a Holiday ... every meal is a banquet.
|
![Old](/forums/images/statusicon/post_old.gif)
02-05-2003, 01:48 AM
|
![wilf leek's Avatar](http://www.clubcobra.com/forums/image.php?u=10549&dateline=1013637631) |
CC Member
|
|
|
Join Date: May 2000
Location: Leicester,
UK
Cobra Make, Engine: Crendon, windsor 408 stroker, tremec. Also GSX008
Posts: 1,406
|
|
Not Ranked
Hector - personally I can't see how an accusump system can be 100% effective without a check valve, certainly for pre-start pre-oiling. You need to ensure that all of the pressurised oil from the Accusump goes to the right place.
The possibility of the valve "sticking" is fairly remote if you go for an (expensive) flap valve type of large diameter. I would use no other type.
Without going to check, I seem to recall that a non return valve is shown on the Accusump instructions.
__________________
Wilf
|
![Old](/forums/images/statusicon/post_old.gif)
02-05-2003, 03:29 AM
|
![750hp's Avatar](http://www.clubcobra.com/forums/image.php?u=10122&dateline=1028279624) |
CC Member
|
|
|
Join Date: Nov 1999
Location: Brisbane, Australia,
Q
Cobra Make, Engine: Contemporary CCX3117 427FE
Posts: 4,381
|
|
Not Ranked
Accusump's oil line Check valve (#24-280) ensures all the oil being discharged out of an Accusump goes to lubricate the engine bearings and is not fed back toward the pump.
To be used in a system where a remote filter or cooler is used.
This was on their own website :
http://www.accusump.com/acc_products...ck_valves.html
|
