05-15-2013, 06:05 AM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Neutral

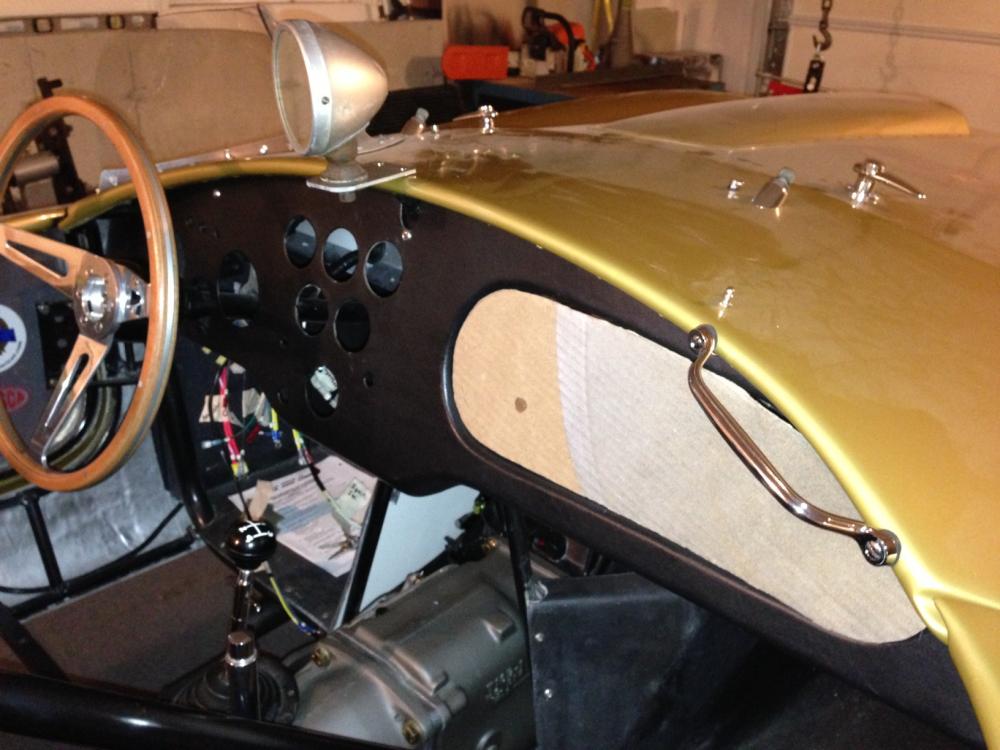

Have my nephew working on Radyot and glove box door...... Door to be made by Peter Klutt of Legendary
Last edited by 1985 CCX; 08-29-2016 at 09:33 AM..
|
05-15-2013, 09:04 AM
|
|
CC Member
|
|
|
Join Date: May 2006
Location: Portland,
OR
Cobra Make, Engine: ERA FIA, 1964 289->Webers
Posts: 3,689
|
|
Neutral
Tell him to hurry up! Summer is for driving!
__________________
ERA FIA 2088
|
05-21-2013, 07:02 AM
|
CC Member
|
|
|
Join Date: Aug 2006
Location: Jacksonville,
Fl
Cobra Make, Engine: Just a collection of parts right now...
Posts: 280
|
|
Neutral
Why not get shaft collars and washers. Bend the hooks to a 90 degree angle, but them through, put a fender washer on and then a shaft collar. The bungee will still look exactly like the originals, but be captive and you won't be scratching things trying to shove the hook in.
|
05-21-2013, 08:25 AM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Neutral
Another great approach........
|
05-26-2013, 07:29 AM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Neutral
Switch mods
The original Ford switch's need to be modified to fit the dash. I decided to do it as Shelby would. Grab whats on the shelf and make it work....
One used a larger type spring very similar to the Ford unit
another used a part from a coupling on a compressor
another used a simple aluminum sleeve from a plumbing application
Should be all set now....
Ready to install
|
05-26-2013, 02:55 PM
|
CC Member
|
|
|
Join Date: Jan 1999
Location: Bakersfield,
CA
Cobra Make, Engine: HI-TECH 289 FIA
Posts: 363
|
|
Neutral
I don't know what route you are going for a harness, store bought, custom or something from England, but this is what I did.
First you have to see were I came from. The attached pics show the original "professionally made for this car" harness. It worked as badly as it looked. The small multi pin connecters were under size and to my thinking there were too many connections and possible opportunities for failure. Same goes for the old fuse box. no less than 3 terminal strips. Way too much complexity and possible problems. pics 1 and 2
Everything was ripped out and I salvaged what I could. A new diagram was drawn up and revised more times than I can remember. Finally I posted drawings of each individual fuse circuit, in color, on the wall for reference. See background pic 3. A layout board was made using a dash as a template and labeled. I chose a non standard layout that put warning lights directly above the same gauge and was more symmetrical in appearance. A personal thing. I also went with a volt gauge over an amp gauge. Again safety. I used old AN aircraft switches with the radium tips.
All wires are full length with no connections except were necessary to splice for multiple uses(dash lights). All grounds are done by individual wire, no daisy chains.
40 amp relays are used to operate the fan, fuel pump, and horn. A load reduction relay is used for power supply to the dash, tail lights, wipers, instruments and an aux power port to remove any strain on the ignition switch. A VW headlamp relay is used for hi and low beams. I planned to use an electronic rear light splitter but it would not work with the LED boards I used in the rear lights. 4 relays were used to mimic the Lucas box. Should have just used some resistors in retrospect. The harness was wrapped in woven shrink wrap on the exterior runs. All connection were crimped, soldered, and shrink wrapped with plastic. New fuse box was labeled and the harness test fitted to a dash and smoke tested.
__________________
fiaroadster
Last edited by Rick 427 Cobra; 05-26-2013 at 02:58 PM..
|
05-26-2013, 03:10 PM
|
CC Member
|
|
|
Join Date: Jan 1999
Location: Bakersfield,
CA
Cobra Make, Engine: HI-TECH 289 FIA
Posts: 363
|
|
Neutral
Final pic shows the test fit. All components are under the dash including the fuses, MSD, and battery cut off (theft more than anything). Not original but I like a clean under hood look. The only harness connectors are for the TI switch and the harness to the rear.
__________________
fiaroadster
Last edited by Rick 427 Cobra; 05-26-2013 at 03:13 PM..
|
05-26-2013, 03:23 PM
|
|
CC Member
|
|
|
Join Date: May 2006
Location: Portland,
OR
Cobra Make, Engine: ERA FIA, 1964 289->Webers
Posts: 3,689
|
|
Neutral
Nice looking harness! Very clean!
__________________
ERA FIA 2088
|
05-28-2013, 06:13 AM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Neutral
Thanks Rick
|
05-30-2013, 01:12 PM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Neutral
Ready to install......................
|
05-30-2013, 03:01 PM
|
|
CC Member
|
|
|
Join Date: May 2006
Location: Portland,
OR
Cobra Make, Engine: ERA FIA, 1964 289->Webers
Posts: 3,689
|
|
Not Ranked
You sure you got it right?
__________________
ERA FIA 2088
|
05-30-2013, 05:31 PM
|
CC Member
|
|
|
Join Date: Jul 2003
Cobra Make, Engine: Unique Motorcars 289 USRRC, 1964 289 stroked to 331, toploader
Posts: 1,027
|
|
Not Ranked
Hey, my steering wheel looks exactly like yours !
Awesome!
__________________
Paul
Unique Motorcars 289 USRRC
1964 289 5-bolt block
Toploader and 3.31 rear
|
05-31-2013, 12:29 PM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Not Ranked
Nice job Paul!
Weekend on car to hopefully make some headway....
|
05-31-2013, 08:08 PM
|
CC Member
|
|
|
Join Date: Jul 2003
Cobra Make, Engine: Unique Motorcars 289 USRRC, 1964 289 stroked to 331, toploader
Posts: 1,027
|
|
Not Ranked
Thanks Jeff, you do nice work !
Hope you have a productive session or to in the next couple of days. Keep us posted to how it goes.
__________________
Paul
Unique Motorcars 289 USRRC
1964 289 5-bolt block
Toploader and 3.31 rear
|
06-01-2013, 12:49 PM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Not Ranked
Had a wheel wire session with Dennis and his SPF this am..
Installed driveshaft... Wheels to motor all done.
Just need to weld on the driveshaft loop....
Last edited by 1985 CCX; 06-19-2013 at 05:43 AM..
|
06-01-2013, 06:14 PM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Sep 2000
Location: Holderness, NH, US of A,
NH
Cobra Make, Engine: CSX 4772 old iron FE
Posts: 5,499
|
|
Not Ranked
Excellent Jeff! Can we drop the tail of the trans a tad or do you think it needs it?
|
06-04-2013, 06:38 AM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Not Ranked
Finally drilled body to accept the Enots cap for fuel addition. This starts the process of fuel lines for the start up.
I think it is good as the trans will hit the crossmember if I lower it another 1/2", wanted a little bit of play. Rubber mount may also settle a bit. I am very close to the tailshaft height when compared to 2136. Should be fine.... Thanks for question.
Vintage bowmalloy hardware was from Kevin Ahern. Thanks!
Last edited by 1985 CCX; 08-29-2016 at 09:34 AM..
|
06-04-2013, 06:50 AM
|
|
CC Member
|
|
|
Join Date: Jul 2006
Location: Redding,
CA
Cobra Make, Engine: FFR chassis and suspension, Mr. Bruce 289 FIA body
Posts: 1,066
|
|
Not Ranked
This is one of my favorites thread to follow. Great progress!
|
06-04-2013, 09:23 AM
|
CC Member
|
|
|
Join Date: Mar 2009
Location: Mendota,
IL
Cobra Make, Engine:
Posts: 693
|
|
Not Ranked
Hi Jeff How long is your drive shaft (center to center) of U joint. It doesn't look like it could slide much more into the trans. When I was checking things out for my build . I thought boy this thing needs a short drive shaft.
Reading between the lines it sounds like you might think the trans mount might need to be lowered . Is this for drive line at the correct angles. I take it that the big fin or gusset on the T10 tail housing will hit the cross tube if lowered much more. How far down is the top of the trans mount (the compared to the top of the frame. I don't mean the rubber but the steel where the rubber mounts. I ask some of this because I think there is some problems with my plans . I know that I am building a coupe and the engines were lower 1 inch and offset to the right 1 inch. I am not sure if they lower the trans mount on my plans. I think if it were lowered it wound have better drive line angles. I have a pic of one of the coupes that shows the trans mount has been lowered and the cross tube dented for clearance of the shift linkage and the fin on the tailstock .
Your car is sure looking good .
Mark
Last edited by MAStuart; 06-04-2013 at 09:28 AM..
|
06-04-2013, 11:12 AM
|
|
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302), HTM111 (427 Comp), CSX2375R (289 Comp) and Scratch 427 S/C
Posts: 18,779
|
|
Not Ranked
Mark
The driveshaft from base of the flange yoke to center of trans yoke is 9 5/8". I have about 1/8" to the trans boot then it will sqeeze an additional 3/4". Keep in mind I have IRS so the only movement of the trans yoke will be motor movement in the rubber mounts. Motor, bellhousing, trans and differential all connected to frame thus stuck fast. Movement comes from the half shafts.
The trans height does not offer a straight shot to the diffy. The drive shaft is designed for slight offsett using 1310 ujoints. In order to drop the trans low enough to make straight shot I would have to shave bottom of trans, lower trans mount, possibly cut out and lower crossmember or notch it. At that point I would push into the driveway and light her up..... Then buy a KMS....
This set up will work just fine...
|
