  #61 (permalink)
Old 01-26-2017, 02:58 PM
Senile Club Cobra Member
Visit my Photo Gallery


Join Date: Feb 2001
Location: Buffalo, NY USA, NY
Cobra Make, Engine: Time Machines Motorsports LLC- Superformance Dealer
Posts: 3,745
Not Ranked
Default

Quote:
Originally Posted by 1795 View Post
Rick,

Thanks! Looking forward to hearing that information. That means that I have to start clearing room in the workshop
As I relayed to you the car in the body shop being smoothed and prepped for paint which will be late next week/early following week.

On to final assembly and then into the container........
__________________
"I'm high all right, but on the real thing....powerful gasoline and a clean windshield..."

http://www.timemachinesauto.com/
Reply With Quote
Sponsored Links
Sponsored Links
  #62 (permalink)
Old 01-26-2017, 03:05 PM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,089
Not Ranked
Default

Quote:
Originally Posted by Mark IV View Post
As I relayed to you the car in the body shop being smoothed and prepped for paint which will be late next week/early following week.

On to final assembly and then into the container........
Jim - what colour?
Reply With Quote
  #63 (permalink)
Old 01-26-2017, 03:31 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default

Glen,

Going with Monza red as I do not want to go with the traditional blue and want the car to stand out when I go by other cars on the track
__________________
Reply With Quote
  #64 (permalink)
Old 01-27-2017, 03:43 AM
xb-60's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2009
Location: Adelaide, SA
Cobra Make, Engine: AP 289FIA, SBF
Posts: 4,089
Not Ranked
Default

Monza red is good....but Viking Blue is better (more stealthy, no?)
CompClassics likes this.
Reply With Quote
  #65 (permalink)
Old 02-16-2017, 02:20 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default What a beautiful car!

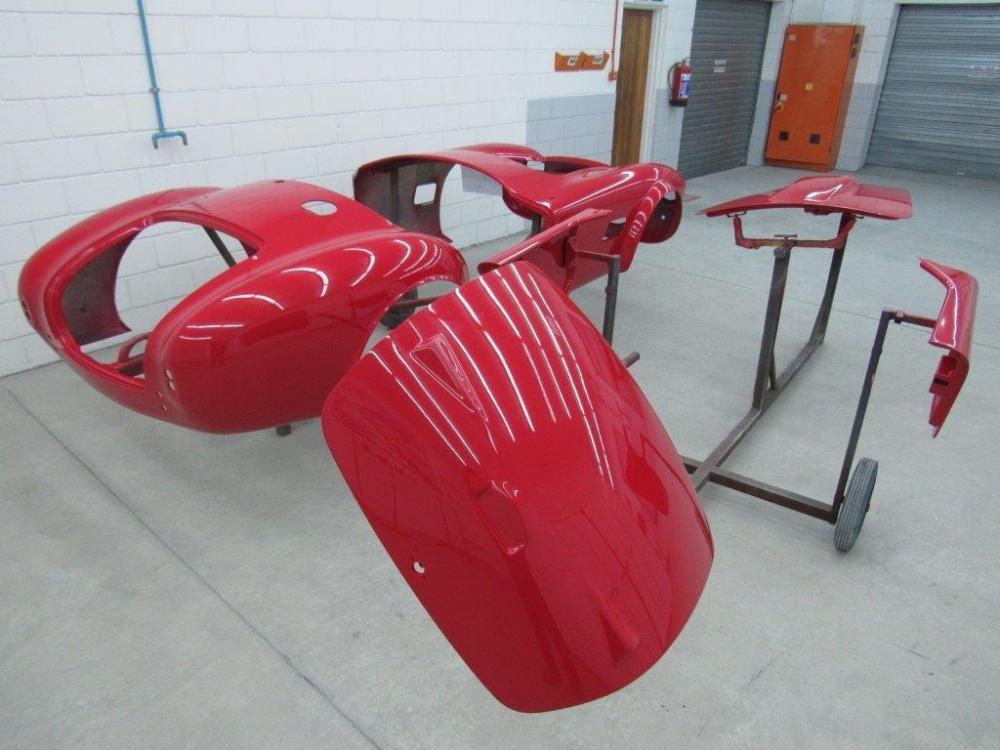

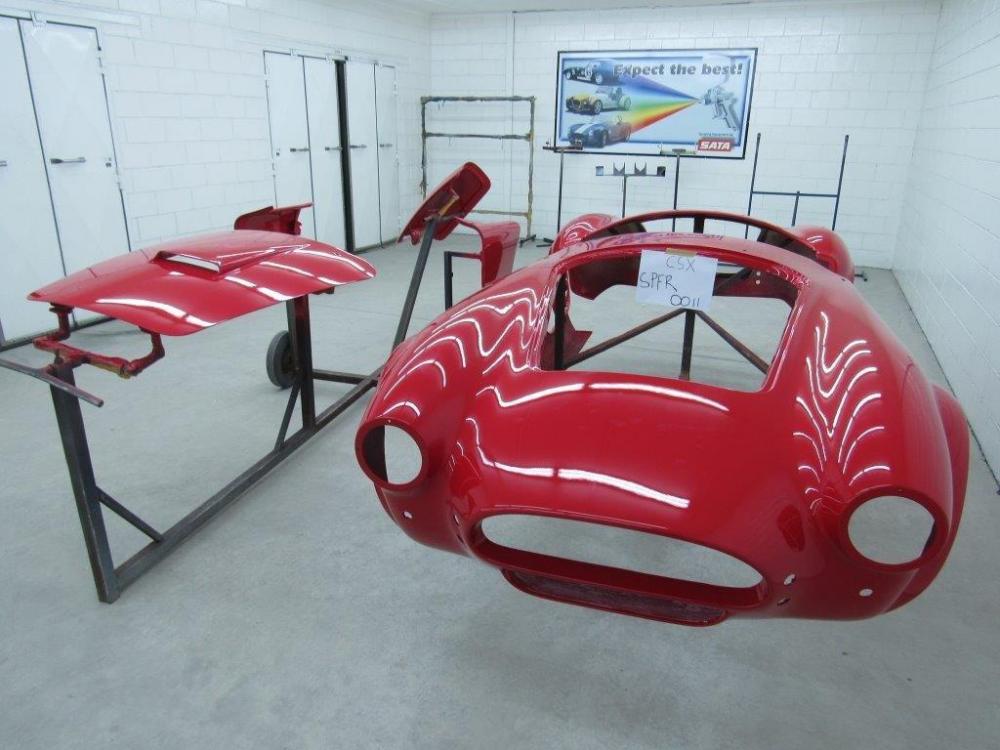

Well, the paint job is finally complete and I must say that it looks great! I cannot wait to have the car back home. Hopefully it will not be much longer before she arrives. You will not miss that car on the track. Hell, it looks fast just sitting there

Hope to have more pictures soon in the coming weeks. Spring is approaching and I have an itch that needs to be itched!

Looks like mine is SPFR0011. I am assuming that means Superformance Riverside Racer.
xb-60 and Riverside racer like this.
__________________

Last edited by 1795; 02-16-2017 at 05:28 PM.. Reason: forgot something
Reply With Quote
  #66 (permalink)
Old 02-16-2017, 02:57 PM
CC Member
Visit my Photo Gallery


Join Date: Jan 2010
Cobra Make, Engine: AC cox 2699 roadster Riverside FIA RSR2001
Posts: 232
Not Ranked
Default

You putting rondels and number on now or once you have it at home Jim?
Reply With Quote
  #67 (permalink)
Old 02-16-2017, 03:04 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default

Ross,

Saving some money and putting on the roundels and numbers when it gets home. Already have them here. It will be #10, my first son's birthday. May even look at adding a transverse stripe in white as well.
__________________
Reply With Quote
  #68 (permalink)
Old 02-16-2017, 04:06 PM
cobrakiwi's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2006
Location: Charlottesville, va
Cobra Make, Engine: Coombe, Shelby Block 496
Posts: 769
Not Ranked
Default

Nice,
passing the paint milestone definitely gets the enthusiasm peaked
Congrats
Reply With Quote
  #69 (permalink)
Old 02-16-2017, 05:23 PM
byronpete21's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jan 2015
Location: Windsor, VA
Cobra Make, Engine: ERA 289 FIA with a 347 cu in engine
Posts: 103
Not Ranked
Default

Congrats on the paint job. The red looks amazing.
Reply With Quote
  #70 (permalink)
Old 02-16-2017, 05:29 PM
Buzz's Avatar
CC Member
Visit my Photo Gallery


Join Date: Feb 2000
Location: St. Lucia, West Indies, WI
Cobra Make, Engine: Unique 427SC 383 stroker
Posts: 3,021
Not Ranked
Default

Congrats - looks great! Really looking forward to seeing this car when it's done!
__________________
Tropical Buzz

Grant me the serenity to accept the things I cannot change, the strength to change the things I can, and the wisdom to know the difference. -(wasn't me)

BEWARE OF THE DOGma!! Dogmatism bites...
Reply With Quote
  #71 (permalink)
Old 02-16-2017, 05:30 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default

Yes, it finally makes me feel like I have a car coming. Until now, it has just been a bunch of parts sitting around the house and garage. They did a real nice paint job. Thanks for all the support.
__________________
Reply With Quote
  #72 (permalink)
Old 02-25-2017, 05:59 AM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default Differential venting

Quote:
Originally Posted by Morris View Post
OK Jim

Here we go..... I'm only going to suggest things we did when we were racing against the A/P and B/P cars ... like you I didn't have all of the money, so I had to figure out how to do modifications on my own .... As luck would have it, we learned a lot and had much more confidence in the car when we got on the track. It is a great feeling when you win and have built or modified the vehicle you are driving.

Since you showed the Rear End.... here's some photo's of what you may want to consider ....










One of the problems we encountered was filling up our catch can on the rear end .... and we found out that the oil was going out the breather or vent hose into the catch can .... and then would not return to the diff.... then we would damage the differential.....

These are the mods we did to fix that issue...

These are the things we did to KMP259 as well and it has proven very successful.
Morris,

My welding skills scare me and I did not want to take a chance on ruining the rear cover for the differential. In addition, on the jag differential that I have, the design is different and there is a block inside of the vent hole that prevents direct access of fluid to the hole.

But I am concerned that there still could be a loss of fluid while racing, so this is my solution. Let me know what you think.

I made an aluminum cover (the rear cover for the differential is aluminum).

Drilled and tapped it for screws and a 90 degree elbow fitted with a hose barb.


I have a used piece of stainless steel braided fuel line that I plan on running from the differential into the bottom of a catch can located in the trunk, so that if any fluid were to escape into the catch can it could flow back into the differential. I will have air vents in the top of the catch can to allow for air pressure to escape.


Any thoughts? Using the braided fuel line to decrease the likelihood that the line could get cut while the car is engaged in hard cornering.

Car should be completed at the factory next week and shipped out. April and May are going to be very busy months.

Jim
__________________
Reply With Quote
  #73 (permalink)
Old 02-25-2017, 01:40 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2003
Location: Gurnee, IL
Cobra Make, Engine: Kirkham #259
Posts: 905
Not Ranked
Default

Jim

The opening you are using..... is for the return cooled oil coming from the cooler.... on that rear end cover.

That is a bad place to try to vent from.... if you look closely it is directly in line with the spinning differential where all of the splash is coming from.... If you look at the photo I just posted, it shows the inside of the cover and is just off of the Ring Gear and to low for a vent hole. Also remember as you go around turns and are pulling X-amount of G's... the oil is trying to get our the sides as well.

So you need to plug that hole. Then go to the top hole on the cover and do the work we did on the inside of our diff to prevent the oil from pushing out of the rear end.... the oil will sling into the vent hole and then keep pushing oil up to the catch can.... and eventually deplete all of the oil in the Rear End by continued forcing of the oil into the vent hole.

That is why we have a cover over the hole with a fence below it so that the oil coming off of the Differential doesn't get to the vent hole. the large plate keeps the oil from the Ring Gear from getting to the vent hole.

Also only use AN fitting with Stainless braided lines.... you can't get a worm clamp to remain tight on a hose barb made for a rubber hose. especially situations where there is a lot of oil.

__________________
Morris
Reply With Quote
  #74 (permalink)
Old 02-25-2017, 01:51 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2003
Location: Gurnee, IL
Cobra Make, Engine: Kirkham #259
Posts: 905
Not Ranked
Default

PS

If you look at the large fence that goes within 1/8" of the differential .... it's not very far from the vent hole .... also the Jag cover in my photo show's a small fence around the vent hole ...but that is not enough shielding of the vent hole to go on a race track.

And you can say that oil can drain back in the the rear end from the catch can.... but it should never get there in the first place.... if it does ... you will run the diff dry or low on oil and severely damage the bearings and seals.

The oil needs to stay in the rear end and lubricate the componets even when you are thrashing around a race track.

I'm just saying....
__________________
Morris
Reply With Quote
  #75 (permalink)
Old 02-25-2017, 02:28 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default

Morris,

Ok, thought that it looked like a large hole for a vent. There is a small hole that has a plastic plug in it directly over the differential oil fill hole towards the top of the cover, I imagine that is where the vent is supposed to be. Not sure why it is plugged. I do not see any other openings on the differential cover.

I can easily make another cover to block that return hole for the differential cooler, or decide to plumb in a differential cooler. Not sure that I will need one as I do not plan on running any endurance races right now.

the weather has turned cold again, so I will wait until it gets warmer before taking the rear cover off and seeing what is there. Will take your advice concerning how the hose that runs to the catch can is connected.

Thanks for the advice, greatly appreciated.

Jim
__________________

Last edited by 1795; 02-25-2017 at 03:08 PM.. Reason: re-wording
Reply With Quote
  #76 (permalink)
Old 02-27-2017, 01:31 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default Differential cover pictures

Morris,

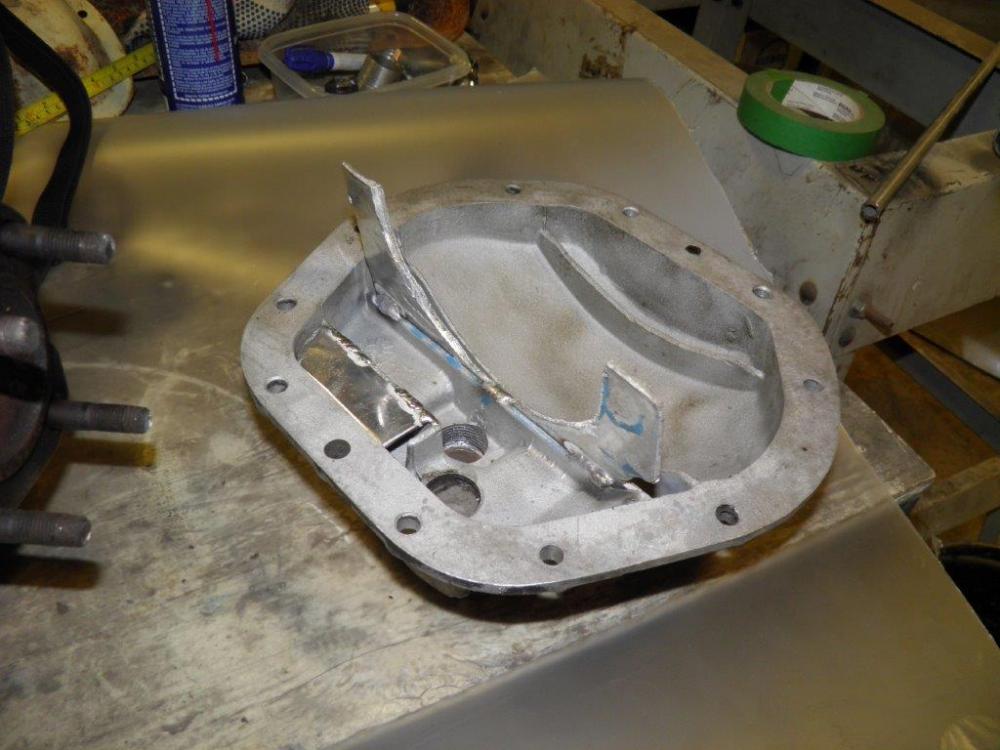

Attached are some photos of the back cover, it is a little different on the inside than yours. Ross was planning on welding the rear cover similar to what you have done. Given the inside of this back cover, what do you think?


There is a vent tube that comes down at a right angle and has oil deflectors to the side and below it. Not sure if this vent will require further modifications? Your thoughts?


What would you add?

New gears and LSD.


Thanks.

Jim
__________________

Last edited by 1795; 02-27-2017 at 01:38 PM.. Reason: forgot something
Reply With Quote
  #77 (permalink)
Old 02-27-2017, 01:33 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default More cobra pictures

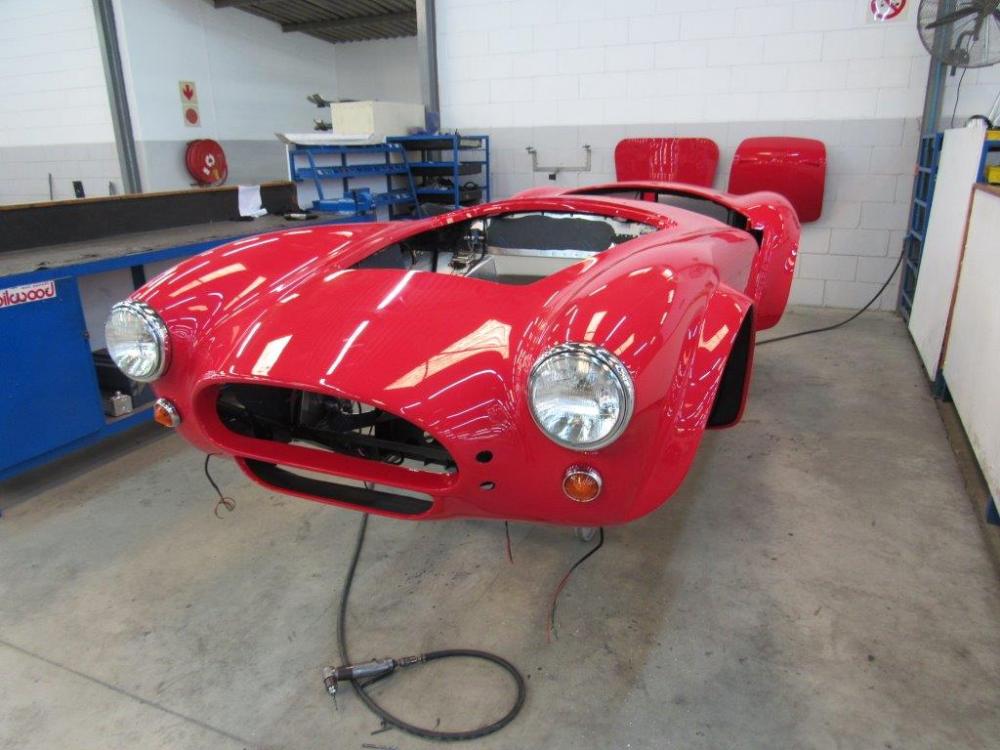

Things are moving along. New photos from the factory



As I write these photos are probably obsolete and a lot more has been accomplished. Starting to really get the itch. Went to an indoor go-kart track this weekend and started honing my skills.

Jim
__________________
Reply With Quote
  #78 (permalink)
Old 02-27-2017, 02:21 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2003
Location: Gurnee, IL
Cobra Make, Engine: Kirkham #259
Posts: 905
Not Ranked
Default

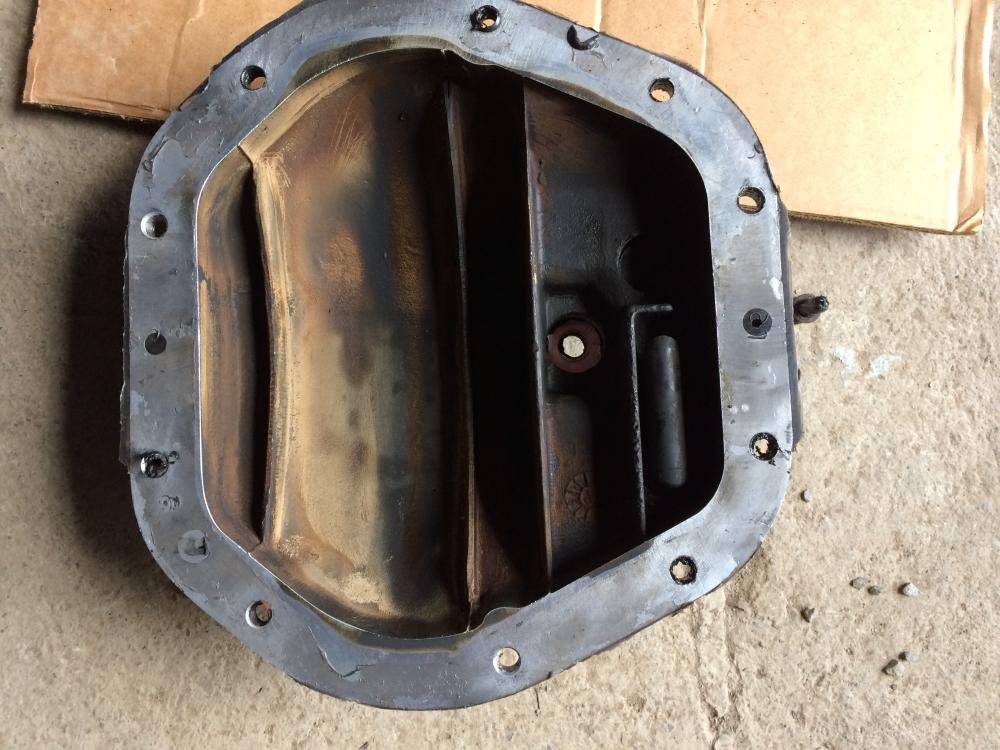

That cover is the same as the Jag cover I've been showing you.... that small tube that is the vent in the photo is upside down...... meaning the cover is upside down ....

The bad thing about that vent tube is there is no way to attach a braided line to the cover.... and it's probably rubber or plastic and will deteriorate in due time, no that won't work for a race track.... especially when you oil gets up to 300*plus degrees.... you need to do a 1/4" NPT the hole and attach a plug in that hole and then drill a hole in the top of the rear end where you have less chance of getting oil in the vent line.

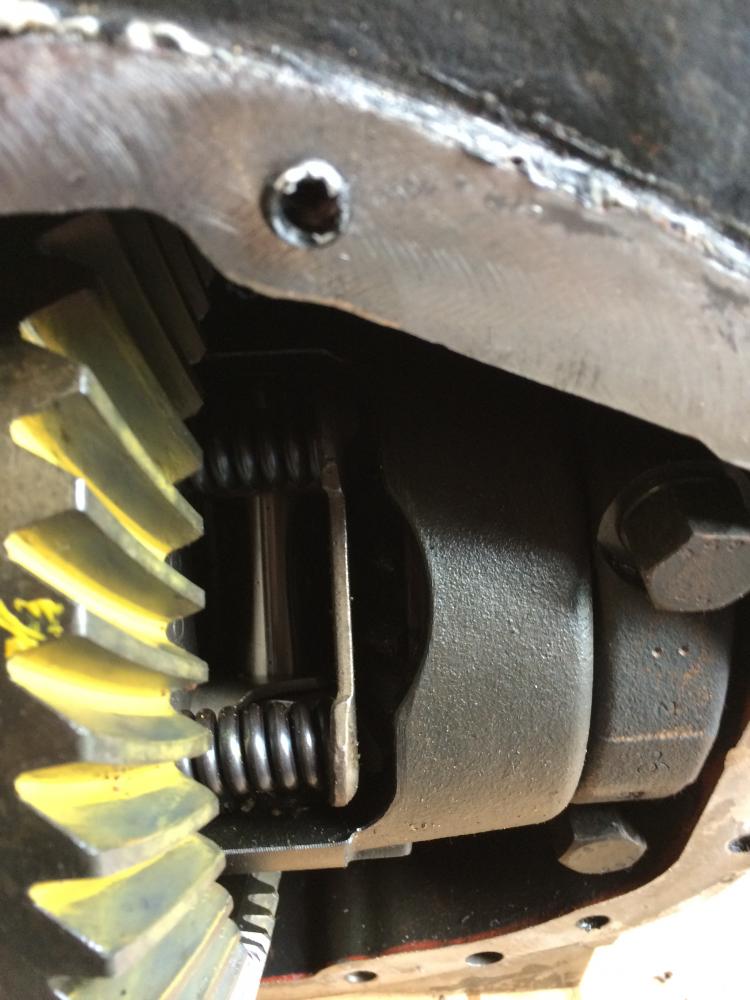

In this photo you can see how we drilled a hole in the top of the housing and put in a 90*degree nipple then put a fuel filter in line with the line going to the catch can. we also have the mods to the inside of the rear cover.... doesn't matter if it's steel or aluminum... that vent hole has to have the cover and fences to prevent oil from getting into the line.

If you are going to do it.... do it Right and then you don't have to be concerned about it later ..... like at a track ...

__________________
Morris
Reply With Quote
  #79 (permalink)
Old 02-27-2017, 02:24 PM
CC Member
Visit my Photo Gallery


Join Date: Dec 2003
Location: Gurnee, IL
Cobra Make, Engine: Kirkham #259
Posts: 905
Not Ranked
Default

While you are drilling and tapping holes in the case.... you might as well drill and tap a hole in the bottom of the case so you can drain the oil out of the diff at some later date....or plumb it for a cooler and pump.

That's a 3/8" NPT hole and tap.

__________________
Morris
Reply With Quote
  #80 (permalink)
Old 02-27-2017, 02:59 PM
1795's Avatar
CC Member/Contributor
Visit my Photo Gallery
Gold Star Contributor

Join Date: Aug 2013
Location: Bristol, NY
Cobra Make, Engine: SPF MKII Riverside Racer FIA
Posts: 1,234
Not Ranked
Default

Morris,

Ok, that helps. I understand what your have done a little better now. I was not aware that your cover had a similar vent tube coming down. Ross was suggesting that we may want to plug the oil return hole and move it forward, like you have done. We will plug both holes on the back cover. I like your idea of coming out of the top of the differential, as I was wonder how that vent would effectively release pressure being that the end of the tube was so far down from the top.

There already is a drain plug on the bottom of the differential and Ross and I have talked about using that to go to the cooler if we decided to go that route. We would install a tee fitting and have one go to the cooler and the other plugged for draining fluid.



Thanks for your suggestions, it has helped a lot. Just wanted to check back before we started to make adjustments and make sure that we were on the same page and why.

Jim
__________________

Last edited by 1795; 02-27-2017 at 03:45 PM.. Reason: forgot something
Reply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -7. The time now is 01:11 PM.


Powered by vBulletin® Version 3.8.0
Copyright ©2000 - 2018, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.6.0
The representations expressed are the representations and opinions of the clubcobra.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Shelby American, any other replica manufacturer, Ford Motor Company. This website has been planned and developed by clubcobra.com and its forum members and should not be construed as being endorsed by Ford Motor Company, or Shelby American or any other manufacturer unless expressly noted by that entity. "Cobra" and the Cobra logo are registered trademarks for Ford Motor Co., Inc. clubcobra.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting clubcobra.com. For full policy documentation refer to the following link: CC Policy
Links monetized by VigLink
